Drawn Hexagonal rotation

Question

I have code that I can draw a line that ends in a hexagon.

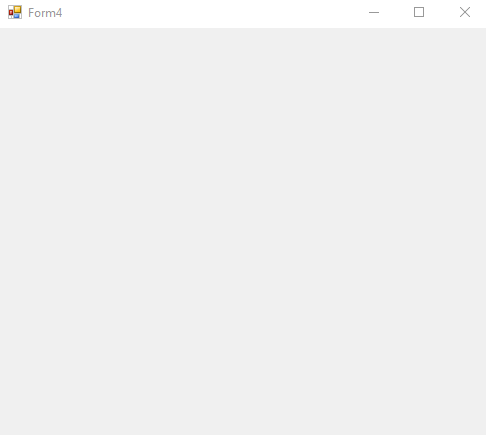

As shown below

CODES:

Imports System.Drawing.Drawing2D

Public Class Form4
       Dim p As Pen = New Pen(Color.Black)
    Private NewSegment As Segment1
    Private Segments As New List(Of Segment1)

    Private Sub PictureBox1_MouseDown(sender As Object, e As MouseEventArgs) Handles PictureBox1.MouseDown
              NewSegment = New Segment1(e.Location, e.Location)
        Segments.Add(NewSegment)
        PictureBox1.Invalidate()
    End Sub

    Private Sub PictureBox1_MouseMove(sender As Object, e As MouseEventArgs) Handles PictureBox1.MouseMove

        If NewSegment Is Nothing Then Return
        NewSegment.Point2 = e.Location
        PictureBox1.Invalidate()
    End Sub

    Private Sub PictureBox1_Paint(sender As Object, e As PaintEventArgs) Handles PictureBox1.Paint

        e.Graphics.SmoothingMode = Drawing2D.SmoothingMode.AntiAlias
        For Each segment As Segment1 In Segments
            segment.Draw(e.Graphics)
        Next
    End Sub

    Private Sub PictureBox1_MouseUp(sender As Object, e As MouseEventArgs) Handles PictureBox1.MouseUp

        NewSegment = Nothing
    End Sub

    Private Sub PictureBox1_SizeChanged(sender As Object, e As EventArgs) Handles PictureBox1.SizeChanged
        PictureBox1.Invalidate()
    End Sub

 End Class

Class Segment1

    Private pt1, pt2 As Point
    Private angle As Double = 0
    Private length As Double = 0

    Private Shared SF As StringFormat
    Private Const RADIUS As Integer = 20
    Private Shared drawString As String = "TXT"
    Private Shared pen1 As New Pen(Color.Black, 1.5)
    Private Shared drawFontF As New Font("times New roman", 10)
    Private Shared rc As New Rectangle(New Point(-RADIUS, -RADIUS), New Size(RADIUS * 2, RADIUS * 2))

       Dim p As Pen = New Pen(Color.Black)

    Public Sub New(startPoint As Point, endPoint As Point)
            Point1 = startPoint
        Point2 = endPoint

    End Sub

    Public Property Point1 As Point
        Get
            Return pt1
        End Get
        Set(value As Point)
            pt1 = value
            UpdateAngleAndLength()
        End Set
    End Property

    Public Property Point2 As Point
        Get
            Return pt2
        End Get
        Set(value As Point)
            pt2 = value
            UpdateAngleAndLength()
        End Set
    End Property

    Private Sub UpdateAngleAndLength()
        angle = Math.Atan2(Point2.Y - Point1.Y, Point2.X - Point1.X) * 180.0 / Math.PI
        length = Math.Sqrt(Math.Pow(Point2.X - Point1.X, 2) + Math.Pow(Point2.Y - Point1.Y, 2))
    End Sub

    Public Sub Draw(gr As Graphics)
               ' save the current state of the graphics
        Dim curState As GraphicsState = gr.Save()

        ' move the origin to the start point of the line
        gr.TranslateTransform(Point1.X, Point1.Y)
        ' rotate the whole surface
        gr.RotateTransform(angle)

        ' draw the line on the x-axis
        gr.DrawLine(pen1, 0, 0, CInt(length), 0)

        gr.TranslateTransform((-RADIUS * 2), 0)

             gr.DrawPath(pen1, GetHex(0, 0))


            gr.TranslateTransform((RADIUS * 2), 0) ' midway between center and opposite side of circle

        ' orient back to the "normal" so the 90 is upright
        gr.RotateTransform(-angle)
        ' draw the 90
        gr.DrawString(drawString, drawFontF, Brushes.Black, rc, SF)

        ' put the graphics back to the way it was originally
        gr.Restore(curState)
    End Sub

    Private m_selected As Boolean
    Public Property Selected As Boolean
        Get
            Return m_selected
        End Get
        Set(value As Boolean)
            m_selected = value
        End Set
    End Property


       Function GetHex(x As Integer, y As Integer) As GraphicsPath
        Dim g As New GraphicsPath

        Dim dr As Double = Math.PI / 180
        Dim xo As Single = Convert.ToSingle(Math.Sin(30 * dr) * RADIUS)
        Dim xl As Single = Convert.ToSingle(Math.Cos(30 * dr) * RADIUS)

        Dim p(5) As PointF
        p(0) = New PointF(x + RADIUS, y)
        p(0) = New PointF(x + RADIUS + xl, y + xo)
        p(1) = New PointF(x + RADIUS + xl, y + xo + RADIUS)
        p(2) = New PointF(x + RADIUS, y + xo + xo + RADIUS)
        p(3) = New PointF(x + RADIUS - xl, y + xo + RADIUS)
        p(4) = New PointF(x + RADIUS - xl, y - xo + RADIUS)
        p(5) = New PointF(x + RADIUS, y)
        g.AddPolygon(p)
        Return g
    End Function

End Class

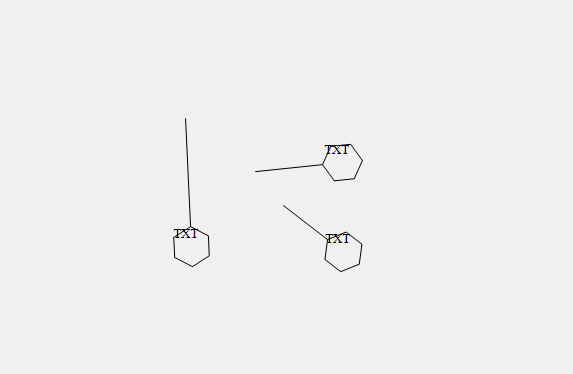

Now my problem is that I can not change the angle of the hexagon so that when I move the line it looks like the image below

Answer 1

Hi @user20 ,
I modified the location of the hexagon generation based on your code.
Try the code below.

    Function GetHex(x As Integer, y As Integer) As GraphicsPath
        Dim g As New GraphicsPath

        Dim dr As Double = Math.PI / 180
        Dim xo As Single = Convert.ToSingle(Math.Sin(30 * dr) * RADIUS)
        Dim xl As Single = Convert.ToSingle(Math.Cos(30 * dr) * RADIUS)

        Dim p(5) As PointF
        p(0) = New PointF(x + RADIUS + xo, y + xl)
        p(1) = New PointF(x + 2 * RADIUS + xo, y + xl)
        p(2) = New PointF(x + 3 * RADIUS, y)
        p(3) = New PointF(x + 2 * RADIUS + xo, y - xl)
        p(4) = New PointF(x + RADIUS + xo, y - xl)
        p(5) = New PointF(x + RADIUS, y)
        g.AddPolygon(p)
        Return g
    End Function

Here is my resoult.

Best Regards.
Jiachen Li

----------

If the answer is helpful, please click "Accept Answer" and upvote it.
