Graph API authentication skips over sign in steps

Question

Hi there,

I have creating an api connection with graph, specifically to get the refresh token.

When i send out the call for authorization it just skips over the sign-in steps. It returns a code but no token.

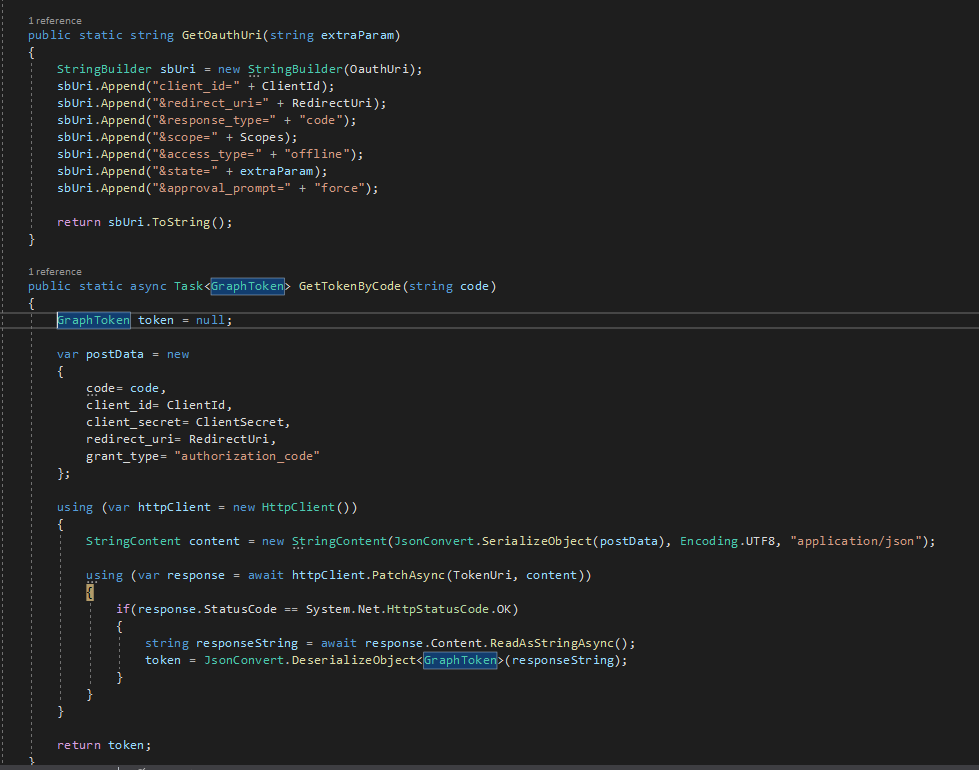

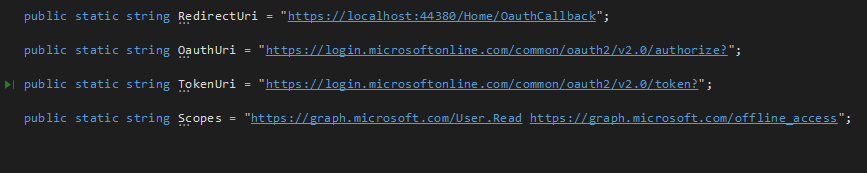

I followed 2 separate online tutorials and I have the same issue with both. Is it some settings that i am missing?

any help would be appreciated, thank you.

Dan

Answer 1

Hi @Dan

The official sample does not provide you with a web view to log in the user. You need to complete the user interaction flow in the browser to obtain the authorization code.

The part of OAuth 2.0 authorization flow is as below:

If you want to get an access token, I recommend you to use the graph SDK. However from my testing MSAL doesn't seem to expose refresh_token to developers, it only refreshes the token for you when your access token expires.

using Microsoft.Identity.Client;
using Microsoft.Graph.Auth;

namespace test1 {

    class Program

    {
        static async System.Threading.Tasks.Task Main(string[] args)
        {
                        string clientId = "{client id}";
                        string clientSecret = "client secret";
                        string redirectUri = "redirect url";
                        string authority = "https://login.microsoftonline.com/{tenant id}";
                        string authorizationCode = "auth code";

                        string[] scopes = new string[] { "Mail.Read openid profile email offline_access" };

                        IConfidentialClientApplication app = ConfidentialClientApplicationBuilder
                            .Create(clientId)
                            .WithRedirectUri(redirectUri)
                            .WithClientSecret(clientSecret)
                            .WithAuthority(authority)
                            .Build();

                       AuthorizationCodeProvider auth = new AuthorizationCodeProvider(app, scopes);

            var authResult = await app.AcquireTokenByAuthorizationCode(scopes, authorizationCode).ExecuteAsync();

            Console.WriteLine(authResult.AccessToken);

        }

    };
}

Of course you can use postman to request the /token endpoint to get the refresh token.

---
