Comparing values in Sharepoint list, from two columns and conditional format result

Question

I can't seem too find the right JSON code for a Sharepoint 365 list to compare two columns' values with conditional formatting. Trying to compare a Monthly Target number with actual Monthly number achieved, making the Monthly number red, green or yellow depending on criteria. Sharepoint lists don't allow the second column to be selected as a comparison...just a value.

I tried finding a JSON code, but no luck. I tried creating a calculated column that would return a colour, but I don't know what code to put in.

Answer 1

Hi @Drinkwalter, Lisa

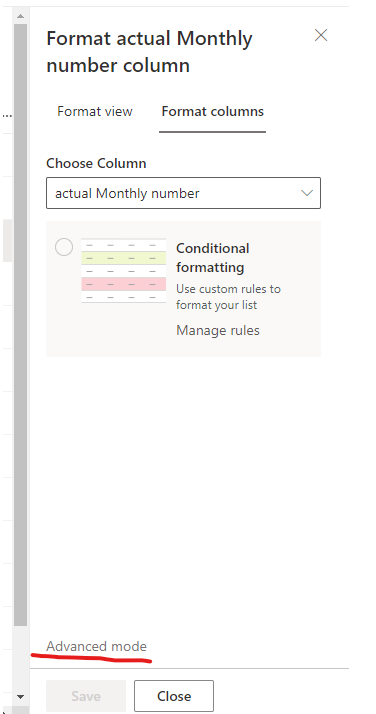

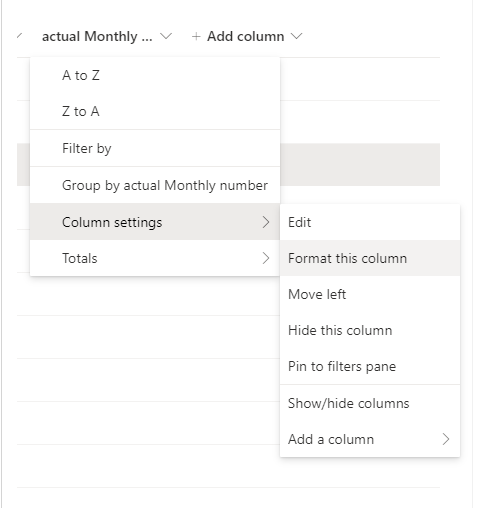

If you just want to make the Monthly number red, green or yellow depending on criteria, you could use column formatting: column settings > format this column >Advanced

Then copy the code into it:

{
  "$schema": "https://developer.microsoft.com/json-schemas/sp/v2/column-formatting.schema.json",
  "elmType": "div",
  "txtContent": "=toString((@currentField)*100)+'%'",
  "style": {
    "color": "=if([$MonthlyTargetnumber] <(@currentField),'red','green')"
  }
}

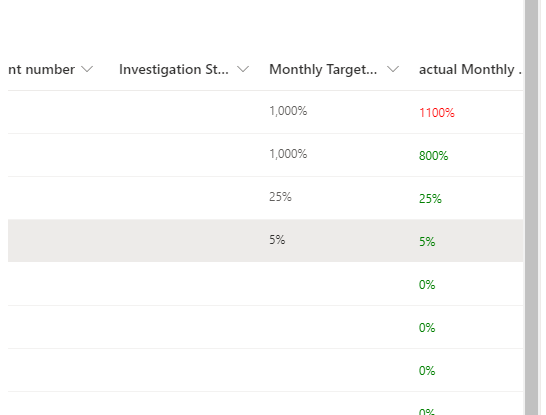

This is the result:

---

If the answer is helpful, please click "Accept Answer" and kindly upvote it. If you have extra questions about this answer, please click "Comment".

Note: Please follow the steps in our documentation to enable e-mail notifications if you want to receive the related email notification for this thread.

Answer 2

@Yi Lu_MSFT - thanks for responding...still having some issues.

Would like anything below target to be red

Would like anything equal to or above target to be green

If possible, would like to show in percent (it changes the formatting when I paste the code in)

Currently it is showing all numbers red.

Appreciate your help.
Thank you,
Lisa
