Programmatic Access to PowerPoint

Question

Is there a way to access Powerpoint functions from outside of Powerpoint (like Excel Serivces)? I need to remove all of the cropped areas of all images across hundreds of PPT files in order to remove potentially sensitive info that was manually cropped out of an image. The manual way to do it is to "Compress Images" from within PowerPoint. I am trying to figure out how to do this programmatically.

Answer 1

Hello @John Mas

Spent all day on this one and hope it works for you!

Note: Make sure you add the directory where the files are and put the file names in the array (called files). You should test this on a test directory with test presentations before pushing it into production.

This script is to blur out all images in every presentation on every slide. (it makes it small, copies the picture, pastes the picture, and resizes the width/height so it looks blurry as seen below)

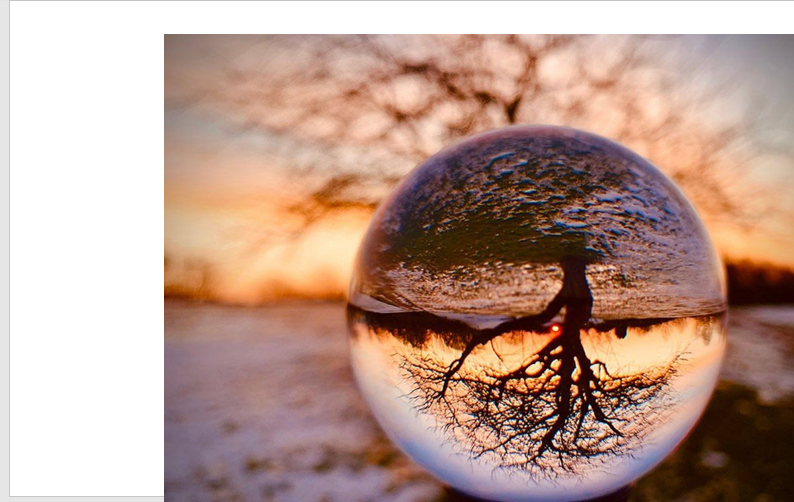

Before:

After:

Part of the script that got me going was from https://www.pcreview.co.uk/threads/compress-pictures-using-vba.2740465/ and https://www.mrexcel.com/board/threads/vba-check-if-shape-is-a-picture.1023100/ (for finding out msoPicture property) - the rest of it was using Microsoft Learn.

1) Open a new PowerPoint Presentation > Go to File > Options > Customize Ribbon > Add Developer Tab

2) Create a new Macro and open up Visual Basic and paste the following code and make edits to the directory and files array. Once done, press the play button and let the script open, do its work, save, and close the presentations.

Sub compressPictures()

' Set your directory to your files here.
directory = "C:\Users\yourdirectory\Downloads\"

' Create Array for files
Dim files As Variant
files = Array("pres3.pptx", "pres4.pptx")

For Each file In files

    Presentations.Open directory & file

    Dim counter As Integer
    counter = 1
    myCount = ActivePresentation.Slides.Count

    ' MsgBox myCount - debug

    While counter <= myCount

    ' slideCount = ActivePresentation.Slides(counter).Shapes.Count
    ' MsgBox slideCount - debug

        Set myDocument = ActivePresentation.Slides(counter)

        For Each Shape In ActivePresentation.Slides(counter).Shapes

            If Shape.Type = msoPicture Then

                storeWidth = Shape.Width
                storeHeight = Shape.Height

                Shape.LockAspectRatio = msoTrue
                Shape.Width = 10
                Shape.Copy

                ActivePresentation.Slides(counter).Select

                ActiveWindow.View.PasteSpecial ppPastePNG
                With ActiveWindow.Selection.ShapeRange(1)
                    .Left = Shape.Left:
                    .Top = Shape.Top
                    .Width = storeWidth:
                    .Height = storeHeight
                End With

            Shape.Delete

            End If
        Next

        counter = counter + 1

    Wend

    ActivePresentation.SaveAs directory & file

    ActivePresentation.Close

Next

End Sub

Docs used:

• https://learn.microsoft.com/en-us/office/vba/api/powerpoint.shapes.range
• https://learn.microsoft.com/en-us/office/vba/api/powerpoint.shapes.pastespecial
• https://learn.microsoft.com/en-us/office/vba/api/powerpoint.presentation.saveas
• https://learn.microsoft.com/en-us/office/vba/api/powerpoint.presentation.close
• https://learn.microsoft.com/en-us/office/vba/language/concepts/getting-started/using-arrays
• https://learn.microsoft.com/en-us/office/vba/language/reference/user-interface-help/whilewend-statement

---

If this is helpful please don't forget to mark as correct answer. This one was a lot of work and hope it helps you out.
