Parsing multiline data in Sentinel

Question

Parsing multiline data in Sentinel

Gaurav Ramteke 1

Hi,

We are getting data into LogAnalytics in following format;
One RaW logs has multiple lines in the log file and they repeat for each operations performed in the same log file

Reverse date time = 487930544
Sequence number = 2147488705
Component = BSS
Security event = FALSE
Event number = 2177
Event name = Export Configuration Completed
Event class = Software
Event severity = Info
Alarm event = FALSE
Server name = System Management
Function Name =
Hostname = servername
Browser Hostname =
Browser Address =
Operator = software_owner
Session ID = a/dXlasjndlnojqpjorn[wkeokjwpeownokansdlk
Date time = 03/08/22 22:54:08
Alarm status = None
Alarm distribution status = test_DIST_N_A
Alarm date time = 01/01/70 00:00:00
Alarm operator =
Configuration change = FALSE
Display text = Export Successfully Completed for entities: Operator. Total number of occurrence
Length = 95
Record version = 0
Merged text = Export Successfully Completed for entities: Operator. Total number of occurrences exported: 24

In the similar manner the lines will repeat itself for each of the activity in the same file

How do we collate the above lines as one entry for a log
Break the lines before "Reverse date time"
Parse it as a Key = Value pairs meaning Rows and Colums

2 answers

Your answer

Answer 1

Hi @Gaurav Ramteke

I have two ways I can achieve this (I am sure I can do a few more, with things building the dynamic type by replacing strings). Both my examples provide two sets of events within a single record, and therefore using an arbitrary "Event Id" to denote the difference records. You may have different ids you wish to use to identify unique records. I've changed the reverse date time and sequence numbers to identify different activities within the same record.

First way is by parsing the keys value pairs using the parse operator. This makes the assumption that all the keys are static and will always be provided. It allows the data to be typed easily while parsing. the \n forces the parse to check at the start of a new line, though may not be needed.

print source =

   Reverse date time = 487930544
       Sequence number = 2147488705
       Component = BSS
       Security event = FALSE
       Event number = 2177
       Event name = Export Configuration Completed
       Event class = Software
       Event severity = Info
       Alarm event = FALSE
       Server name = System Management
       Function Name =
       Hostname = servername
       Browser Hostname =
       Browser Address =
       Operator = software_owner
       Session ID = a/dXlasjndlnojqpjorn[wkeokjwpeownokansdlk
       Date time = 03/08/22 22:54:08
       Alarm status = None
       Alarm distribution status = test_DIST_N_A
       Alarm date time = 01/01/70 00:00:00
       Alarm operator =
       Configuration change = FALSE
       Display text = Export Successfully Completed for entities: Operator. Total number of occurrence
       Length = 95
       Record version = 0
       Merged text = Export Successfully Completed for entities: Operator. Total number of occurrences exported: 24
       Reverse date time = 487930545
       Sequence number = 2147488706
       Component = BSS
       Security event = FALSE
       Event number = 2177
       Event name = Export Configuration Completed
       Event class = Software
       Event severity = Info
       Alarm event = FALSE
       Server name = System Management
       Function Name =
       Hostname = servername
       Browser Hostname =
       Browser Address =
       Operator = software_owner
       Session ID = a/dXlasjndlnojqpjorn[wkeokjwpeownokansdlk
       Date time = 03/08/22 22:54:08
       Alarm status = None
       Alarm distribution status = test_DIST_N_A
       Alarm date time = 01/01/70 00:00:00
       Alarm operator =
       Configuration change = FALSE
       Display text = Export Successfully Completed for entities: Operator. Total number of occurrence
       Length = 95
       Record version = 0
       Merged text = Export Successfully Completed for entities: Operator. Total number of occurrences exported: 24

| extend source = split(source, "Reverse date time = ")
| mv-expand source to typeof(string)
| where isnotempty(source)
| extend source = strcat("Reverse date time = ", source)
| parse source with  "Reverse date time = " ['Reverse date time']:long
"\nSequence number = " ['Sequence number']:long
 "\nComponent = " Component:string
 "\nSecurity event = " ['Security event']:bool
 "\nEvent number = " ['Event number']:int
 "\nEvent name = " ['Event name']:string
 "\nEvent class = " ['Event class']:string
 "\nEvent severity = " ['Event severity']:string
 "\nAlarm event = " ['Alarm event']:bool
 "\nServer name = " ['Server name']:string
 "\nFunction Name = " ['Function Name']:string
 "\nHostname = " Hostname:string
 "\nBrowser Hostname = " ['Browser Hostname']:string
 "\nBrowser Address = " ['Browser Address']:string
 "\nOperator = " Operator:string
 "\nSession ID = " ['Session ID']:string
 "\nDate time = " ['Date time']:datetime
 "\nAlarm status = " ['Alarm status']:string
 "\nAlarm distribution status = " ['Alarm distribution status']:string
 "\nAlarm date time = " ['Alarm date time']:datetime
 "\nAlarm operator = " ['Alarm operator']:string
 "\nConfiguration change = " ['Configuration change']:bool
 "\nDisplay text = " ['Display text']:string
 "\nLength = " Length:int
 "\nRecord version = " ['Record version']:int
 "\nMerged text = " ['Merged text']:string
| project-away source

GauravRamteke 1 Reputation point

2022-08-08T12:16:05.6+00:00

Thank you | AlistairRoss-msft,

I think both examples does not fit to my scenario because,
As you ingest the logs from the file we need to select the line break delimiter to ingest the logs now;

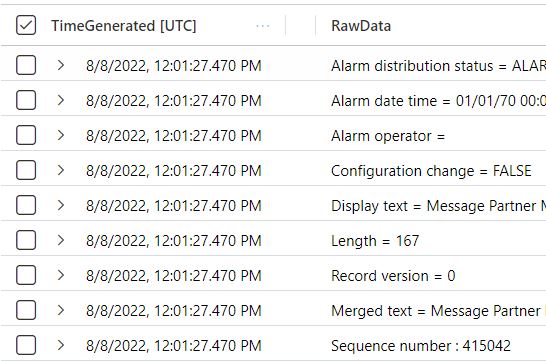

When you search for the logs - you could see each log contains only one line from the sample that i have submitted and not all the lines as a log
I hope you understand and if not let me attach the snippet for your reference
Alistair Ross 7,466 Reputation points Microsoft Employee

2022-08-08T12:57:51.313+00:00

Hi @GauravRamteke

Thanks for sharing the screenshot, this makes sense now. I have a few questions

How are you ingesting these logs into Sentinel? I am assuming Log Analytics custom logs with the RawData Column Name

Can you configure the logs to start with one of the following formats. This would simplify collection

YYYY-MM-DD HH:MM:SS

M/D/YYYY HH:MM:SS AM/PM

Mon DD, YYYY HH:MM:SS

yyMMdd HH:mm:ss

ddMMyy HH:mm:ss

MMM d hh:mm:ss

dd/MMM/yyyy:HH:mm:ss zzz

yyyy-MM-ddTHH:mm:ssK

What we need to do is pack the rows into a single object with a unique identifier, the issue here is because your logs are multi line, and are separated by the line, not a date time stamp, it makes it much harder (regardless of the SIEM tool used). The only unique identifier across the rows is the TimeGenerated column (based on your snippet), but if that time stamp is the same across multiple records, then we run the high likelihood of merging event data with another.
Alistair Ross 7,466 Reputation points Microsoft Employee

2022-08-08T12:58:09.883+00:00

If the TimeGenerated field is unique for the one record, then you can use this

datatable (TimeGenerated:datetime , RawData:string)[ datetime('2022-08-08T12:42:58.753447Z'), "Reverse date time = 487930544", datetime('2022-08-08T12:42:58.753447Z'), "Sequence number = 2147488705", datetime('2022-08-08T12:42:58.753447Z'), "Component = BSS", datetime('2022-08-08T12:44:58.753447Z'), "Reverse date time = 487930546", datetime('2022-08-08T12:44:58.753447Z'), "Sequence number = 2147488706", datetime('2022-08-08T12:44:58.753447Z'), "Component = BSS", ] | extend RawData = split(RawData," = ") | extend RawData = pack(tostring(RawData[0]),RawData[1]) | summarize RawData = make_bag(RawData) by TimeGenerated //, Computer | evaluate bag_unpack(RawData)

Otherwise you will need to either reformat the logs or parse the logs client side, using Fluentd or a custom solution. The problem you have is if the logs are received into log analytics out of order or there is latency between records, the individual lines for the activity may not get aggregated into the single record.
GauravRamteke 1 Reputation point

2022-08-09T05:47:04.883+00:00

Thanks AlistairRoss

Yes, you are right I have tried doing the summarization on Time Generated but it does not work as required
secondly, we do not have option to bag all those lines before Reverse Date Time option using regex or something else

Regards
Gaurav

Answer 2

The second method (assuming the first answer has made it out of review, otherwise this is the first) makes the assumption that the keys may change and therefore you need to convert it to a JSON object and then unpack the object.

print EventId = 1, source =

   Reverse date time = 487930544
        Sequence number = 2147488705
        Component = BSS
        Security event = FALSE
        Event number = 2177
        Event name = Export Configuration Completed
        Event class = Software
        Event severity = Info
        Alarm event = FALSE
        Server name = System Management
        Function Name =
        Hostname = servername
        Browser Hostname =
        Browser Address =
        Operator = software_owner
        Session ID = a/dXlasjndlnojqpjorn[wkeokjwpeownokansdlk
        Date time = 03/08/22 22:54:08
        Alarm status = None
        Alarm distribution status = test_DIST_N_A
        Alarm date time = 01/01/70 00:00:00
        Alarm operator =
        Configuration change = FALSE
        Display text = Export Successfully Completed for entities: Operator. Total number of occurrence
        Length = 95
        Record version = 0
        Merged text = Export Successfully Completed for entities: Operator. Total number of occurrences exported: 24
        Reverse date time = 487930545
        Sequence number = 2147488706
        Component = BSS
        Security event = FALSE
        Event number = 2177
        Event name = Export Configuration Completed
        Event class = Software
        Event severity = Info
        Alarm event = FALSE
        Server name = System Management
        Function Name =
        Hostname = servername
        Browser Hostname =
        Browser Address =
        Operator = software_owner
        Session ID = a/dXlasjndlnojqpjorn[wkeokjwpeownokansdlk
        Date time = 03/08/22 22:54:08
        Alarm status = None
        Alarm distribution status = test_DIST_N_A
        Alarm date time = 01/01/70 00:00:00
        Alarm operator =
        Configuration change = FALSE
        Display text = Export Successfully Completed for entities: Operator. Total number of occurrence
        Length = 95
        Record version = 0
        Merged text = Export Successfully Completed for entities: Operator. Total number of occurrences exported: 24

| extend source = split(source, "Reverse date time = ")
| mv-expand with_itemindex=EventIdIndex source to typeof(string)
| where isnotempty(source)
| extend source = strcat("Reverse date time = ", source)
| extend source = split(source,"\n")
| mv-expand source to typeof(string)
| extend source = split(source," = ")
| extend source = pack(tostring(source[0]),source[1])
| summarize source = make_bag(source) by EventIdIndex, EventId
| evaluate bag_unpack(source)
