How to change the caption titlebar of my window to black?

Eliza 21 Reputation points
2022-08-14T17:41:46.54+00:00

This is what i have written so far, my doubt is how to set the caption color of my new window to black.

 // Step 4: the Window Procedure.
    LRESULT CALLBACK WndProc(HWND hWnd, UINT msg, WPARAM wParam, LPARAM lParam)
    {
    	switch (msg)
    	{
    	case WM_CLOSE:
    		DestroyWindow(hWnd);
    		TerminateProcess(GetCurrentProcess(), 0);
    		break;

    	case WM_DESTROY:
    	case WM_QUIT:
    		PostQuitMessage(0);
    		break;

    	default:
    		return DefWindowProc(hWnd, msg, wParam, lParam);
    	}

    	return DefWindowProc(hWnd, msg, wParam, lParam);

    }

    // Step 1-3 Creating a window procedure.
    int Main()
    {
    	WNDCLASSEX wc{};
    	MSG Msg;
    	LPCWSTR title = L"MyWindow";

    	//Step 1: Registering the Window Class
    	wc.cbSize = sizeof(WNDCLASSEX);
    	wc.style = 0;
    	wc.lpfnWndProc = WndProc;
    	wc.cbClsExtra = 0;
    	wc.cbWndExtra = 0;
    	wc.hInstance = 0;
    	wc.hIcon = LoadIcon(NULL, IDI_APPLICATION);
    	wc.hCursor = LoadCursor(NULL, IDC_ARROW);
    	wc.hbrBackground = (HBRUSH)(COLOR_WINDOW + 1);
    	wc.lpszMenuName = NULL;
    	wc.lpszClassName = title;
    	wc.hIconSm = LoadIcon(NULL, IDI_APPLICATION);

    	if (!RegisterClassEx(&wc))
    	{
    		DWORD err = GetLastError();

    		std::wstring error = L"Window Registration Failed.\nError: " + std::to_wstring(int(err));

    		MessageBox(NULL, error.c_str(), L"Error!",
    			MB_ICONEXCLAMATION | MB_OK);
    		return 0;
    	}

    	// Step 2: Creating the Window
    	hWnd = CreateWindowW(
    		title,
    		title,
    		//WS_OVERLAPPEDWINDOW,
    		WS_OVERLAPPED | WS_CAPTION | WS_MINIMIZEBOX | WS_SYSMENU,
    		CW_USEDEFAULT, CW_USEDEFAULT, 600, 300, // X,Y,W,H
    		nullptr, nullptr, nullptr, nullptr);

    	DWORD err = GetLastError();

    	if (hWnd == NULL)
    	{
    		std::wstring error = L"Window creation failed.\nError: " + std::to_wstring(int(err));

    		MessageBox(NULL, error.c_str(), L"Error!",
    			MB_ICONEXCLAMATION | MB_OK);
    		return 0;
    	}

    	ShowWindow(hWnd, SW_SHOW);
    	UpdateWindow(hWnd);

    	// Step 3: The Message Loop
    	while (GetMessage(&Msg, NULL, 0, 0) > 0)
    	{
    		TranslateMessage(&Msg);
    		DispatchMessage(&Msg);
    	}
    	return 0; // Msg.wParam;
    }
C++
C++
A high-level, general-purpose programming language, created as an extension of the C programming language, that has object-oriented, generic, and functional features in addition to facilities for low-level memory manipulation.
3,520 questions
0 comments No comments
{count} votes

2 answers

Sort by: Most helpful
  1. Castorix31 81,466 Reputation points
    2022-08-14T19:08:53.93+00:00

    Custom captions are done with DWM : Custom Window Frame Using DWM

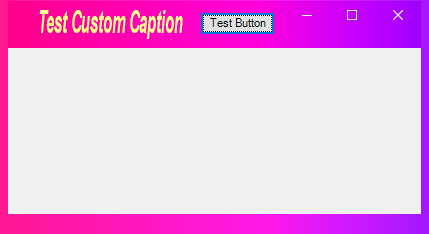

    For example, a test with a gradient :

    1 person found this answer helpful.

  2. Eliza 21 Reputation points
    2022-08-14T20:49:53.82+00:00

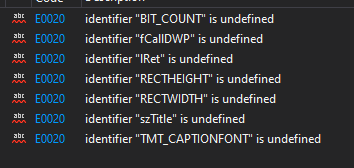

    I tried to follow the sample you linked, I'm getting these errors even after including uxtheme.h


    #include <windows.h>

    #include <uxtheme.h>
    #include <string>
    #pragma comment (lib,"UxTheme.lib")


    // Paint the title on the custom frame.
    void PaintCustomCaption(HWND hWnd, HDC hdc)
    {
        RECT rcClient;
        GetClientRect(hWnd, &rcClient);

        HTHEME hTheme = OpenThemeData(NULL, L"CompositedWindow::Window");
        if (hTheme)
        {
            HDC hdcPaint = CreateCompatibleDC(hdc);
            if (hdcPaint)
            {
                int cx = RECTWIDTH(rcClient);
                int cy = RECTHEIGHT(rcClient);

                // Define the BITMAPINFO structure used to draw text.
                // Note that biHeight is negative. This is done because
                // DrawThemeTextEx() needs the bitmap to be in top-to-bottom
                // order.
                BITMAPINFO dib = { 0 };
                dib.bmiHeader.biSize = sizeof(BITMAPINFOHEADER);
                dib.bmiHeader.biWidth = cx;
                dib.bmiHeader.biHeight = -cy;
                dib.bmiHeader.biPlanes = 1;
                dib.bmiHeader.biBitCount = BIT_COUNT;
                dib.bmiHeader.biCompression = BI_RGB;

                HBITMAP hbm = CreateDIBSection(hdc, &dib, DIB_RGB_COLORS, NULL, NULL, 0);
                if (hbm)
                {
                    HBITMAP hbmOld = (HBITMAP)SelectObject(hdcPaint, hbm);

                    // Setup the theme drawing options.
                    DTTOPTS DttOpts = { sizeof(DTTOPTS) };
                    DttOpts.dwFlags = DTT_COMPOSITED | DTT_GLOWSIZE;
                    DttOpts.iGlowSize = 15;

                    // Select a font.
                    LOGFONT lgFont;
                    HFONT hFontOld = NULL;
                    if (SUCCEEDED(GetThemeSysFont(hTheme, TMT_CAPTIONFONT, &lgFont)))
                    {
                        HFONT hFont = CreateFontIndirect(&lgFont);
                        hFontOld = (HFONT)SelectObject(hdcPaint, hFont);
                    }

                    // Draw the title.
                    RECT rcPaint = rcClient;
                    rcPaint.top += 8;
                    rcPaint.right -= 125;
                    rcPaint.left += 8;
                    rcPaint.bottom = 50;
                    DrawThemeTextEx(hTheme,
                        hdcPaint,
                        0, 0,
                        szTitle,
                        -1,
                        DT_LEFT | DT_WORD_ELLIPSIS,
                        &rcPaint,
                        &DttOpts);

                    // Blit text to the frame.
                    BitBlt(hdc, 0, 0, cx, cy, hdcPaint, 0, 0, SRCCOPY);

                    SelectObject(hdcPaint, hbmOld);
                    if (hFontOld)
                    {
                        SelectObject(hdcPaint, hFontOld);
                    }
                    DeleteObject(hbm);
                }
                DeleteDC(hdcPaint);
            }
            CloseThemeData(hTheme);
        }
    }



    // Step 4: the Window Procedure.
    LRESULT CALLBACK WndProc(HWND hWnd, UINT msg, WPARAM wParam, LPARAM lParam)
    {
        switch (msg)
        {
        case WM_CLOSE:
            DestroyWindow(hWnd);
            TerminateProcess(GetCurrentProcess(), 0);
            break;

        case WM_DESTROY:
        case WM_QUIT:
            PostQuitMessage(0);
            break;

        case WM_PAINT:
        {
            HDC hdc;
            {
                PAINTSTRUCT ps;
                hdc = BeginPaint(hWnd, &ps);
                PaintCustomCaption(hWnd, hdc);
                EndPaint(hWnd, &ps);
            }

            fCallDWP = true;
            lRet = 0;
            break;
        }
        default:
            return DefWindowProc(hWnd, msg, wParam, lParam);
        }

        return DefWindowProc(hWnd, msg, wParam, lParam);

    }

    // Step 1-3 Creating a window procedure.
    int Main()
    {
        WNDCLASSEX wc{};
        MSG Msg;
        LPCWSTR title = L"MyWindow";
        HWND hWnd = nullptr;

        //Step 1: Registering the Window Class
        wc.cbSize = sizeof(WNDCLASSEX);
        wc.style = 0;
        wc.lpfnWndProc = WndProc;
        wc.cbClsExtra = 0;
        wc.cbWndExtra = 0;
        wc.hInstance = 0;
        wc.hIcon = LoadIcon(NULL, IDI_APPLICATION);
        wc.hCursor = LoadCursor(NULL, IDC_ARROW);
        wc.hbrBackground = (HBRUSH)(COLOR_WINDOW + 1);
        wc.lpszMenuName = NULL;
        wc.lpszClassName = title;
        wc.hIconSm = LoadIcon(NULL, IDI_APPLICATION);

        if (!RegisterClassEx(&wc))
        {
            DWORD err = GetLastError();

            std::wstring error = L"Window Registration Failed.\nError: " + std::to_wstring(int(err));

            MessageBox(NULL, error.c_str(), L"Error!",
                MB_ICONEXCLAMATION | MB_OK);
            return 0;
        }

        // Step 2: Creating the Window
        hWnd = CreateWindowW(
            title,
            title,
            //WS_OVERLAPPEDWINDOW,
            WS_OVERLAPPED | WS_CAPTION | WS_MINIMIZEBOX | WS_SYSMENU,
            CW_USEDEFAULT, CW_USEDEFAULT, 600, 300, // X,Y,W,H
            nullptr, nullptr, nullptr, nullptr);

        DWORD err = GetLastError();

        if (hWnd == NULL)
        {
            std::wstring error = L"Window creation failed.\nError: " + std::to_wstring(int(err));

            MessageBox(NULL, error.c_str(), L"Error!",
                MB_ICONEXCLAMATION | MB_OK);
            return 0;
        }

        ShowWindow(hWnd, SW_SHOW);
        UpdateWindow(hWnd);

        // Step 3: The Message Loop
        while (GetMessage(&Msg, NULL, 0, 0) > 0)
        {
            TranslateMessage(&Msg);
            DispatchMessage(&Msg);
        }
        return 0; // Msg.wParam;
    }
