How to format tooltip in win32?

Question

Hi,
After initializing the tooltip, I want to set up few custom formats.
my part1 code as follow:

m_hWndTooltip = ::CreateWindowEx(0, TOOLTIPS_CLASS, 0, dwStyle,
            CW_USEDEFAULT, CW_USEDEFAULT, CW_USEDEFAULT, CW_USEDEFAULT,
            m_hParent, 0, m_hInstance, 0);
TOOLINFO ti;
//...setup ti;
::SendMessage(m_hWndTooltip, TTM_ADDTOOL, 0, (LPARAM)&ti);
if (SendMessage(m_hWndTooltip, TTM_TRACKACTIVATE, (WPARAM)TRUE, (LPARAM)&ti))
{
    NMTTCUSTOMDRAW nmh; //Initialize setting
    RECT rec;
    GetWindowRect(m_hWndTooltip, &rec);
    ::SendMessage(m_hWnd, WM_NOTIFY, idFrom, (LPARAM)&nmh);
}

in part2, the NOTIFY called passed to winproc as follows:

case WM_NOTIFY:
{
switch (((LPNMHDR)lParam)->code)
{

    case NM_CUSTOMDRAW:
        const auto& lpNMCustomDraw = (LPNMTTCUSTOMDRAW)lParam;
        OnToolTipCustomDraw(lpNMCustomDraw);

    break;
}

}
//--------------------------------------------------------------

LRESULT OnToolTipCustomDraw(NMTTCUSTOMDRAW* pcd)
{

 LRESULT result = CDRF_DODEFAULT;
 switch (pcd->nmcd.dwDrawStage)
 {
 case CDDS_PREPAINT:
 {

 auto result1 = SetTextColor(pcd->nmcd.hdc, 0x000000FF);
 if (CLR_INVALID == result1)
 outputA("\nSet textcolor failded.");

 result = CDRF_NOTIFYPOSTPAINT;
 break;
 }
 }
 return result;
}

however, after showing, the tooltip does not change format.
my question is:
Is the call setup for OnNotify correct or not? (i called it right after showing the tooltip)
Also, does the return value of OnToolTipCustomDraw work with winproc?

Thanks you!

Answer 1

What is in DrawToolTipContent ?
(CDDS_PREPAINT is not used for the colors with Tooltips)

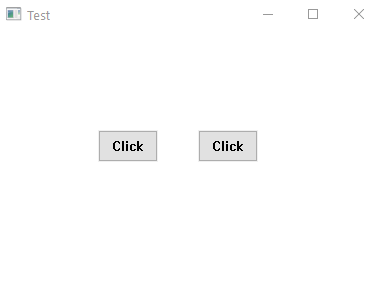

A quick test with FillRect and DrawText in CDDS_POSTPAINT :
