My application icon is visible everywhere but in the Default File Association

Question

Under Windows 11, I'm writing a small application which may be opened by some file types like .jpg or .heic, meaning that it may change the default selected application for these types.

The application is created with Visual Studio 2019, and it contains its own icon, which I declared in the following manner:

MyApp.rc

#include "resource.h"
#include "windows.h"

// Icon with lowest ID value placed first to ensure application icon
// remains consistent on all systems.

IDI_APPICON       ICON         "MyAppIcon.ico"
IDI_SMALL         ICON         "MyAppIcon.ico"

Resources.h

#define IDI_APPICON 100
#define IDI_SMALL   101

main.cpp

...
// resources
#include "resource.h"
...
int APIENTRY wWinMain(_In_     HINSTANCE hInstance,
                      _In_opt_ HINSTANCE hPrevInstance,
                      _In_     LPWSTR    lpCmdLine,
                      _In_     int       nCmdShow)
{
    ...
    WNDCLASSEX wcex  = {0};
    BOOL       bQuit = FALSE;

    // register window class
    wcex.cbSize        = sizeof(WNDCLASSEX);
    wcex.style         = CS_OWNDC;
    wcex.lpfnWndProc   = WindowProc;
    wcex.cbClsExtra    = 0;
    wcex.cbWndExtra    = 0;
    wcex.hInstance     = hInstance;
    wcex.hIcon         = ::LoadIcon(hInstance, MAKEINTRESOURCE(IDI_APPICON));
    wcex.hIconSm       = ::LoadIcon(hInstance, MAKEINTRESOURCE(IDI_SMALL));
    wcex.hCursor       = ::LoadCursor(nullptr, IDC_ARROW);
    wcex.hbrBackground = (HBRUSH)::GetStockObject(BLACK_BRUSH);
    wcex.lpszMenuName  = nullptr;
    wcex.lpszClassName = L"MyAppClassName";

    if (!RegisterClassEx(&wcex))
        return 0;

    // create main window
    g_hWnd = ::CreateWindowEx(0,
                              L"MyAppClassName",
                              L"My Application",
                              WS_DLGFRAME | WS_CAPTION | WS_SYSMENU,
                              CW_USEDEFAULT,
                              CW_USEDEFAULT,
                              800,
                              650,
                              nullptr,
                              nullptr,
                              hInstance,
                              nullptr);

    ::ShowWindow(g_hWnd, nCmdShow);
    ...
}

The .ico file contains the following sizes: 16x16, 32x32, 48x48, 256x256

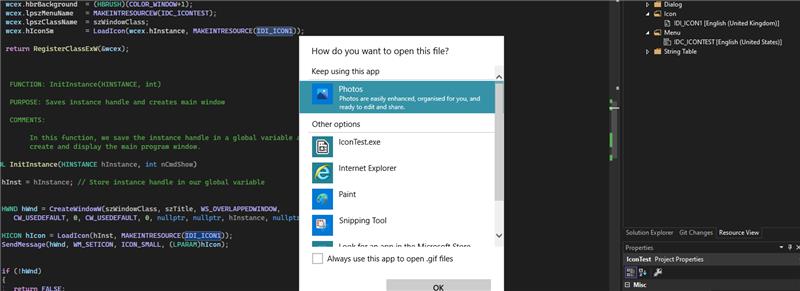

My application shows the icon correctly everywhere (header, taskbar, uninstall list, ...) except in one location: the Default File Association, and its relative settings, as shown in the below screenshot:

I cannot figure out what is wrong. Can someone explain me why my icon isn't visible only at this location?

Answer 1

Hello @Jean-Milost Reymond
Welcome to Microsoft Q&A!

Try to delete the default icon in the resource file, keep only your own icon resource, clean the project cache, and rebuild the project.

You can add the following code after the window is created.

HWND hWnd = CreateWindowW(szWindowClass, szTitle, WS_OVERLAPPEDWINDOW,
      CW_USEDEFAULT, 0, CW_USEDEFAULT, 0, nullptr, nullptr, hInstance, nullptr);

  HICON hIcon = LoadIcon(hInst, MAKEINTRESOURCE(IDI_ICON1));

   SendMessage(hWnd, WM_SETICON, ICON_SMALL, (LPARAM)hIcon);

Thank you.
Junjie

---
