JSON column formatting SPO, date-based check.

Question

Hi Everyone,

I am trying to get something to work on SharePoint Online with JSON column formatting.
What i have currently been able to achieve was, if a column is filled in ==> fill green if empty fill orange.

I would like to introduce a timebased check into this.

For example:
When filled in => Fill Green
LaunchDate reached & empty ==> fill Red
1 month or less before launch date ==> Fill orange
1 month or more before launch date =:=> fill yellow.

I am struggeling with stringing this all together.
Any ideas?

Answer 1

Hi @BramVanSchoor-6722 ，
According to my research and testing, you can format the column use Conditional formatting.
Take the Approval column as an example to test:

1,Add a calculated column:

2,Follow this order to create rules:

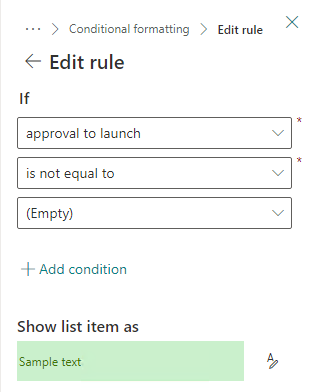

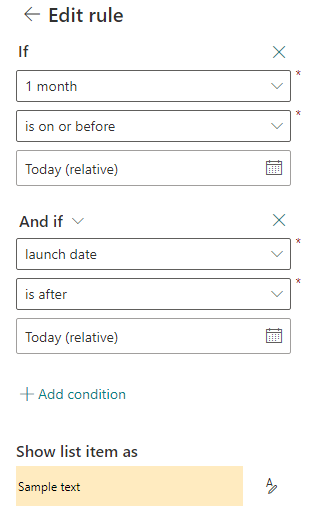

3,Create the follow rules:

4,Hide the 1 month column.

Then the Approval column is formatted.

And You can also change the UI operation of steps 2 and 3 to use the following JSON code:

{
  "$schema": "https://developer.microsoft.com/json-schemas/sp/v2/column-formatting.schema.json",
  "elmType": "div",
  "style": {
    "box-sizing": "border-box",
    "padding": "0 2px",
    "overflow": "hidden",
    "text-overflow": "ellipsis"
  },
  "attributes": {
    "class": {
      "operator": ":",
      "operands": [
        {
          "operator": "&&",
          "operands": [
            {
              "operator": "<=",
              "operands": [
                {
                  "operator": "Date()",
                  "operands": [
                    {
                      "operator": "toDateString()",
                      "operands": [
                        {
                          "operator": "Date()",
                          "operands": [
                            "[$less_x0020_before_x0020_1_x0020_]"
                          ]
                        }
                      ]
                    }
                  ]
                },
                {
                  "operator": "Date()",
                  "operands": [
                    {
                      "operator": "toDateString()",
                      "operands": [
                        {
                          "operator": "Date()",
                          "operands": [
                            "@now"
                          ]
                        }
                      ]
                    }
                  ]
                }
              ]
            },
            {
              "operator": ">",
              "operands": [
                {
                  "operator": "Date()",
                  "operands": [
                    {
                      "operator": "toDateString()",
                      "operands": [
                        {
                          "operator": "Date()",
                          "operands": [
                            "[$launchdate]"
                          ]
                        }
                      ]
                    }
                  ]
                },
                {
                  "operator": "Date()",
                  "operands": [
                    {
                      "operator": "toDateString()",
                      "operands": [
                        {
                          "operator": "Date()",
                          "operands": [
                            "@now"
                          ]
                        }
                      ]
                    }
                  ]
                }
              ]
            }
          ]
        },
        "sp-css-backgroundColor-BgGold sp-css-borderColor-GoldFont sp-css-color-BlackText",
        {
          "operator": ":",
          "operands": [
            {
              "operator": ">",
              "operands": [
                {
                  "operator": "Date()",
                  "operands": [
                    {
                      "operator": "toDateString()",
                      "operands": [
                        {
                          "operator": "Date()",
                          "operands": [
                            "[$less_x0020_before_x0020_1_x0020_]"
                          ]
                        }
                      ]
                    }
                  ]
                },
                {
                  "operator": "Date()",
                  "operands": [
                    {
                      "operator": "toDateString()",
                      "operands": [
                        {
                          "operator": "Date()",
                          "operands": [
                            "@now"
                          ]
                        }
                      ]
                    }
                  ]
                }
              ]
            },
            "sp-css-backgroundColor-BgBrown sp-css-color-BlackText",
            {
              "operator": ":",
              "operands": [
                {
                  "operator": "&&",
                  "operands": [
                    {
                      "operator": "==",
                      "operands": [
                        "[$approvaltolaunch]",
                        ""
                      ]
                    },
                    {
                      "operator": "==",
                      "operands": [
                        {
                          "operator": "Date()",
                          "operands": [
                            {
                              "operator": "toDateString()",
                              "operands": [
                                {
                                  "operator": "Date()",
                                  "operands": [
                                    "[$launchdate]"
                                  ]
                                }
                              ]
                            }
                          ]
                        },
                        {
                          "operator": "Date()",
                          "operands": [
                            {
                              "operator": "toDateString()",
                              "operands": [
                                {
                                  "operator": "Date()",
                                  "operands": [
                                    "@now"
                                  ]
                                }
                              ]
                            }
                          ]
                        }
                      ]
                    }
                  ]
                },
                "sp-css-backgroundColor-BgCoral sp-css-color-BlackText",
                {
                  "operator": ":",
                  "operands": [
                    {
                      "operator": "!=",
                      "operands": [
                        "[$approvaltolaunch]",
                        ""
                      ]
                    },
                    "sp-css-backgroundColor-BgMintGreen sp-css-color-MintGreenFont",
                    ""
                  ]
                }
              ]
            }
          ]
        }
      ]
    }
  },
  "txtContent": "[$approvaltolaunch]"
}

If you have another way, please share it here.
Thank you for your understanding and support!

Thanks,
Yanli Jiang

===========================================
