Adding an internet header flag via graph api seems to change more in the email than expected

geetarman 26 Reputation points
2022-08-31T06:22:19.72+00:00

I have a background service which cycles through specific users emails and processes them then uses an internet header flag to mark it as processed.
I have the following code which adds/updates the custom internet header flag in a users email using the graph api. I am then comparing the emails by saving an eml copy.

    public const string PS_INTERNET_HEADERS_STRING = "String {00020386-0000-0000-C000-000000000046} Name ";
    public const string ExtendedPropertyPrefix = "X-INVU-";
    public async Task<bool> SetFlag(object msgId, bool bUid, string flagName, int value)
    {
        // Create an item that is used to provision the custom x-header.
    var user = await FindUser();

        var flagIdentity = $"{PS_INTERNET_HEADERS_STRING}{ExtendedPropertyPrefix}{flagName}";
        var message = await user.Messages[(string)msgId].Request().Select(a => new { a.SingleValueExtendedProperties }).Expand($"singleValueExtendedProperties($filter=id eq '{flagIdentity}')").GetAsync();
        if (message.SingleValueExtendedProperties == null)
            message.SingleValueExtendedProperties = new MessageSingleValueExtendedPropertiesCollectionPage();

        foreach (var s in message.SingleValueExtendedProperties)
        {
            if (s.Id == flagIdentity)
                s.Value = value.ToString();
        }
        var prop = new SingleValueLegacyExtendedProperty
        {
            Id = flagIdentity,
            Value = value.ToString()
        };
        message.SingleValueExtendedProperties.Add(prop);
        await user.Messages[(string)msgId].Request().Select(a => a.SingleValueExtendedProperties).UpdateAsync(message);
        return true;
    }

and to save the eml file for comparison

   public bool SaveEml(string path)
    {
        var content = _service.Users[_userId].Messages[(string)_emailId.Id].Content.Request().GetAsync().Result;
        using (var fileStream = System.IO.File.Open(path, FileMode.Create, FileAccess.Write))
        {
            var buffer = new byte[1000];
            int read;
            while ((read = content.Read(buffer, 0, 1000)) > 0)
                fileStream.Write(buffer,0,read);
        }
        return true;
    }

This code works but it seems to change a lot more in the email when it adds the flag for the first time.
If I compare an eml file saved after the flag is added there are a lot of changes I don't understand but the primary one is that the content-transfer-encoding has changed from quoted-printable to base64'. I also noted that an inline png attachment appears to have changed in size. (example differences are attached produced using notepad++)

If the flag is then subsequently changed then a comparison of the email before and after shows only one change (the value of the flag).

Can anyone comment - I was expecting the only difference to be the addition of the flag....

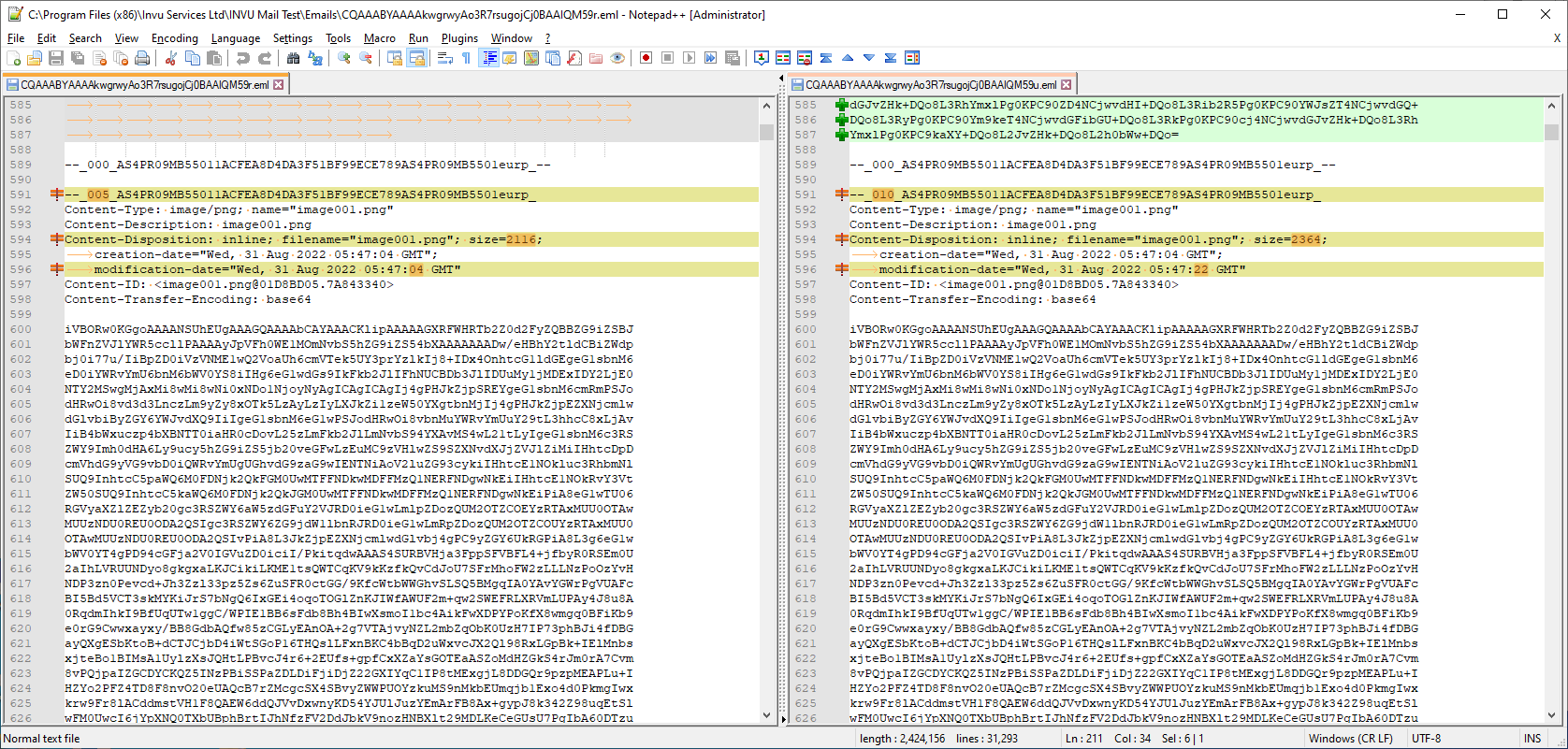

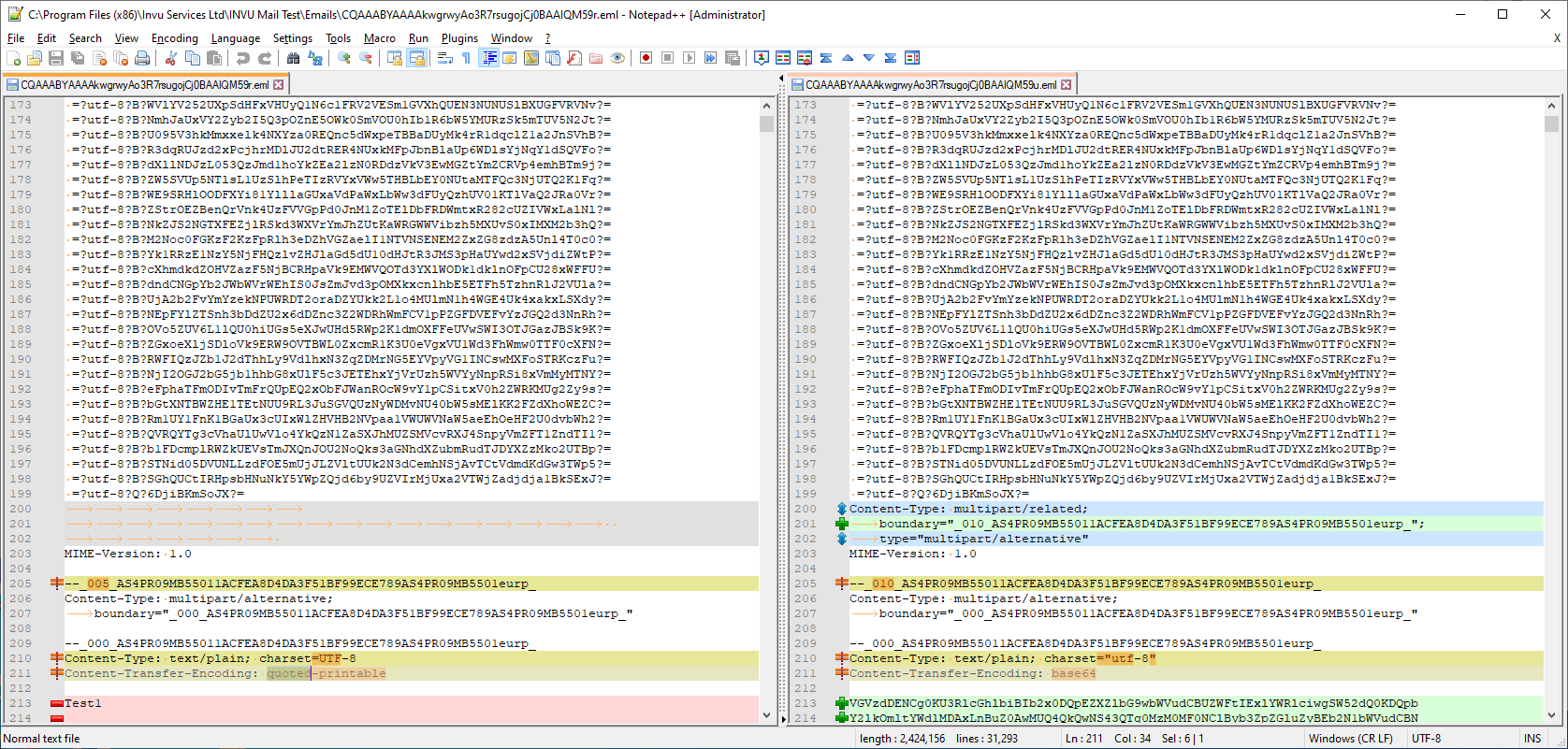

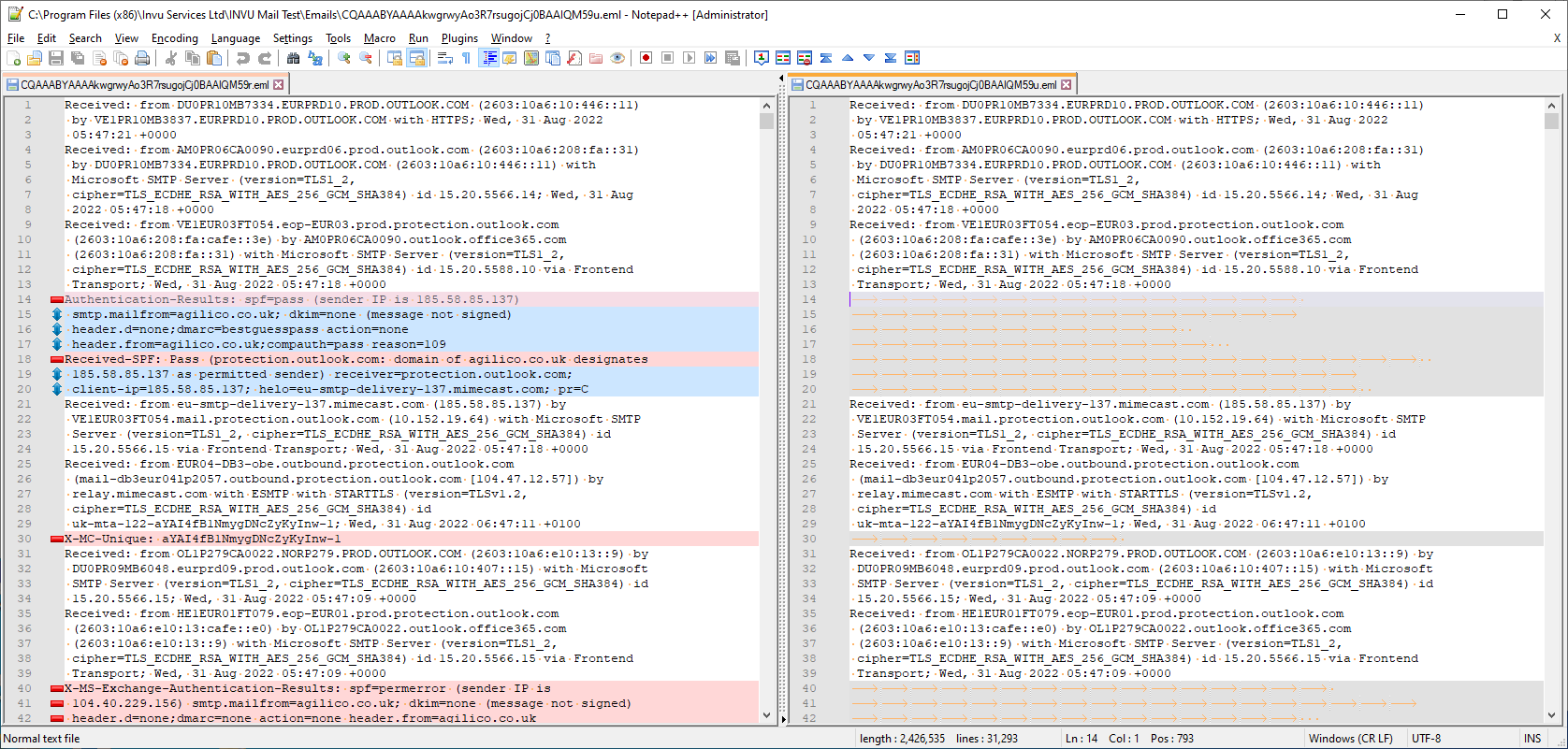

Following are some screenshots of some of the changes mentioned
