Create Task with Attachment (one drive/sharepoint document attachment) , Due date and priority - Using Postman

Question

Create Task with Attachment (one drive/sharepoint document attachment) , Due date and priority - Using Postman

Anonymous

Hi

I am able to create a blank task using postman. (Graph API)

My requirement is that, I have a word document in one drive/SharePoint. I am trying to link the one drive/SharePoint document to the created task as a attachment(Teams files or URL). Also i want to create that task with start date , due date and priority. Also how to add description/notes if possible.

I don't know how to configure the body content of postman. Is even it possible to attach document in creating a task with the graph API.
Could someone help me with this.

Thank you

Anonymous

2022-09-21T10:13:15.767+00:00

Hi Sir

I followed your instructions(Prefer and If-Match in request headers) and got stuck with an error.

Error Response

{
"error": {
"code": "",
"message": "The request is invalid:An unexpected 'StartObject' node was found for property named 'lastModifiedBy' when reading from the JSON reader. A 'PrimitiveValue' node was expected.",
"innerError": {
"date": "2022-09-21T09:58:27",
"request-id": "a5aec708-a4c4-4239-873f-1ef47161a6e3",
"client-request-id": "74fd4ef6-c94f-07a3-a059-bf80a2776086"
}
}
}

The JSON body that i used is
{
"previewType": "noPreview",
"references": {
"https%3A//demo%2Esharepoint%2Ecom/sites/Test12/Shared Documents/Sample%2Edocx": {
"@odata.type": "#microsoft.graph.plannerExternalReference",
"alias": "Sample.docx",
"lastModifiedBy": {
"user": {
"id": "5442777a-0440-4a2f-9269-21824464e3a1"
}
},
"lastModifiedDateTime": "2022-09-21T08:05:51.7286024Z",
"previewPriority": " !",
"type": "Word"
}
},
"checklist": {}
}

Can you let me know what is the mistake that I am doing. Sorry for asking you a lot of questions, I am a beginner in these kind of stuff

Srinivasa Rao Darna 6,761 Microsoft External Staff

Hi @Anonymous ,

You should remove lastModifiedBy and lastModifiedDateTime from your request body.

Can you try with following request payload?

PATCH https://graph.microsoft.com/v1.0/planner/tasks/{task-id}/details
Content-type: application/json
Prefer: return=representation
If-Match: "{lastest-eTag}"
{
    "previewType": "noPreview",
    "references": {
        "https%3A//demo%2Esharepoint%2Ecom/sites/Test12/Shared%20Documents/Sample%2Edocx": {
            "@odata.type": "#microsoft.graph.plannerExternalReference",
            "alias": "Sample.docx",
            "previewPriority": " !",
            "type": "Word"
        }
    },
    "checklist": {}
}

Hope this helps.

1 answer

Your answer

Anonymous

2022-09-21T10:13:15.767+00:00

Hi Sir

I followed your instructions(Prefer and If-Match in request headers) and got stuck with an error.

Error Response

{
"error": {
"code": "",
"message": "The request is invalid:An unexpected 'StartObject' node was found for property named 'lastModifiedBy' when reading from the JSON reader. A 'PrimitiveValue' node was expected.",
"innerError": {
"date": "2022-09-21T09:58:27",
"request-id": "a5aec708-a4c4-4239-873f-1ef47161a6e3",
"client-request-id": "74fd4ef6-c94f-07a3-a059-bf80a2776086"
}
}
}

The JSON body that i used is
{
"previewType": "noPreview",
"references": {
"https%3A//demo%2Esharepoint%2Ecom/sites/Test12/Shared Documents/Sample%2Edocx": {
"@odata.type": "#microsoft.graph.plannerExternalReference",
"alias": "Sample.docx",
"lastModifiedBy": {
"user": {
"id": "5442777a-0440-4a2f-9269-21824464e3a1"
}
},
"lastModifiedDateTime": "2022-09-21T08:05:51.7286024Z",
"previewPriority": " !",
"type": "Word"
}
},
"checklist": {}
}

Can you let me know what is the mistake that I am doing. Sorry for asking you a lot of questions, I am a beginner in these kind of stuff
Srinivasa Rao Darna 6,761 Reputation points Microsoft External Staff

2022-09-23T10:10:44.013+00:00

Hi @Anonymous ,

You should remove lastModifiedBy and lastModifiedDateTime from your request body.

Can you try with following request payload?

PATCH https://graph.microsoft.com/v1.0/planner/tasks/{task-id}/details Content-type: application/json Prefer: return=representation If-Match: "{lastest-eTag}" { "previewType": "noPreview", "references": { "https%3A//demo%2Esharepoint%2Ecom/sites/Test12/Shared%20Documents/Sample%2Edocx": { "@odata.type": "#microsoft.graph.plannerExternalReference", "alias": "Sample.docx", "previewPriority": " !", "type": "Word" } }, "checklist": {} }

Hope this helps.

Answer 1

Srinivasa Rao Darna 6,761 Microsoft External Staff

Hi @Anonymous ,

You can use update planner task details, in the request body can pass attachment references property plannerexternalreferences.
A example snippet would be as below.

PATCH https://graph.microsoft.com/v1.0/planner/tasks/{task-id}/details
Content-type: application/json
Prefer: return=representation
If-Match: "JzEtVGFzayAgQEBAQEBAQEBAQEBAQEBAWCc="

{
"previewType": "noPreview",
"references": {
    "https%3A//contoso%2Esharepoint%2Ecom/teams/agile/documents/AnnualReport%2Epptx": {
        "@odata.type": "microsoft.graph.plannerExternalReference",
        "alias": "Agile Team Annual Report",
        "previewPriority": "0009005756397228702",
        "type": "PowerPoint"
    }
  }
}

Properities like dueDateTime and assigneePriority can be set in POST or PATCH of plannertask.

Hope this helps.
If the answer is helpful, please click "Accept Answer" and kindly upvote it. If you have extra questions about this answer, please click "Comment".

Anonymous

2022-09-02T08:18:43.14+00:00

Hi sir,

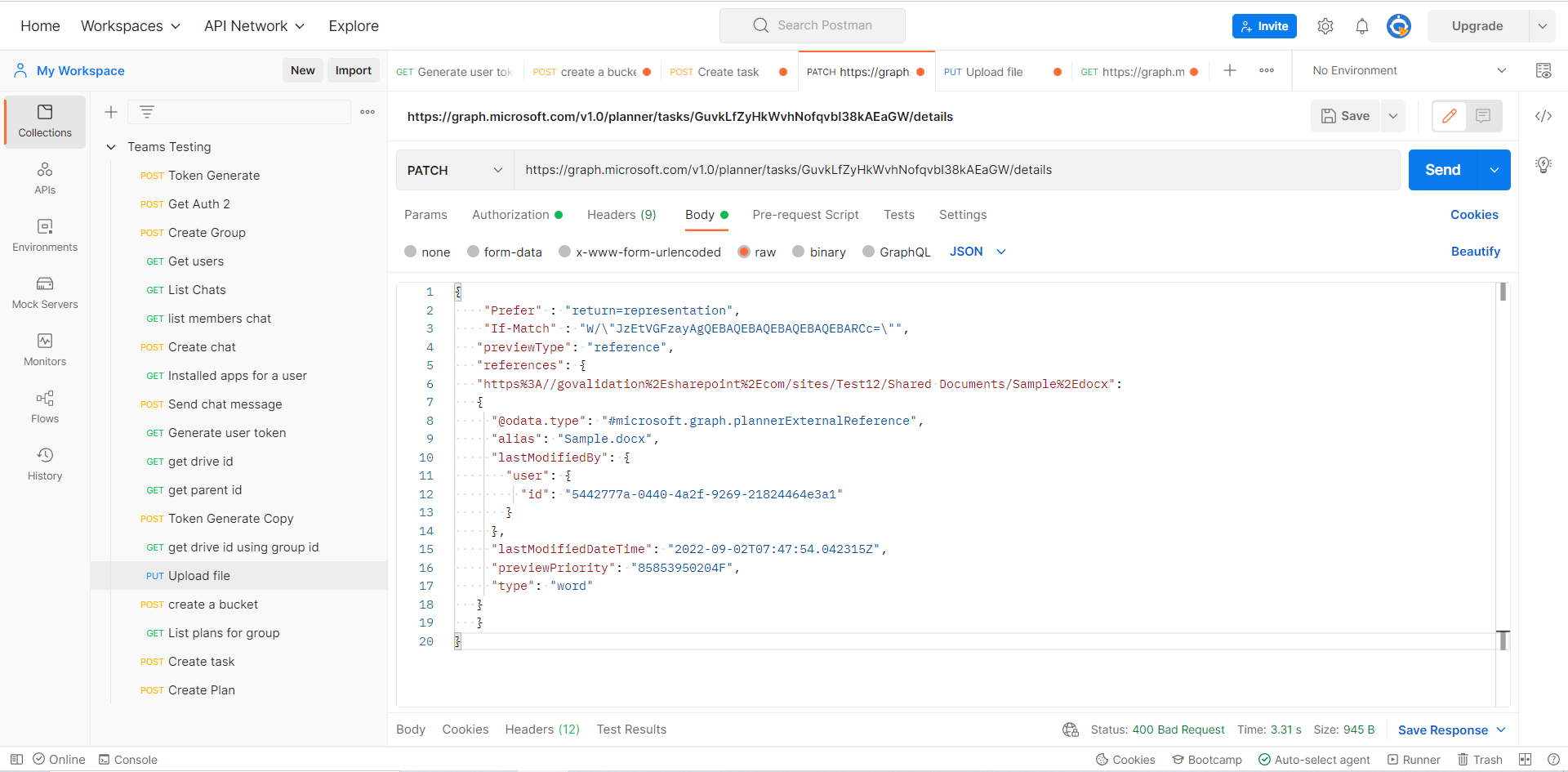

Sorry for the inconvenience. I used the patch method with the sample body you have given and i got this response. Could you let me know what is wrong with the body content. (Please Refer the attached image for body content)

Error Response
{
"error": {
"code": "",
"message": "The request is invalid:\r\nAn unexpected 'StartObject' node was found for property named 'lastModifiedBy' when reading from the JSON reader. A 'PrimitiveValue' node was expected.",
"innerError": {
"date": "2022-09-02T08:11:09",
"request-id": "32fe4c8a-dc8a-462a-ac78-25806d593385",
"client-request-id": "32fe4c8a-dc8a-462a-ac78-25806d593385"
}
}
}
Srinivasa Rao Darna 6,761 Reputation points Microsoft External Staff

2022-09-08T17:32:39.477+00:00

Hi @Anonymous ,

You should be using Prefer and If-Match in request headers, it appears you are using them in request body. And If-Match header should be with W\ such characters >>Graph - The If-Match header must be specified for this kind of request

Prefer: return=representation If-Match: "JzEtVGFzayAgQEBAQEBAQEBAQEBAQEBAWCc="

And to get the correct value that you have to send in If-Match header, you need to make a GET call on the task first which will return you a property called etag which should be used in here.

Hope this helps.
If the answer is helpful, please click "Accept Answer" and kindly upvote it. If you have extra questions about this answer, please click "Comment".
