Many To Many Relationship EF 6 Parents Players

NOVATROOP77 266 Reputation points
2022-09-06T16:10:24.03+00:00

Basically, I have a player app that now needs to link multiple children to multiple parents.
I have for example a table

Player could have
1 Test Player 1
2 Test Player 2

Parents Table
1 DAD
2 Mom

ParentsFriends Link Table
Player Id Parent ID
1 1
2 1
1 2

So for example the json should show the parents first as root nodes then the children they can both see

  public IEnumerable<ParentsFriend> GetAllParentsFriends(int Id)
{
                var q = from parent in _db.ParentsFriends
                        from children in _db.Players
                        where parent.PlayerId == children.Id
                        select new ParentFriendViewModel
                        {
`                          Parent1
                            Parent 2
                            Children = children.
                        }
}


I want the json to output simply this this could be up to 4 or 5 parents?
Parent1
Parent 2
Children=.......

And also what happens say for example if the Dad Mom can only be allowed to see one player child

Edit2
This is to show the type of json i want to output

{
The root would show all the parents first then the children in a child node

  "id": 12,
  "title": "Murry Gold Berg",
  "description": "The best dad around",

  "category": "sports",
  "thumbnail": "https://dummyjson.com/image/i/products/12/thumbnail.jpg",
   ///All parents should be outputted here first then all the children below them?

   "id": 13,
  "title": "Berverly Gold Berg",
  "description": "The best mom around",

  "category": "sports",
  "thumbnail": "https://dummyjson.com/image/i/products/12/thumbnail.jpg",
  "Children": [
  "Child1":
  {
  "Name": "Barry Gold Berg",
  "AGE":18,
    .....
  },
  "Child2":
  {
  "Name": "Adam Gold Berg",
  "AGE":15,
    .....
  }
  ]
}
Developer technologies | .NET | Other
Developer technologies | C#
{count} votes

1 answer

Sort by: Most helpful
  1. Jack J Jun 25,296 Reputation points
    2022-09-08T07:11:19.957+00:00

    @NOVATROOP77 , thanks for the feedback. based on my attempt, I try to make a code example to get you wanted, but not all you wanted.

    Since json doesn't allow the same key in one object, therefore, the following json string is not regular, I also meet the error when I want to use c# code to convert to it.

       "id": 12,
       "title": "Murry Gold Berg",
       "description": "The best dad around",

       "category": "sports",
       "thumbnail": "https://dummyjson.com/image/i/products/12/thumbnail.jpg",
        ///All parents should be outputted here first then all the children below them?

        "id": 13,
       "title": "Berverly Gold Berg",
       "description": "The best mom around",

       "category": "sports",
       "thumbnail": "https://dummyjson.com/image/i/products/12/thumbnail.jpg",


    We need to use json array to replace it to avoid the error.

    Here is a code example you could refer to.

     TestEntities dbcontext = new TestEntities();
                var result1 = (from parent in dbcontext.ParentsFriends.ToList()
                               join p in dbcontext.Parents on parent.ParentId equals p.Id
                               select new
                               {
                                   p.Id,
                                   p.Title,
                                   p.description,
                                   parent.PlayerId

                               }).Distinct().ToList();
                var newresult1 = (from m in result1
                          select new
                          {
                              m.Id,
                              m.Title,
                              m.description
                          }).Distinct();

                var result2 = (from p in result1
                              join children in dbcontext.Players on p.PlayerId equals children.Id
                            select new
                            {
                                children.Name,
                                children.Age
                            }).Distinct().ToList();
                string json = JsonConvert.SerializeObject(newresult1);
                JObject total = JObject.Parse(@"{}");
                JArray jsonArray = JArray.Parse(json);
                total.Add("Parents", jsonArray);
                string json1= JsonConvert.SerializeObject(result2);
                JArray jsonArray1 = JArray.Parse(json);


                int i = 1;
                JObject child = JObject.Parse(@"{}");
                foreach (JObject item in jsonArray1)
                {

                    child.Add("child" + i,item);
                    i++;

                }
                total.Add("Children", child);
                Console.WriteLine(total.ToString());


    Updated for Deserializing the json to the object:

             Root myDeserializedClass = JsonConvert.DeserializeObject<Root>(total.ToString());


    Class:

     public class Child1
        {
            public int Id { get; set; }
            public string Title { get; set; }
            public string description { get; set; }
        }

        public class Child2
        {
            public int Id { get; set; }
            public string Title { get; set; }
            public string description { get; set; }
        }

        public class Children
        {
            public Child1 child1 { get; set; }
            public Child2 child2 { get; set; }
        }

        //public class Parent               ->the class has already defined in the ef, you could remove it
        //{
        //    public int Id { get; set; }
        //    public string Title { get; set; }
        //    public string description { get; set; }
        //}

        public class Root
        {
            public List<Parent> Parents { get; set; }
            public Children Children { get; set; }
        }

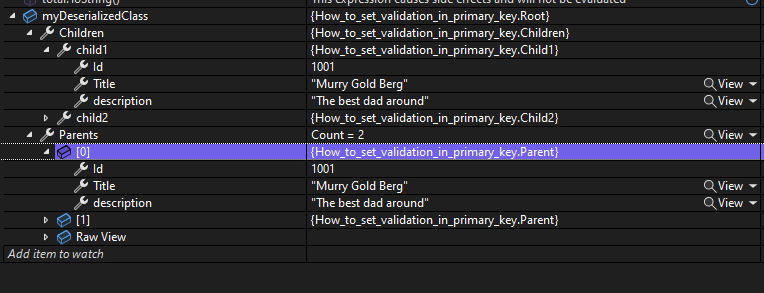

    Result of Deserialize:

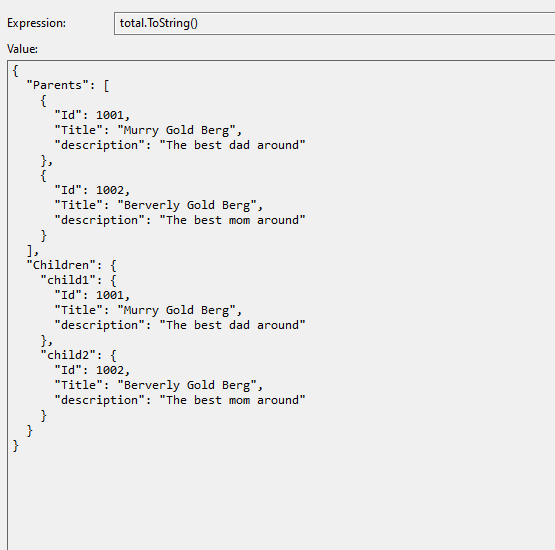

    Result of json:

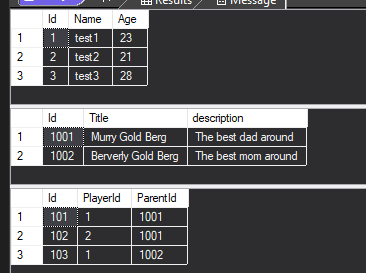

    My Database:


    Best Regards,
    Jack
