DNSSEC key rollover not completing

Anonymous
2023-10-06T17:15:11+00:00

Reviewing our DNS settings, it appeared DNSSEC was partially deployed/enabled but doesn't seem completed.
It appears that Rollover was started but not completing and that trust anchors were not created.

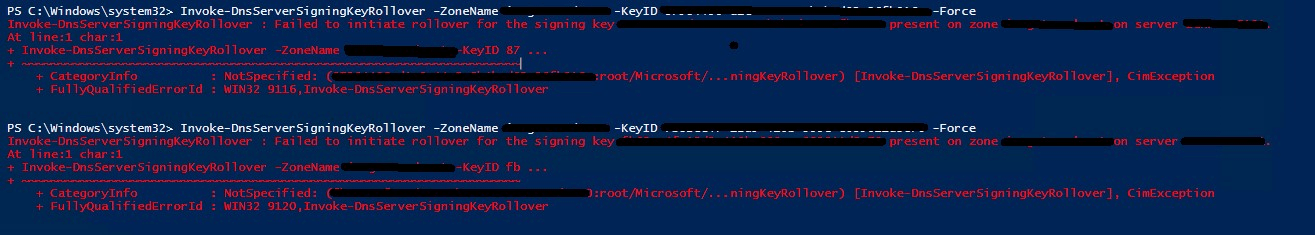

We have attempted to force the rollover with "Invoke-DnsServerSigningKeyRollover" and get "Failed to initiate rollover for the signing key."

There was an attempt to add new KSK and ZSK keys with the hope we could remove the stuck keys, but the retire option remains greyed out.  We currently have 2 keys in each section.

We are trying to figure out the best option for next steps?
Can I safely Unsign the Zone without breaking DNS and start over?
Am I better off trying to finish/fix the setup by creating the trust anchors and attempting to get the key rollover to complete?

Our KSK key Rollover Status is Rollover Started (Get-DnsServerSigningKey)

KeyType                       : KeySigningKey

CryptoAlgorithm               : RsaSha256

KeyLength                     : 2048

KeyStorageProvider            : Microsoft Software Key Storage Provider

StoreKeysInAD                 : True

CurrentState                  : Active

IsRolloverEnabled             : True

RolloverType                  : DoubleSignature

RolloverPeriod                : 755.00:00:00

InitialRolloverOffset         : 00:00:00

CurrentRolloverStatus         : KskWaitingForDnsKeyTtl

NextRolloverAction            : Normal

LastRolloverTime              :

NextRolloverTime              : 9/3/2023 6:13:19 PM

DnsKeySignatureValidityPeriod : 7.00:00:00

DSSignatureValidityPeriod     : 7.00:00:00

ZoneSignatureValidityPeriod   : 10.00:00:00

Our ZSK Key Rollover Status is Queued (Get-DnsServerSigningKey)
KeyType                       : ZoneSigningKey

CryptoAlgorithm               : RsaSha256

KeyLength                     : 1024

KeyStorageProvider            : Microsoft Software Key Storage Provider

StoreKeysInAD                 : True

CurrentState                  : Active

IsRolloverEnabled             : True

RolloverType                  : PrePublish

RolloverPeriod                : 90.00:00:00

InitialRolloverOffset         : 00:00:00

CurrentRolloverStatus         : Queued

NextRolloverAction            : Retire

LastRolloverTime              : 6/7/2019 7:32:50 PM

NextRolloverTime              : 9/5/2019 7:32:50 PM

DnsKeySignatureValidityPeriod : 7.00:00:00

DSSignatureValidityPeriod     : 7.00:00:00

ZoneSignatureValidityPeriod   : 10.00:00:00

There is no Trust Point container listed in in DNS Manager and running "dnscmd /info /enablednssec" seems to indicate DNSSEC is not enabled.

Query result:

Dword:  0 (00000000)

Command completed successfully.

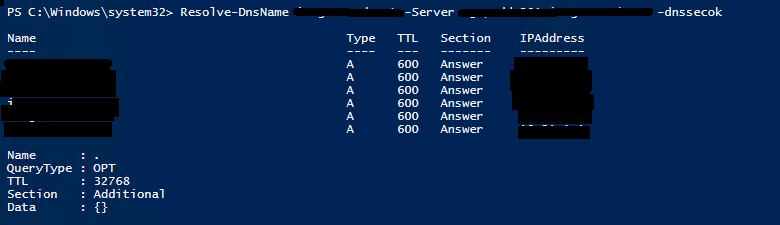

The output of "Resolve-DnsName  -Server  -dnssecok" matches the Microsoft example for if a zone is not signed, "such as the contoso.com zone in the following example, RRSIG records are not displayed in the output."
Name              Type TTL  Section   IPAddress

----                    ----   ---    -------       ---------
contoso.com    A    600  Answer  192.168.0.2
contoso.com    A    600  Answer  192.168.0.3
contoso.com    A    600  Answer  192.168.0.1

Name : . QueryType : OPT
TTL : 32768
Section : Additional
Data : {}

All DCs and DNS and Functional Levels are Server 2016.
I am wondering if I can safely unsign the zone without breaking DNS or am I better off trying to finish the setup by creating the trust anchors and attempting to get the key rollover to complete?

I appreciate any assistance you can offer

Windows for business | Windows Server | Directory services | Active Directory

Locked Question. This question was migrated from the Microsoft Support Community. You can vote on whether it's helpful, but you can't add comments or replies or follow the question. To protect privacy, user profiles for migrated questions are anonymized.

0 comments No comments
{count} votes

3 answers

Sort by: Most helpful
  1. Anonymous
    2023-10-10T07:39:47+00:00

    Hello RPri_024,

    Thank you for posting in Microsoft Community forum.

    You can try to complete signing key rollover. For more information, please refer to link below.

    Procedure: Perform a Manual Signing Key Rollover | Microsoft Learn

    Checklist: Perform a Manual Key Rollover | Microsoft Learn

    Note: Please always back up all the data before you do any changes.

    I hope the information above is helpful.

    If you have any question or concern, please feel free to let us know.

    Best Regards,
    Daisy Zhou

    0 comments No comments
  2. Anonymous
    2023-10-10T13:29:15+00:00

    Thank you for your reply.

    I have attempted the manual key failover.

    I believe the rollover is failing because the DNSSEC and Trust Anchors do not seem to be fully configured.

    Can I safely unsign the zone?

    Or will this break DNS?

    0 comments No comments
  3. Anonymous
    2023-10-11T08:30:23+00:00

    Hello RPri_024,

    Thank you for your reply.

    Here is a similar thread with detailed answer and comments for your reference.

    domain name system - Removing DNSSEC - Can it be done, and how can I? - Server Fault

    Best Regards,
    Daisy Zhou

    0 comments No comments
