Image cropping using Jcrop with ASP.NET MVC and EF 6
What is Image cropping?
- Image cropping refer to removal of some part of image
- Uses to improve framing and size
- Applied in photograph to resize image
Application overview

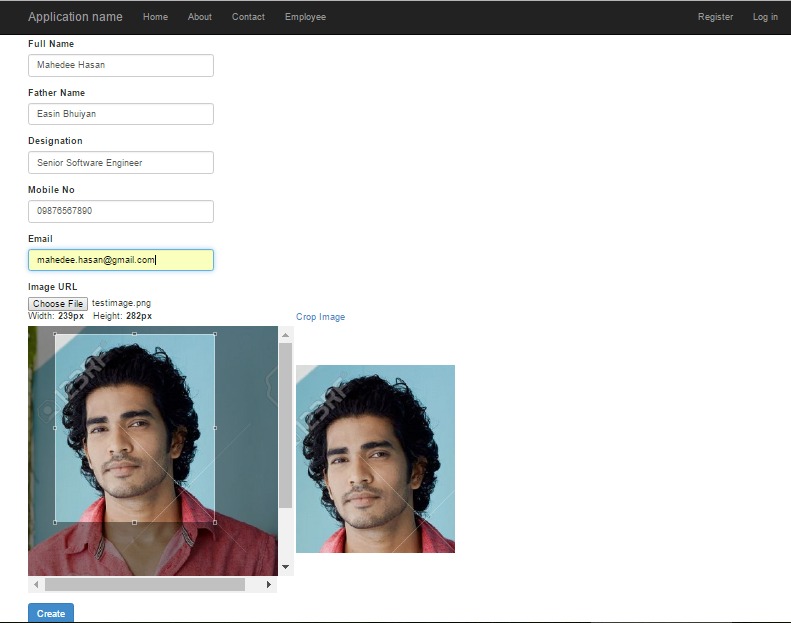

In this project, image cropping of an employee photo is showed when employee information saved and modified. Full CRUD operation applied in the application with image cropping. This project is also developed by ASP.NET MVC.
Let’s have a look on the implementation of the project.
Tools and Technology used
Used following tools and technology to develop the project:
- Visual Studio 2015
- Visual C#
- ASP.NET MVC
- Entity Framework 6
- Razor view engine
- JCrop
Step 1: Create a ASP.NET MVC Project
File -> New project and select the project template Visual C# -> ASP.NET Web Application (.NET Framework) -> Console application (.NET Core).

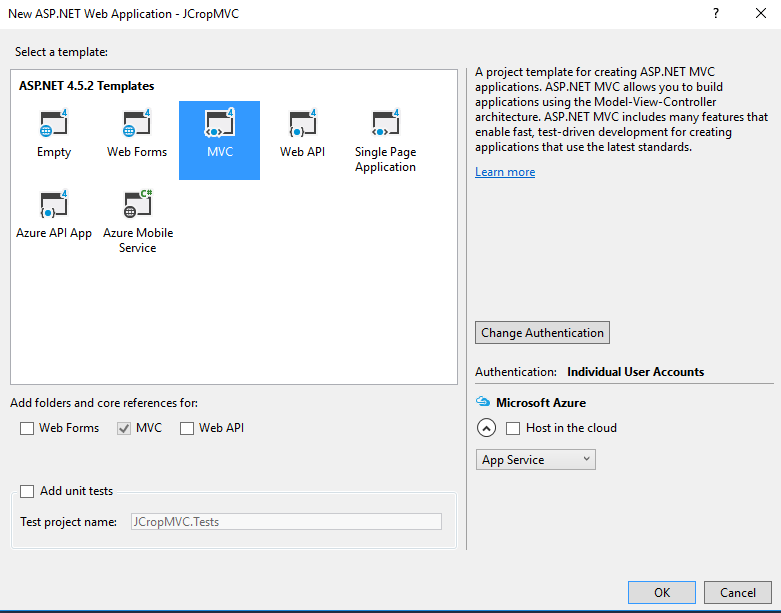

**Select MVC as a Template as ASP.NET Template and click OK
**
**
Step 2: Change or Add Connection String**
Change or Add connection string in Web.config as follows:
<connectionStrings>
<add name="DefaultConnection" connectionString="Data Source=(LocalDb)\MSSQLLocalDB;AttachDbFilename=|DataDirectory|\JCropMVCDB.mdf;Initial Catalog=JCropMVCDB;Integrated Security=True" providerName="System.Data.SqlClient" />
</connectionStrings>

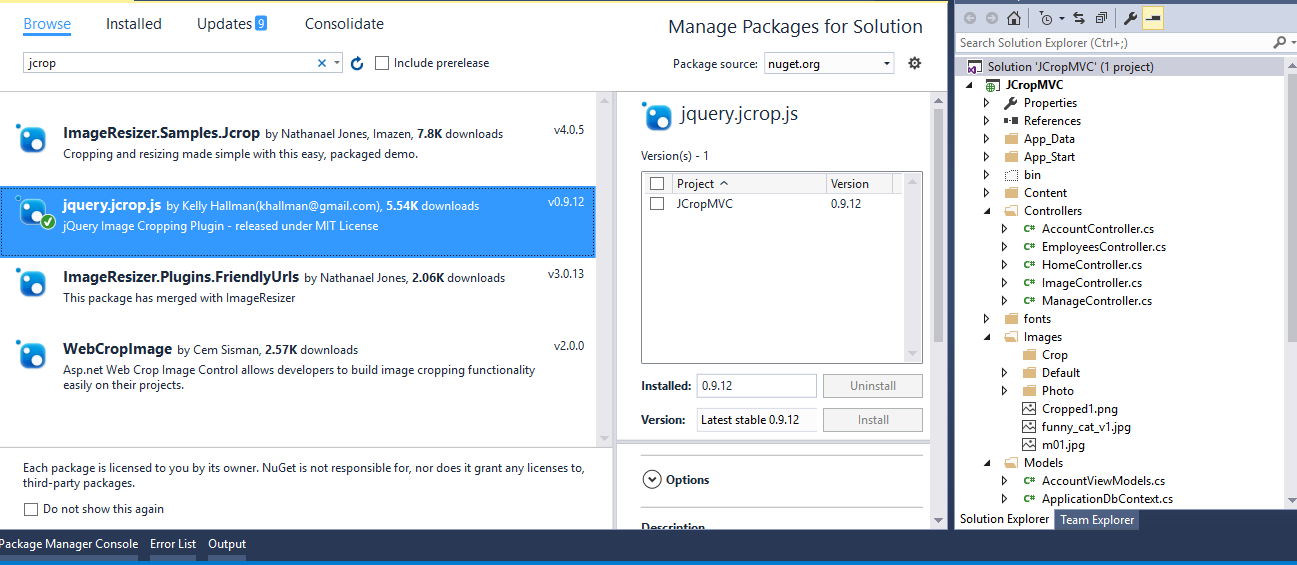

Step 3: Install JCrop Nuget Package
Go to Tools -> NuGet Package Manager -> Manages NuGet Package Manager for the solution -> Search Jcrop and install jquery.jcrop.js
**
**
** **
Step 4: Create model class
Create model class “Employee” as follows.
Employee Class
using System.ComponentModel.DataAnnotations;
using System.ComponentModel.DataAnnotations.Schema;
namespace JCropMVC.Models
{
public class Employee
{
[Key, DatabaseGenerated(DatabaseGeneratedOption.Identity)]
public int Id { get; set; }
[Display(Name = "Full Name")]
[Required(ErrorMessage = "Name cannot be empty")]
public string Name { get; set; }
[Display(Name = "Father Name")]
public string FatherName { get; set; }
[Display(Name = "Designation")]
public string Designation { get; set; }
[Display(Name = "Mobile No")]
public string Mobile { get; set; }
[DataType(DataType.EmailAddress)]
[Display(Name = "Email")]
public string Email { get; set; }
[Display(Name = "Image URL")]
public string PhotoURL { get; set; }
}
}
Step 5: Modify Context class
Modify ApplicationDbContext in IdentityModel Class
public class ApplicationDbContext : IdentityDbContext<ApplicationUser>
{
public ApplicationDbContext()
: base("DefaultConnection", throwIfV1Schema: false)
{
}
public static ApplicationDbContext Create()
{
return new ApplicationDbContext();
}
public DbSet<Employee> Employees { get; set; }
}
Step 6: Create Controller and Views
Create Employees Controller and Views
Click right button on Controller Folder->Add Controller. Now choose scaffolding template as MVC Controllers with views using Entity Framework and then click Add.
Now select Model class as Employee and Data Context Class as ApplicationDbContext as follows. Then click OK.
Step 7: Modify the controller
Modify EmployeesController as follows. Here method ProcessImage(string croppedImage) is used to process and save image. An extra parameter added for Create and Edit action.
using System;
using System.Data.Entity;
using System.Linq;
using System.Net;
using System.Web.Mvc;
using JCropMVC.Models;
using System.IO;
namespace JCropMVC.Controllers
{
public class EmployeesController : Controller
{
private ApplicationDbContext db = new ApplicationDbContext();
// GET: Employees
public ActionResult Index()
{
return View(db.Employees.ToList());
}
// GET: Employees/Details/5
public ActionResult Details(int? id)
{
if (id == null)
{
return new HttpStatusCodeResult(HttpStatusCode.BadRequest);
}
Employee employee = db.Employees.Find(id);
if (employee == null)
{
return HttpNotFound();
}
return View(employee);
}
// GET: Employees/Create
public ActionResult Create()
{
return View();
}
// POST: Employees/Create
// To protect from overposting attacks, please enable the specific properties you want to bind to, for
// more details see http://go.microsoft.com/fwlink/?LinkId=317598.
[HttpPost]
[ValidateAntiForgeryToken]
public ActionResult Create([Bind(Include = "Id,Name,FatherName,Designation,Mobile,Email,PhotoURL")] Employee employee, string avatarCropped)
{
string filePath = ProcessImage(avatarCropped);
employee.PhotoURL = filePath;
if (ModelState.IsValid)
{
db.Employees.Add(employee);
db.SaveChanges();
return RedirectToAction("Index");
}
return View(employee);
}
/// <summary>
/// Process image and save in predefined path
/// </summary>
/// <param name="croppedImage"></param>
/// <returns></returns>
private string ProcessImage(string croppedImage)
{
string filePath = String.Empty;
try
{
string base64 = croppedImage;
byte[] bytes = Convert.FromBase64String(base64.Split(',')[1]);
filePath = "/Images/Photo/Emp-" + Guid.NewGuid() + ".png";
using (FileStream stream = new FileStream(Server.MapPath(filePath), FileMode.Create))
{
stream.Write(bytes, 0, bytes.Length);
stream.Flush();
}
}
catch (Exception ex)
{
string st = ex.Message;
}
return filePath;
}
// GET: Employees/Edit/5
public ActionResult Edit(int? id)
{
if (id == null)
{
return new HttpStatusCodeResult(HttpStatusCode.BadRequest);
}
Employee employee = db.Employees.Find(id);
if (employee == null)
{
return HttpNotFound();
}
return View(employee);
}
// POST: Employees/Edit/5
// To protect from overposting attacks, please enable the specific properties you want to bind to, for
// more details see http://go.microsoft.com/fwlink/?LinkId=317598.
[HttpPost]
[ValidateAntiForgeryToken]
public ActionResult Edit([Bind(Include = "Id,Name,FatherName,Designation,Mobile,Email,PhotoURL")] Employee employee, string avatarCropped)
{
string filePath = ProcessImage(avatarCropped);
employee.PhotoURL = filePath;
if (ModelState.IsValid)
{
db.Entry(employee).State = EntityState.Modified;
db.SaveChanges();
return RedirectToAction("Index");
}
return View(employee);
}
//[Authorize(Users ="sumon")]
// GET: Employees/Delete/5
public ActionResult Delete(int? id)
{
if (id == null)
{
return new HttpStatusCodeResult(HttpStatusCode.BadRequest);
}
Employee employee = db.Employees.Find(id);
if (employee == null)
{
return HttpNotFound();
}
return View(employee);
}
// POST: Employees/Delete/5
[HttpPost, ActionName("Delete")]
[ValidateAntiForgeryToken]
public ActionResult DeleteConfirmed(int id)
{
Employee employee = db.Employees.Find(id);
db.Employees.Remove(employee);
db.SaveChanges();
return RedirectToAction("Index");
}
protected override void Dispose(bool disposing)
{
if (disposing)
{
db.Dispose();
}
base.Dispose(disposing);
}
}
}
Step 8: Modify the views for Employee
Create.cshtml
@model JCropMVC.Models.Employee
@{
ViewBag.Title = "Create";
}
<h2 class="breadcrumb">
Create Employee Information
</h2>
@using (Html.BeginForm("Create", "Employees", null, FormMethod.Post, new { enctype = "multipart/form-data" }))
{
@Html.AntiForgeryToken()
<hr />
@Html.ValidationSummary(true)
<div class="form-group">
@Html.LabelFor(model => model.Name, new { @class = "" })
@Html.TextBoxFor(model => model.Name, new { @class = "form-control", placeholder = "Enter employee full name...", type = "text" })
@Html.ValidationMessageFor(model => model.Name)
</div>
<div class="form-group">
@Html.LabelFor(model => model.FatherName, new { @class = "" })
@Html.TextBoxFor(model => model.FatherName, new { @class = "form-control", placeholder = "Enter father name...", type = "text" })
@Html.ValidationMessageFor(model => model.FatherName)
</div>
<div class="form-group">
@Html.LabelFor(model => model.Designation, new { @class = "" })
@Html.TextBoxFor(model => model.Designation, new { @class = "form-control", placeholder = "Enter designation name...", type = "text" })
@Html.ValidationMessageFor(model => model.Designation)
</div>
<div class="form-group">
@Html.LabelFor(model => model.Mobile, new { @class = "" })
@Html.TextBoxFor(model => model.Mobile, new { @class = "form-control", placeholder = "Enter mobile number...", type = "text" })
@Html.ValidationMessageFor(model => model.Mobile)
</div>
<div class="form-group">
@Html.LabelFor(model => model.Email, new { @class = "" })
@Html.TextBoxFor(model => model.Email, new { @class = "form-control", placeholder = "Enter email address...", type = "text" })
@Html.ValidationMessageFor(model => model.Email)
</div>
<div class="form-group">
@Html.LabelFor(model => model.PhotoURL, new { @class = "" })
<input type="file" id="flPhoto" name="upload" />
<table>
<tr>
<td>
Width: <label id="lblWidth">200px</label>
Height: <label id="lblHeight">200px</label>
</td>
<td>
<a href="#" id="hlcropImage" style="vertical-align:top;">Crop Image</a>
</td>
</tr>
<tr>
<td>
<div style="height:400px; width:400px; overflow:auto;">
<img id="imgEmpPhoto" src="~/Images/Default/emp-blank-avatar.png" alt="Employee Image" />
</div>
</td>
<td>
<canvas id="canvas" height="5" width="5" style="vertical-align:top;"></canvas>
</td>
</tr>
</table>
</div>
<p>
<img id="imgCropped" src="#" style="display:none;" />
</p>
<input type="hidden" name="avatarCropped" id="avatarCropped" />
<div class="form-group">
<input type="submit" value="Create" class="btn btn-primary" />
</div>
}
<div>
@Html.ActionLink("Back to List", "Index")
</div>
@section Scripts {
@Scripts.Render("~/bundles/jqueryval")
<script type="text/javascript">
var imageCropWidth = 0;
var imageCropHeight = 0;
var cropPointX = 0;
var cropPointY = 0;
var jcropApi;
$(document).ready(function () {
//initCrop();
});
$("#hlcropImage").on("click", function (e) {
/*
The event.preventDefault() method stops the default action of
an element from happening. For example: Prevent a submit button
from submitting a form. Prevent a link from following the URL
*/
e.preventDefault();
cropImage();
});
function initCrop() {
$('#imgEmpPhoto').Jcrop({
onChange: setCoordsAndImgSize,
aspectRatio: 0, // 1 means will be same for height and weight
onSelect: setCoordsAndImgSize
}, function () { jcropApi = this });
}
function showCoordinate() {
$("#lblWidth").text(imageCropWidth + "px");
$("#lblHeight").text(imageCropHeight + "px");
}
function setCoordsAndImgSize(e) {
imageCropWidth = e.w;
imageCropHeight = e.h;
cropPointX = e.x;
cropPointY = e.y;
$("#lblWidth").text(imageCropWidth + "px");
$("#lblHeight").text(imageCropHeight + "px");
}
function cropImage() {
if (imageCropWidth == 0 && imageCropHeight == 0) {
alert("Please select crop area.");
return;
}
var img = $("#imgEmpPhoto").attr("src");
/*Show cropped image*/
showCroppedImage();
}
function showCroppedImage() {
var x1 = cropPointX;
var y1 = cropPointY;
var width = imageCropWidth;
var height = imageCropHeight;
var canvas = $("#canvas")[0];
var context = canvas.getContext('2d');
var img = new Image();
img.onload = function () {
canvas.height = height;
canvas.width = width;
context.drawImage(img, x1, y1, width, height, 0, 0, width, height);
$('#avatarCropped').val(canvas.toDataURL());
};
img.src = $('#imgEmpPhoto').attr("src");
}
function readFile(input) {
if (input.files && input.files[0]) {
var reader = new FileReader();
/*Destroy jcrop initialization other wise it will hold it previous image in img tag*/
if (jcropApi != null) {
jcropApi.destroy();
}
reader.onload = function (e) {
$('#imgEmpPhoto').attr('src', "");
var img = $('#imgEmpPhoto').attr('src', e.target.result);
/*Current uploaded image size*/
var width = img[0].height;
var height = img[0].width;
$("#lblWidth").text(width + "px");
$("#lblHeight").text(height + "px");
//InitCrop must call here otherwise it will not work
initCrop();
}
reader.readAsDataURL(input.files[0]);
}
}
$('#flPhoto').change(function () {
readFile(this);
//initCrop();
});
</script>
}
**Edit.cshtml
**
@model JCropMVC.Models.Employee
@{
ViewBag.Title = "Edit";
}
<h2>Edit</h2>
@using (Html.BeginForm())
{
@Html.AntiForgeryToken()
@*<div class="form-horizontal">*@
<h4>Employee</h4>
<hr />
@Html.ValidationSummary(true, "", new { @class = "text-danger" })
@Html.HiddenFor(model => model.Id)
<div class="form-group">
@Html.LabelFor(model => model.Name, htmlAttributes: new { @class = "" })
@Html.EditorFor(model => model.Name, new { htmlAttributes = new { @class = "form-control" } })
@Html.ValidationMessageFor(model => model.Name, "", new { @class = "text-danger" })
</div>
<div class="form-group">
@Html.LabelFor(model => model.FatherName, htmlAttributes: new { @class = "" })
@Html.EditorFor(model => model.FatherName, new { htmlAttributes = new { @class = "form-control" } })
@Html.ValidationMessageFor(model => model.FatherName, "", new { @class = "text-danger" })
</div>
<div class="form-group">
@Html.LabelFor(model => model.Designation, htmlAttributes: new { @class = "" })
@Html.EditorFor(model => model.Designation, new { htmlAttributes = new { @class = "form-control" } })
@Html.ValidationMessageFor(model => model.Designation, "", new { @class = "text-danger" })
</div>
<div class="form-group">
@Html.LabelFor(model => model.Mobile, htmlAttributes: new { @class = "" })
@Html.EditorFor(model => model.Mobile, new { htmlAttributes = new { @class = "form-control" } })
@Html.ValidationMessageFor(model => model.Mobile, "", new { @class = "text-danger" })
</div>
<div class="form-group">
@Html.LabelFor(model => model.Email, htmlAttributes: new { @class = "" })
@Html.EditorFor(model => model.Email, new { htmlAttributes = new { @class = "form-control" } })
@Html.ValidationMessageFor(model => model.Email, "", new { @class = "text-danger" })
</div>
@*<div class="form-group">
@Html.LabelFor(model => model.PhotoURL, htmlAttributes: new { @class = "" })
<div class="col-md-10">
@Html.EditorFor(model => model.PhotoURL, new { htmlAttributes = new { @class = "form-control" } })
@Html.ValidationMessageFor(model => model.PhotoURL, "", new { @class = "text-danger" })
</div>
</div>*@
<div class="form-group">
@Html.LabelFor(model => model.PhotoURL, new { @class = "" })
<input type="file" id="flPhoto" name="upload" />
<table>
<tr>
<td>
Width: <label id="lblWidth">200px</label>
Height: <label id="lblHeight">200px</label>
</td>
<td>
<a href="#" id="hlcropImage" style="vertical-align:top;">Crop Image</a>
</td>
</tr>
<tr>
<td>
<div style="height:400px; width:400px; overflow:auto;">
<img id="imgEmpPhoto" src="@Model.PhotoURL" alt="Employee Image" />
</div>
</td>
<td>
<canvas id="canvas" height="5" width="5" style="vertical-align:top;"></canvas>
</td>
</tr>
</table>
</div>
<p>
<img id="imgCropped" src="#" style="display:none;" />
</p>
<input type="hidden" name="avatarCropped" id="avatarCropped" />
<div class="form-group">
<div class="col-md-offset-2 col-md-10">
<input type="submit" value="Save" class="btn btn-primary" />
</div>
</div>
@*</div>*@
}
<div>
@Html.ActionLink("Back to List", "Index")
</div>
@section Scripts {
@Scripts.Render("~/bundles/jqueryval")
<script type="text/javascript">
var imageCropWidth = 0;
var imageCropHeight = 0;
var cropPointX = 0;
var cropPointY = 0;
var jcropApi;
$(document).ready(function () {
//initCrop();
});
$("#hlcropImage").on("click", function (e) {
/*
The event.preventDefault() method stops the default action of
an element from happening. For example: Prevent a submit button
from submitting a form. Prevent a link from following the URL
*/
e.preventDefault();
cropImage();
});
function initCrop() {
$('#imgEmpPhoto').Jcrop({
onChange: setCoordsAndImgSize,
aspectRatio: 0, // 1 means will be same for height and weight
onSelect: setCoordsAndImgSize
}, function () { jcropApi = this });
}
function showCoordinate() {
$("#lblWidth").text(imageCropWidth + "px");
$("#lblHeight").text(imageCropHeight + "px");
}
function setCoordsAndImgSize(e) {
imageCropWidth = e.w;
imageCropHeight = e.h;
cropPointX = e.x;
cropPointY = e.y;
$("#lblWidth").text(imageCropWidth + "px");
$("#lblHeight").text(imageCropHeight + "px");
}
function cropImage() {
if (imageCropWidth == 0 && imageCropHeight == 0) {
alert("Please select crop area.");
return;
}
var img = $("#imgEmpPhoto").attr("src");
/*Show cropped image*/
showCroppedImage();
}
function showCroppedImage() {
var x1 = cropPointX;
var y1 = cropPointY;
var width = imageCropWidth;
var height = imageCropHeight;
var canvas = $("#canvas")[0];
var context = canvas.getContext('2d');
var img = new Image();
img.onload = function () {
canvas.height = height;
canvas.width = width;
context.drawImage(img, x1, y1, width, height, 0, 0, width, height);
$('#avatarCropped').val(canvas.toDataURL());
};
img.src = $('#imgEmpPhoto').attr("src");
}
function readFile(input) {
if (input.files && input.files[0]) {
var reader = new FileReader();
/*Destroy jcrop initialization other wise it will hold it previous image in img tag*/
if (jcropApi != null) {
jcropApi.destroy();
}
reader.onload = function (e) {
$('#imgEmpPhoto').attr('src', "");
var img = $('#imgEmpPhoto').attr('src', e.target.result);
/*Current uploaded image size*/
var width = img[0].height;
var height = img[0].width;
$("#lblWidth").text(width + "px");
$("#lblHeight").text(height + "px");
//InitCrop must call here otherwise it will not work
initCrop();
}
reader.readAsDataURL(input.files[0]);
}
}
$('#flPhoto').change(function () {
readFile(this);
//initCrop();
});
</script>
}
Index.cshtml
@model IEnumerable<JCropMVC.Models.Employee>
@{
ViewBag.Title = "Index";
}
<h2>Index</h2>
<p>
@Html.ActionLink("Create New", "Create")
</p>
<table class="table table-hover">
<tr class="success">
<th>
@Html.DisplayNameFor(model => model.Name)
</th>
<th>
@Html.DisplayNameFor(model => model.FatherName)
</th>
<th>
@Html.DisplayNameFor(model => model.Designation)
</th>
<th>
@Html.DisplayNameFor(model => model.Mobile)
</th>
<th>
@Html.DisplayNameFor(model => model.Email)
</th>
<th>
@Html.DisplayNameFor(model => model.PhotoURL)
</th>
<th></th>
</tr>
@foreach (var item in Model) {
<tr>
<td>
@Html.DisplayFor(modelItem => item.Name)
</td>
<td>
@Html.DisplayFor(modelItem => item.FatherName)
</td>
<td>
@Html.DisplayFor(modelItem => item.Designation)
</td>
<td>
@Html.DisplayFor(modelItem => item.Mobile)
</td>
<td>
@Html.DisplayFor(modelItem => item.Email)
</td>
<td>
<img src= "@item.PhotoURL" id="photo" height="50" width="50" />
@*<img id="photo" src="~/Images/Photo/Emp-94a18d39-6de9-4330-a035-9a9dcf7c0927.png"" />*@
@*@Html.DisplayFor(modelItem => item.PhotoURL)*@
</td>
<td>
@Html.ActionLink("Edit", "Edit", new { id=item.Id }) |
@Html.ActionLink("Details", "Details", new { id=item.Id }) |
@Html.ActionLink("Delete", "Delete", new { id=item.Id })
</td>
</tr>
}
</table>
Delete.cshtml
@model JCropMVC.Models.Employee
@{
ViewBag.Title = "Delete";
}
<h2>Delete</h2>
<h3>Are you sure you want to delete this?</h3>
<div>
<h4>Employee</h4>
<hr />
<dl class="dl-horizontal">
<dt>
@Html.DisplayNameFor(model => model.Name)
</dt>
<dd>
@Html.DisplayFor(model => model.Name)
</dd>
<dt>
@Html.DisplayNameFor(model => model.FatherName)
</dt>
<dd>
@Html.DisplayFor(model => model.FatherName)
</dd>
<dt>
@Html.DisplayNameFor(model => model.Designation)
</dt>
<dd>
@Html.DisplayFor(model => model.Designation)
</dd>
<dt>
@Html.DisplayNameFor(model => model.Mobile)
</dt>
<dd>
@Html.DisplayFor(model => model.Mobile)
</dd>
<dt>
@Html.DisplayNameFor(model => model.Email)
</dt>
<dd>
@Html.DisplayFor(model => model.Email)
</dd>
<dt>
@Html.DisplayNameFor(model => model.PhotoURL)
</dt>
<dd>
@Html.DisplayFor(model => model.PhotoURL)
</dd>
</dl>
@using (Html.BeginForm()) {
@Html.AntiForgeryToken()
<div class="form-actions no-color">
<input type="submit" value="Delete" class="btn btn-default" /> |
@Html.ActionLink("Back to List", "Index")
</div>
}
</div>
Step 9: Add image folders
Add Image folders and sub folders (Deafult and Photo) as follows. Add blank photo in the Default folder to show blank photo for the employee.
**
Step 10: Add Employee link**
Add Employee link in the nav bar of _Layout page as follows.
<ul class="nav navbar-nav">
<li>@Html.ActionLink("Home", "Index", "Home")</li>
<li>@Html.ActionLink("About", "About", "Home")</li>
<li>@Html.ActionLink("Contact", "Contact", "Home")</li>
<li>@Html.ActionLink("Employee", "Index", "Employees")</li>
</ul>
}
Step 11: Run the application
Now run the application. Click Employee link in the nav bar. We can view, add, modify and delete employee information. If we go to the create or edit page, we have an option to upload photo and have option to crop the image and then save the image with employee information. Yes! We are done. Let’s cheers!
