Create an ASP.NET MVC 5 App with Facebook, Twitter, LinkedIn and Google OAuth2 Sign-on (C#)

by Rick Anderson

This tutorial shows you how to build an ASP.NET MVC 5 web application that enables users to log in using OAuth 2.0 with credentials from an external authentication provider, such as Facebook, Twitter, LinkedIn, Microsoft, or Google. For simplicity, this tutorial focuses on working with credentials from Facebook and Google.

Enabling these credentials in your web sites provides a significant advantage because millions of users already have accounts with these external providers. These users may be more inclined to sign up for your site if they do not have to create and remember a new set of credentials.

See also ASP.NET MVC 5 app with SMS and email Two-Factor Authentication.

The tutorial also shows how to add profile data for the user, and how to use the Membership API to add roles. This tutorial was written by Rick Anderson ( Please follow me on Twitter: @RickAndMSFT ).

Getting Started

Start by installing and running Visual Studio Express 2013 for Web or Visual Studio 2013. Install Visual Studio 2013 Update 3 or higher.


You must install Visual Studio 2013 Update 3 or higher to use Google OAuth 2 and to debug locally without SSL warnings.

Click New Project from the Start page, or you can use the menu and select File, and then New Project.

Screenshot that shows the Visual Studio Start page.

Creating Your First Application

Click New Project, then select Visual C# on the left, then Web and then select ASP.NET Web Application. Name your project "MvcAuth" and then click OK.

Screenshot that shows the Visual Studio New Project menu page. M v c Auth is entered on the Name text field.

In the New ASP.NET Project dialog, click MVC. If the Authentication is not Individual User Accounts, click the Change Authentication button and select Individual User Accounts. By checking Host in the cloud, the app will be very easy to host in Azure.

Screenshot that shows the New A S P dot NET Project dialog box. The Change Authentication button and Host in the cloud checkbox are highlighted.

If you selected Host in the cloud, complete the configure dialog.

Screenshot that shows the Configure Microsoft Azure Website dialog box. A sample database password is entered.

Use NuGet to update to the latest OWIN middleware

Use the NuGet package manager to update the OWIN middleware. Select Updates in the left menu. You can click on the Update All button or you can search for only OWIN packages (shown in the next image):

Screenshot that shows the Manage Nu GET Packages dialog box. The Updates bar and Update All button are highlighted.

In the image below, only OWIN packages are shown:

Screenshot that shows the Manage Nu GET Packages dialog box. The Updates bar and Search bar with OWN entered in it are highlighted.

From the Package Manager Console (PMC), you can enter the Update-Package command, which will update all packages.

Press F5 or Ctrl+F5 to run the application. In the image below, the port number is 1234. When you run the application, you'll see a different port number.

Depending on the size of your browser window, you might need to click the navigation icon to see the Home, About, Contact, Register and Log in links.

Screenshot that shows the My A S P dot NET Home page. The Navigation icon is highlighted.
Screenshot that shows the My A S P dot NET Home page. The Navigation icon is highlighted and selected, showing a dropdown menu with navigation links.

Setting up SSL in the Project

To connect to authentication providers like Google and Facebook, you will need to set up IIS-Express to use SSL. It's important to keep using SSL after login and not drop back to HTTP, your login cookie is just as secret as your username and password, and without using SSL you're sending it in clear-text across the wire. Besides, you've already taken the time to perform the handshake and secure the channel (which is the bulk of what makes HTTPS slower than HTTP) before the MVC pipeline is run, so redirecting back to HTTP after you're logged in won't make the current request or future requests much faster.

  1. In Solution Explorer, click the MvcAuth project.

  2. Hit the F4 key to show the project properties. Alternatively, from the View menu you can select Properties Window.

  3. Change SSL Enabled to True.

    Screenshot that shows the Solution Explorer Project Properties for the M v c Auth Project. S S L Enabled True and S S L U R L are highlighted.

  4. Copy the SSL URL (which will be https://localhost:44300/ unless you've created other SSL projects).

  5. In Solution Explorer, right click the MvcAuth project and select Properties.

  6. Select the Web tab, and then paste the SSL URL into the Project Url box. Save the file (Ctl+S). You will need this URL to configure Facebook and Google authentication apps.

    Screenshot that shows the M v c Auth project's properties page. The Web tab on the left  menu and the S S L U R L pasted in the Project U R L box are highlighted.

  7. Add the RequireHttps attribute to the Home controller to require all requests must use HTTPS. A more secure approach is to add the RequireHttps filter to the application. See the section "Protect the Application with SSL and the Authorize Attribute" in my tutorial Create an ASP.NET MVC app with auth and SQL DB and deploy to Azure App Service. A portion of the Home controller is shown below.

    public class HomeController : Controller
       public ActionResult Index()
          return View();
  8. Press CTRL+F5 to run the application. If you've installed the certificate in the past, you can skip the rest of this section and jump to Creating a Google app for OAuth 2 and connecting the app to the project, otherwise, follow the instructions to trust the self-signed certificate that IIS Express has generated.

    Screenshot that shows a Visual Studio dialog box prompting the user to choose whether or not to trust the I I S Express S S L certificate.

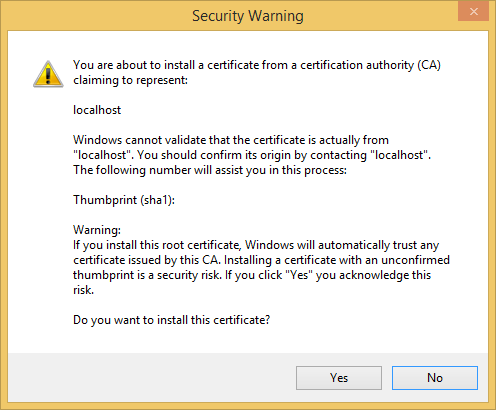

  9. Read the Security Warning dialog and then click Yes if you want to install the certificate representing localhost.

    Screenshot that shows the Visual Studio Security Warning dialog box prompting the user to choose whether or not to install the certifcate.

  10. IE shows the Home page and there are no SSL warnings.

    Screenshot that shows the My A S P dot NET Home page with no S S L warnings.

  11. Google Chrome also accepts the certificate and will show HTTPS content without a warning. Firefox uses its own certificate store, so it will display a warning. For our application you can safely click I Understand the Risks.

    Screenshot that shows the My A S P dot NET app running on Firefox. An Untrusted Connection warning page is asking the user whether or not to accept the application and proceed.

Creating a Google app for OAuth 2 and connecting the app to the project


For current Google OAuth instructions, see Configuring Google authentication in ASP.NET Core.

  1. Navigate to the Google Developers Console.

  2. If you haven't created a project before, select Credentials in the left tab, and then select Create.

  3. In the left tab, click Credentials.

  4. Click Create credentials then OAuth client ID.

    1. In the Create Client ID dialog, keep the default Web application for the application type.
    2. Set the Authorized JavaScript origins to the SSL URL you used above (https://localhost:44300/ unless you've created other SSL projects)
    3. Set the Authorized redirect URI to:
  5. Click the OAuth Consent screen menu item, then set your email address and product name. When you have completed the form click Save.

  6. Click the Library menu item, search Google+ API, click on it then press Enable.

    Screenshot displaying a list of search results. The Google plus A P I search result is highlighted.

    The image below shows the enabled APIs.

    Screenshot that shows the Google Developers Console page listing enabled A P I's. A P I's show as enabled when a green ON button appears next to it.

  7. From the Google APIs API Manager, visit the Credentials tab to obtain the Client ID. Download to save a JSON file with application secrets. Copy and paste the ClientId and ClientSecret into the UseGoogleAuthentication method found in the Startup.Auth.cs file in the App_Start folder. The ClientId and ClientSecret values shown below are samples and don't work.

    public void ConfigureAuth(IAppBuilder app)
        // Configure the db context and user manager to use a single instance per request
        // Enable the application to use a cookie to store information for the signed in user
        // and to use a cookie to temporarily store information about a user logging in with a third party login provider
        // Configure the sign in cookie
        app.UseCookieAuthentication(new CookieAuthenticationOptions
            AuthenticationType = DefaultAuthenticationTypes.ApplicationCookie,
            LoginPath = new PathString("/Account/Login"),
            Provider = new CookieAuthenticationProvider
                OnValidateIdentity = SecurityStampValidator.OnValidateIdentity<ApplicationUserManager, ApplicationUser>(
                    validateInterval: TimeSpan.FromMinutes(30),
                    regenerateIdentity: (manager, user) => user.GenerateUserIdentityAsync(manager))
        // Uncomment the following lines to enable logging in with third party login providers
        //    clientId: "",
        //    clientSecret: "");
        //   consumerKey: "",
        //   consumerSecret: "");
        //   appId: "",
        //   appSecret: "");
             clientId: "",
             clientSecret: "00000000000");


    Security - Never store sensitive data in your source code. The account and credentials are added to the code above to keep the sample simple. See Best practices for deploying passwords and other sensitive data to ASP.NET and Azure App Service.

  8. Press CTRL+F5 to build and run the application. Click the Log in link.

    Screenshot that shows the My A S P dot NET Home page. The Navigation button and Log in link are highlighted.

  9. Under Use another service to log in, click Google.

    Screenshot that shows the My A S P dot NET Log in page. The Use another service to log in dialog and Google button are highlighted.


    If you miss any of the steps above you will get a HTTP 401 error. Recheck your steps above. If you miss a required setting (for example product name), add the missing item and save; it can take a few minutes for authentication to work.

  10. You will be redirected to the Google site where you will enter your credentials.

    Screenshot that shows a Google Accounts sign in page. Sample credentials are entered in the text fields.

  11. After you enter your credentials, you will be prompted to give permissions to the web application you just created:

    Screenshot that shows the Google Accounts Request for Permission page, prompting the user to either cancel or accept offline access to the web application.

  12. Click Accept. You will now be redirected back to the Register page of the MvcAuth application where you can register your Google account. You have the option of changing the local email registration name used for your Gmail account, but you generally want to keep the default email alias (that is, the one you used for authentication). Click Register.

    Screenshot that shows the My A S P dot NET Register Application page. A sample Google account is entered in the email text field.

Creating the app in Facebook and connecting the app to the project


For current Facebook OAuth2 authentication instructions, see Configuring Facebook authentication

Examine the Membership Data Using Server Explorer

In the View menu, click Server Explorer.

Screenshot that shows the Visual Studio VIEW dropdown menu, where Server Explorer is highlighted.

Expand DefaultConnection (MvcAuth), expand Tables, right click AspNetUsers and click Show Table Data.

Screenshot that shows the Service Explorer menu options. The Data Connections, Default Connection M v c Auth, and Tables tabs are expanded.

aspnetusers table data

Adding Profile Data to the User Class

In this section you'll add birth date and home town to the user data during registration, as shown in the following image.

reg with home town and Bday

Open the Models\IdentityModels.cs file and add birth date and home town properties:

public class ApplicationUser : IdentityUser
    public string HomeTown { get; set; }
    public System.DateTime? BirthDate { get; set; }
    public async Task<ClaimsIdentity> GenerateUserIdentityAsync(UserManager<ApplicationUser> manager)
        // Note the authenticationType must match the one defined in CookieAuthenticationOptions.AuthenticationType
        var userIdentity = await manager.CreateIdentityAsync(this, DefaultAuthenticationTypes.ApplicationCookie);
        // Add custom user claims here
        return userIdentity;

Open the Models\AccountViewModels.cs file and the set birth date and home town properties in ExternalLoginConfirmationViewModel.

public class ExternalLoginConfirmationViewModel
    [Display(Name = "Email")]
    public string Email { get; set; }

    public string HomeTown { get; set; }
    public System.DateTime? BirthDate { get; set; }

Open the Controllers\AccountController.cs file and add code for birth date and home town in the ExternalLoginConfirmation action method as shown:

public async Task<ActionResult> ExternalLoginConfirmation(ExternalLoginConfirmationViewModel model, string returnUrl)
    if (User.Identity.IsAuthenticated)
        return RedirectToAction("Manage");

    if (ModelState.IsValid)
        // Get the information about the user from the external login provider
        var info = await AuthenticationManager.GetExternalLoginInfoAsync();
        if (info == null)
            return View("ExternalLoginFailure");
        var user = new ApplicationUser()
            UserName = model.Email, Email = model.Email,
            BirthDate = model.BirthDate,
            HomeTown  = model.HomeTown
        IdentityResult result = await UserManager.CreateAsync(user);
        if (result.Succeeded)
            result = await UserManager.AddLoginAsync(user.Id, info.Login);
            if (result.Succeeded)
                await SignInAsync(user, isPersistent: false);
                // For more information on how to enable account confirmation and password reset please visit
                // Send an email with this link
                // string code = await UserManager.GenerateEmailConfirmationTokenAsync(user.Id);
                // var callbackUrl = Url.Action("ConfirmEmail", "Account", new { userId = user.Id, code = code }, protocol: Request.Url.Scheme);
                // SendEmail(user.Email, callbackUrl, "Confirm your account", "Please confirm your account by clicking this link");
                return RedirectToLocal(returnUrl);

    ViewBag.ReturnUrl = returnUrl;
    return View(model);

Add birth date and home town to the Views\Account\ExternalLoginConfirmation.cshtml file:

@model MvcAuth.Models.ExternalLoginConfirmationViewModel
    ViewBag.Title = "Register";
<h3>Associate your @ViewBag.LoginProvider account.</h3>

@using (Html.BeginForm("ExternalLoginConfirmation", "Account", new { ReturnUrl = ViewBag.ReturnUrl }, FormMethod.Post, new { @class = "form-horizontal", role = "form" }))

    <h4>Association Form</h4>
    <hr />
    @Html.ValidationSummary(true, "", new { @class = "text-danger" })
    <p class="text-info">
        You've successfully authenticated with <strong>@ViewBag.LoginProvider</strong>.
            Please enter a user name for this site below and click the Register button to finish
            logging in.
    <div class="form-group">
        @Html.LabelFor(m => m.Email, new { @class = "col-md-2 control-label" })
        <div class="col-md-10">
            @Html.TextBoxFor(m => m.Email, new { @class = "form-control" })
            @Html.ValidationMessageFor(m => m.Email, "", new { @class = "text-danger" })
    <div class="form-group">
        @Html.LabelFor(m => m.HomeTown, new { @class = "col-md-2 control-label" })
        <div class="col-md-10">
            @Html.TextBoxFor(m => m.HomeTown, new { @class = "form-control" })
            @Html.ValidationMessageFor(m => m.HomeTown)
    <div class="form-group">
        @Html.LabelFor(m => m.BirthDate, new { @class = "col-md-2 control-label" })
        <div class="col-md-10">
            @Html.TextBoxFor(m => m.BirthDate, new { @class = "form-control" })
            @Html.ValidationMessageFor(m => m.BirthDate)
    <div class="form-group">
        <div class="col-md-offset-2 col-md-10">
            <input type="submit" class="btn btn-default" value="Register" />

@section Scripts {

Delete the membership database so you can again register your Facebook account with your application and verify you can add the new birth date and home town profile information.

From Solution Explorer, click the Show All Files icon, then right click Add_Data\aspnet-MvcAuth-<dateStamp>.mdf and click Delete.

Screenshot that shows the Solution Explorer page. The Show All Files icon and M v c Auth membership database are highlighted.

From the Tools menu, click NuGet Package Manger, then click Package Manager Console (PMC). Enter the following commands in the PMC.

  1. Enable-Migrations
  2. Add-Migration Init
  3. Update-Database

Run the application and use FaceBook and Google to log in and register some users.

Examine the Membership Data

In the View menu, click Server Explorer.

Screenshot that shows the Visual Studio VIEW dropdown menu. The Service Explorer option is highlighted.

Right click AspNetUsers and click Show Table Data.

Screenshot that shows the Server Explorer menu options. The A s p Net Users and the Show Table Data options are highlighted.

The HomeTown and BirthDate fields are shown below.

Screenshot that shows the A s p Net Users table data. The table data shows the I D, Home Town, Birth Date, Email, and Email Confirmed fields.

Logging off your App and Logging in With Another Account

If you log on to your app with Facebook,, and then log out and try to log in again with a different Facebook account (using the same browser), you will be immediately logged in to the previous Facebook account you used. In order to use another account, you need to navigate to Facebook and log out at Facebook. The same rule applies to any other 3rd party authentication provider. Alternatively, you can log in with another account by using a different browser.

Next Steps

Follow my tutorial Create an ASP.NET MVC app with auth and SQL DB and deploy to Azure App Service, which continues this tutorial and shows the following:

  1. How to deploy your app to Azure.
  2. How to secure you app with roles.
  3. How to secure your app with the RequireHttps and Authorize filters.
  4. How to use the membership API to add users and roles.

For an good explanation of how ASP.NET External Authentication Services work, see Robert McMurray's External Authentication Services. Robert's article also goes into detail in enabling Microsoft and Twitter authentication. Tom Dykstra's excellent EF/MVC tutorial shows how to work with the Entity Framework.
