Manage Key Vault in Azure Stack Hub using PowerShell

This article describes how to create and manage a key vault in Azure Stack Hub using PowerShell. You'll learn how to use Key Vault PowerShell cmdlets to:

  • Create a key vault.
  • Store and manage cryptographic keys and secrets.
  • Authorize users or apps to invoke operations in the vault.


The Key Vault PowerShell cmdlets described in this article are provided in the Azure PowerShell SDK.


Enable your tenant subscription for Key Vault operations

Before you can issue any operations against a key vault, you must ensure that your tenant subscription is enabled for vault operations. To verify that key vault operations are enabled, run the following command:

Get-AzResourceProvider -ProviderNamespace Microsoft.KeyVault | ft -Autosize

If your subscription is enabled for vault operations, the output shows RegistrationState is Registered for all resource types of a key vault.

Key vault registration state in Powershell

If vault operations are not enabled, issue the following command to register the Key Vault service in your subscription:

Register-AzResourceProvider -ProviderNamespace Microsoft.KeyVault

If the registration is successful, the following output is returned:

Key vault registration in Powershell successful

When you invoke the key vault commands, you might receive an error, such as "The subscription is not registered to use namespace 'Microsoft.KeyVault'." If you get an error, confirm you've enabled the Key Vault resource provider by following the previous instructions.

Create a key vault

Before you create a key vault, create a resource group so that all of the resources related to the key vault exist in a resource group. Use the following command to create a new resource group:

New-AzResourceGroup -Name "VaultRG" -Location local -verbose -Force

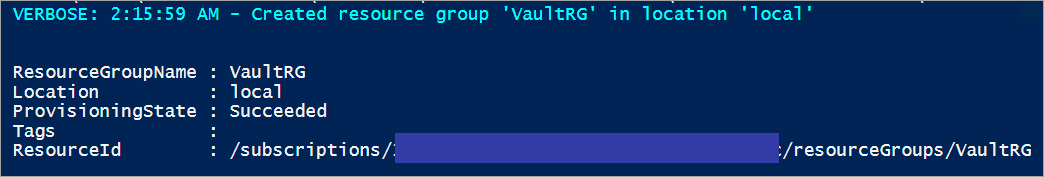

New resource group generated in Powershell

Now, use the following cmdlet to create a key vault in the resource group that you created earlier. This command reads three mandatory parameters: resource group name, key vault name, and geographic location.

Run the following command to create a key vault:

New-AzKeyVault -VaultName "Vault01" -ResourceGroupName "VaultRG" -Location local -verbose

New key vault generated in Powershell

The output of this command shows the properties of the key vault that you created. When an app accesses this vault, it must use the Vault URI property, which is https://vault01.vault.local.azurestack.external in this example.

Active Directory Federation Services (AD FS) deployment

In an AD FS deployment, you might get this warning: "Access policy is not set. No user or application has access permission to use this vault." To resolve this issue, set an access policy for the vault by using the Set-AzKeyVaultAccessPolicy command:

# Obtain the security identifier(SID) of the active directory user
$adUser = Get-ADUser -Filter "Name -eq '{Active directory user name}'"
$objectSID = $adUser.SID.Value

# Set the key vault access policy
Set-AzKeyVaultAccessPolicy -VaultName "{key vault name}" -ResourceGroupName "{resource group name}" -ObjectId "{object SID}" -PermissionsToKeys {permissionsToKeys} -PermissionsToSecrets {permissionsToSecrets} -BypassObjectIdValidation

Manage keys and secrets

After you create a vault, use these steps to create and manage keys and secrets in the vault.

Create a key

Use the Add-AzureKeyVaultKey cmdlet to create or import a software-protected key in a key vault:

Add-AzureKeyVaultKey -VaultName "Vault01" -Name "Key01" -verbose -Destination Software

The -Destination parameter is used to specify that the key is software protected. When the key is successfully created, the command outputs the details of the created key.

New key vault key generated in Powershell

You can now reference the created key by using its URI. If you create or import a key that has same name as an existing key, the original key is updated with the values specified in the new key. You can access the previous version by using the version-specific URI of the key. For example:

  • Use https://vault10.vault.local.azurestack.external:443/keys/key01 to always get the current version.
  • Use https://vault010.vault.local.azurestack.external:443/keys/key01/d0b36ee2e3d14e9f967b8b6b1d38938a to get this specific version.

Get a key

Use the Get-AzureKeyVaultKey cmdlet to read a key and its details:

Get-AzureKeyVaultKey -VaultName "Vault01" -Name "Key01"

Create a secret

Use the Set-AzureKeyVaultSecret cmdlet to create or update a secret in a vault. A secret is created if one does not already exist. A new version of the secret is created if it already exists:

$secretvalue = ConvertTo-SecureString "User@123" -AsPlainText -Force
Set-AzureKeyVaultSecret -VaultName "Vault01" -Name "Secret01" -SecretValue $secretvalue

Create a secret in Powershell

Get a secret

Use the Get-AzureKeyVaultSecret cmdlet to read a secret in a key vault. This command can return all or specific versions of a secret:

Get-AzureKeyVaultSecret -VaultName "Vault01" -Name "Secret01"

After you create the keys and secrets, you can authorize external apps to use them.

Authorize an app to use a key or secret

Use the following cmdlet to authorize an app to access a key or secret in the key vault.

In the following example, the vault name is ContosoKeyVault, and the app you want to authorize has a client ID of 8f8c4bbd-485b-45fd-98f7-ec6300b7b4ed. To authorize the app, run the following command. You can also specify the PermissionsToKeys parameter to set permissions for a user, an app, or a security group.

When using the cmdlet against an AD FS configured Azure Stack Hub environment, the parameter BypassObjectIdValidation should be provided

Set-AzKeyVaultAccessPolicy -VaultName 'ContosoKeyVault' -ServicePrincipalName 8f8c4bbd-485b-45fd-98f7-ec6300b7b4ed -PermissionsToKeys decrypt,sign -BypassObjectIdValidation

If you want to authorize that same app to read secrets in your vault, run the following cmdlet:

Set-AzKeyVaultAccessPolicy -VaultName 'ContosoKeyVault' -ServicePrincipalName 8f8c4bbd-485b-45fd-98f7-ec6300 -PermissionsToKeys Get -BypassObjectIdValidation
