How to deploy F5 across two Azure Stack Hub instances

This article walks you through setting up an external load balancer on two Azure Stack Hub environments. You can use this configuration to manage different workloads. In this article, you'll deploy F5 as a global load-balancing solution across two independent Azure Stack Hub instances. You'll also deploy a load balanced web app running in an NGINX server across your two instances. They'll run behind a high-availability, failover pair of F5 virtual appliances.

You can find the Azure Resource Manager templates in the f5-azurestack-gslb GitHub repository.

Overview of load balancing with F5

The F5 hardware, the load-balancer, may be outside of Azure Stack Hub and within the datacenter that hosts Azure Stack Hub. Azure Stack Hub doesn't have a native capability to load balance workloads across two separate Azure Stack Hub deployments. The F5's BIG-IP virtual edition (VE) run on both platforms. This set up supports parity between Azure and Azure Stack Hub architectures through replication of the supporting application services. You can develop an app in one environment and move it to another. You can also mirror the entire production-ready Azure Stack Hub, including the same BIG-IP configurations, policies, and application services. The approach eliminates the need for countless hours of application refactoring and testing, and allows you to get on with writing code.

Securing applications and their data is often a concern for developers moving apps to the public cloud. This doesn't need to be the case. You can build an app in your Azure Stack Hub environment, while a security architect configures the necessary settings on F5's web application firewall (WAF). The entire stack can be replicated in Azure Stack Hub with the knowledge that the application will be protected by the same industry-leading WAF. With identical policies and rulesets, there won't be any security loopholes or vulnerabilities that might otherwise be generated by employing different WAFs.

Azure Stack Hub has a separate marketplace from Azure. Only certain items are added. In this case, if you want to create a new resource group on each of the Azure Stack Hubs and deploy the F5 virtual appliance that are already available. From there, you'll see that a Public IP address will be required to allow network connectivity between both Azure Stack Hub instances. Essentially, they are both islands and the Public IP will allow them to talk across both locations.

Prerequisites for BIG-IP VE

  • Download F5 BIG-IP VE - ALL (BYOL, 2 Boot Locations) into each Azure Stack Hub Marketplace. If you don't have them available to you in your portal, contact your cloud operator.

  • You can find the Azure Resource Manager template in the following GitHub repository: https://github.com/Mikej81/f5-azurestack-gslb.

Deploy F5 BIG-IP VE on each instance

Deploy to Azure Stack Hub instance A and instance B.

  1. Sign into the Azure Stack Hub user portal.

  2. Select + Create a Resource.

  3. Search the marketplace by typing F5.

  4. Select F5 BIG-IP VE – ALL (BYOL, 2 Boot Locations).

    The "Dashboard > New > Marketplace > Everything > F5 BIG-IP VE – ALL (BYOL, 2 Boot Locations)" dialog box shows f5 in the search box. The single search result is "F5 BIG-IP VE – ALL (BYOL, 2 Boot Locations)".

  5. At the bottom of the next page, select Create.

    The "F5 BIG-IP VE – ALL (BYOL, 2 Boot Locations)" dialog box provides information on BIG-IP VE and the modules that you can deploy, depending on your license. There is a Create button.

  6. Create a New Resource Group called F5-GSLB.

  7. Use the following values as an example to complete the deployment:

    The Inputs page of the Microsoft.Template dialog box shows 15 text boxes, such as VIRTUALMACHINENAME and ADMINUSERNAME, that contain values for an example deployment.

  8. Validate that your deployment completes successfully.

    The Overview page of the Microsoft.Template dialog box reports "Your deployment is complete" and provides details about the deployment.

    Note

    Each BIG-IP Deployment should take around 20 minutes.

Configure BIG-IP appliances

Follow these steps needs for both Azure Stack Hub A and B.

  1. Sign into the Azure Stack Hub user portal on Azure Stack Hub instance A to review the resources created from the BIG-IP template deployment.

    The Overview page of the F5-GSLB dialog box lists the deployed resources, and associated information.

  2. Follow the instructions at F5 for BIG-IP Configuration items.

  3. Configure BIG-IP Wide IP List to listen across both appliances deployed to Azure Stack Hub instance A and B. For instructions, see BIG-IP GTM Configuration.

  4. Validate Failover of BIG-IP Appliances. On a test system, configure your DNS servers to use the following:

    • Azure Stack Hub instance A = f5stack1-ext public IP Address
    • Azure Stack Hub instance B = f5stack1-ext public IP Address
  5. Browse to www.contoso.com and your browser loads the NGINX default page.

Create a DNS sync group

  1. Enable the root account to establish trust. Follow the instruction at Changing system maintenance account passwords (11.x - 15.x). After you set the trust (certificate exchange), disable the root account.

  2. Sign in to the BIG-IP and create a DNS Sync Group. For instructions, see Creating BIG-IP DNS Sync Group.

    Note

    You can find the local IP of the BIP-IP Appliance in your F5-GSLB Resource Group. The Network Interface is "f5stack1-ext" and you want to connect to the Public or Private IP (depending on access).

    The "DNS >> GSLB : Data Centers : Data Center List" dialog box lists data centers and status. There are Enable, Disable, and Delete buttons to apply against selected data centers.

    The "DNS >> GSLB : Servers : Server List" dialog box lists servers and status. There are Enable, Disable, Delete, and Reconnect buttons to apply against selected servers.

  3. Select the new resource group F5-GSLB and select the f5stack1 virtual machine, under Settings select Networking.

Post install configurations

After you have installed, you'll need to configure your Azure Stack Hub NSGs and lock down the source IP addresses.

  1. Disable the port 22 after the trust has been established.

  2. When your system is online, block the source NSGs. Management NSG should be locked to management source, External (4353/TCP) NSG should be locked to the other instance for sync. 443 should also be locked until applications with Virtual Servers are deployed.

  3. GTM_DNS Rule is set to allow port 53 (DNS) traffic in, and BIG-IP resolver will start working once. Listeners are created.

    The fStack1-ext page of the Network Interface dialog box shows information about the fstack1-ext interface, and about its NSG, fstack1-ext-nsg. There are tabs to select viewing either the Inbound port rules or the Outbound port rules.

  4. Deploy a basic web application workload within your Azure Stack Hub environment to Load Balance behind the BIG-IP. You can find an example for using the NGNIX server at Deploying NGINX and NGINX Plus on Docker.

    Note

    Deploy an instance of NGNIX on both Azure Stack Hub A and Azure Stack Hub B.

  5. After NGINX is deployed in a docker container on an Ubuntu VM within each of the Azure Stack Hub instances, validate that you can reach the default webpage on the servers.

    The "Welcome to nginx!" page indicates that the nginx web server was successfully installed, and that further configuration is required. There are two links leading to support information.

  6. Sign in to the management interface of the BIG-IP appliance. In this example, use the f5-stack1-ext Public IP address.

    The login screen for the BIG-IP Configuration Utility requires Username and Password.

  7. Publish access to NGINX through the BIG-IP.

    • In this task, you'll configure the BIG-IP with a Virtual Server and Pool to allow inbound Internet access to the WordPress application. First you need to identify the private IP address for the NGINX instance.
  8. Sign in to the Azure Stack Hub user portal.

  9. Select your NGINX Network Interface.

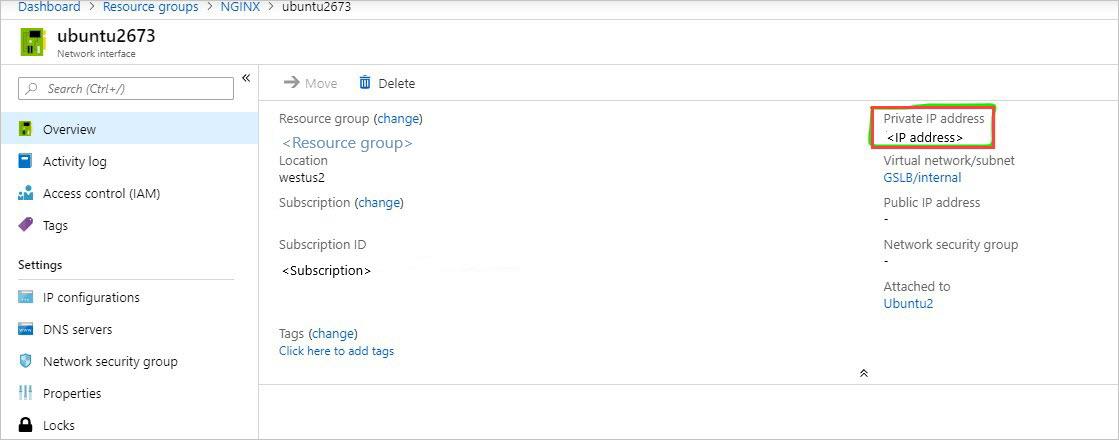

    The Overview page of the "Dashboard > Resource groups > NGINX > ubuntu2673" dialog box shows information about the ubuntu2673 network interface.

  10. From the BIG-IP console, go to Local traffic > Pools > Pool List and Select +. Configure the pool using the values in the table. Leave all other fields to their defaults.

    The left pane provides the ability to navigate to create a new pool. The right pane is titled "Local Traffic >> Pools: Pool List >> New Pool", and provides capabilities to specify the information about the new pool. There is a Finished button.

    Key Value
    Name NGINX_Pool
    Health Monitor HTTPS
    Node Name NGINX
    Address <your NGINX private IP address>
    Service Port 443
  11. Select Finished. When configured correctly, the pool status is green.

    The right pane is titled "Local Traffic >> Pools : Pool List", and the newly created pool is the only entry in the list.

    You now need to configure the virtual server. To do this, you first need to find the private IP of your F5 BIG-IP.

  12. From the BIG-IP console, go to Network > Self IPs and note the IP address.

    The left pane provides the ability to navigate to show Self IPs. The right pane is titled "Network >> Self IPs". Two Self IPs are listed, and the first, self_2nic, is highlighted.

  13. Create a virtual server by going to Local Traffic > Virtual Servers > Virtual Server List and Select +. Configure the pool using the values in the table. Leave all other fields to their defaults.

    Key Value
    Name NGINX
    Destination Address <Self IP address of the BIG-IP>
    Service Port 443
    SSL Profile (Client) clientssl
    Source Address Translation Auto Map

    The left pane is used to navigate the right pane to "Local Traffic >> Virtual Servers : Virtual Server List >> NGINX", where the required information is entered.

    This page provides the capability to enter additional information. There are Update and Delete buttons.

  14. You have now completed the BIG-IP configuration for the NGINX application. To verify proper functionality, browse the site and verify F5 statistics.

  15. Open a browser to https://<F5-public-VIP-IP> and ensure it displays your NGINX default page.

    The "Welcome to nginx!" page indicates that the nginx web server is successfully installed, and that further configuration is required. There are two links that lead to support information.

  16. Now check the statistics of your virtual server to verify traffic flow, by navigating to Statistics > Module Statistics > Local Traffic.

  17. Under Statistics Type, select Virtual Servers.

    The left pane has navigated the right pane to "Statistics >> Module Statistics : Local Traffic >> Virtual Servers", and the list shows the NGINX virtual server and others. NGINX is highlighted.
