Overview of policy keys in Azure Active Directory B2C
Before you begin, use the Choose a policy type selector to choose the type of policy you’re setting up. Azure Active Directory B2C offers two methods to define how users interact with your applications: through predefined user flows or through fully configurable custom policies. The steps required in this article are different for each method.
This feature is available only for custom policies. For setup steps, select Custom policy in the preceding selector.
Azure Active Directory B2C (Azure AD B2C) stores secrets and certificates in the form of policy keys to establish trust with the services it integrates with. These trusts consist of:
- External identity providers
- Connecting with REST API services
- Token signing and encryption
This article discusses what you need to know about the policy keys that are used by Azure AD B2C.
Currently, configuration of policy keys is limited to custom policies only.
You can configure secrets and certificates for establishing trust between services in the Azure portal under the Policy keys menu. Keys can be symmetric or asymmetric. Symmetric cryptography, or private key cryptography, is where a shared secret is used to both encrypt and decrypt the data. Asymmetric cryptography, or public key cryptography, is a cryptographic system that uses pairs of keys, consisting of public keys that are shared with the relying party application and private keys that are known only to Azure AD B2C.
Policy keyset and keys
The top-level resource for policy keys in Azure AD B2C is the Keyset container. Each keyset contains at least one Key. A key has following attributes:
||Yes||Usage: Identifies the intended use of the public key. Encrypting data
||No||Activation date and time.|
||No||Expiration date and time.|
We recommend setting the key activation and expiration values according to your PKI standards. You might need to rotate these certificates periodically for security or policy reasons. For example, you might have a policy to rotate all your certificates every year.
To create a key, you can choose one of the following methods:
- Manual - Create a secret with a string you define. The secret is a symmetric key. You can set the activation and expiration dates.
- Generated - Auto-generate a key. You can set activation and expiration dates. There are two options:
- Secret - Generates a symmetric key.
- RSA - Generates a key pair (asymmetric keys).
- Upload - Upload a certificate, or a PKCS12 key. The certificate must contain the private and public keys (asymmetric keys).

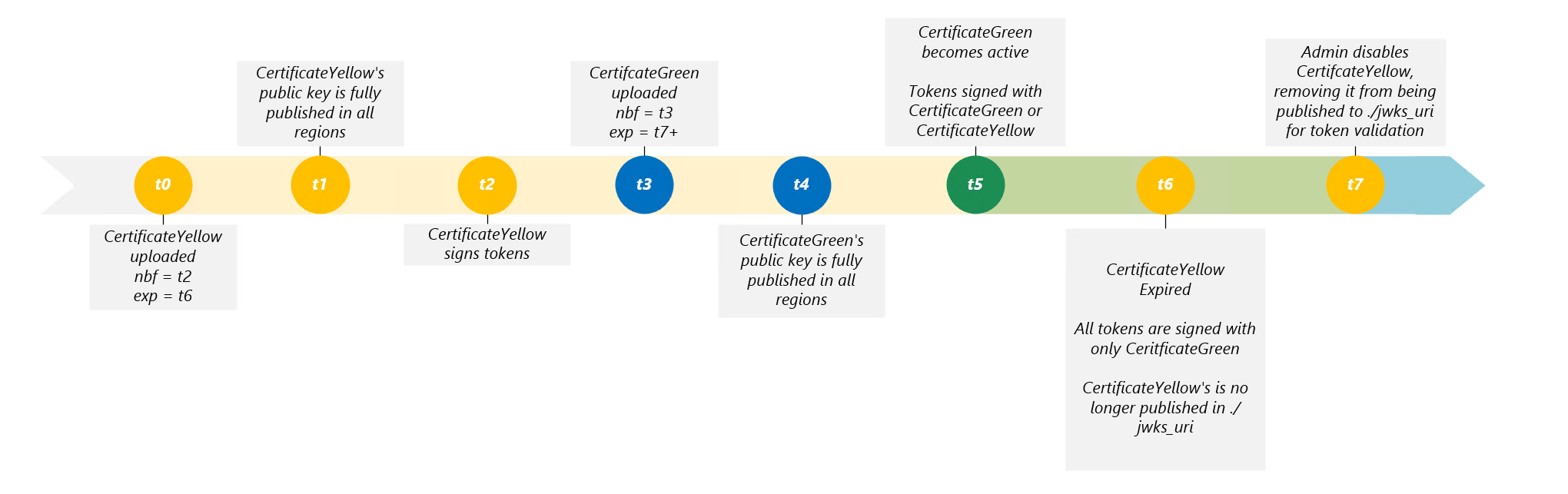

For security purposes, Azure AD B2C can roll over keys periodically, or immediately in case of emergency. Any application, identity provider, or REST API that integrates with Azure AD B2C should be prepared to handle a key rollover event, no matter how frequently it may occur. Otherwise, if your application or Azure AD B2C attempts to use an expired key to perform a cryptographic operation, the sign-in request will fail.
If an Azure AD B2C keyset has multiple keys, only one of the keys is active at any one time, based on the following criteria:
- The key activation is based on the activation date.
- The keys are sorted by activation date in ascending order. Keys with activation dates further into the future appear lower in the list. Keys without an activation date are located at the bottom of the list.
- When the current date and time is greater than a key's activation date, Azure AD B2C will activate the key and stop using the prior active key.
- When the current key's expiration time has elapsed and the key container contains a new key with valid not before and expiration times, the new key will become active automatically.
- When the current key's expiration time has elapsed and the key container does not contain a new key with valid not before and expiration times, Azure AD B2C won't be able to use the expired key. Azure AD B2C will raise an error message within a dependant component of your custom policy. To avoid this issue, you can create a default key without activation and expiration dates as a safety net.
- The key's endpoint (JWKS URI) of the OpenId Connect well-known configuration endpoint reflects the keys configured in the Key Container, when the Key is referenced in the JwtIssuer Technical Profile. An application using an OIDC library will automatically fetch this metadata to ensure it uses the correct keys to validate tokens. For more information, learn how to use Microsoft Authentication Library, which always fetches the latest token signing keys automatically.
Policy key management
To get the current active key within a key container, use the Microsoft Graph API getActiveKey endpoint.
To add or delete signing and encryption keys:
- Sign in to the Azure portal.
- Make sure you're using the directory that contains your Azure AD B2C tenant. Select the Directories + subscriptions icon in the portal toolbar.
- On the Portal settings | Directories + subscriptions page, find your Azure AD B2C directory in the Directory name list, and then select Switch.
- In the Azure portal, search for and select Azure AD B2C.
- On the overview page, under Policies, select Identity Experience Framework.
- Select Policy Keys
- To add a new key, select Add.
- To remove a new key, select the key, and then select Delete. To delete the key, type the name of the key container to delete. Azure AD B2C will delete the key and create a copy of the key with the suffix .bak.
Replace a key
The keys in a keyset are not replaceable or removable. If you need to change an existing key:
- We recommend adding a new key with the activation date set to the current date and time. Azure AD B2C will activate the new key and stop using the prior active key.
- Alternatively, you can create a new keyset with the correct keys. Update your policy to use the new keyset, and then remove the old keyset.
