Tutorial: Microsoft Entra single sign-on (SSO) integration with Coralogix

  • Article

In this tutorial, you'll learn how to integrate Coralogix with Microsoft Entra ID. When you integrate Coralogix with Microsoft Entra ID, you can:

  • Control in Microsoft Entra ID who has access to Coralogix.
  • Enable your users to be automatically signed-in to Coralogix with their Microsoft Entra accounts.
  • Manage your accounts in one central location.

To learn more about SaaS app integration with Microsoft Entra ID, see What is application access and single sign-on with Microsoft Entra ID.

Prerequisites

To get started, you need the following items:

  • A Microsoft Entra subscription. If you don't have a subscription, you can get a free account.
  • Coralogix single sign-on (SSO) enabled subscription.

Scenario description

In this tutorial, you configure and test Microsoft Entra SSO in a test environment.

  • Coralogix supports SP initiated SSO

Note

Identifier of this application is a fixed string value so only one instance can be configured in one tenant.

To configure the integration of Coralogix into Microsoft Entra ID, you need to add Coralogix from the gallery to your list of managed SaaS apps.

  1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.
  2. Browse to Identity > Applications > Enterprise applications > New application.
  3. In the Add from the gallery section, type Coralogix in the search box.
  4. Select Coralogix from results panel and then add the app. Wait a few seconds while the app is added to your tenant.

Alternatively, you can also use the Enterprise App Configuration Wizard. In this wizard, you can add an application to your tenant, add users/groups to the app, assign roles, as well as walk through the SSO configuration as well. Learn more about Microsoft 365 wizards.

Configure and test Microsoft Entra single sign-on for Coralogix

Configure and test Microsoft Entra SSO with Coralogix using a test user called B.Simon. For SSO to work, you need to establish a link relationship between a Microsoft Entra user and the related user in Coralogix.

To configure and test Microsoft Entra SSO with Coralogix, complete the following building blocks:

  1. Configure Microsoft Entra SSO - to enable your users to use this feature.
    1. Create a Microsoft Entra test user - to test Microsoft Entra single sign-on with B.Simon.
    2. Assign the Microsoft Entra test user - to enable B.Simon to use Microsoft Entra single sign-on.
  2. Configure Coralogix SSO - to configure the single sign-on settings on application side.
    1. Create Coralogix test user - to have a counterpart of B.Simon in Coralogix that is linked to the Microsoft Entra representation of user.
  3. Test SSO - to verify whether the configuration works.

Configure Microsoft Entra SSO

Follow these steps to enable Microsoft Entra SSO.

  1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.

  2. Browse to Identity > Applications > Enterprise applications > Coralogix > Single sign-on.

  3. On the Select a single sign-on method page, select SAML.

  4. On the Set up single sign-on with SAML page, click the edit/pen icon for Basic SAML Configuration to edit the settings.

    Edit Basic SAML Configuration

  5. On the Basic SAML Configuration section, enter the values for the following fields:

    a. In the Sign on URL box, enter a URL with the following pattern: https://<SUBDOMAIN>.coralogix.com

    b. In the Identifier (Entity ID) text box, enter a URL, such as:

    https://api.coralogix.com/saml/metadata.xml

    or

    https://aws-client-prod.coralogix.com/saml/metadata.xml

    Note

    The sign-on URL value isn't real. Update the value with the actual sign-on URL. Contact the Coralogix Client support team to get the value. You can also refer to the patterns in the Basic SAML Configuration section.

  6. The Coralogix application expects the SAML assertions in a specific format. Configure the following claims for this application. You can manage the values of these attributes from the User Attributes section on the application integration page. On the Set up Single Sign-On with SAML page, select the Edit button to open the User Attributes dialog box.

    Screenshot that shows the "User Attributes" dialog with the "Edit" button highlighted.

  7. In the User Claims section in the User Attributes dialog box, edit the claims by using the Edit icon. You can also add the claims by using Add new claim to configure the SAML token attribute as shown in the previous image. Then take the following steps:

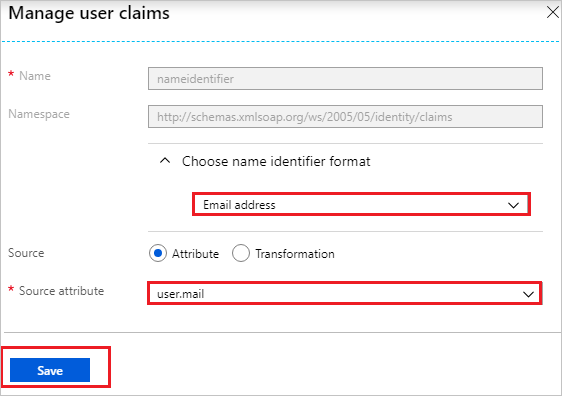

    a. Select the Edit icon to open the Manage user claims dialog box.

    Screenshot that shows the "User Attributes & Claims" dialog with the "Edit" button highlighted. image

    b. From the Choose name identifier format list, select Email address.

    c. From the Source attribute list, select user.mail.

    d. Select Save.

  8. On the Set up single sign-on with SAML page, in the SAML Signing Certificate section, find Federation Metadata XML and select Download to download the certificate and save it on your computer.

    The Certificate download link

  9. On the Set up Coralogix section, copy the appropriate URL(s) based on your requirement.

    Copy configuration URLs

Create a Microsoft Entra test user

In this section, you'll create a test user called B.Simon.

  1. Sign in to the Microsoft Entra admin center as at least a User Administrator.
  2. Browse to Identity > Users > All users.
  3. Select New user > Create new user, at the top of the screen.
  4. In the User properties, follow these steps:
    1. In the Display name field, enter B.Simon.
    2. In the User principal name field, enter the username@companydomain.extension. For example, B.Simon@contoso.com.
    3. Select the Show password check box, and then write down the value that's displayed in the Password box.
    4. Select Review + create.
  5. Select Create.

Assign the Microsoft Entra test user

In this section, you'll enable B.Simon to use single sign-on by granting access to Coralogix.

  1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.

  2. Browse to Identity > Applications > Enterprise applications > Coralogix.

  3. In the app's overview page, find the Manage section and select Users and groups.

    The "Users and groups" link

  4. Select Add user, then select Users and groups in the Add Assignment dialog.

    The Add User link

  5. In the Users and groups dialog, select B.Simon from the Users list, then click the Select button at the bottom of the screen.

  6. If you're expecting any role value in the SAML assertion, in the Select Role dialog, select the appropriate role for the user from the list and then click the Select button at the bottom of the screen.

  7. In the Add Assignment dialog, click the Assign button.

Configure Coralogix SSO

To configure single sign-on on Coralogix side, you need to send the downloaded Federation Metadata XML and appropriate copied URLs from the application configuration to Coralogix support team. They set this setting to have the SAML SSO connection set properly on both sides.

Create Coralogix test user

In this section, you create a user called Britta Simon in Coralogix. Work with Coralogix support team to add the users in the Coralogix platform. Users must be created and activated before you use single sign-on.

Test SSO

In this section, you test your Microsoft Entra single sign-on configuration using the Access Panel.

When you click the Coralogix tile in the Access Panel, you should be automatically signed in to the Coralogix for which you set up SSO. For more information about the Access Panel, see Introduction to the Access Panel.
