Tutorial: Microsoft Entra single sign-on (SSO) integration with Egress

  • Article

In this tutorial, you'll learn how to integrate Egress with Microsoft Entra ID. When you integrate Egress with Microsoft Entra ID, you can:

  • Control in Microsoft Entra ID who has access to Egress.
  • Enable your users to be automatically signed-in to Egress with their Microsoft Entra accounts.
  • Manage your accounts in one central location.

Prerequisites

To get started, you need the following items:

  • A Microsoft Entra subscription. If you don't have a subscription, you can get a free account.
  • Egress single sign-on (SSO) enabled subscription.

Scenario description

In this tutorial, you configure and test Microsoft Entra SSO in a test environment.

  • Egress supports SP and IDP initiated SSO.
  • Egress supports Just In Time user provisioning.

Note

Identifier of this application is a fixed string value so only one instance can be configured in one tenant.

To configure the integration of Egress into Microsoft Entra ID, you need to add Egress from the gallery to your list of managed SaaS apps.

  1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.
  2. Browse to Identity > Applications > Enterprise applications > New application.
  3. In the Add from the gallery section, type Egress in the search box.
  4. Select Egress from results panel and then add the app. Wait a few seconds while the app is added to your tenant.

Alternatively, you can also use the Enterprise App Configuration Wizard. In this wizard, you can add an application to your tenant, add users/groups to the app, assign roles, as well as walk through the SSO configuration as well. Learn more about Microsoft 365 wizards.

Configure and test Microsoft Entra SSO for Egress

Configure and test Microsoft Entra SSO with Egress using a test user called B.Simon. For SSO to work, you need to establish a link relationship between a Microsoft Entra user and the related user in Egress.

To configure and test Microsoft Entra SSO with Egress, perform the following steps:

  1. Configure Microsoft Entra SSO - to enable your users to use this feature.
    1. Create a Microsoft Entra test user - to test Microsoft Entra single sign-on with B.Simon.
    2. Assign the Microsoft Entra test user - to enable B.Simon to use Microsoft Entra single sign-on.
  2. Configure Egress SSO - to configure the single sign-on settings on application side.
    1. Create Egress test user - to have a counterpart of B.Simon in Egress that is linked to the Microsoft Entra representation of user.
  3. Test SSO - to verify whether the configuration works.

Configure Microsoft Entra SSO

Follow these steps to enable Microsoft Entra SSO.

  1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.

  2. Browse to Identity > Applications > Enterprise applications > Egress > Single sign-on.

  3. On the Select a single sign-on method page, select SAML.

  4. On the Set up single sign-on with SAML page, click the pencil icon for Basic SAML Configuration to edit the settings.

    Edit Basic SAML Configuration

  5. On the Basic SAML Configuration section, the user does not have to perform any step as the app is already pre-integrated with Azure.

  6. Click Set additional URLs and perform the following step if you wish to configure the application in SP initiated mode:

    In the Sign-on URL text box, type the URL: https://switch.egress.com/ui/

  7. Click Save.

  8. On the Set up single sign-on with SAML page, In the SAML Signing Certificate section, click copy button to copy App Federation Metadata Url and save it on your computer.

    The Certificate download link

Create a Microsoft Entra test user

In this section, you'll create a test user called B.Simon.

  1. Sign in to the Microsoft Entra admin center as at least a User Administrator.
  2. Browse to Identity > Users > All users.
  3. Select New user > Create new user, at the top of the screen.
  4. In the User properties, follow these steps:
    1. In the Display name field, enter B.Simon.
    2. In the User principal name field, enter the username@companydomain.extension. For example, B.Simon@contoso.com.
    3. Select the Show password check box, and then write down the value that's displayed in the Password box.
    4. Select Review + create.
  5. Select Create.

Assign the Microsoft Entra test user

In this section, you'll enable B.Simon to use single sign-on by granting access to Egress.

  1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.
  2. Browse to Identity > Applications > Enterprise applications > Egress.
  3. In the app's overview page, select Users and groups.
  4. Select Add user/group, then select Users and groups in the Add Assignment dialog.
    1. In the Users and groups dialog, select B.Simon from the Users list, then click the Select button at the bottom of the screen.
    2. If you are expecting a role to be assigned to the users, you can select it from the Select a role dropdown. If no role has been set up for this app, you see "Default Access" role selected.
    3. In the Add Assignment dialog, click the Assign button.

Configure Egress SSO

  1. In a different browser window, sign on to your Egress company site as administrator.

  2. Perform the following steps in the following page.

    Egress Configuration

    a. In the left side menu, click on SSO Configuration.

    b. Select Use single sign on radio button to use Single Sign On.

    c. Give a valid description in the Provider description textbox.

    d. In the Metadata URL textbox, paste the App Federation Metadata Url value which you have copied.

    e. Click on Load metadata.

    f. Click on Save button to update the SSO Configuration.

Create Egress test user

  1. Sign in to your Egress company site.

  2. Click on Invite Users in the left side menu and click on Invite Single User to add the user.

    Screenshot that shows the "Invite Users" page with the "Invite Single User" button selected.

  3. Fill the required fields and click on Invite.

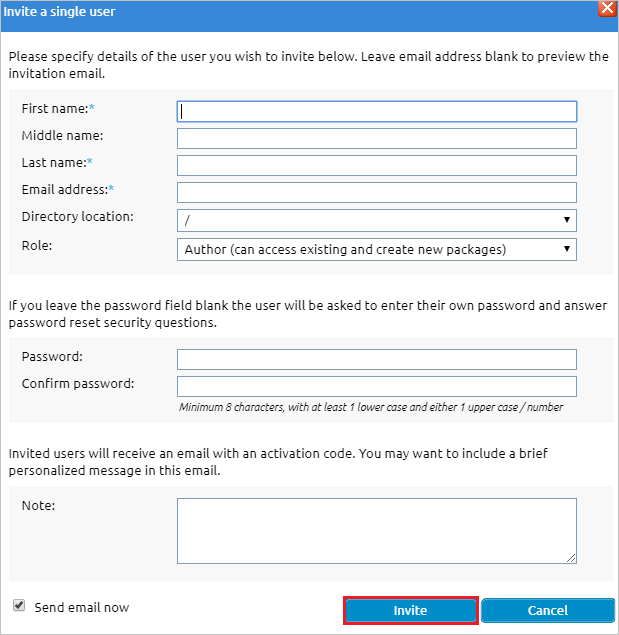

    Egress create test user

Test SSO

In this section, you test your Microsoft Entra single sign-on configuration with following options.

SP initiated:

  • Click on Test this application, this will redirect to Egress Sign on URL where you can initiate the login flow.

  • Go to Egress Sign-on URL directly and initiate the login flow from there.

IDP initiated:

  • Click on Test this application, and you should be automatically signed in to the Egress for which you set up the SSO.

You can also use Microsoft My Apps to test the application in any mode. When you click the Egress tile in the My Apps, if configured in SP mode you would be redirected to the application sign on page for initiating the login flow and if configured in IDP mode, you should be automatically signed in to the Egress for which you set up the SSO. For more information about the My Apps, see Introduction to the My Apps.

Next steps

Once you configure Egress you can enforce session control, which protects exfiltration and infiltration of your organization’s sensitive data in real time. Session control extends from Conditional Access. Learn how to enforce session control with Microsoft Defender for Cloud Apps.
