Tutorial: Integrate Microsoft Entra single sign-on (SSO) with NetSuite

  • Article

In this tutorial, you'll learn how to integrate NetSuite with Microsoft Entra ID. When you integrate NetSuite with Microsoft Entra ID, you can:

  • Control in Microsoft Entra ID who has access to NetSuite.
  • Enable your users to be automatically signed in to NetSuite with their Microsoft Entra accounts.
  • Manage your accounts in one central location, the Azure portal.

Prerequisites

To get started, you need the following items:

  • A Microsoft Entra subscription. If you don't have a subscription, you can get a free account.
  • A NetSuite single sign-on (SSO)-enabled subscription.

Scenario description

In this tutorial, you configure and test Microsoft Entra SSO in a test environment.

NetSuite supports:

  • IDP-initiated SSO.
  • JIT (just-in-time) user provisioning.

Note

Because the identifier of this application is a fixed string value, only one instance can be configured in one tenant.

To configure the integration of NetSuite into Microsoft Entra ID, add NetSuite from the gallery to your list of managed SaaS apps by doing the following:

  1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.
  2. Browse to Identity > Applications > Enterprise applications > New application.
  3. In the Add from the gallery section, type NetSuite in the search box.
  4. In the results pane, select NetSuite, and then add the app. Wait a few seconds while the app is added to your tenant.

Alternatively, you can also use the Enterprise App Configuration Wizard. In this wizard, you can add an application to your tenant, add users/groups to the app, assign roles, as well as walk through the SSO configuration as well. Learn more about Microsoft 365 wizards.

Configure and test Microsoft Entra SSO for NetSuite

Configure and test Microsoft Entra SSO with NetSuite by using a test user called B.Simon. For SSO to work, you need to establish a link relationship between a Microsoft Entra user and the related user in NetSuite.

To configure and test Microsoft Entra SSO with NetSuite, perform the following steps:

  1. Configure Microsoft Entra SSO to enable your users to use this feature.
  2. Configure NetSuite SSO to configure the single sign-on settings on the application side.
    • Create the NetSuite test user to have a counterpart of user B.Simon in NetSuite that's linked to the Microsoft Entra representation of the user.
  3. Test SSO to verify that the configuration works.

Configure Microsoft Entra SSO

To enable Microsoft Entra SSO in the Azure portal, do the following:

  1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.

  2. Browse to Identity > Applications > Enterprise applications > NetSuite application integration page, look for the Manage section, and then select Single sign-on.

  3. In the Select a single sign-on method pane, select SAML.

  4. In the Set up Single Sign-On with SAML pane, select the Edit ("pencil") icon next to Basic SAML Configuration.

    Edit Basic SAML Configuration

  5. In the Basic SAML Configuration section, in the Reply URL text box, type the URL: https://system.netsuite.com/saml2/acs

  6. NetSuite application expects the SAML assertions in a specific format, which requires you to add custom attribute mappings to your SAML token attributes configuration. The following screenshot shows the list of default attributes.


  7. In addition to above, NetSuite application expects few more attributes to be passed back in SAML response which are shown below. These attributes are also pre populated but you can review them as per your requirements.

    Name Source attribute
    account account id

    Note

    The value of the account attribute is not real. You'll update this value, as explained later in this tutorial.The account id is not necessary unless you explicitly want to block the functionality of jumping from Production to the Sandbox in Netsuite within the navigation control.

  8. On the Set up single sign-on with SAML page, in the SAML Signing Certificate section, find Federation Metadata XML and select Download to download the certificate and save it on your computer.

    The certificate Download link

  9. In the Set up NetSuite section, copy the appropriate URL or URLs, depending on your requirement.

    Copy configuration URLs

Create a Microsoft Entra test user

In this section, you create a test user called B.Simon.

  1. Sign in to the Microsoft Entra admin center as at least a User Administrator.
  2. Browse to Identity > Users > All users.
  3. Select New user > Create new user, at the top of the screen.
  4. In the User properties, follow these steps:
    1. In the Display name field, enter B.Simon.
    2. In the User principal name field, enter the username@companydomain.extension. For example, B.Simon@contoso.com.
    3. Select the Show password check box, and then write down the value that's displayed in the Password box.
    4. Select Review + create.
  5. Select Create.

Assign the Microsoft Entra test user

In this section, you enable user B.Simon to use Azure single sign-on by granting access to NetSuite.

  1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.

  2. Browse to Identity > Applications > Enterprise applications > NetSuite.

  3. In the overview pane, look for the Manage section, and then select the Users and groups link.

  4. Select Add user and then, in the Add Assignment pane, select Users and groups.

  5. In the Users and groups pane, in the Users drop-down list, select B.Simon, and then select the Select button at the bottom of the screen.

  6. If you're expecting any role value in the SAML assertion, do the following:

    a. In the Select Role pane, in the drop-down list, select the appropriate role for the user.
    b. At the bottom of the screen, select the Select button.

  7. In the Add Assignment pane, select the Assign button.

Configure NetSuite SSO

  1. Open a new tab in your browser, and sign in to your NetSuite company site as an administrator.

  2. In the top navigation bar, select Setup, and then select Company > Enable Features.

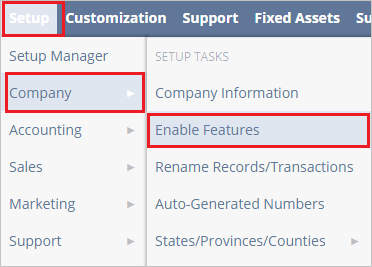

    Screenshot shows Enable Features selected from Company.

  3. In the toolbar at the middle of the page, select SuiteCloud.

    Screenshot shows SuiteCloud selected.

  4. Under Manage Authentication, select the SAML Single Sign-on check box to enable the SAML single sign-on option in NetSuite.

    Screenshot shows Manage Authentication where you can select SAML Single Sign-on.

  5. In the top navigation bar, select Setup.

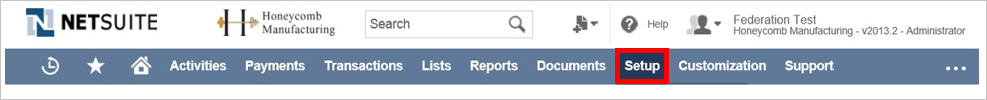

    Screenshot shows Setup selected from the NETSUITE navigation bar.

  6. In the Setup Tasks list, select Integration.

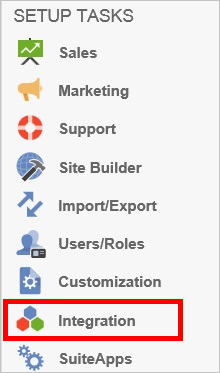

    Screenshot shows Integration selected from SETUP TASKS.

  7. Under Manage Authentication, select SAML Single Sign-on.

    Screenshot show SAML Single Sign-on selected from the Integration item in SETUP TASKS.

  8. In the SAML Setup pane, under NetSuite Configuration, do the following:

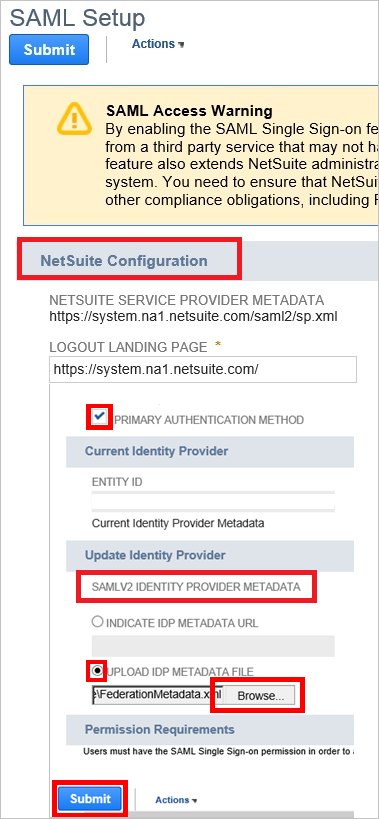

    Screenshot shows SAML Setup where you can enter the values described.

    a. Select the Primary Authentication Method check box.

    b. Under SAMLV2 Identity Provider Metadata, select Upload IDP Metadata File, and then select Browse to upload the metadata file that you downloaded.

    c. Select Submit.

  9. In the NetSuite top navigation bar, select Setup, and then select Company > Company Information.

    Screenshot shows Company Information selected from Company.

    Screenshot shows the pane where you can enter the values described.

    b. In the Company Information pane, in the right column, copy the Account ID value.

    c. Paste the Account ID that you copied from the NetSuite account into the Attribute Value box in Microsoft Entra ID.

    Screenshot shows to add the account id value

  10. Before users can perform single sign-on into NetSuite, they must first be assigned the appropriate permissions in NetSuite. To assign these permissions, do the following:

    a. In the top navigation bar, select Setup.

    Screenshot shows Setup selected from the NETSUITE navigation bar.

    b. In the left pane, select Users/Roles, then select Manage Roles.

    Screenshot shows the Manage Roles pane where you can select New Role.

    c. Select New Role.

    d. Enter a Name for the new role.

    Screenshot shows the Setup Manager where you can enter a name for the role.

    e. Select Save.

    f. In the top navigation bar, select Permissions. Then select Setup.

    Screenshot shows the Setup tab where you can enter the values described.

    g. Select SAML Single Sign-on, and then select Add.

    h. Select Save.

    i. In the top navigation bar, select Setup, and then select Setup Manager.

    Screenshot shows Setup selected from the NETSUITE navigation bar.

    j. In the left pane, select Users/Roles, and then select Manage Users.

    Screenshot shows the Manage Users pane where you can select Suite Demo Team.

    k. Select a test user, select Edit, and then select the Access tab.

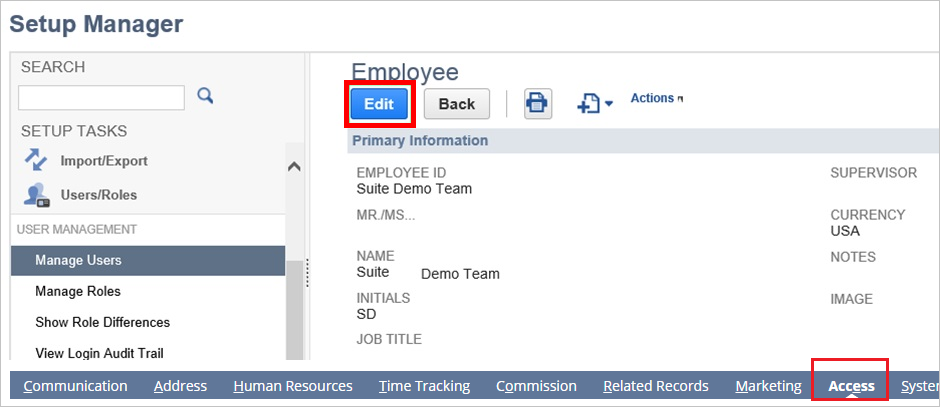

    Screenshot shows the Manage Users pane where you can select Edit.

    l. In the Roles pane, assign the appropriate role that you have created.

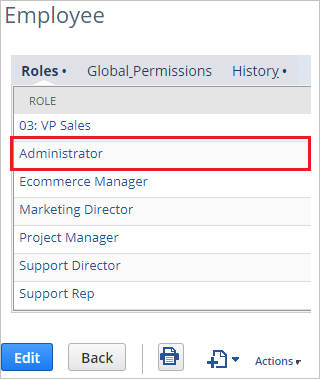

    Screenshot shows Administrator selected from Employee.

    m. Select Save.

Create the NetSuite test user

In this section, a user called B.Simon is created in NetSuite. NetSuite supports just-in-time user provisioning, which is enabled by default. There's no action item for you in this section. If a user doesn't already exist in NetSuite, a new one is created after authentication.

Test SSO

In this section, you test your Microsoft Entra single sign-on configuration with following options.

  • Click on Test this application, and you should be automatically signed in to the NetSuite for which you set up the SSO

  • You can use Microsoft My Apps. When you click the NetSuite tile in the My Apps, you should be automatically signed in to the NetSuite for which you set up the SSO. For more information about the My Apps, see Introduction to the My Apps.

Next steps

Once you configure the NetSuite you can enforce session controls, which protects exfiltration and infiltration of your organization’s sensitive data in real time. Session controls extends from Conditional Access. Learn how to enforce session control with Microsoft Defender for Cloud Apps.
