Tutorial: Microsoft Entra SSO integration with Phenom TXM

  • Article

In this tutorial, you will learn how to integrate Phenom TXM with Microsoft Entra ID. When you integrate Phenom TXM with Microsoft Entra ID, you can:

  • Control in Microsoft Entra ID who has access to Phenom TXM.
  • Enable your users to be automatically signed-in to Phenom TXM with their Microsoft Entra accounts.
  • Manage your accounts in one central location.

Prerequisites

To get started, you need the following items:

  • A Microsoft Entra subscription. If you don't have a subscription, you can get a free account.
  • Phenom TXM single sign-on (SSO) enabled subscription and a user account with the Client Admin role in Service Hub.
  • Along with Cloud Application Administrator, Application Administrator can also add or manage applications in Microsoft Entra ID. For more information, see Azure built-in roles.

Scenario description

In this tutorial, you configure and test Microsoft Entra SSO in a test environment.

  • Phenom TXM supports SP and IDP initiated SSO.

To configure the integration of Phenom TXM into Microsoft Entra ID, you need to add Phenom TXM from the gallery to your list of managed SaaS apps.

  1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.
  2. Browse to Identity > Applications > Enterprise applications > New application.
  3. In the Add from the gallery section, type Phenom TXM in the search box.
  4. Select Phenom TXM from results panel and then add the app. Wait a few seconds while the app is added to your tenant.

Alternatively, you can also use the Enterprise App Configuration Wizard. In this wizard, you can add an application to your tenant, add users/groups to the app, assign roles, and walk through the SSO configuration as well. Learn more about Microsoft 365 wizards.

Configure and test Microsoft Entra SSO for Phenom TXM

Configure and test Microsoft Entra SSO with Phenom TXM using a test user called B.Simon. For SSO to work, you need to establish an assignment relationship between a Microsoft Entra user or group and the related Phenom TXM application, ensuring that Microsoft Entra ID passes the user's email address to Phenom TXM as a user identifier.

To configure and test Microsoft Entra SSO with Phenom TXM, perform the following steps:

  1. Configure Microsoft Entra SSO - to enable your users to use this feature.
    1. Create a Microsoft Entra test user - to test Microsoft Entra single sign-on with B.Simon.
    2. Assign the Microsoft Entra test user - to enable B.Simon to use Microsoft Entra single sign-on.
  2. Configure Phenom TXM SSO - to configure the single sign-on settings on application side.
    1. Create Phenom TXM test user - to have a counterpart of B.Simon in Phenom TXM that is linked to the Microsoft Entra representation of user.
  3. Test SSO - to verify whether the configuration works.

Configure Microsoft Entra SSO

Follow these steps to enable Microsoft Entra SSO.

  1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.

  2. Browse to Identity > Applications > Enterprise applications > Phenom TXM > Single sign-on.

  3. On the Select a single sign-on method page, select SAML.

  4. On the Set up single sign-on with SAML page, click the pencil icon for Basic SAML Configuration to edit the settings.

    Screenshot shows to edit Basic SAML Configuration.

  5. On the Basic SAML Configuration section, perform the following steps:

    a. In the Identifier text box, enter the ENTITY ID copied from Service Hub.

    b. In the Reply URL text box, enter the Redirect URI (ACS URL) copied from Service Hub.

    1. In the first Reply URL text box, enter the Redirect URI (ACS URL) copied from Service Hub and set the Index value to 0.

    2. In the second Reply URL text box, enter the Redirect URI (ACS URL) SP Initiated Flow copied from Service Hub and set the Index value to 1

    Note

    Ensure that the first Reply URL is set as the Default using the checkbox.

  6. Perform the following step if you wish to configure the application in SP initiated mode:

    In the Sign on URL text box, type one of the following URLs:

    Environment Sign on URL
    Staging https://login-stg.phenompro.com
    Production https://login.phenom.com

  7. On the Set up single sign-on with SAML page, In the SAML Signing Certificate section, click copy button to copy App Federation Metadata Url and save it on your computer.

    Screenshot shows the Certificate download link.

Create a Microsoft Entra test user

In this section, you will create a test user in the Azure portal called B.Simon.

  1. Sign in to the Microsoft Entra admin center as at least a User Administrator.
  2. Browse to Identity > Users > All users.
  3. Select New user > Create new user, at the top of the screen.
  4. In the User properties, follow these steps:
    1. In the Display name field, enter B.Simon.
    2. In the User principal name field, enter the username@companydomain.extension. For example, B.Simon@contoso.com.
    3. Select the Show password check box, and then write down the value that's displayed in the Password box.
    4. Select Review + create.
  5. Select Create.

Assign the Microsoft Entra test user

In this section, you will enable B.Simon to use Azure single sign-on by granting access to Phenom TXM.

  1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.
  2. Browse to Identity > Applications > Enterprise applications > Phenom TXM.
  3. In the app's overview page, find the Manage section and select Users and groups.
  4. Select Add user, then select Users and groups in the Add Assignment dialog.
  5. In the Users and groups dialog, select B.Simon from the Users list, then click the Select button at the bottom of the screen.
  6. If you're expecting a role to be assigned to the users, you can select it from the Select a role dropdown. If no role has been set up for this app, you see "Default Access" role selected.
  7. In the Add Assignment dialog, click the Assign button.

Configure Phenom TXM SSO

  1. Log in to your Phenom TXM instance Service Hub as a user with the Client Admin role.

  2. Go to Settings tab > Identity Provider.

  3. In the Identity Provider section, perform the following steps:

    Screenshot that shows the Configuration Settings.

    Screenshot that shows the Identity Provider Metadata.

    a. Choose SAML from the dropdown selector.

    b. Enter a valid name in the Display Name textbox.

    c. In the Single SignOn URL textbox, paste the Login URL value, which you've copied.

    d. In the Meta data URL textbox, paste the App Federation Metadata Url value, which you've copied.

    e. Copy Entity ID value, paste this value into the Identifier text box in the Basic SAML Configuration section.

    f. Copy Redirect URI (ACS URL) value, paste this value into the first Reply URL text box in the Basic SAML Configuration section.

    g. Copy Redirect URI (ACS URL) SP Initiated Flow value, paste this value into the second Reply URL text box in the Basic SAML Configuration section.

Create Phenom TXM test user

  1. In a different web browser window, log in to your Phenom TXM website as an administrator.

  2. Go to Users tab and click Create Users > Create single new User.

  3. In the Create User page, perform the following steps:

    a. In the User Information section, enter a valid First Name, Last Name and Work Email in the textboxes and click Continue.

    Screenshot that shows the User Information fields.

    b. In the Assign Tenants section, Select Tenants and click Continue.

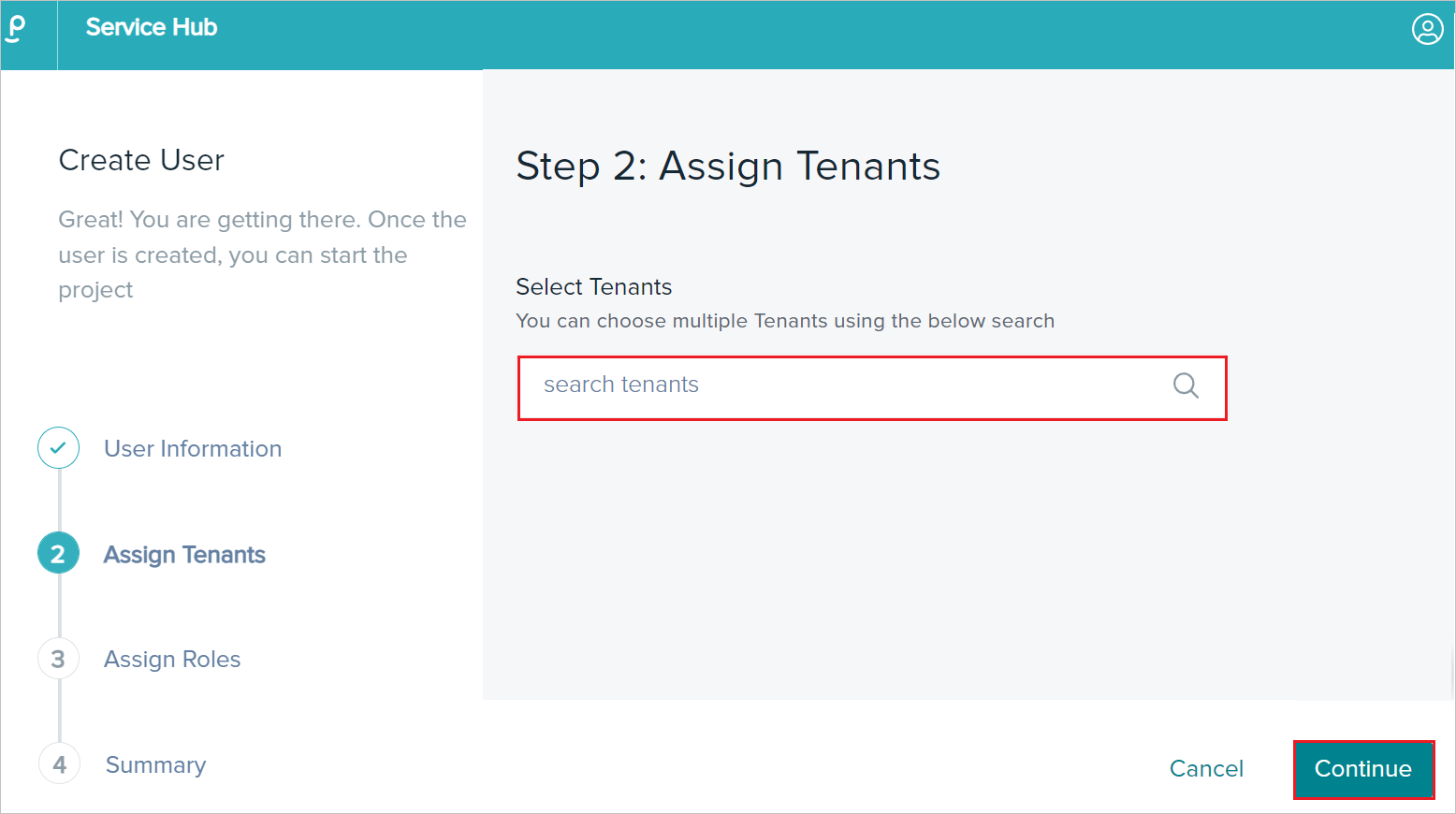

    Screenshot that shows the Tenants Information fields.

    c. In the Assign Roles section, Select roles from the dropdown and click Continue.

    Screenshot that shows the Roles Mapping for Users.

    d. In the Summary section, review your selections and click Finish to create a user.

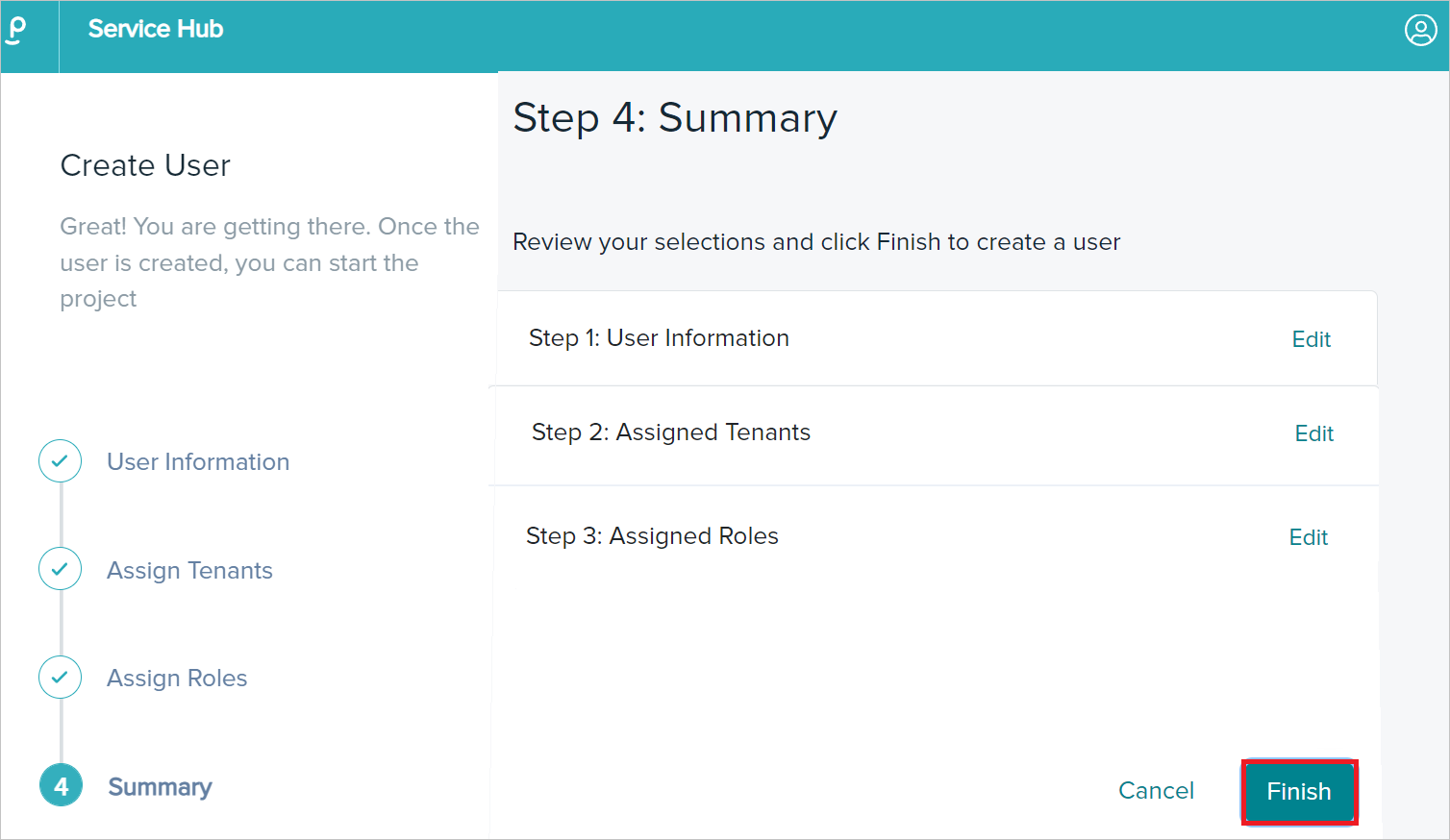

    Screenshot that shows the Phenom TXM Summary section.

Test SSO

In this section, you test your Microsoft Entra single sign-on configuration with following options.

SP initiated:

  • Click on Test this application, this will redirect to Phenom TXM Sign-on URL where you can initiate the login flow.

  • Go to Phenom TXM Sign-on URL directly and initiate the login flow from there.

IDP initiated:

  • Click on Test this application, and you should be automatically signed in to the Phenom TXM for which you set up the SSO.

You can also use Microsoft My Apps to test the application in any mode. When you click the Phenom TXM tile in the My Apps, if configured in SP mode you would be redirected to the application sign-on page for initiating the login flow and if configured in IDP mode, you should be automatically signed in to the Phenom TXM for which you set up the SSO. For more information, see Microsoft Entra My Apps.

Next steps

Once you configure Phenom TXM you can enforce session control, which protects exfiltration and infiltration of your organization’s sensitive data in real time. Session control extends from Conditional Access. Learn how to enforce session control with Microsoft Defender for Cloud Apps.
