Tutorial: Microsoft Entra integration with Reflektive
Article
In this tutorial, you learn how to integrate Reflektive with Microsoft Entra ID.
Integrating Reflektive with Microsoft Entra ID provides you with the following benefits:
You can control in Microsoft Entra ID who has access to Reflektive.
You can enable your users to be automatically signed-in to Reflektive (Single Sign-On) with their Microsoft Entra accounts.
You can manage your accounts in one central location.
Browse to Identity > Applications > Enterprise applications > New application.
In the search box, type Reflektive, select Reflektive from result panel then click Add button to add the application.
Configure and test Microsoft Entra single sign-on
In this section, you configure and test Microsoft Entra single sign-on with Reflektive based on a test user called Britta Simon.
For single sign-on to work, a link relationship between a Microsoft Entra user and the related user in Reflektive needs to be established.
To configure and test Microsoft Entra single sign-on with Reflektive, you need to complete the following building blocks:
Browse to Identity > Applications > Enterprise applications > Reflektive application integration page, select Single sign-on.
On the Select a Single sign-on method dialog, select SAML/WS-Fed mode to enable single sign-on.
On the Set up Single Sign-On with SAML page, click Edit icon to open Basic SAML Configuration dialog.
On the Basic SAML Configuration section, if you wish to configure the application in IDP initiated mode, perform the following step:
In the Identifier text box, use one of the below URL as per confirmation from the reflective support team:
reflektive.com
https://www.reflektive.com/saml/metadata

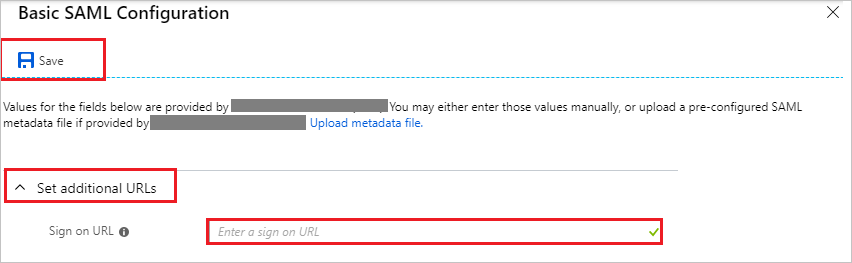

Click Set additional URLs and perform the following step if you wish to configure the application in SP initiated mode:
In the Sign-on URL text box, type a URL:
https://www.reflektive.com/app
Note
For SP mode you need to get the email id registered with Reflektive support team. When you enter your ID in the Email textbox then the single sign-on option will be enabled. You can also refer to the patterns shown in the Basic SAML Configuration section.
On the Set up Single Sign-On with SAML page, in the SAML Signing Certificate section, click Download to download the Federation Metadata XML from the given options as per your requirement and save it on your computer.
On the Set up Reflektive section, copy the appropriate URL(s) as per your requirement.
a. Login URL
b. Microsoft Entra Identifier
c. Logout URL
Configure Reflektive Single Sign-On
To configure single sign-on on Reflektive side, you need to send the downloaded Federation Metadata XML and appropriate copied URLs from the application configuration to Reflektive support team. They set this setting to have the SAML SSO connection set properly on both sides.
Create a Microsoft Entra test user
The objective of this section is to create a test user called Britta Simon.
Browse to Identity > Applications > Enterprise applications > Reflektive.
In the applications list, select Reflektive.
In the app's overview page, select Users and groups.
Select Add user/group, then select Users and groups in the Add Assignment dialog.
In the Users and groups dialog, select B.Simon from the Users list, then click the Select button at the bottom of the screen.
If you are expecting a role to be assigned to the users, you can select it from the Select a role dropdown. If no role has been set up for this app, you see "Default Access" role selected.
In the Add Assignment dialog, click the Assign button.
Create Reflektive test user
In this section, you create a user called Britta Simon in Reflektive. Work with Reflektive support team to add the users in the Reflektive platform. Users must be created and activated before you use single sign-on.
Test single sign-on
In this section, you test your Microsoft Entra single sign-on configuration using the Access Panel.
When you click the Reflektive tile in the Access Panel, you should be automatically signed in to the Reflektive for which you set up SSO. For more information about the Access Panel, see Introduction to the Access Panel.
