Tutorial: Microsoft Entra SSO integration with RunMyProcess
Article
In this tutorial, you'll learn how to integrate RunMyProcess with Microsoft Entra ID. When you integrate RunMyProcess with Microsoft Entra ID, you can:
Control in Microsoft Entra ID who has access to RunMyProcess.
Enable your users to be automatically signed-in to RunMyProcess with their Microsoft Entra accounts.
Manage your accounts in one central location.
Prerequisites
To get started, you need the following items:
A Microsoft Entra subscription. If you don't have a subscription, you can get a free account.
RunMyProcess single sign-on (SSO) enabled subscription.
Scenario description
In this tutorial, you configure and test Microsoft Entra SSO in a test environment.
RunMyProcess supports SP initiated SSO.
Note
Identifier of this application is a fixed string value so only one instance can be configured in one tenant.
Add RunMyProcess from the gallery
To configure the integration of RunMyProcess into Microsoft Entra ID, you need to add RunMyProcess from the gallery to your list of managed SaaS apps.
Configure and test Microsoft Entra SSO for RunMyProcess
Configure and test Microsoft Entra SSO with RunMyProcess using a test user called B.Simon. For SSO to work, you need to establish a link relationship between a Microsoft Entra user and the related user in RunMyProcess.
To configure and test Microsoft Entra SSO with RunMyProcess, perform the following steps:
Browse to Identity > Applications > Enterprise applications > RunMyProcess application integration page, find the Manage section and select Single sign-on.
On the Select a Single sign-on method page, select SAML.
On the Set up Single Sign-On with SAML page, click the pencil icon for Basic SAML Configuration to edit the settings.
On the Basic SAML Configuration section, perform the following step:
In the Sign-on URL text box, type a URL using the following pattern:
https://live.runmyprocess.com/live/<tenant id>
Note
The value is not real. Update the value with the actual Sign-On URL. Contact RunMyProcess Client support team to get the value. You can also refer to the patterns shown in the Basic SAML Configuration section.
On the Set up Single Sign-On with SAML page, in the SAML Signing Certificate section, find Certificate (Base64) and select Download to download the certificate and save it on your computer.
On the Set up RunMyProcess section, copy the appropriate URL(s) based on your requirement.
Create a Microsoft Entra test user
In this section, you'll create a test user called B.Simon.
Browse to Identity > Applications > Enterprise applications > RunMyProcess.
In the app's overview page, find the Manage section and select Users and groups.
Select Add user, then select Users and groups in the Add Assignment dialog.
In the Users and groups dialog, select B.Simon from the Users list, then click the Select button at the bottom of the screen.
If you're expecting any role value in the SAML assertion, in the Select Role dialog, select the appropriate role for the user from the list and then click the Select button at the bottom of the screen.
In the Add Assignment dialog, click the Assign button.
Configure RunMyProcess SSO
In a different web browser window, sign-on to your RunMyProcess tenant as an administrator.

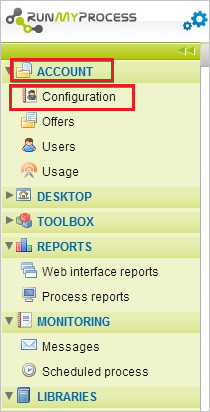

In left navigation panel, click Account and select Configuration.
Go to Authentication method section and perform below steps:
a. As Method, select SSO with Samlv2.
b. In the SSO redirect textbox, paste the value of Login URL.
c. In the Logout redirect textbox, paste the value of Logout URL.
d. In the Name ID Format textbox, type the value of Name Identifier Format as urn:oasis:names:tc:SAML:1.1:nameid-format:emailAddress.
e. Open the downloaded certificate file from Azure portal in notepad, copy the content of certificate file and then paste it into the Certificate textbox.
f. Click Save icon.
Create RunMyProcess test user
In order to enable Microsoft Entra users to sign in to RunMyProcess, they must be provisioned into RunMyProcess. In the case of RunMyProcess, provisioning is a manual task.
To provision a user account, perform the following steps:
Sign in to your RunMyProcess company site as an administrator.
Click Account and select Users in left navigation panel, then click New User.
In the User Settings section, perform the following steps:
a. Type the Name and E-mail of a valid Microsoft Entra account you want to provision into the related textboxes.
b. Select an IDE language, Language, and Profile.
c. Select Send account creation e-mail to me.
d. Click Save.
Note
You can use any other RunMyProcess user account creation tools or APIs provided by RunMyProcess to provision Microsoft Entra user accounts.
Test SSO
In this section, you test your Microsoft Entra single sign-on configuration with following options.
Click on Test this application, this will redirect to RunMyProcess Sign-on URL where you can initiate the login flow.
Go to RunMyProcess Sign-on URL directly and initiate the login flow from there.
You can use Microsoft My Apps. When you click the RunMyProcess tile in the My Apps, this will redirect to RunMyProcess Sign-on URL. For more information, see Microsoft Entra My Apps.
