How to display math in the Immersive Reader

  • Article

The Immersive Reader can display math when provided in the form of Mathematical Markup Language (MathML). The MIME type can be set through the Immersive Reader chunk. See supported MIME types for more information.

Send Math to the Immersive Reader

In order to send math to the Immersive Reader, supply a chunk containing MathML, and set the MIME type to application/mathml+xml;

For example, if your content were the following:

<div id='ir-content'>
    <math xmlns='http://www.w3.org/1998/Math/MathML'>
        <mfrac>
            <mrow>
                <msup>
                    <mi>x</mi>
                    <mn>2</mn>
                </msup>
                <mo>+</mo>
                <mn>3</mn>
                <mi>x</mi>
                <mo>+</mo>
                <mn>2</mn>
            </mrow>
            <mrow>
                <mi>x</mi>
                <mo>−</mo>
                <mn>3</mn>
            </mrow>
        </mfrac>
        <mo>=</mo>
        <mn>4</mn>
    </math>
</div>

Then you could display your content by using the following JavaScript.

const data = {
    title: 'My Math',
    chunks: [{
        content: document.getElementById('ir-content').innerHTML.trim(),
        mimeType: 'application/mathml+xml'
    }]
};

ImmersiveReader.launchAsync(YOUR_TOKEN, YOUR_SUBDOMAIN, data, YOUR_OPTIONS);

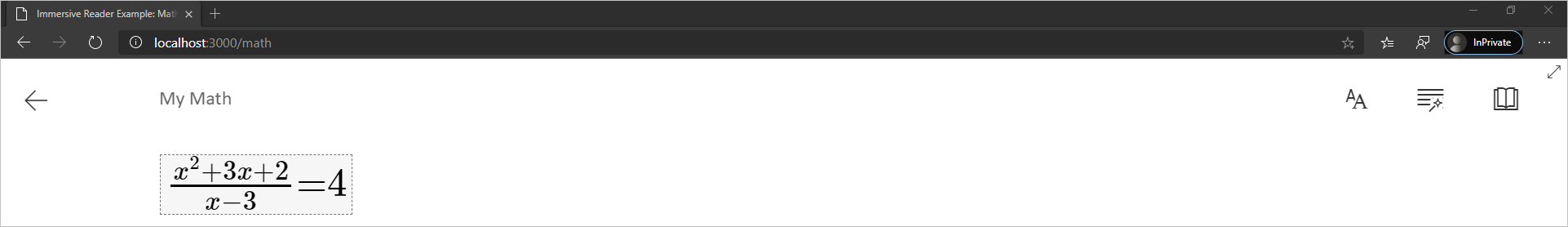

When you launch the Immersive Reader, you should see:

Math in Immersive Reader
