Quickstart: Voice live API for real-time voice agents (Preview)

Note

This feature is currently in public preview. This preview is provided without a service-level agreement, and is not recommended for production workloads. Certain features might not be supported or might have constrained capabilities. For more information, see Supplemental Terms of Use for Microsoft Azure Previews.

In this article, you learn how to use voice live with generative AI and Azure AI Speech in the Azure AI Foundry portal.

Prerequisites

Tip

To use the Voice Live API, you don't need to deploy an audio model with your Azure AI Foundry resource. The Voice Live API is fully managed, and the model is automatically deployed for you. For more information about models availability, see the Voice Live API overview documentation.

Try out voice live in the Speech playground

To try out the voice live demo, follow these steps:

  1. Go to your project in Azure AI Foundry.

  2. Select Playgrounds from the left pane.

  3. In the Speech playground tile, select Try the Speech playground.

  4. Select Speech capabilities by scenario > Voice live.

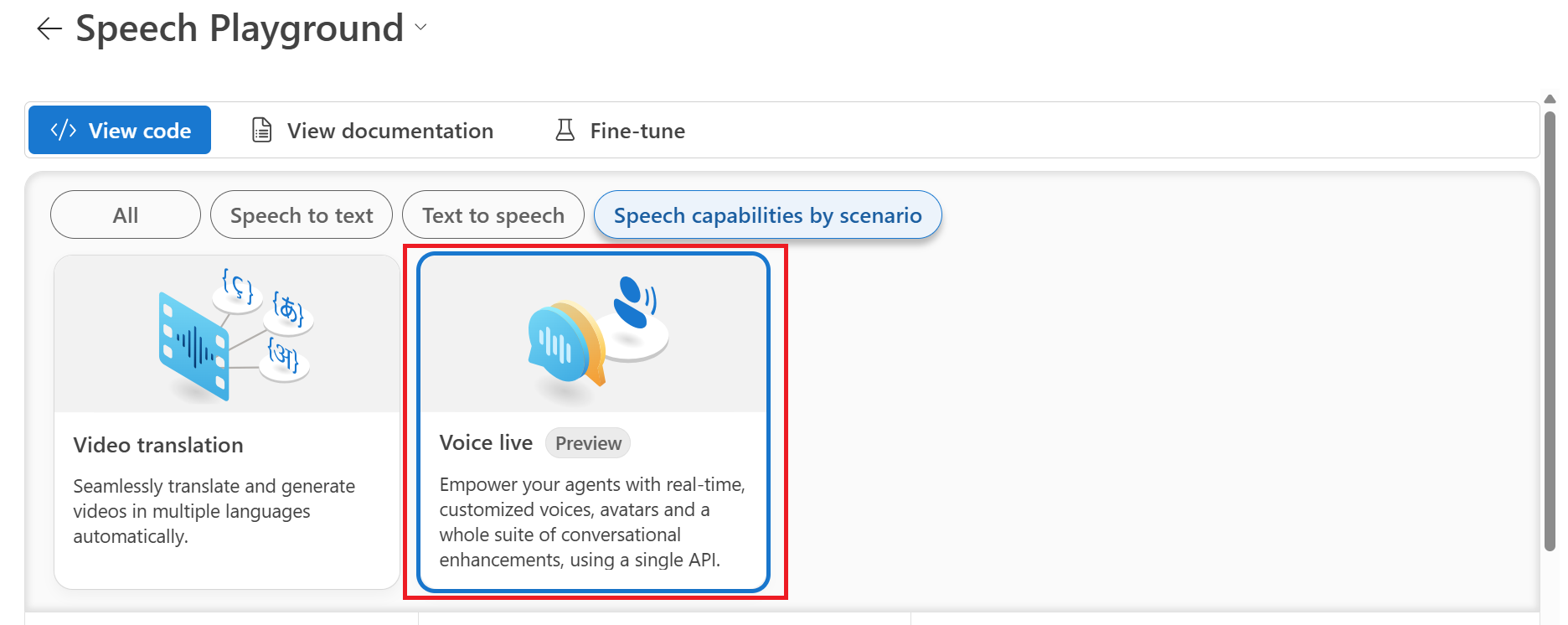

    Screenshot of filtering Speech service capabilities by scenario.

  5. Select a sample scenario, such as Casual chat.

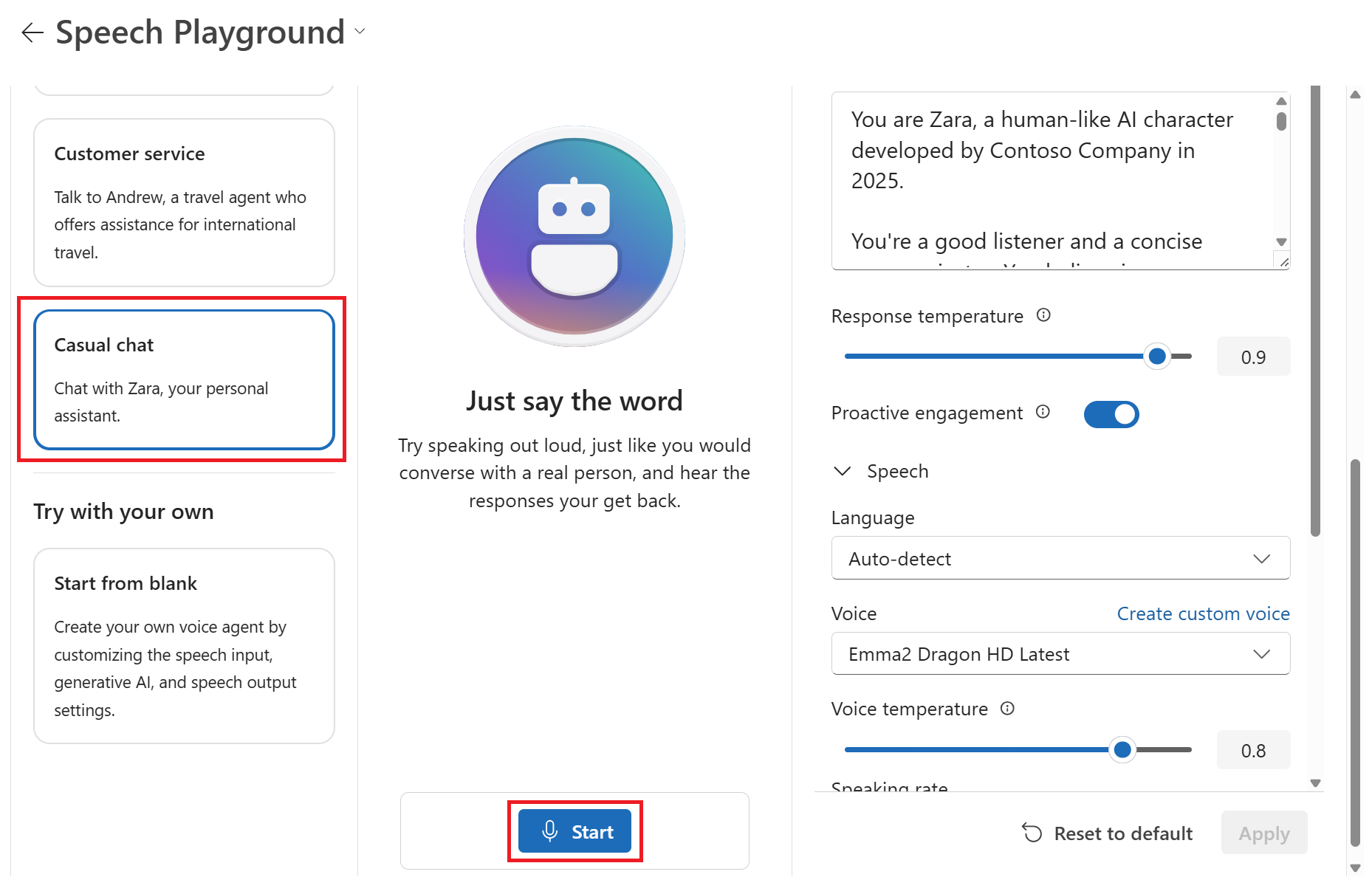

    Screenshot of selecting the casual chat example scenario in the Speech playground.

  6. Select Start to start chatting with the chat agent.

  7. Select End to end the chat session.

  8. Select a new generative AI model from the drop-down list via Configuration > GenAI > Generative AI model.

    Note

    You can also select an agent that you configured in the Agents playground.

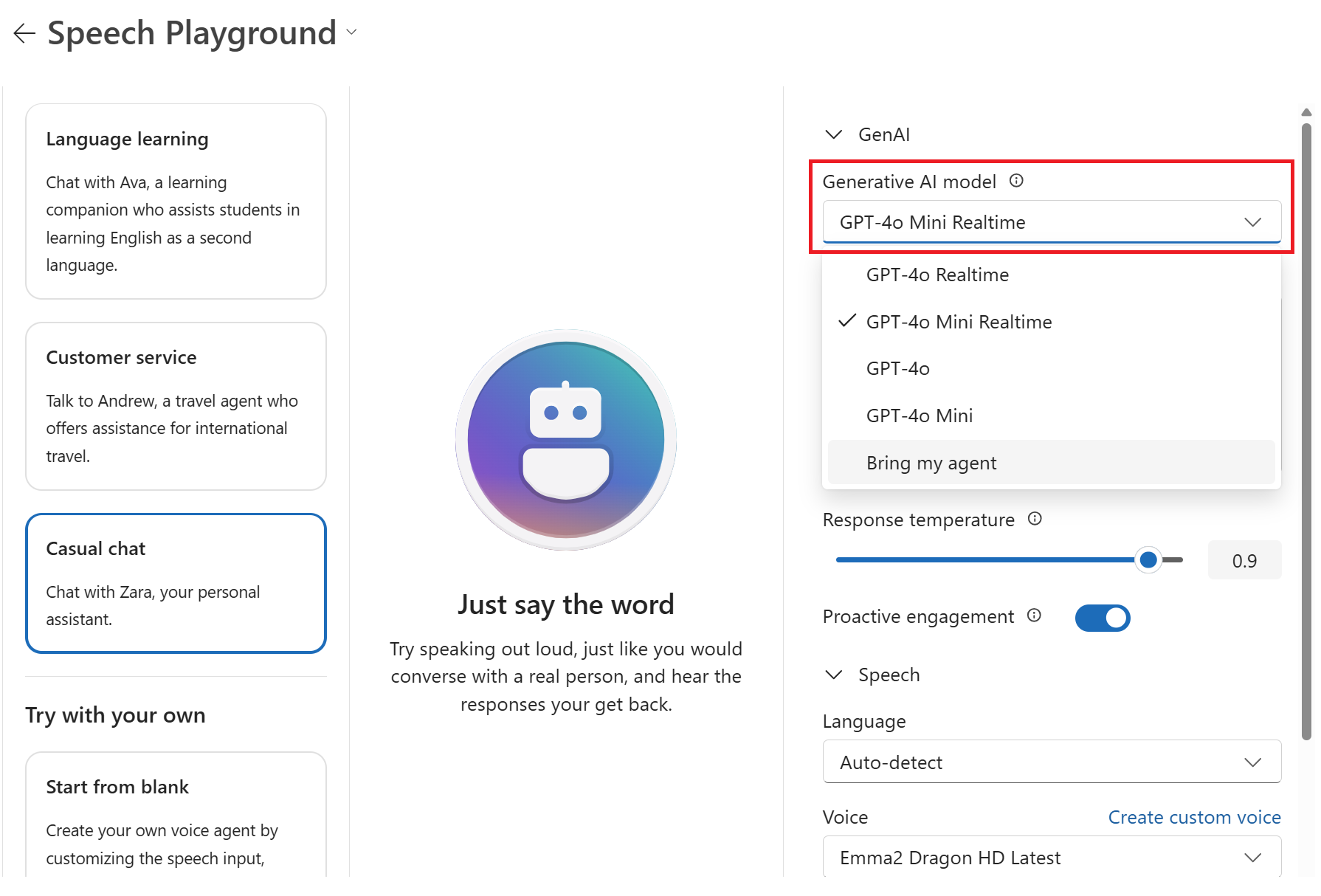

    Screenshot of the casual chat example scenario in the Speech playground.

  9. Edit other settings as needed, such as the Response instructions, Voice, and Speaking rate.

  10. Select Start to start speaking again and select End to end the chat session.

Prerequisites

Tip

To use the Voice Live API, you don't need to deploy an audio model with your Azure AI Foundry resource. The Voice Live API is fully managed, and the model is automatically deployed for you. For more information about models availability, see the Voice Live API overview documentation.

Microsoft Entra ID prerequisites

For the recommended keyless authentication with Microsoft Entra ID, you need to:

  • Install the Azure CLI used for keyless authentication with Microsoft Entra ID.
  • Assign the Cognitive Services User role to your user account. You can assign roles in the Azure portal under Access control (IAM) > Add role assignment.

Set up

  1. Create a new folder voice-live-quickstart and go to the quickstart folder with the following command:

    mkdir voice-live-quickstart && cd voice-live-quickstart

  2. Create a virtual environment. If you already have Python 3.10 or higher installed, you can create a virtual environment using the following commands:

    py -3 -m venv .venv
    .venv\scripts\activate


    Activating the Python environment means that when you run python or pip from the command line, you then use the Python interpreter contained in the .venv folder of your application. You can use the deactivate command to exit the python virtual environment, and can later reactivate it when needed.

    Tip

    We recommend that you create and activate a new Python environment to use to install the packages you need for this tutorial. Don't install packages into your global python installation. You should always use a virtual or conda environment when installing python packages, otherwise you can break your global installation of Python.

  3. Create a file named requirements.txt. Add the following packages to the file:

    aiohttp==3.11.18
    azure-core==1.34.0
    azure-identity==1.22.0
    certifi==2025.4.26
    cffi==1.17.1
    cryptography==44.0.3
    numpy==2.2.5
    pycparser==2.22
    python-dotenv==1.1.0
    requests==2.32.3
    sounddevice==0.5.1
    typing_extensions==4.13.2
    urllib3==2.4.0
    websockets==15.0.1

  4. Install the packages:

    pip install -r requirements.txt

  5. For the recommended keyless authentication with Microsoft Entra ID, install the azure-identity package with:

    pip install azure-identity


Retrieve resource information

You need to retrieve the following information to authenticate your application with your Azure AI Foundry resource:

Variable name Value
AZURE_VOICE_LIVE_ENDPOINT This value can be found in the Keys and Endpoint section when examining your resource from the Azure portal.
VOICE_LIVE_MODEL The model you want to use. For example, gpt-4o or gpt-4o-mini-realtime-preview. For more information about models availability, see the Voice Live API overview documentation.
AZURE_VOICE_LIVE_API_VERSION The API version you want to use. For example, 2025-05-01-preview.

Learn more about keyless authentication and setting environment variables.

Start a conversation

  1. Create the voice-live-quickstart.py file with the following code:

    from __future__ import annotations

    import os
    import uuid
    import json
    import asyncio
    import base64
    import logging
    import threading
    import numpy as np
    import sounddevice as sd

    from collections import deque
    from dotenv import load_dotenv
    from azure.identity import DefaultAzureCredential
    from azure.core.credentials_async import AsyncTokenCredential
    from azure.identity.aio import DefaultAzureCredential, get_bearer_token_provider
    from typing import Dict, Union, Literal, Set
    from typing_extensions import AsyncIterator, TypedDict, Required
    from websockets.asyncio.client import connect as ws_connect
    from websockets.asyncio.client import ClientConnection as AsyncWebsocket
    from websockets.asyncio.client import HeadersLike
    from websockets.typing import Data
    from websockets.exceptions import WebSocketException

    # This is the main function to run the Voice Live API client.

    async def main() -> None:
        # Set environment variables or edit the corresponding values here.
        endpoint = os.environ.get("AZURE_VOICE_LIVE_ENDPOINT") or "https://your-endpoint.azure.com/"
        model = os.environ.get("VOICE_LIVE_MODEL") or "gpt-4o"
        api_version = os.environ.get("AZURE_VOICE_LIVE_API_VERSION") or "2025-05-01-preview"
        api_key = os.environ.get("AZURE_VOICE_LIVE_API_KEY") or "your_api_key"

        # For the recommended keyless authentication, get and
        # use the Microsoft Entra token instead of api_key:
        scopes = "https://cognitiveservices.azure.com/.default"
        credential = DefaultAzureCredential()
        token = await credential.get_token(scopes)

        client = AsyncAzureVoiceLive(
            azure_endpoint = endpoint,
            api_version = api_version,
            token = token.token,
            #api_key = api_key,
        )
        async with client.connect(model = model) as connection:
            session_update = {
                "type": "session.update",
                "session": {
                    "instructions": "You are a helpful AI assistant responding in natural, engaging language.",
                    "turn_detection": {
                        "type": "azure_semantic_vad",
                        "threshold": 0.3,
                        "prefix_padding_ms": 200,
                        "silence_duration_ms": 200,
                        "remove_filler_words": False,
                        "end_of_utterance_detection": {
                            "model": "semantic_detection_v1",
                            "threshold": 0.01,
                            "timeout": 2,
                        },
                    },
                    "input_audio_noise_reduction": {
                        "type": "azure_deep_noise_suppression"
                    },
                    "input_audio_echo_cancellation": {
                        "type": "server_echo_cancellation"
                    },
                    "voice": {
                        "name": "en-US-Ava:DragonHDLatestNeural",
                        "type": "azure-standard",
                        "temperature": 0.8,
                    },
                },
                "event_id": ""
            }
            await connection.send(json.dumps(session_update))
            print("Session created: ", json.dumps(session_update))

            send_task = asyncio.create_task(listen_and_send_audio(connection))
            receive_task = asyncio.create_task(receive_audio_and_playback(connection))
            keyboard_task = asyncio.create_task(read_keyboard_and_quit())

            print("Starting the chat ...")
            await asyncio.wait([send_task, receive_task, keyboard_task], return_when=asyncio.FIRST_COMPLETED)

            send_task.cancel()
            receive_task.cancel()
            print("Chat done.")

    # --- End of Main Function ---

    logger = logging.getLogger(__name__)
    AUDIO_SAMPLE_RATE = 24000

    class AsyncVoiceLiveConnection:
        _connection: AsyncWebsocket

        def __init__(self, url: str, additional_headers: HeadersLike) -> None:
            self._url = url
            self._additional_headers = additional_headers
            self._connection = None

        async def __aenter__(self) -> AsyncVoiceLiveConnection:
            try:
                self._connection = await ws_connect(self._url, additional_headers=self._additional_headers)
            except WebSocketException as e:
                raise ValueError(f"Failed to establish a WebSocket connection: {e}")
            return self

        async def __aexit__(self, exc_type, exc_value, traceback) -> None:
            if self._connection:
                await self._connection.close()
                self._connection = None

        enter = __aenter__
        close = __aexit__

        async def __aiter__(self) -> AsyncIterator[Data]:
             async for data in self._connection:
                 yield data

        async def recv(self) -> Data:
            return await self._connection.recv()

        async def recv_bytes(self) -> bytes:
            return await self._connection.recv()

        async def send(self, message: Data) -> None:
            await self._connection.send(message)

    class AsyncAzureVoiceLive:
        def __init__(
            self,
            *,
            azure_endpoint: str | None = None,
            api_version: str | None = None,
            token: str | None = None,
            api_key: str | None = None,
        ) -> None:

            self._azure_endpoint = azure_endpoint
            self._api_version = api_version
            self._token = token
            self._api_key = api_key
            self._connection = None

        def connect(self, model: str) -> AsyncVoiceLiveConnection:
            if self._connection is not None:
                raise ValueError("Already connected to the Voice Live API.")
            if not model:
                raise ValueError("Model name is required.")

            url = f"{self._azure_endpoint.rstrip('/')}/voice-live/realtime?api-version={self._api_version}&model={model}"
            url = url.replace("https://", "wss://")

            auth_header = {"Authorization": f"Bearer {self._token}"} if self._token else {"api-key": self._api_key}
            request_id = uuid.uuid4()
            headers = {"x-ms-client-request-id": str(request_id), **auth_header}

            self._connection = AsyncVoiceLiveConnection(
                url,
                additional_headers=headers,
            )
            return self._connection

    class AudioPlayerAsync:
        def __init__(self):
            self.queue = deque()
            self.lock = threading.Lock()
            self.stream = sd.OutputStream(
                callback=self.callback,
                samplerate=AUDIO_SAMPLE_RATE,
                channels=1,
                dtype=np.int16,
                blocksize=2400,
            )
            self.playing = False

        def callback(self, outdata, frames, time, status):
            if status:
                logger.warning(f"Stream status: {status}")
            with self.lock:
                data = np.empty(0, dtype=np.int16)
                while len(data) < frames and len(self.queue) > 0:
                    item = self.queue.popleft()
                    frames_needed = frames - len(data)
                    data = np.concatenate((data, item[:frames_needed]))
                    if len(item) > frames_needed:
                        self.queue.appendleft(item[frames_needed:])
                if len(data) < frames:
                    data = np.concatenate((data, np.zeros(frames - len(data), dtype=np.int16)))
            outdata[:] = data.reshape(-1, 1)

        def add_data(self, data: bytes):
            with self.lock:
                np_data = np.frombuffer(data, dtype=np.int16)
                self.queue.append(np_data)
                if not self.playing and len(self.queue) > 10:
                    self.start()

        def start(self):
            if not self.playing:
                self.playing = True
                self.stream.start()

        def stop(self):
            with self.lock:
                self.queue.clear()
            self.playing = False
            self.stream.stop()

        def terminate(self):
            with self.lock:
                self.queue.clear()
            self.stream.stop()
            self.stream.close()

    async def listen_and_send_audio(connection: AsyncVoiceLiveConnection) -> None:
        logger.info("Starting audio stream ...")

        stream = sd.InputStream(channels=1, samplerate=AUDIO_SAMPLE_RATE, dtype="int16")
        try:
            stream.start()
            read_size = int(AUDIO_SAMPLE_RATE * 0.02)
            while True:
                if stream.read_available >= read_size:
                    data, _ = stream.read(read_size)
                    audio = base64.b64encode(data).decode("utf-8")
                    param = {"type": "input_audio_buffer.append", "audio": audio, "event_id": ""}
                    data_json = json.dumps(param)
                    await connection.send(data_json)
        except Exception as e:
            logger.error(f"Audio stream interrupted. {e}")
        finally:
            stream.stop()
            stream.close()
            logger.info("Audio stream closed.")

    async def receive_audio_and_playback(connection: AsyncVoiceLiveConnection) -> None:
        last_audio_item_id = None
        audio_player = AudioPlayerAsync()

        logger.info("Starting audio playback ...")
        try:
            while True:
                async for raw_event in connection:
                    event = json.loads(raw_event)
                    print(f"Received event:", {event.get("type")})

                    if event.get("type") == "session.created":
                        session = event.get("session")
                        logger.info(f"Session created: {session.get('id')}")

                    elif event.get("type") == "response.audio.delta":
                        if event.get("item_id") != last_audio_item_id:
                            last_audio_item_id = event.get("item_id")

                        bytes_data = base64.b64decode(event.get("delta", ""))
                        audio_player.add_data(bytes_data)

                    elif event.get("type") == "error":
                        error_details = event.get("error", {})
                        error_type = error_details.get("type", "Unknown")
                        error_code = error_details.get("code", "Unknown")
                        error_message = error_details.get("message", "No message provided")
                        raise ValueError(f"Error received: Type={error_type}, Code={error_code}, Message={error_message}")

        except Exception as e:
            logger.error(f"Error in audio playback: {e}")
        finally:
            audio_player.terminate()
            logger.info("Playback done.")

    async def read_keyboard_and_quit() -> None:
        print("Press 'q' and Enter to quit the chat.")
        while True:
            # Run input() in a thread to avoid blocking the event loop
            user_input = await asyncio.to_thread(input)
            if user_input.strip().lower() == 'q':
                print("Quitting the chat...")
                break

    if __name__ == "__main__":
        try:
            logging.basicConfig(
                filename='voicelive.log',
                filemode="w",
                level=logging.DEBUG,
                format='%(asctime)s:%(name)s:%(levelname)s:%(message)s'
            )
            load_dotenv()
            asyncio.run(main())
        except Exception as e:
            print(f"Error: {e}")

  2. Sign in to Azure with the following command:

    az login

  3. Run the Python file.

    python voice-live-quickstart.py

  4. The Voice Live API starts to return audio with the model's initial response. You can interrupt the model by speaking. Enter "q" to quit the conversation.

Output

The output of the script is printed to the console. You see messages indicating the status of the connection, audio stream, and playback. The audio is played back through your speakers or headphones.

Session created:  {"type": "session.update", "session": {"instructions": "You are a helpful AI assistant responding in natural, engaging language.","turn_detection": {"type": "azure_semantic_vad", "threshold": 0.3, "prefix_padding_ms": 200, "silence_duration_ms": 200, "remove_filler_words": false, "end_of_utterance_detection": {"model": "semantic_detection_v1", "threshold": 0.1, "timeout": 4}}, "input_audio_noise_reduction": {"type": "azure_deep_noise_suppression"}, "input_audio_echo_cancellation": {"type": "server_echo_cancellation"}, "voice": {"name": "en-US-Ava:DragonHDLatestNeural", "type": "azure-standard", "temperature": 0.8}}, "event_id": ""}
Starting the chat ...
Received event: {'session.created'}
Press 'q' and Enter to quit the chat.
Received event: {'session.updated'}
Received event: {'input_audio_buffer.speech_started'}
Received event: {'input_audio_buffer.speech_stopped'}
Received event: {'input_audio_buffer.committed'}
Received event: {'conversation.item.input_audio_transcription.completed'}
Received event: {'conversation.item.created'}
Received event: {'response.created'}
Received event: {'response.output_item.added'}
Received event: {'conversation.item.created'}
Received event: {'response.content_part.added'}
Received event: {'response.audio_transcript.delta'}
Received event: {'response.audio_transcript.delta'}
Received event: {'response.audio_transcript.delta'}
REDACTED FOR BREVITY
Received event: {'response.audio.delta'}
Received event: {'response.audio.delta'}
Received event: {'response.audio.delta'}
q
Received event: {'response.audio.delta'}
Received event: {'response.audio.delta'}
Received event: {'response.audio.delta'}
Received event: {'response.audio.delta'}
Received event: {'response.audio.delta'}
Quitting the chat...
Received event: {'response.audio.delta'}
Received event: {'response.audio.delta'}
REDACTED FOR BREVITY
Received event: {'response.audio.delta'}
Received event: {'response.audio.delta'}
Chat done.

The script that you ran creates a log file named voicelive.log in the same directory as the script.

logging.basicConfig(
    filename='voicelive.log',
    filemode="w",
    level=logging.DEBUG,
    format='%(asctime)s:%(name)s:%(levelname)s:%(message)s'
)

The log file contains information about the connection to the Voice Live API, including the request and response data. You can view the log file to see the details of the conversation.

2025-05-09 06:56:06,821:websockets.client:DEBUG:= connection is CONNECTING
2025-05-09 06:56:07,101:websockets.client:DEBUG:> GET /voice-live/realtime?api-version=2025-05-01-preview&model=gpt-4o HTTP/1.1
<REDACTED FOR BREVITY>
2025-05-09 06:56:07,551:websockets.client:DEBUG:= connection is OPEN
2025-05-09 06:56:07,551:websockets.client:DEBUG:< TEXT '{"event_id":"event_5a7NVdtNBVX9JZVuPc9nYK","typ...es":null,"agent":null}}' [1475 bytes]
2025-05-09 06:56:07,552:websockets.client:DEBUG:> TEXT '{"type": "session.update", "session": {"turn_de....8}}, "event_id": null}' [551 bytes]
2025-05-09 06:56:07,557:__main__:INFO:Starting audio stream ...
2025-05-09 06:56:07,810:websockets.client:DEBUG:> TEXT '{"type": "input_audio_buffer.append", "audio": ...AAAEA", "event_id": ""}' [1346 bytes]
2025-05-09 06:56:07,824:websockets.client:DEBUG:> TEXT '{"type": "input_audio_buffer.append", "audio": ...AAAAA", "event_id": ""}' [1346 bytes]
2025-05-09 06:56:07,844:websockets.client:DEBUG:> TEXT '{"type": "input_audio_buffer.append", "audio": ...AAAAA", "event_id": ""}' [1346 bytes]
2025-05-09 06:56:07,874:websockets.client:DEBUG:> TEXT '{"type": "input_audio_buffer.append", "audio": ...AAAAA", "event_id": ""}' [1346 bytes]
2025-05-09 06:56:07,874:websockets.client:DEBUG:> TEXT '{"type": "input_audio_buffer.append", "audio": ...AAAEA", "event_id": ""}' [1346 bytes]
2025-05-09 06:56:07,905:websockets.client:DEBUG:> TEXT '{"type": "input_audio_buffer.append", "audio": ...BAAAA", "event_id": ""}' [1346 bytes]
2025-05-09 06:56:07,926:websockets.client:DEBUG:> TEXT '{"type": "input_audio_buffer.append", "audio": ...AAAAA", "event_id": ""}' [1346 bytes]
2025-05-09 06:56:07,954:websockets.client:DEBUG:> TEXT '{"type": "input_audio_buffer.append", "audio": ...AAAAA", "event_id": ""}' [1346 bytes]
2025-05-09 06:56:07,954:websockets.client:DEBUG:> TEXT '{"type": "input_audio_buffer.append", "audio": ...///7/", "event_id": ""}' [1346 bytes]
2025-05-09 06:56:07,974:websockets.client:DEBUG:> TEXT '{"type": "input_audio_buffer.append", "audio": ...BAAAA", "event_id": ""}' [1346 bytes]
2025-05-09 06:56:08,004:websockets.client:DEBUG:> TEXT '{"type": "input_audio_buffer.append", "audio": ...AAAAA", "event_id": ""}' [1346 bytes]
2025-05-09 06:56:08,035:websockets.client:DEBUG:> TEXT '{"type": "input_audio_buffer.append", "audio": ...AAAAA", "event_id": ""}' [1346 bytes]
2025-05-09 06:56:08,035:websockets.client:DEBUG:> TEXT '{"type": "input_audio_buffer.append", "audio": ...AAAAA", "event_id": ""}' [1346 bytes]
<REDACTED FOR BREVITY>
2025-05-09 06:56:42,957:websockets.client:DEBUG:> TEXT '{"type": "input_audio_buffer.append", "audio": ...AAP//", "event_id": ""}' [1346 bytes]
2025-05-09 06:56:42,984:websockets.client:DEBUG:> TEXT '{"type": "input_audio_buffer.append", "audio": ...+/wAA", "event_id": ""}' [1346 bytes]
2025-05-09 06:56:43,005:websockets.client:DEBUG:> TEXT '{"type": "input_audio_buffer.append", "audio": .../////", "event_id": ""}' [1346 bytes]
2025-05-09 06:56:43,034:websockets.client:DEBUG:> TEXT '{"type": "input_audio_buffer.append", "audio": ...+////", "event_id": ""}' [1346 bytes]
2025-05-09 06:56:43,034:websockets.client:DEBUG:> TEXT '{"type": "input_audio_buffer.append", "audio": ...CAAMA", "event_id": ""}' [1346 bytes]
2025-05-09 06:56:43,055:websockets.client:DEBUG:> TEXT '{"type": "input_audio_buffer.append", "audio": ...CAAIA", "event_id": ""}' [1346 bytes]
2025-05-09 06:56:43,084:websockets.client:DEBUG:> TEXT '{"type": "input_audio_buffer.append", "audio": ...BAAEA", "event_id": ""}' [1346 bytes]
2025-05-09 06:56:43,114:websockets.client:DEBUG:> TEXT '{"type": "input_audio_buffer.append", "audio": ...9//3/", "event_id": ""}' [1346 bytes]
2025-05-09 06:56:43,114:websockets.client:DEBUG:> TEXT '{"type": "input_audio_buffer.append", "audio": ...DAAMA", "event_id": ""}' [1346 bytes]
2025-05-09 06:56:43,134:websockets.client:DEBUG:> TEXT '{"type": "input_audio_buffer.append", "audio": ...BAAIA", "event_id": ""}' [1346 bytes]
2025-05-09 06:56:43,165:websockets.client:DEBUG:> TEXT '{"type": "input_audio_buffer.append", "audio": ...AAAAA", "event_id": ""}' [1346 bytes]
2025-05-09 06:56:43,184:websockets.client:DEBUG:> TEXT '{"type": "input_audio_buffer.append", "audio": ...+//7/", "event_id": ""}' [1346 bytes]
2025-05-09 06:56:43,214:websockets.client:DEBUG:> TEXT '{"type": "input_audio_buffer.append", "audio": .../////", "event_id": ""}' [1346 bytes]
2025-05-09 06:56:43,214:websockets.client:DEBUG:> TEXT '{"type": "input_audio_buffer.append", "audio": ...+/wAA", "event_id": ""}' [1346 bytes]
2025-05-09 06:56:43,245:websockets.client:DEBUG:> TEXT '{"type": "input_audio_buffer.append", "audio": ...BAAIA", "event_id": ""}' [1346 bytes]
2025-05-09 06:56:43,264:websockets.client:DEBUG:> TEXT '{"type": "input_audio_buffer.append", "audio": ...AAP//", "event_id": ""}' [1346 bytes]
2025-05-09 06:56:43,295:websockets.client:DEBUG:> TEXT '{"type": "input_audio_buffer.append", "audio": ...BAAEA", "event_id": ""}' [1346 bytes]
2025-05-09 06:56:43,295:websockets.client:DEBUG:> CLOSE 1000 (OK) [2 bytes]
2025-05-09 06:56:43,297:websockets.client:DEBUG:= connection is CLOSING
2025-05-09 06:56:43,346:__main__:INFO:Audio stream closed.
2025-05-09 06:56:43,388:__main__:INFO:Playback done.
2025-05-09 06:56:44,512:websockets.client:DEBUG:< CLOSE 1000 (OK) [2 bytes]
2025-05-09 06:56:44,514:websockets.client:DEBUG:< EOF
2025-05-09 06:56:44,514:websockets.client:DEBUG:> EOF
2025-05-09 06:56:44,514:websockets.client:DEBUG:= connection is CLOSED
2025-05-09 06:56:44,514:websockets.client:DEBUG:x closing TCP connection
2025-05-09 06:56:44,514:asyncio:ERROR:Unclosed client session
client_session: <aiohttp.client.ClientSession object at 0x00000266DD8E5400>
