Use Image Cleaner to clean up stale images on your Azure Kubernetes Service cluster (preview)

  • Article
  • 5 minutes to read

It's common to use pipelines to build and deploy images on Azure Kubernetes Service (AKS) clusters. While great for image creation, this process often doesn't account for the stale images left behind and can lead to image bloat on cluster nodes. These images can present security issues as they may contain vulnerabilities. By cleaning these unreferenced images, you can remove an area of risk in your clusters. When done manually, this process can be time intensive, which Image Cleaner can mitigate via automatic image identification and removal.

Note

Image Cleaner is a feature based on Eraser. On an AKS cluster, the feature name and property name is Image Cleaner while the relevant Image Cleaner pods' names contain Eraser.

Important

AKS preview features are available on a self-service, opt-in basis. Previews are provided "as is" and "as available," and they're excluded from the service-level agreements and limited warranty. AKS previews are partially covered by customer support on a best-effort basis. As such, these features aren't meant for production use. For more information, see the following support articles:

Prerequisites

  • An Azure subscription. If you don't have an Azure subscription, you can create a free account.
  • Azure CLI or Azure PowerShell and the aks-preview 0.5.96 or later CLI extension installed.
  • The EnableImageCleanerPreview feature flag registered on your subscription:

First, install the aks-preview extension by running the following command:

az extension add --name aks-preview

Run the following command to update to the latest version of the extension released:

az extension update --name aks-preview

Then register the EnableImageCleanerPreview feature flag by using the az feature register command, as shown in the following example:

az feature register --namespace "Microsoft.ContainerService" --name "EnableImageCleanerPreview"

It takes a few minutes for the status to show Registered. Verify the registration status by using the az feature show command:

az feature show --namespace "Microsoft.ContainerService" --name "EnableImageCleanerPreview"

When the status reflects Registered, refresh the registration of the Microsoft.ContainerService resource provider by using the az provider register command:

az provider register --namespace Microsoft.ContainerService

Limitations

Image Cleaner does not support the following:

How Image Cleaner works

When enabled, an eraser-controller-manager pod is deployed, which generates an ImageList CRD. The eraser pods running on each nodes will clean up the unreferenced and vulnerable images according to the ImageList. Vulnerability is determined based on a trivy scan, after which images with a LOW, MEDIUM, HIGH, or CRITICAL classification are flagged. An updated ImageList will be automatically generated by Image Cleaner based on a set time interval, and can also be supplied manually.

Once an ImageList is generated, Image Cleaner will remove all the images in the list from node VMs.

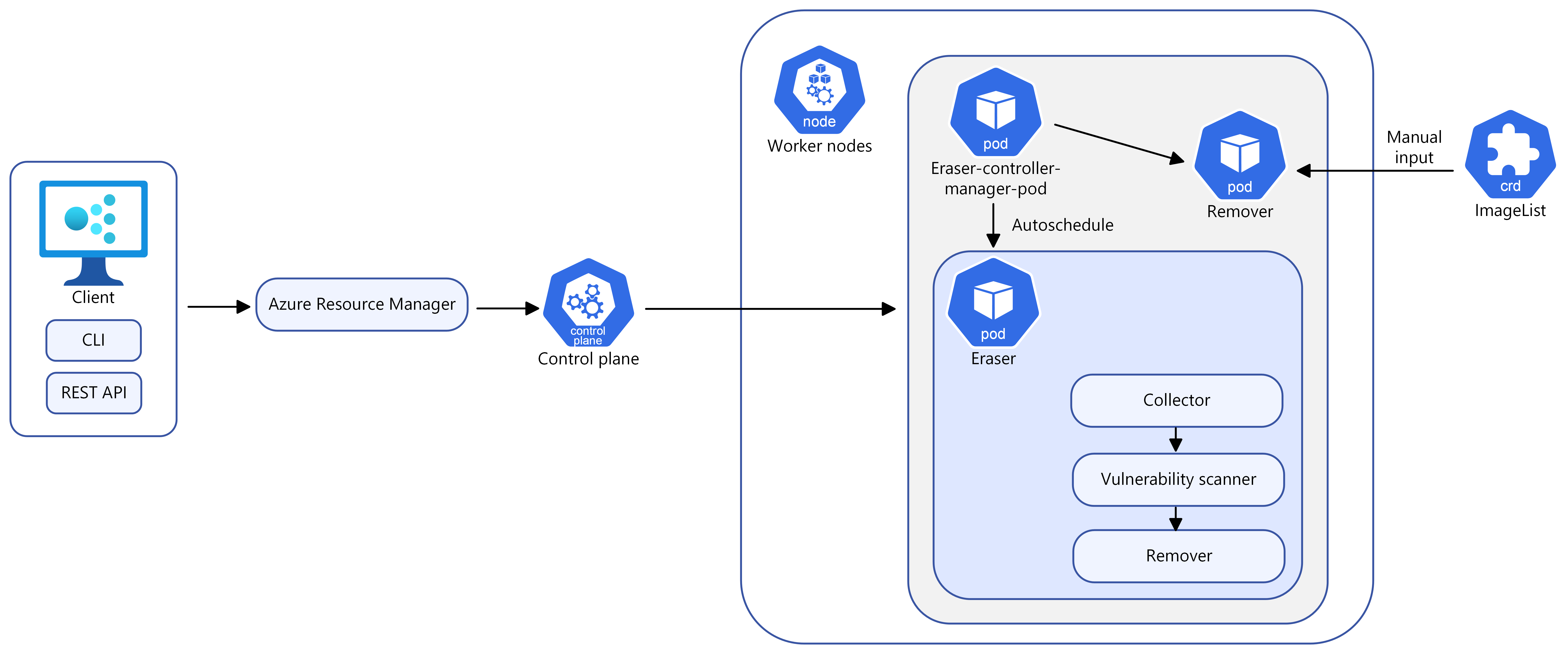

Screenshot of a diagram showing ImageCleaner's workflow. The ImageCleaner pods running on the cluster can generate an ImageList, or manual input can be provided.

Configuration options

In addition to choosing between manual and automatic mode, there are several options for Image Cleaner:

Name Description Required
--enable-image-cleaner Enable the Image Cleaner feature for an AKS cluster Yes, unless disable is specified
--disable-image-cleaner Disable the Image Cleaner feature for an AKS cluster Yes, unless enable is specified
--image-cleaner-interval-hours This parameter determines the interval time (in hours) Image Cleaner will use to run. The default value for Azure CLI is one week, the minimum value is 24 hours and the maximum is three months. Not required for Azure CLI, required for ARM template or other clients

Note

After disabling Image Cleaner, the old configuration still exists. This means that if you enable the feature again without explicitly passing configuration, the existing value will be used rather than the default.

Enable Image Cleaner on your AKS cluster

To create a new AKS cluster using the default interval, use az aks create:

az aks create -g MyResourceGroup -n MyManagedCluster \
  --enable-image-cleaner

To enable on an existing AKS cluster, use az aks update:

az aks update -g MyResourceGroup -n MyManagedCluster \
  --enable-image-cleaner

The --image-cleaner-interval-hours parameter can be specified at creation time or for an existing cluster. For example, the following command updates the interval for a cluster with Image Cleaner already enabled:

az aks update -g MyResourceGroup -n MyManagedCluster \
  --image-cleaner-interval-hours 48

After the feature is enabled, the eraser-controller-manager-xxx pod and collector-aks-xxx pod will be deployed. Based on your configuration, Image Cleaner will generate an ImageList containing non-running and vulnerable images at the desired interval. Image Cleaner will automatically remove these images from cluster nodes.

Manually remove images

To manually remove images from your cluster using Image Cleaner, first create an ImageList. For example, save the following as image-list.yml:

apiVersion: eraser.sh/v1alpha1
kind: ImageList
metadata:
  name: imagelist
spec:
  images:
    - docker.io/library/alpine:3.7.3   # You can also use "*" to specify all non-running images

And apply it to the cluster:

kubectl apply -f image-list.yml

A job named eraser-aks-xxxwill be triggered which causes Image Cleaner to remove the desired images from all nodes.

Disable Image Cleaner

To stop using Image Cleaner, you can disable it via the --disable-image-cleaner flag:

az aks update -g MyResourceGroup -n MyManagedCluster
  --disable-image-cleaner

Logging

Deletion image logs are stored in eraser-aks-nodepool-xxx pods for manually deleted images, and in collector-aks-nodes-xxx pods for automatically deleted images.

You can view these logs by running kubectl logs <pod name> -n kubesystem. However, this command may return only the most recent logs, since older logs are routinely deleted. To view all logs, follow these steps to enable the Azure Monitor add-on and use the Container Insights pod log table.

  1. Ensure that Azure monitoring is enabled on the cluster. For detailed steps, see Enable Container Insights for AKS cluster.

  2. Get the Log Analytics resource ID:

    az aks show -g <resourceGroupofAKSCluster> -n <nameofAksCluster>

    After a few minutes, the command returns JSON-formatted information about the solution, including the workspace resource ID:

    "addonProfiles": {
 "omsagent": {
   "config": {
     "logAnalyticsWorkspaceResourceID": "/subscriptions/<WorkspaceSubscription>/resourceGroups/<DefaultWorkspaceRG>/providers/Microsoft.OperationalInsights/workspaces/<defaultWorkspaceName>"
   },
   "enabled": true
 }
}

  3. In the Azure portal, search for the workspace resource ID, then select Logs.

  4. Copy this query into the table, replacing name with either eraser-aks-nodepool-xxx (for manual mode) or collector-aks-nodes-xxx (for automatic mode).

       let startTimestamp = ago(1h);
KubePodInventory
| where TimeGenerated > startTimestamp
| project ContainerID, PodName=Name, Namespace
| where PodName contains "name" and Namespace startswith "kube-system"
| distinct ContainerID, PodName
| join
(
    ContainerLog
    | where TimeGenerated > startTimestamp
)
on ContainerID
// at this point before the next pipe, columns from both tables are available to be "projected". Due to both
// tables having a "Name" column, we assign an alias as PodName to one column which we actually want
| project TimeGenerated, PodName, LogEntry, LogEntrySource
| summarize by TimeGenerated, LogEntry
| order by TimeGenerated desc

  5. Select Run. Any deleted image logs will appear in the Results area.

    Screenshot showing deleted image logs in the Azure portal.
