Azure Kubernetes Service (AKS) is a managed Kubernetes service that lets you quickly deploy and manage clusters. In this quickstart, you learn how to:
- Deploy an AKS cluster with default settings using the Azure CLI.
- Deploy a sample multi-container application with a group of microservices and web front ends that simulate a retail scenario.
Note
This article includes steps to deploy a cluster for evaluation purposes only. Before you deploy a production-ready cluster, we recommend that you familiarize yourself with our baseline reference architecture to consider how it aligns with your business requirements.
If you only want to deploy an Azure Kubernetes Service cluster, select Deploy to Azure to open your browser in the Azure portal and select Run all steps.
Before you begin
This quickstart assumes a basic understanding of Kubernetes concepts. For more information, see Kubernetes core concepts for Azure Kubernetes Service (AKS).
- If you don't have an Azure account, create a free account before you begin.
Use the Bash environment in Azure Cloud Shell. For more information, see Get started with Azure Cloud Shell.
If you prefer to run CLI reference commands locally, install the Azure CLI. If you're running on Windows or macOS, consider running Azure CLI in a Docker container. For more information, see How to run the Azure CLI in a Docker container.
If you're using a local installation, sign in to the Azure CLI by using the az login command. To finish the authentication process, follow the steps displayed in your terminal. For other sign-in options, see Authenticate to Azure using Azure CLI.
When you're prompted, install the Azure CLI extension on first use. For more information about extensions, see Use and manage extensions with the Azure CLI.
Run az version to find the version and dependent libraries that are installed. To upgrade to the latest version, run az upgrade.
- Make sure that the identity you're using to create your cluster has the appropriate minimum permissions. For more information on access and identity for AKS, see Access and identity options for Azure Kubernetes Service (AKS).
- If you have multiple Azure subscriptions, select the appropriate subscription ID in which the resources should be billed using the az account set command. For more information, see How to manage Azure subscriptions – Azure CLI.
- Dependent upon your Azure subscription, you might need to request a vCPU quota increase. For more information, see Increase VM-family vCPU quotas.
Register resource providers
You might need to register resource providers in your Azure subscription. For example, Microsoft.ContainerService is required.
Run the following command to check the registration status.
az provider show --namespace Microsoft.ContainerService --query registrationState
If necessary, register the resource provider.
az provider register --namespace Microsoft.ContainerService
Define environment variables
Define the following environment variables for use throughout this quickstart.
export RANDOM_STRING=$(printf '%05d%05d' "$RANDOM" "$RANDOM")
export RESOURCE_GROUP="myAKSResourceGroup$RANDOM_STRING"
export CLUSTER_NAME="myAKSCluster$RANDOM_STRING"
export USER_NP='userpool1'
export LOCATION="westus"
The RANDOM_STRING variable stores a random 10-digit string. The RESOURCE_GROUP and CLUSTER_NAME variable values are concatenated with the RANDOM_STRING value to create unique names. The USER_NP stores a name for a user mode node pool. The LOCATION variable has the value westus2. You can use these variable values or create your own. Use the echo command to view variable values like echo $RANDOM_STRING.
Create a resource group
An Azure resource group is a logical group in which Azure resources are deployed and managed. When you create a resource group, you're prompted to specify a location. This location is the storage location of your resource group metadata and where your resources run in Azure if you don't specify another region during resource creation.
Create a resource group using the az group create command.
az group create --name $RESOURCE_GROUP --location $LOCATION
The result looks like the following example.
{
"id": "/subscriptions/aaaa0a0a-bb1b-cc2c-dd3d-eeeeee4e4e4e/resourceGroups/myAKSResourceGroup<randomStringValue>",
"location": "westus",
"managedBy": null,
"name": "myAKSResourceGroup<randomStringValue>",
"properties": {
"provisioningState": "Succeeded"
},
"tags": null,
"type": "Microsoft.Resources/resourceGroups"
}
Create an AKS cluster
Create an AKS cluster using the az aks create command. The following example creates a cluster with one node and enables a system-assigned managed identity.
az aks create \
--resource-group $RESOURCE_GROUP \
--name $CLUSTER_NAME \
--node-count 1 \
--generate-ssh-keys
When you create a new cluster, AKS automatically creates a second resource group to store the AKS resources. For more information, see Why are two resource groups created with AKS?
The cluster in this example specifies a node count of one to save time and resources. In a production environment, the recommendation is a node count of threee or more nodes. The az aks create defaults to three nodes if you don't specify a node count.
Add a user mode node pool
Applications should run on user mode node pools instead of the default system mode node pool. User node pools provide better isolation and flexibility for application workloads. Add a user node pool to your cluster using the az aks nodepool add command.
az aks nodepool add \
--resource-group $RESOURCE_GROUP \
--cluster-name $CLUSTER_NAME \
--name $USER_NP \
--node-count 1 \
--mode User
Like the cluster, we specified one node, but the default is three nodes if you don't specify a node count.
After the user node pool is created, you can verify that your cluster has a system node pool and a user node pool using the az aks nodepool list command.
az aks nodepool list \
--resource-group $RESOURCE_GROUP \
--cluster-name $CLUSTER_NAME \
--query "[].{Count:count, Mode:mode, NodePool:name, ResourceGroup:resourceGroup}"
[
{
"Count": 1,
"Mode": "System",
"NodePool": "nodepool1",
"ResourceGroup": "myAKSResourceGroup1234554321"
},
{
"Count": 1,
"Mode": "User",
"NodePool": "userpool1",
"ResourceGroup": "myAKSResourceGroup1234554321"
}
]
Connect to the cluster
To manage a Kubernetes cluster, use the Kubernetes command-line client, kubectl. kubectl is already installed if you use Azure Cloud Shell. To install kubectl locally, use the az aks install-cli command.
Configure
kubectlto connect to your Kubernetes cluster using the az aks get-credentials command. This command downloads credentials and configures the Kubernetes CLI to use them.az aks get-credentials --resource-group $RESOURCE_GROUP --name $CLUSTER_NAMEVerify the connection to your cluster using the kubectl get command. This command returns a list of the cluster nodes.
kubectl get nodesNAME STATUS ROLES AGE VERSION aks-nodepool1-123456789-vmss000000 Ready <none> 15m v1.34.4 aks-userpool1-123456789-vmss000000 Ready <none> 5m36s v1.34.4There are two nodes,
nodepool1is ths system node pool created with the cluster anduserpool1is the user node pool added to the cluster.
Deploy the application
To deploy the application, you use a manifest file to create all the objects required to run the AKS Store application. A Kubernetes manifest file defines a cluster's desired state, such as which container images to run. The manifest includes the following Kubernetes deployments and services:
- Store front: Web application for customers to view products and place orders.
- Product service: Shows product information.
- Order service: Places orders.
RabbitMQ: Message queue for an order queue.
Note
We don't recommend running stateful containers, such as RabbitMQ, without persistent storage for production. We use it here for simplicity, but we recommend using managed services, such as Azure Cosmos DB or Azure Service Bus.
Create a file named aks-store-quickstart.yaml and copy in the following manifest. Replace the two placeholders for
<defaultPassword>with your own password. This password is used for the default user of theRabbitMQinstance.apiVersion: apps/v1 kind: StatefulSet metadata: name: rabbitmq spec: serviceName: rabbitmq replicas: 1 selector: matchLabels: app: rabbitmq template: metadata: labels: app: rabbitmq spec: nodeSelector: kubernetes.io/os: linux kubernetes.azure.com/mode: user containers: - name: rabbitmq image: mcr.microsoft.com/mirror/docker/library/rabbitmq:3.10-management-alpine ports: - containerPort: 5672 name: rabbitmq-amqp - containerPort: 15672 name: rabbitmq-http env: - name: RABBITMQ_DEFAULT_USER value: "username" - name: RABBITMQ_DEFAULT_PASS value: "<defaultPassword>" resources: requests: cpu: 10m memory: 128Mi limits: cpu: 250m memory: 256Mi volumeMounts: - name: rabbitmq-enabled-plugins mountPath: /etc/rabbitmq/enabled_plugins subPath: enabled_plugins volumes: - name: rabbitmq-enabled-plugins configMap: name: rabbitmq-enabled-plugins items: - key: rabbitmq_enabled_plugins path: enabled_plugins --- apiVersion: v1 data: rabbitmq_enabled_plugins: | [rabbitmq_management,rabbitmq_prometheus,rabbitmq_amqp1_0]. kind: ConfigMap metadata: name: rabbitmq-enabled-plugins --- apiVersion: v1 kind: Service metadata: name: rabbitmq spec: selector: app: rabbitmq ports: - name: rabbitmq-amqp port: 5672 targetPort: 5672 - name: rabbitmq-http port: 15672 targetPort: 15672 type: ClusterIP --- apiVersion: apps/v1 kind: Deployment metadata: name: order-service spec: replicas: 1 selector: matchLabels: app: order-service template: metadata: labels: app: order-service spec: nodeSelector: kubernetes.io/os: linux kubernetes.azure.com/mode: user containers: - name: order-service image: ghcr.io/azure-samples/aks-store-demo/order-service:latest ports: - containerPort: 3000 env: - name: ORDER_QUEUE_HOSTNAME value: "rabbitmq" - name: ORDER_QUEUE_PORT value: "5672" - name: ORDER_QUEUE_USERNAME value: "username" - name: ORDER_QUEUE_PASSWORD value: "<defaultPassword>" - name: ORDER_QUEUE_NAME value: "orders" - name: FASTIFY_ADDRESS value: "0.0.0.0" resources: requests: cpu: 1m memory: 50Mi limits: cpu: 75m memory: 128Mi startupProbe: httpGet: path: /health port: 3000 failureThreshold: 5 initialDelaySeconds: 20 periodSeconds: 10 readinessProbe: httpGet: path: /health port: 3000 failureThreshold: 3 initialDelaySeconds: 3 periodSeconds: 5 livenessProbe: httpGet: path: /health port: 3000 failureThreshold: 5 initialDelaySeconds: 3 periodSeconds: 3 initContainers: - name: wait-for-rabbitmq image: busybox command: ['sh', '-c', 'until nc -zv rabbitmq 5672; do echo waiting for rabbitmq; sleep 2; done;'] resources: requests: cpu: 1m memory: 50Mi limits: cpu: 75m memory: 128Mi --- apiVersion: v1 kind: Service metadata: name: order-service spec: type: ClusterIP ports: - name: http port: 3000 targetPort: 3000 selector: app: order-service --- apiVersion: apps/v1 kind: Deployment metadata: name: product-service spec: replicas: 1 selector: matchLabels: app: product-service template: metadata: labels: app: product-service spec: nodeSelector: kubernetes.io/os: linux kubernetes.azure.com/mode: user containers: - name: product-service image: ghcr.io/azure-samples/aks-store-demo/product-service:latest ports: - containerPort: 3002 env: - name: AI_SERVICE_URL value: "http://ai-service:5001/" resources: requests: cpu: 1m memory: 1Mi limits: cpu: 2m memory: 20Mi readinessProbe: httpGet: path: /health port: 3002 failureThreshold: 3 initialDelaySeconds: 3 periodSeconds: 5 livenessProbe: httpGet: path: /health port: 3002 failureThreshold: 5 initialDelaySeconds: 3 periodSeconds: 3 --- apiVersion: v1 kind: Service metadata: name: product-service spec: type: ClusterIP ports: - name: http port: 3002 targetPort: 3002 selector: app: product-service --- apiVersion: apps/v1 kind: Deployment metadata: name: store-front spec: replicas: 1 selector: matchLabels: app: store-front template: metadata: labels: app: store-front spec: nodeSelector: kubernetes.io/os: linux kubernetes.azure.com/mode: user containers: - name: store-front image: ghcr.io/azure-samples/aks-store-demo/store-front:latest ports: - containerPort: 8080 name: store-front env: - name: VUE_APP_ORDER_SERVICE_URL value: "http://order-service:3000/" - name: VUE_APP_PRODUCT_SERVICE_URL value: "http://product-service:3002/" resources: requests: cpu: 1m memory: 200Mi limits: cpu: 1000m memory: 512Mi startupProbe: httpGet: path: /health port: 8080 failureThreshold: 3 initialDelaySeconds: 5 periodSeconds: 5 readinessProbe: httpGet: path: /health port: 8080 failureThreshold: 3 initialDelaySeconds: 3 periodSeconds: 3 livenessProbe: httpGet: path: /health port: 8080 failureThreshold: 5 initialDelaySeconds: 3 periodSeconds: 3 --- apiVersion: v1 kind: Service metadata: name: store-front spec: ports: - port: 80 targetPort: 8080 selector: app: store-front type: LoadBalancerFor a breakdown of YAML manifest files, see Deployments and YAML manifests.
If you create and save the YAML file locally, then you can upload the manifest file to your default directory in Cloud Shell by selecting the Upload/Download files button and selecting the file from your local file system.
Deploy the application using the kubectl apply command and specify the name of your YAML manifest.
kubectl apply -f aks-store-quickstart.yamlRun the following command to verify the application is deployed on a user node pool.
kubectl get pods -o wideThe output will show that rabbitmq, order-service, product-service, and store-front pods are running on a node in the user node pool.
Test the application
You can validate that the application is running by visiting the public IP address or the application URL.
Run the following commands to display the application URL:
runtime="5 minutes"
endtime=$(date -ud "$runtime" +%s)
while [[ $(date -u +%s) -le $endtime ]]
do
STATUS=$(kubectl get pods -l app=store-front -o 'jsonpath={..status.conditions[?(@.type=="Ready")].status}')
echo $STATUS
if [ "$STATUS" == 'True' ]
then
export IP_ADDRESS=$(kubectl get service store-front --output 'jsonpath={..status.loadBalancer.ingress[0].ip}')
echo "service IP address: $IP_ADDRESS"
break
else
sleep 10
fi
done
The output shows the application's public IP address in the <applicationIPAddress> placeholder. You use that IP address to view the application in the next steps.
service IP Address: <applicationIPAddress>
Run the following command to send a request to the application URL. Replace <applicationIPAddress> with the service IP Address.
curl <applicationIPAddress>
The command returns HTML output that shows the application responds to the request.
<!doctype html>
<html lang="">
<head>
<meta charset="UTF-8" />
<link rel="icon" href="/favicon.ico" />
<meta name="viewport" content="width=device-width, initial-scale=1.0" />
<title>Contoso Pet Store</title>
<script type="module" crossorigin src="/assets/index-CLiaTzSi.js"></script>
<link rel="stylesheet" crossorigin href="/assets/index-Cv6jORyk.css">
</head>
<body>
<div id="app"></div>
</body>
</html>

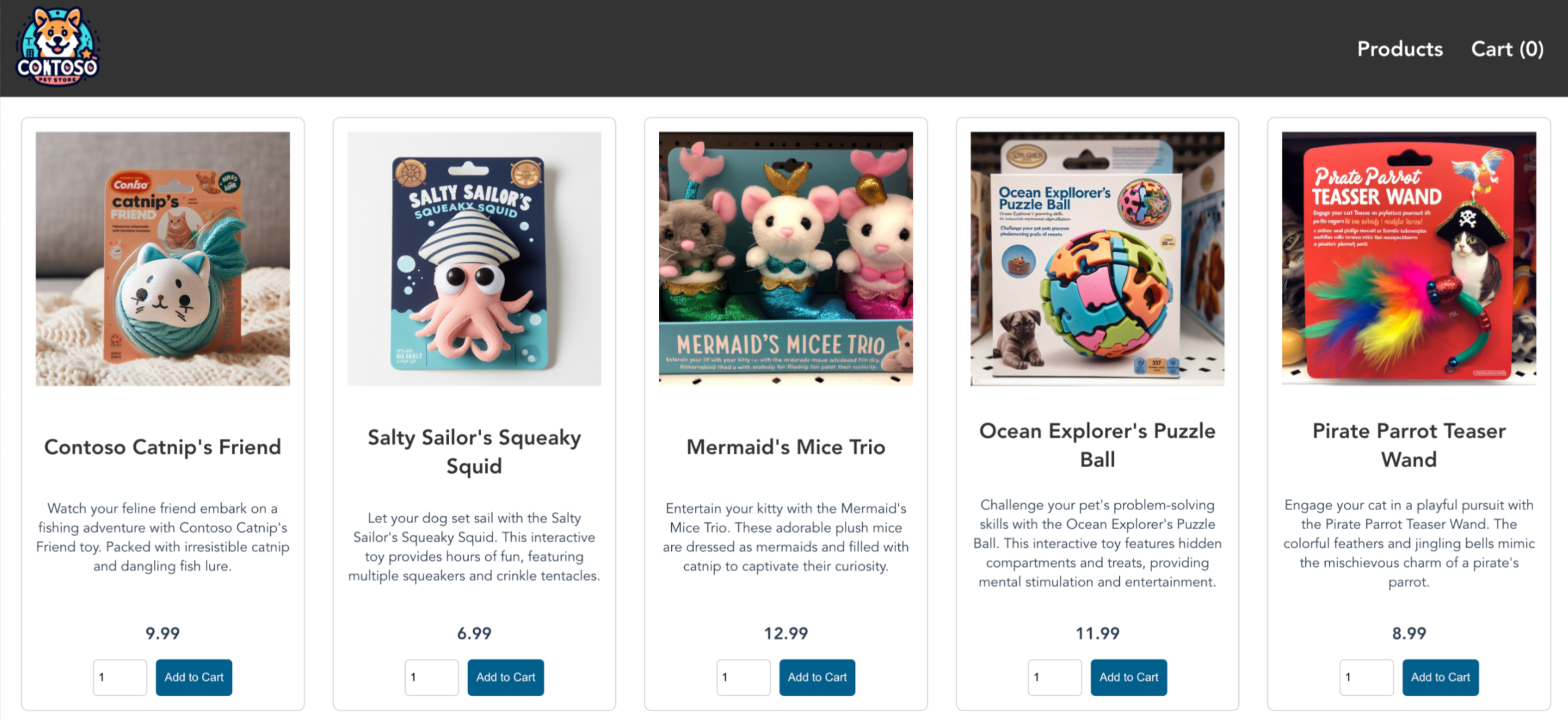

To view the application website, open a browser and enter the service IP address. The page looks like the following example.
Delete the cluster
If you don't plan on doing the AKS tutorial, clean up unnecessary resources to avoid Azure billing charges. You can remove the resource group, container service, and all related resources using the az group delete command.
az group delete --name $RESOURCE_GROUP --no-wait --yes
The AKS cluster was created with a system-assigned managed identity, which is the default identity option used in this quickstart. The platform manages this identity so you don't need to manually remove it.
Next steps
In this quickstart, you deployed a Kubernetes cluster and then deployed a simple multi-container application. This sample application is for demo purposes only and doesn't represent all the best practices for Kubernetes applications. For guidance about how to create full solutions with AKS for production, see AKS solution guidance.
To learn more about AKS and do a complete code-to-deployment example, continue to the Kubernetes cluster tutorial.
