Apply security and kernel updates to Linux nodes in Azure Kubernetes Service (AKS)
To protect your clusters, security updates are automatically applied to Linux nodes in AKS. These updates include OS security fixes or kernel updates. Some of these updates require a node reboot to complete the process. AKS doesn't automatically reboot these Linux nodes to complete the update process.
The process to keep Windows Server nodes up to date is a little different. Windows Server nodes don't receive daily updates. Instead, you perform an AKS upgrade that deploys new nodes with the latest base Window Server image and patches. For AKS clusters that use Windows Server nodes, see Upgrade a node pool in AKS.
This article shows you how to use the open-source kured (KUbernetes REboot Daemon) to watch for Linux nodes that require a reboot, then automatically handle the rescheduling of running pods and node reboot process.
Before you begin
You need the Azure CLI version 2.0.59 or later installed and configured. Run
az --version to find the version. If you need to install or upgrade, see Install Azure CLI.
Understand the AKS node update experience
In an AKS cluster, your Kubernetes nodes run as Azure virtual machines (VMs). These Linux-based VMs use an Ubuntu image, with the OS configured to automatically check for updates every day. If security or kernel updates are available, they are automatically downloaded and installed.
Some security updates, such as kernel updates, require a node reboot to finalize the process. A Linux node that requires a reboot creates a file named /var/run/reboot-required. This reboot process doesn't happen automatically.
You can use your own workflows and processes to handle node reboots, or use
kured to orchestrate the process. With

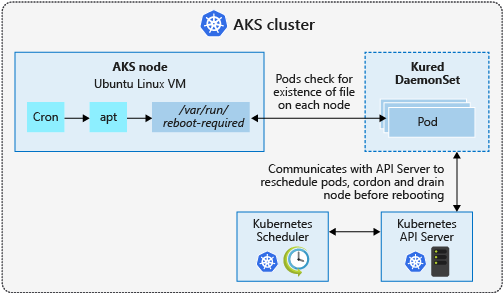

kured, a DaemonSet is deployed that runs a pod on each Linux node in the cluster. These pods in the DaemonSet watch for existence of the /var/run/reboot-required file, and then initiate a process to reboot the nodes.
Node image upgrades
Unattended upgrades apply updates to the Linux node OS, but the image used to create nodes for your cluster remains unchanged. If a new Linux node is added to your cluster, the original image is used to create the node. This new node will receive all the security and kernel updates available during the automatic check every day but will remain unpatched until all checks and restarts are complete.
Alternatively, you can use node image upgrade to check for and update node images used by your cluster. For more details on node image upgrade, see Azure Kubernetes Service (AKS) node image upgrade.
There is an additional process in AKS that lets you upgrade a cluster. An upgrade is typically to move to a newer version of Kubernetes, not just apply node security updates. An AKS upgrade performs the following actions:
- A new node is deployed with the latest security updates and Kubernetes version applied.
- An old node is cordoned and drained.
- Pods are scheduled on the new node.
- The old node is deleted.
You can't remain on the same Kubernetes version during an upgrade event. You must specify a newer version of Kubernetes. To upgrade to the latest version of Kubernetes, you can upgrade your AKS cluster.
Deploy kured in an AKS cluster
To deploy the
kured DaemonSet, install the following official Kured Helm chart. This creates a role and cluster role, bindings, and a service account, then deploys the DaemonSet using
# Add the Kured Helm repository helm repo add kubereboot https://kubereboot.github.io/charts/ # Update your local Helm chart repository cache helm repo update # Create a dedicated namespace where you would like to deploy kured into kubectl create namespace kured # Install kured in that namespace with Helm 3 (only on Linux nodes, kured is not working on Windows nodes) helm install my-release kubereboot/kured --namespace kured --set nodeSelector."kubernetes\.io/os"=linux
You can also configure additional parameters for
kured, such as integration with Prometheus or Slack. For more information about additional configuration parameters, see the kured Helm chart.
Update cluster nodes
By default, Linux nodes in AKS check for updates every evening. If you don't want to wait, you can manually perform an update to check that
kured runs correctly. First, follow the steps to SSH to one of your AKS nodes. Once you have an SSH connection to the Linux node, check for updates and apply them as follows:
sudo apt-get update && sudo apt-get upgrade -y
If updates were applied that require a node reboot, a file is written to /var/run/reboot-required.
Kured checks for nodes that require a reboot every 60 minutes by default.
Monitor and review reboot process
When one of the replicas in the DaemonSet has detected that a node reboot is required, a lock is placed on the node through the Kubernetes API. This lock prevents additional pods being scheduled on the node. The lock also indicates that only one node should be rebooted at a time. With the node cordoned off, running pods are drained from the node, and the node is rebooted.
You can monitor the status of the nodes using the kubectl get nodes command. The following example output shows a node with a status of SchedulingDisabled as the node prepares for the reboot process:
NAME STATUS ROLES AGE VERSION aks-nodepool1-28993262-0 Ready,SchedulingDisabled agent 1h v1.11.7
Once the update process is complete, you can view the status of the nodes using the kubectl get nodes command with the
--output wide parameter. This additional output lets you see a difference in KERNEL-VERSION of the underlying nodes, as shown in the following example output. The aks-nodepool1-28993262-0 was updated in a previous step and shows kernel version 4.15.0-1039-azure. The node aks-nodepool1-28993262-1 that hasn't been updated shows kernel version 4.15.0-1037-azure.
NAME STATUS ROLES AGE VERSION INTERNAL-IP EXTERNAL-IP OS-IMAGE KERNEL-VERSION CONTAINER-RUNTIME aks-nodepool1-28993262-0 Ready agent 1h v1.11.7 10.240.0.4 <none> Ubuntu 16.04.6 LTS 4.15.0-1039-azure docker://3.0.4 aks-nodepool1-28993262-1 Ready agent 1h v1.11.7 10.240.0.5 <none> Ubuntu 16.04.6 LTS 4.15.0-1037-azure docker://3.0.4
This article detailed how to use
kured to reboot Linux nodes automatically as part of the security update process. To upgrade to the latest version of Kubernetes, you can upgrade your AKS cluster.
For AKS clusters that use Windows Server nodes, see Upgrade a node pool in AKS.
