Create Application Gateway custom error pages

Application Gateway allows you to create customized error pages instead of displaying default ones. You can use your branding and layout for errors related to different response codes. Some scenarios for setting custom error pages are

  • Showing a maintenance or status page for 502 Bad Gateway response code. This is useful when your application gateway has no backend server to route traffic to during scheduled maintenance or an unforeseen issue with backend pool servers.
  • Showing a customized unauthorized access page for 403 Forbidden response code that occurs when the WAF is in prevention mode and blocks malicious traffic.
  • Showing a company-branded page with contact details in case of an issue.

Supported response codes

The custom error pages are supported for the following response codes:

Response code Description
400 Bad request (In preview)
403 Forbidden
405 Method not allowed (In preview)
408 Request timeout (In preview)
500 Internal Server Error (In preview)
502 Bad gateway
503 Service unavailable (In preview)
504 Gateway timeout (In preview)


  • API version 2022-09-01 or later should be used to configure error pages for the new response codes (in preview).
  • Response code 404 (Page not found) is currently unsupported.
  • The custom error pages are displayed for response codes generated by Application Gateway. If an error originates from the backend server, it is passed along unmodified to the client.

Configuration levels

The custom error pages can be defined at a Global or Listener level:

  • Global level - The error pages set at a global level are applied to all the listeners of that application gateway. Its configuration through the Azure portal is currently not supported.
  • Listener level - The error pages at a listener level gives you granular control to set error pages for application served by that listener.


When using a combination of Global and Listener-level error pages for a gateway, you must explicitly mention the URLs for all desired response codes for that listener. A listener-specific configuration overrides all preceding global configurations applicable to that listener.


To create a custom error page, you should

  • know the response code for which a custom error page is needed.
  • know the corresponding remote location (URL) for the HTML page. This must be a publicly accessible file.
  • ensure the error page is publicly accessible and return a 200 response.
  • ensure the error page should be in *.htm or *.html extension type.
  • ensure the page size is less than 1 MB.

You may reference internal or external images/CSS for this HTML file. For externally referenced resources, use absolute URLs that are publicly accessible. Be aware of the HTML file size when using base64-encoded inline images, JavaScript, or CSS.


  • Within the Azure ecosystem, you must use an Azure Blob storage account or Virtual Machine to host an error page. Note the Blob storage should be directly accessible as storage accounts fronted by Azure CDN services are currently not supported.
  • You may also choose to host the error pages at any remote location.
  • Relative links are not supported.

How it works?

After you specify an error page in your application gateway's configuration, your gateway verifies the connectivity to the HTML page over the internet. It then downloads the file on its local cache.

When a client faces an error, your application gateway returns a response code and that HTML page. Any externally referenced resources (such as images, JavaScript, and CSS files) are fetched directly by the client.

Your application gateway doesn't periodically check the source file's location to fetch a new version. You can perform any configuration update on the gateway to manually update the file's cache. For example, changing the error URL from page 1 to page 2 and then back to page 1, or upon adding a new listener.

Portal configuration

Steps to configure listener-specific custom error pages:

  1. Navigate to Application Gateway in the portal and choose the required resource.

  2. Select Listeners and navigate to a particular listener for which you want to specify an error page.

  3. Under Custom error pages section, specify publicly accessible URLs for the required status codes.

  4. Select Save.

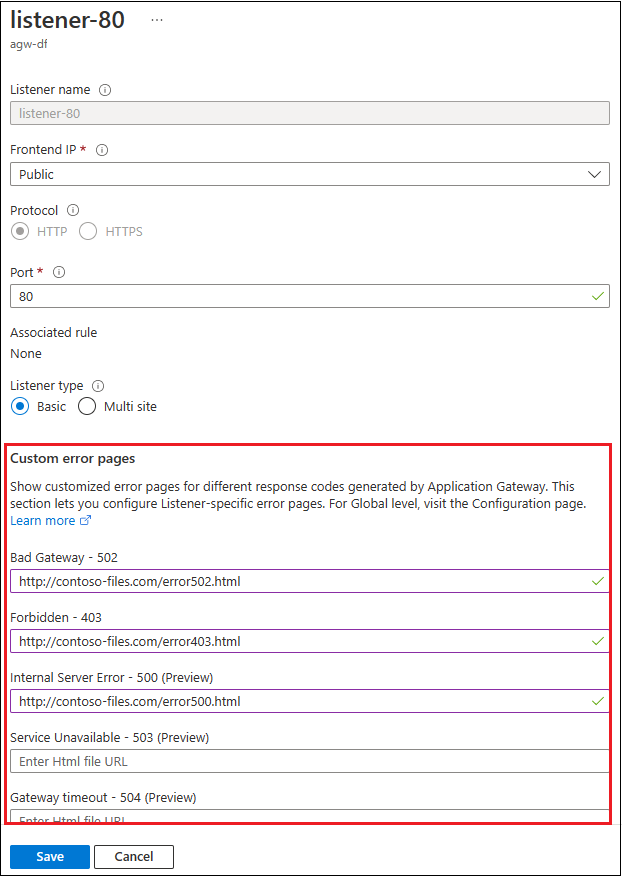

    Screenshot of Application Gateway custom error page.

Azure PowerShell configuration

You can use Azure PowerShell to configure a custom error page. For example, a global custom error page:

$appgw   = Get-AzApplicationGateway -Name <app-gateway-name> -ResourceGroupName <resource-group-name>

$updatedgateway = Add-AzApplicationGatewayCustomError -ApplicationGateway $appgw -StatusCode HttpStatus502 -CustomErrorPageUrl "http://<website-url>"

Set-AzApplicationGateway -ApplicationGateway $appgw

Or a listener level error page:

$appgw   = Get-AzApplicationGateway -Name <app-gateway-name> -ResourceGroupName <resource-group-name>

$listener01 = Get-AzApplicationGatewayHttpListener -Name <listener-name> -ApplicationGateway $appgw

$updatedlistener = Add-AzApplicationGatewayHttpListenerCustomError -HttpListener $listener01 -StatusCode HttpStatus502 -CustomErrorPageUrl "http://<website-url>"

Set-AzApplicationGateway -ApplicationGateway $appgw

For more information, see Add-AzApplicationGatewayCustomError and Add-AzApplicationGatewayHttpListenerCustomError.
