Server-sent events
Server-sent events (SSEs) provide a useful mechanism to enable servers to push real-time updates to web clients over a single HTTP connection. Unlike WebSockets, which allow bidirectional communication, SSEs are unidirectional: the server sends data to the client without expecting any responses.
Applications using server-sent events can be found across several industries, such as medical (waiting area status boards), finance (displaying a stock ticker), aviation (flight status), and meteorology (current weather condition).

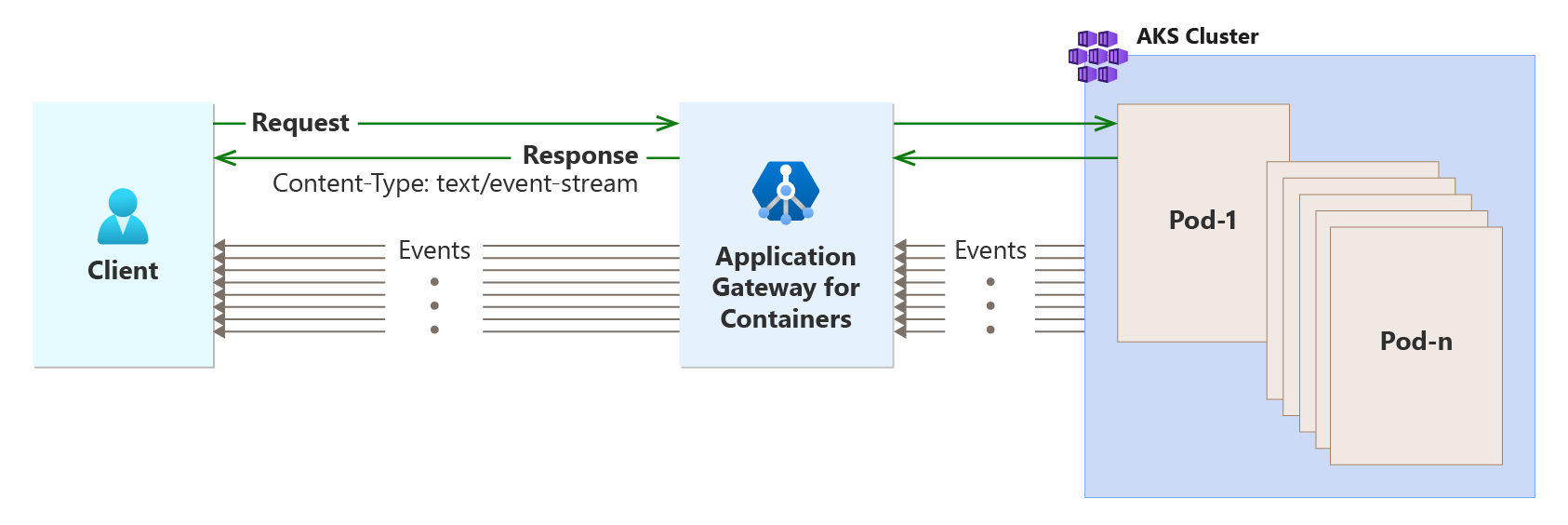

Server-sent event connection and data flow
Server-sent events push data over the HTTP protocol. These events are supported by numerous browsers, defined by the EventSource interface, and standardized by W3C. The following process occurs for a server-sent event:
- The client initiates a connection to the server.
- The server sends a response containing the content-type of text/event-stream.
- Both the client and server leave the connection open, enabling the server to send future events.
Server-sent events and Application Gateway for Containers
Server-sent events and scaling
When Application Gateway for Containers scales in, ongoing connections that aren't drained after 5 minutes are dropped. Server-sent events use automatic retry logic, which allows the application to establish a new connection and begin to receive new events.
Server-sent events and HTTP/2
Server-sent events are supported both with HTTP/1.1 and HTTP/2. If the browser can support HTTP/2, server-sent events take advantage of multiplexing to improve performance by enabling multiple requests over the same connection.
Configuration
Server-sent events are processed by Application Gateway for Containers. However, it's required to adjust the request timeout value for Application Gateway for Containers to prevent server-sent connections from timing out.
In Gateway API, a RoutePolicy resource should be defined with a routeTimeout value of 0s.
apiVersion: alb.networking.azure.io/v1
kind: RoutePolicy
metadata:
name: route-policy-with-timeout
namespace: test-sse
spec:
targetRef:
kind: HTTPRoute
name: query-param-matching
group: gateway.networking.k8s.io
default:
timeouts:
routeTimeout: 0s
