Manage web traffic with an application gateway using the Azure CLI

Application gateway is used to manage and secure web traffic to servers that you maintain. You can use the Azure CLI to create an application gateway that uses a virtual machine scale set for backend servers. In this example, the scale set contains two virtual machine instances. The scale set is added to the default backend pool of the application gateway.

In this article, you learn how to:

  • Set up the network
  • Create an application gateway
  • Create a virtual machine scale set with the default backend pool

If you prefer, you can complete this procedure using Azure PowerShell.

If you don't have an Azure subscription, create an Azure free account before you begin.

Prerequisites

  • This tutorial requires version 2.0.4 or later of the Azure CLI. If using Azure Cloud Shell, the latest version is already installed.

Create a resource group

A resource group is a logical container into which Azure resources are deployed and managed. Create a resource group using az group create.

The following example creates a resource group named myResourceGroupAG in the eastus location.

az group create --name myResourceGroupAG --location eastus

Create network resources

Create the virtual network named myVNet and the subnet named myAGSubnet using az network vnet create. You can then add the subnet named myBackendSubnet that's needed by the backend servers using az network vnet subnet create. Create the public IP address named myAGPublicIPAddress using az network public-ip create.

az network vnet create \
  --name myVNet \
  --resource-group myResourceGroupAG \
  --location eastus \
  --address-prefix 10.0.0.0/16 \
  --subnet-name myAGSubnet \
  --subnet-prefix 10.0.1.0/24

az network vnet subnet create \
  --name myBackendSubnet \
  --resource-group myResourceGroupAG \
  --vnet-name myVNet \
  --address-prefix 10.0.2.0/24

az network public-ip create \
  --resource-group myResourceGroupAG \
  --name myAGPublicIPAddress \
  --allocation-method Static \
  --sku Standard

Create an application gateway

Use az network application-gateway create to create the application gateway named myAppGateway. When you create an application gateway using the Azure CLI, you specify configuration information, such as capacity, sku, and HTTP settings. The application gateway is assigned to myAGSubnet and myPublicIPAddress that you previously created.

az network application-gateway create \
  --name myAppGateway \
  --location eastus \
  --resource-group myResourceGroupAG \
  --vnet-name myVNet \
  --subnet myAGsubnet \
  --capacity 2 \
  --sku Standard_v2 \
  --http-settings-cookie-based-affinity Disabled \
  --frontend-port 80 \
  --http-settings-port 80 \
  --http-settings-protocol Http \
  --public-ip-address myAGPublicIPAddress

It may take several minutes for the application gateway to be created. After the application gateway is created, you'll see these new features:

  • appGatewayBackendPool - An application gateway must have at least one backend address pool.
  • appGatewayBackendHttpSettings - Specifies that port 80 and an HTTP protocol is used for communication.
  • appGatewayHttpListener - The default listener associated with appGatewayBackendPool.
  • appGatewayFrontendIP - Assigns myAGPublicIPAddress to appGatewayHttpListener.
  • rule1 - The default routing rule that is associated with appGatewayHttpListener.

Create a Virtual Machine Scale Set

In this example, you create a virtual machine scale set that provides servers for the backend pool in the application gateway. The virtual machines in the scale set are associated with myBackendSubnet and appGatewayBackendPool. To create the scale set, use az vmss create.

az vmss create \
  --name myvmss \
  --resource-group myResourceGroupAG \
  --image UbuntuLTS \
  --admin-username azureuser \
  --admin-password Azure123456! \
  --instance-count 2 \
  --vnet-name myVNet \
  --subnet myBackendSubnet \
  --vm-sku Standard_DS2 \
  --upgrade-policy-mode Automatic \
  --app-gateway myAppGateway \
  --backend-pool-name appGatewayBackendPool

Install NGINX

Now you can install NGINX on the virtual machine scale set so you can test HTTP connectivity to the backend pool.

az vmss extension set \
  --publisher Microsoft.Azure.Extensions \
  --version 2.0 \
  --name CustomScript \
  --resource-group myResourceGroupAG \
  --vmss-name myvmss \
  --settings '{ "fileUris": ["https://raw.githubusercontent.com/Azure/azure-docs-powershell-samples/master/application-gateway/iis/install_nginx.sh"], "commandToExecute": "./install_nginx.sh" }'

Test the application gateway

To get the public IP address of the application gateway, use az network public-ip show. Copy the public IP address, and then paste it into the address bar of your browser.

az network public-ip show \
  --resource-group myResourceGroupAG \
  --name myAGPublicIPAddress \
  --query [ipAddress] \
  --output tsv

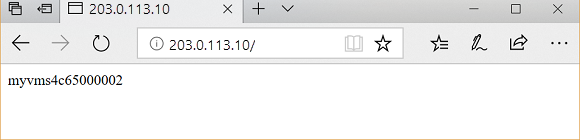

Test base URL in application gateway

Clean up resources

When no longer needed, remove the resource group, application gateway, and all related resources.

az group delete --name myResourceGroupAG --location eastus
