Load-balancing options

Azure Load Balancer
Azure Front Door
Azure Application Gateway
Azure Traffic Manager

The term load balancing refers to the distribution of workloads across multiple computing resources. Load balancing aims to optimize resource use, maximize throughput, minimize response time, and avoid overloading any single resource. It can also improve availability by sharing a workload across redundant computing resources.

Azure provides various load-balancing services that you can use to distribute your workloads across multiple computing resources. These resources include Azure Application Gateway, Azure Front Door, Azure Load Balancer, and Azure Traffic Manager.

This article describes some considerations to determine an appropriate load-balancing solution for your workload's needs.

Service categorizations

Azure load-balancing services can be categorized along two dimensions: global versus regional and HTTP(S) versus non-HTTP(S).

Global vs. regional

  • Global: These load-balancing services distribute traffic across regional back-ends, clouds, or hybrid on-premises services. These services support managing a single control plane responsible for globally routing end-user traffic to an available back-end. They often react to changes in service reliability or performance to maximize availability and performance. You can think of them as systems that load balance between application stamps, endpoints, or scale-units hosted across different regions/geographies.
  • Regional: These load-balancing services distribute traffic within virtual networks across virtual machines (VMs) or zonal and zone-redundant service endpoints within a region. You can think of them as systems that load balance between VMs, containers, or clusters within a region in a virtual network.

HTTP(S) vs. non-HTTP(S)

  • HTTP(S): These load-balancing services are Layer 7 load balancers that only accept HTTP(S) traffic. They're intended for web applications or other HTTP(S) endpoints. They might have features such as SSL offload, web application firewall, path-based load balancing, and session affinity.
  • Non-HTTP(S): These load-balancing services are Layer 4 load balancers that can handle non-HTTP(S) traffic, primarily TCP or UDP services.

The following table summarizes the Azure load-balancing services.

Service Global/Regional Recommended traffic
Azure Front Door Global HTTP(S)
Azure Traffic Manager Global Non-HTTP(S)
Azure Application Gateway Regional HTTP(S)
Azure Load Balancer Regional or Global Non-HTTP(S)

Note

Azure Traffic Manager and Azure Load Balancer have the capabilities to distribute HTTP(S) traffic, but do not have any specific features to route based on protocol data unit information higher than Layer 4. They both support HTTP(S) traffic, but only at Layer 4 functionality levels.

Azure load-balancing services

Here are the main load-balancing services currently available in Azure:

  • Azure Front Door is an application delivery network that provides global load balancing and site acceleration service for web applications. It offers Layer 7 capabilities for your application like SSL offload, path-based routing, fast failover, and caching to improve performance and high availability of your applications.

  • Traffic Manager is a DNS-based traffic load balancer that enables you to distribute traffic optimally to services across global Azure regions, while providing high availability and responsiveness. Because Traffic Manager is a DNS-based load-balancing service, it load balances only at the domain level. For that reason, it can't fail over as quickly as Azure Front Door, because of common challenges around DNS caching and systems not honoring DNS TTLs.

  • Application Gateway provides application delivery controller as a service, offering various Layer 7 load-balancing capabilities and web application firewall functionality. Use it to transition from public network space into your web servers hosted in private network space within a region.

  • Load Balancer is a high-performance, ultra-low-latency Layer 4 load-balancing service (inbound and outbound) for all UDP and TCP protocols. It's built to handle millions of requests per second while ensuring your solution is highly available. Load Balancer is zone redundant, ensuring high availability across availability zones. It supports both a regional deployment topology and a cross-region topology.

Note

Clustering technology, such as Azure Container Apps or Azure Kubernetes Service contains load balancing constructs that operate mostly within the scope of their own cluster boundry, routing traffic to available application instances based on readiness and health probes. Those load balancing options are not covered in this article.

Decision tree for load balancing in Azure

Consider these factors such as these when you select a load balancing solution:

  • Traffic type: Is it a web HTTP(S) application? Is it public facing or a private application?
  • Global vs. regional: Do you need to load balance VMs or containers within a single virtual network, or load balance scale unit/deployments across regions, or both?
  • Availability: What's the service-level agreement?
  • Cost: For more information, see Azure pricing. In addition to the cost of the service itself, consider the operations cost for managing a solution built on that service.
  • Features and limits: What capabilities are supported on each service and what are the Service limits of each service?

![TIP] The Azure portal offers a questionnaire-based guide similar to the following flowchart. In the Azure portal, search for 'Load balancing - help me choose'. By answering the questions, you can narrow down your load balancing options.

The following flowchart helps you to choose a load-balancing solution for your application. The flowchart guides you through a set of key decision criteria to reach a recommendation.

Treat this flowchart as a starting point. Every application has unique requirements, so use the recommendation as a starting point. Then perform a more detailed evaluation.

When your workload involves several services that require load balancing, it's important to assess each service individually. In many cases, an effective setup uses more than one type of load-balancing solution. You might incorporate these solutions at different places in your workload's architecture, each serving a unique function or role.

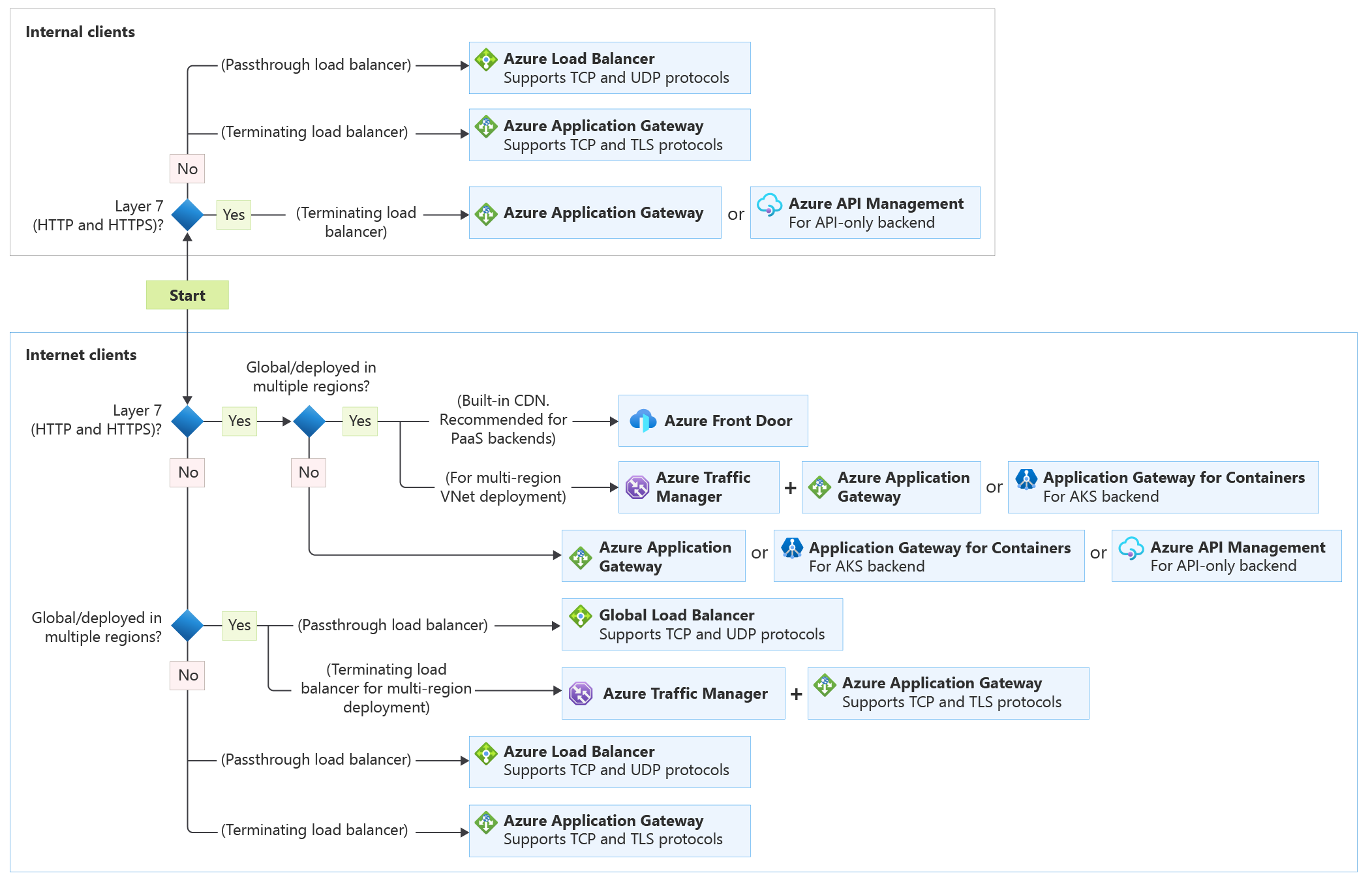

Diagram that shows a decision tree for load balancing in Azure.

Definitions

  • Web application (HTTP/HTTPS): This refers to needing the capability to make a routing decision for Layer 7 data such as URL path, support the inspection of the communication payload (such as an HTTP request body), or handle TLS functionality.

  • Internet facing application: Applications that are publicly accessible from the internet. As a best practice, application owners apply restrictive access policies or protect the application by setting up offerings like web application firewall and DDoS protection.

  • Global / Deployed in multiple regions: If this load balancer should have a single, highly available control plane that is responsible for routing traffic to public endpoints on your globally distributed application. This can be to support either active-active or active-passive topologies across regions.

    Note

    It is possible to use a regional service, such as Application Gateway, to load balance across backends spanning multiple regions and control routing through a single control plane. That architecture is made possible using cross-region Private Link, global virtual network peering, or even public IPs of services in other regions.

    This scenario isn't the primary point of this decision, however.

    Using a regional resource as a router for globally distributed backends introduces a regional single point of failure and incurs additional latency as traffic is forced through one region before going to another and then back again.

  • Platform as a service (PaaS): Provides a managed hosting environment, where you can deploy your application without needing to manage VMs or networking resources. In this case, PaaS refers to services that provide integrated load balancing within a region. For more information, see Choose a compute service – Scalability.

  • Azure Kubernetes Service (AKS): Enables you to deploy and manage containerized applications. AKS provides serverless Kubernetes, an integrated continuous integration and continuous delivery experience, and enterprise-grade security and governance. For more information about AKS architectural resources, see Azure Kubernetes Service architecture design.

  • Infrastructure as a service (IaaS): A computing option where you provision the virtual machines that you need, along with associated network and storage components. IaaS applications require internal load balancing within a virtual network by using Load Balancer.

  • Application-layer processing: Refers to special routing within a virtual network. For example, path-based routing within the virtual network across VMs or virtual machine scale sets. For more information, see When should we deploy an Application Gateway behind Azure Front Door?.

  • Performance acceleration: Refers to features that accelerate web access. Performance acceleration can be achieved by using content delivery networks (CDNs) or optimized point of presence ingress for accelerated client onboarding into the destination network. Azure Front Door supports both CDNs and Anycast traffic acceleration. The benefits of both features can be gained with or without Application Gateway in the architecture.

Additional considerations

Each load balancing service also has capability support or implementation details that need also be considered. Here are some examples that might be relevant for your load balancing scenario.

  • Web Sockets support
  • HTTP/2 support (both receiving and continuing to backend nodes)
  • Sticky session support
  • Backend node health monitoring mechanism
  • Client experience or delay between unhealthy node detection and removal from routing logic.

Examples

The following table lists various articles based on the load-balancing services used as a solution.

Services Article Description
Load Balancer Load balance virtual machines (VMs) across availability zones Load balance VMs across availability zones to help protect your apps and data from an unlikely failure or loss of an entire datacenter. With zone redundancy, one or more availability zones can fail and the data path survives as long as one zone in the region remains healthy.
Azure Front Door Sharing location in real time by using low-cost serverless Azure services Use Azure Front Door to provide higher availability for your applications than deploying to a single region. If a regional outage affects the primary region, you can use Azure Front Door to fail over to the secondary region.
Traffic Manager Multitier web application built for high availability and disaster recovery Deploy resilient multitier applications built for high availability and disaster recovery. If the primary region becomes unavailable, Traffic Manager fails over to the secondary region.
Azure Front Door + Application Gateway Multitenant SaaS on Azure Use a multitenant solution that includes a combination of Azure Front Door and Application Gateway. Azure Front Door helps load balance traffic across regions. Application Gateway routes and load-balances traffic internally in the application to the various services that satisfy client business needs.
Traffic Manager + Load Balancer Multiregion N-tier application A multiregion N-tier application that uses Traffic Manager to route incoming requests to a primary region. If that region becomes unavailable, Traffic Manager fails over to the secondary region.
Traffic Manager + Application Gateway Multiregion load balancing with Traffic Manager and Application Gateway Learn how to serve web workloads and deploy resilient multitier applications in multiple Azure regions to achieve high availability and a robust disaster recovery infrastructure.
