Tutorial: Use dynamic configuration in an ASP.NET web application (.NET Framework)

Data from App Configuration can be loaded as App Settings in a .NET Framework application. For more information, see the quickstart. However, as is designed by the .NET Framework, the App Settings can only refresh upon application restart. The App Configuration .NET provider is a .NET Standard library. It supports caching and refreshing configuration dynamically without application restart. This tutorial shows how you can implement dynamic configuration updates in an ASP.NET Web Forms application. The same technique applies to .NET Framework MVC applications.

In this tutorial, you learn how to:

  • Set up your ASP.NET web application to update its configuration in response to changes in an App Configuration store.
  • Inject the latest configuration in requests to your application.

Prerequisites

Create an App Configuration store

  1. To create a new App Configuration store, sign in to the Azure portal.

  2. In the upper-left corner of the home page, select Create a resource.

  3. In the Search services and marketplace box, enter App Configuration and select Enter.

    Screenshot that shows the Search for App Configuration page.

  4. Select App Configuration from the search results, and then select Create.

    Screenshot that shows the Create page.

  5. On the Create App Configuration pane, enter the following settings:

    Setting Suggested value Description
    Subscription Your subscription Select the Azure subscription that you want to use to test App Configuration. If your account has only one subscription, it's automatically selected and the Subscription list isn't displayed.
    Resource group AppConfigTestResources Select or create a resource group for your App Configuration store resource. This group is useful for organizing multiple resources that you might want to delete at the same time by deleting the resource group. For more information, see Use resource groups to manage your Azure resources.
    Resource name Globally unique name Enter a unique resource name to use for the App Configuration store resource. The name must be a string between 5 and 50 characters and contain only numbers, letters, and the - character. The name can't start or end with the - character.
    Location Central US Use Location to specify the geographic location in which your app configuration store is hosted. For the best performance, create the resource in the same region as other components of your application.
    Pricing tier Free Select the desired pricing tier. For more information, see the App Configuration pricing page.
  6. Select Review + create to validate your settings.

  7. Select Create. The deployment might take a few minutes.

  8. After the deployment finishes, go to the App Configuration resource. Select Settings > Access keys. Make a note of the primary read-only key connection string. You'll use this connection string later to configure your application to communicate with the App Configuration store that you created.

  1. Select Operations > Configuration explorer > Create > Key-value to add the following key-values:

    Key Value
    TestApp:Settings:BackgroundColor White
    TestApp:Settings:FontColor Black
    TestApp:Settings:FontSize 40
    TestApp:Settings:Message Data from Azure App Configuration
    TestApp:Settings:Sentinel v1

    Leave Label and Content type empty.

Create an ASP.NET Web Application

  1. Start Visual Studio and select Create a new project.

  2. Select ASP.NET Web Application (.NET Framework) with C# from the project template list and press Next.

  3. In Configure your new project, enter a project name. Under Framework, select .NET Framework 4.7.2 or higher. Press Create.

  4. In Create a new ASP.NET Web Application, select Web Forms. Press Create.

Reload data from App Configuration

  1. Right-click your project and select Manage NuGet Packages. On the Browse tab, search and add the latest version of the following NuGet package to your project.

    Microsoft.Extensions.Configuration.AzureAppConfiguration

  2. Open Global.asax.cs file and add following namespaces.

    using Microsoft.Extensions.Configuration;
    using Microsoft.Extensions.Configuration.AzureAppConfiguration;

  3. Add the following static member variables to the Global class.

    public static IConfiguration Configuration;
    private static IConfigurationRefresher _configurationRefresher;

  4. Add an Application_Start method to the Global class. If the method already exists, add the following code to it.

    protected void Application_Start(object sender, EventArgs e)
    {
        ConfigurationBuilder builder = new ConfigurationBuilder();
        builder.AddAzureAppConfiguration(options =>
        {
            options.Connect(Environment.GetEnvironmentVariable("ConnectionString"))
                    // Load all keys that start with `TestApp:` and have no label.
                    .Select("TestApp:*")
                    // Configure to reload configuration if the registered key 'TestApp:Settings:Sentinel' is modified.
                    .ConfigureRefresh(refresh =>
                    {
                        refresh.Register("TestApp:Settings:Sentinel", refreshAll:true)
                               .SetCacheExpiration(new TimeSpan(0, 5, 0));
                    });
            _configurationRefresher = options.GetRefresher();
        });

        Configuration = builder.Build();
    }


    The Application_Start method is called upon the first request to your web application. It is called only once during the application's life cycle. As such it is a good place to initialize your IConfiguration object and load data from App Configuration.

    In the ConfigureRefresh method, a key within your App Configuration store is registered for change monitoring. The refreshAll parameter to the Register method indicates that all configuration values should be refreshed if the registered key changes. In this example, the key TestApp:Settings:Sentinel is a sentinel key that you update after you complete the change of all other keys. When a change is detected, your application refreshes all configuration values. This approach helps to ensure the consistency of configuration in your application compared to monitoring all keys for changes.

    The SetCacheExpiration method specifies the minimum time that must elapse before a new request is made to App Configuration to check for any configuration changes. In this example, you override the default expiration time of 30 seconds, specifying a time of 5 minutes instead. It reduces the potential number of requests made to your App Configuration store.

  5. Add an Application_BeginRequest method to the Global class. If the method already exists, add the following code to it.

    protected void Application_BeginRequest(object sender, EventArgs e)
    {
        _ = _configurationRefresher.TryRefreshAsync();
    }


    Calling the ConfigureRefresh method alone won't cause the configuration to refresh automatically. You call the TryRefreshAsync method at the beginning of every request to signal a refresh. This design ensures your application only sends requests to App Configuration when it is actively receiving requests.

    Calling TryRefreshAsync is a no-op before the configured cache expiration time elapses, so its performance impact is minimal. When a request is made to App Configuration, as you don't wait on the task, the configuration is refreshed asynchronously without blocking the execution of the current request. The current request may not get the updated configuration values, but subsequent requests will do.

    If the call TryRefreshAsync fails for any reason, your application will continue to use the cached configuration. Another attempt will be made when the configured cache expiration time has passed again, and the TryRefreshAsync call is triggered by a new request to your application.

Use the latest configuration data

  1. Open Default.aspx and replace its content with the following markup. Make sure the Inherits attribute matches the namespace and the class name of your application.

    <%@ Page Language="C#" AutoEventWireup="true" CodeBehind="Default.aspx.cs" Inherits="WebFormApp.Default" %>

    <!DOCTYPE html>

    <html xmlns="http://www.w3.org/1999/xhtml">
    <head runat="server">
        <title>Azure App Configuration Web Forms Demo</title>
    </head>
    <body id="body" runat="server">
        <form id="form1" runat="server">
            <div style="text-align: center">
                <asp:Label ID="message" runat="server" />
            </div>
        </form>
    </body>
    </html>

  2. Open Default.aspx.cs and update it with the following code.

    using System;
    using System.Web.UI.WebControls;

    namespace WebFormApp
    {
        public partial class Default : System.Web.UI.Page
        {
            protected void Page_Load(object sender, EventArgs e)
            {
                // Read configuration from the IConfiguration object loaded from Azure App Configuration
                string messageText = Global.Configuration["TestApp:Settings:Message"] ?? "Please add the key \"TestApp:Settings:Message\" in your Azure App Configuration store.";
                string messageFontSize = Global.Configuration["TestApp:Settings:FontSize"] ?? "20";
                string messageFontColor = Global.Configuration["TestApp:Settings:FontColor"] ?? "Black";
                string backgroundColor = Global.Configuration["TestApp:Settings:BackgroundColor"] ?? "White";

                message.Text = messageText;
                message.Font.Size = FontUnit.Point(int.Parse(messageFontSize));
                message.ForeColor = System.Drawing.Color.FromName(messageFontColor);
                body.Attributes["bgcolor"] = backgroundColor;
            }
        }
    }


Build and run the application

  1. Set an environment variable named ConnectionString to the read-only key connection string obtained during your App Configuration store creation.

    If you use the Windows command prompt, run the following command:

    setx ConnectionString "connection-string-of-your-app-configuration-store"


    If you use Windows PowerShell, run the following command:

    $Env:ConnectionString = "connection-string-of-your-app-configuration-store"

  2. Restart Visual Studio to allow the change to take effect.

  3. Press Ctrl + F5 to build and run the web application.

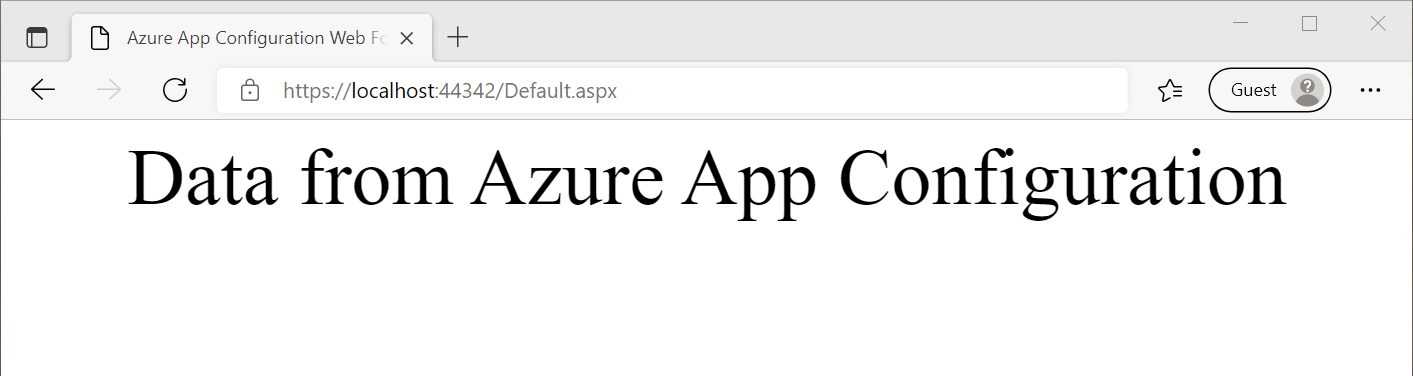

    App launch local

  4. In the Azure portal, navigate to the Configuration explorer of your App Configuration store, and update the value of the following keys. Remember to update the sentinel key TestApp:Settings:Sentinel at last.

    Key Value
    TestApp:Settings:BackgroundColor Green
    TestApp:Settings:FontColor LightGray
    TestApp:Settings:Message Data from Azure App Configuration - now with live updates!
    TestApp:Settings:Sentinel v2
  5. Refresh the browser page to see the new configuration settings. You may need to refresh more than once for the changes to be reflected or change your cache expiration time to less than 5 minutes.

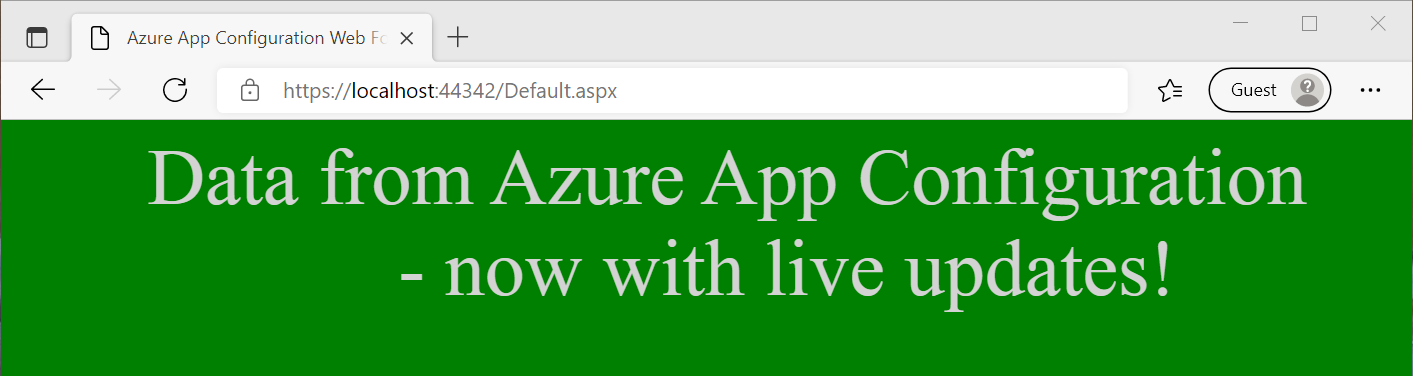

    App refresh local

Note

You can download the example code used in this tutorial from the Azure App Configuration GitHub repo.

Clean up resources

If you don't want to continue using the resources created in this article, delete the resource group you created here to avoid charges.

Important

Deleting a resource group is irreversible. The resource group and all the resources in it are permanently deleted. Ensure that you don't accidentally delete the wrong resource group or resources. If you created the resources for this article inside a resource group that contains other resources you want to keep, delete each resource individually from its respective pane instead of deleting the resource group.

  1. Sign in to the Azure portal, and select Resource groups.
  2. In the Filter by name box, enter the name of your resource group.
  3. In the result list, select the resource group name to see an overview.
  4. Select Delete resource group.
  5. You're asked to confirm the deletion of the resource group. Enter the name of your resource group to confirm, and select Delete.

After a few moments, the resource group and all its resources are deleted.

Next steps

In this tutorial, you enabled your ASP.NET Web Forms application to dynamically refresh configuration settings from App Configuration. To learn how to enable dynamic configuration in a .NET Framework app, continue to the next tutorial:

To learn how to use an Azure managed identity to streamline the access to App Configuration, continue to the next tutorial:
