Set up private access in Azure App Configuration

In this article, you'll learn how to set up private access for your Azure App Configuration store, by creating a private endpoint with Azure Private Link. Private endpoints allow access to your App Configuration store using a private IP address from a virtual network.


Sign in to Azure

You'll need to sign in to Azure first to access the App Configuration service.

Sign in to the Azure portal at with your Azure account.

Create a private endpoint

  1. In your App Configuration store, under Settings, select Networking.

  2. Select the Private Access tab and then Create to start setting up a new private endpoint.

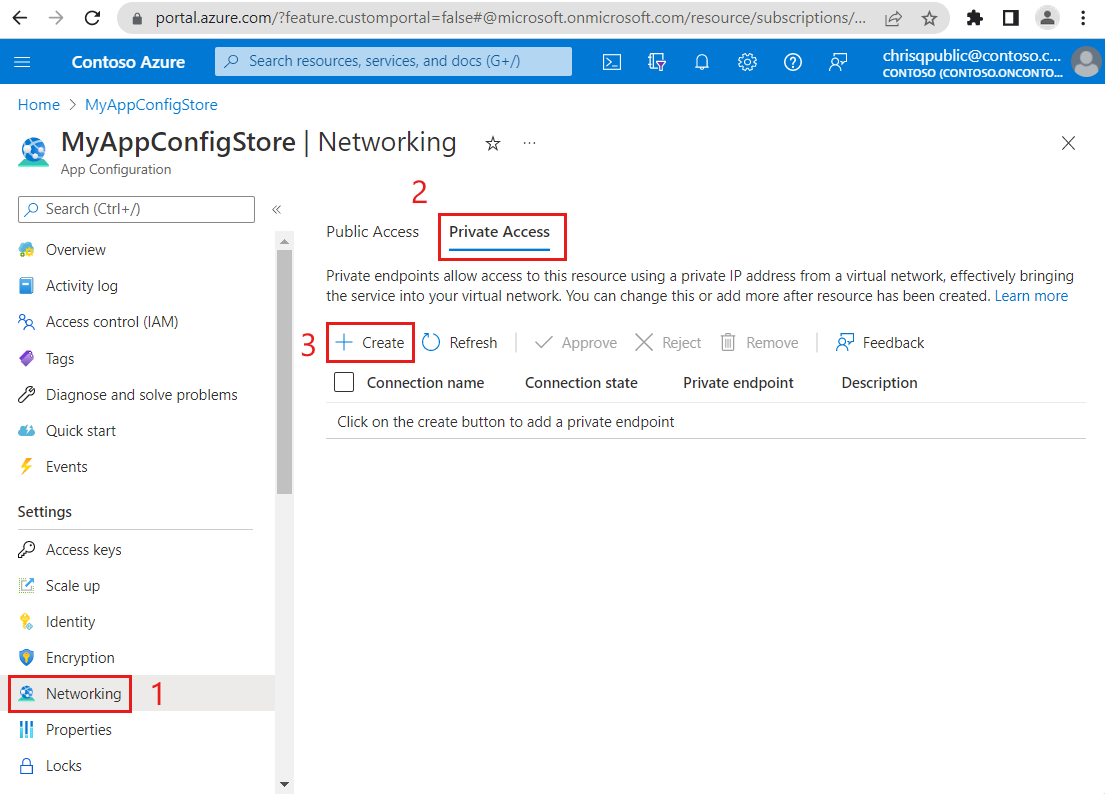

    Screenshot of the Azure portal, select create a private endpoint.

  3. Fill out the form with the following information:

    Parameter Description Example
    Subscription Select an Azure subscription. Your private endpoint must be in the same subscription as your virtual network. You'll select a virtual network later in this how-to guide. MyAzureSubscription
    Resource group Select a resource group or create a new one. MyResourceGroup
    Name Enter a name for the new private endpoint for your App Configuration store. MyPrivateEndpoint
    Network Interface Name This field is completed automatically. Optionally edit the name of the network interface. MyPrivateEndpoint-nic
    Region Select a region. Your private endpoint must be in the same region as your virtual network. Central US

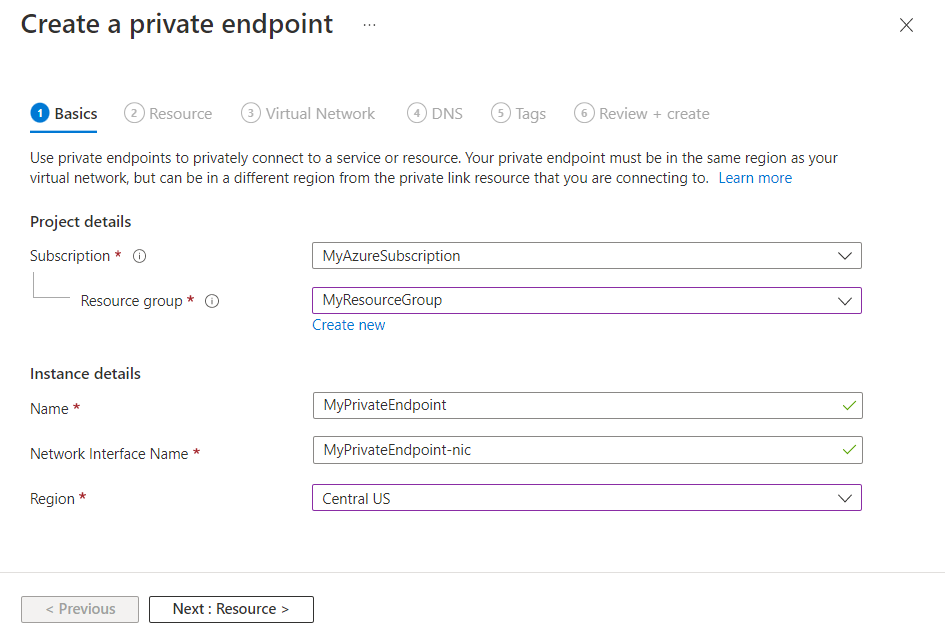

    Screenshot of the Azure portal, create a private endpoint, basics tab.

  4. Select Next : Resource >. Private Link offers options to create private endpoints for different types of Azure resources, such as SQL servers, Azure storage accounts or App Configuration stores. The current App Configuration store is automatically filled in the Resource field as that is the resource the private endpoint is connecting to.

    1. The resource type Microsoft.AppConfiguration/configurationStores and the target subresource configurationStores indicate that you're creating an endpoint for an App Configuration store.

    2. The name of your configuration store is listed under Resource.

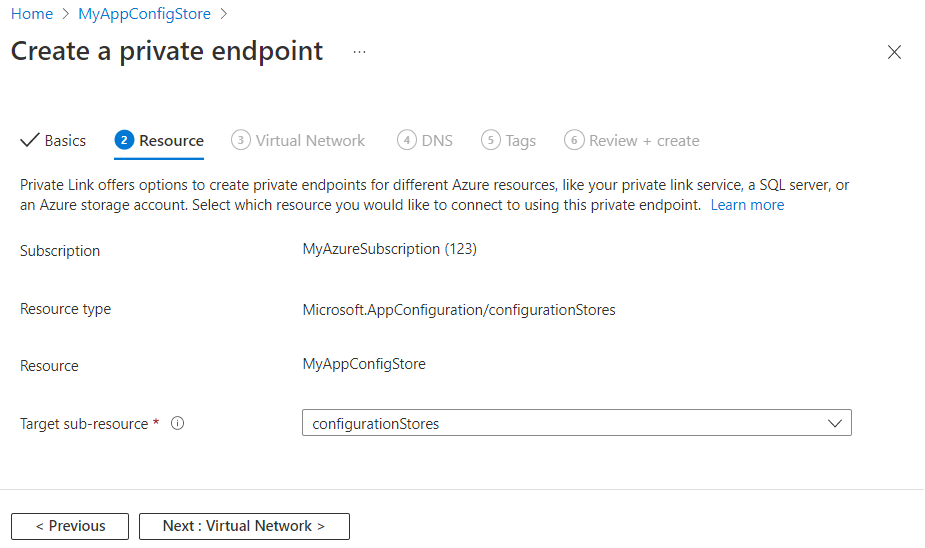

    Screenshot of the Azure portal, create a private endpoint, resource tab.

  5. Select Next : Virtual Network >.

    1. Select an existing Virtual network to deploy the private endpoint to. If you don't have a virtual network, create a virtual network.

    2. Select a Subnet from the list.

    3. Leave the box Enable network policies for all private endpoints in this subnet checked.

    4. Under Private IP configuration, select the option to allocate IP addresses dynamically. For more information, refer to Private IP addresses.

    5. Optionally, you can select or create an Application security group. Application security groups allow you to group virtual machines and define network security policies based on those groups.

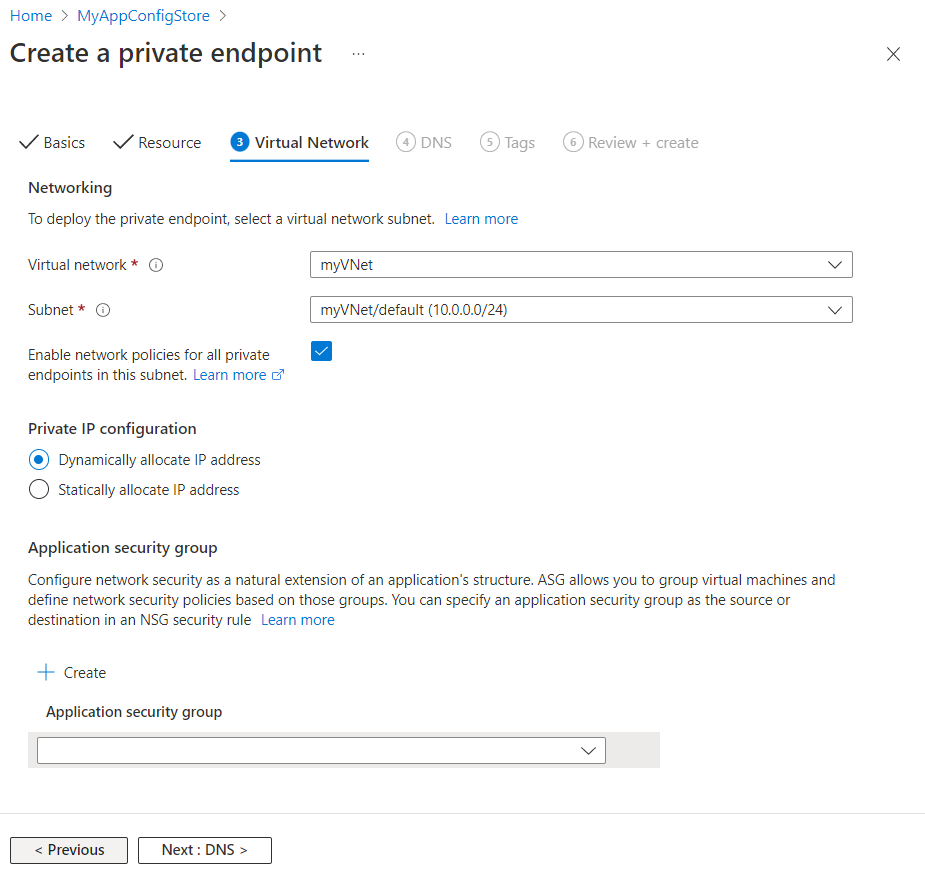

    Screenshot of the Azure portal, create a private endpoint, virtual network tab.

  6. Select Next : DNS > to configure a DNS record. If you don't want to make changes to the default settings, you can move forward to the next tab.

    1. For Integrate with private DNS zone, select Yes to integrate your private endpoint with a private DNS zone. You may also use your own DNS servers or create DNS records using the host files on your virtual machines.

    2. A subscription and resource group for your private DNS zone are preselected. You can change them optionally.

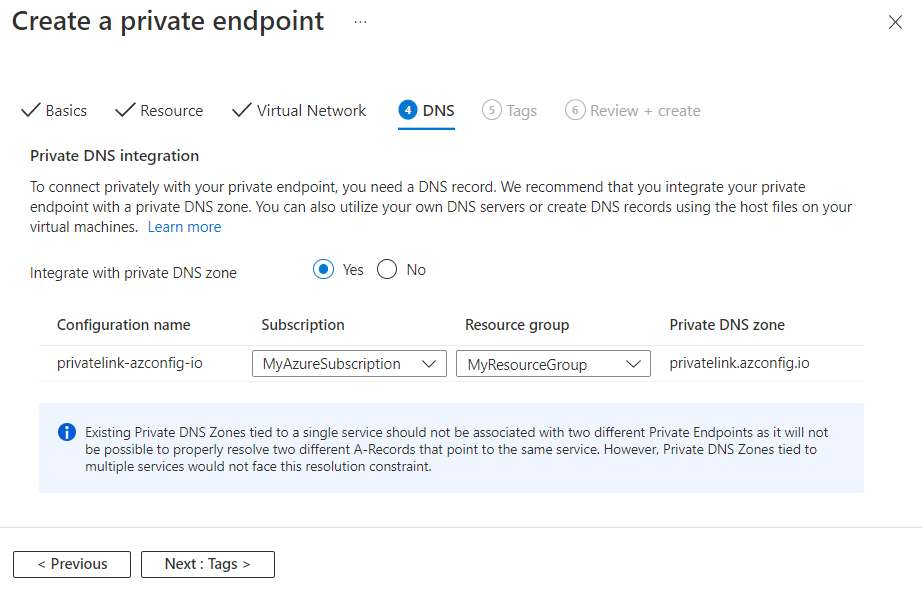

    Screenshot of the Azure portal, create a private endpoint, DNS tab.

    To learn more about DNS configuration, go to Name resolution for resources in Azure virtual networks and DNS configuration for Private Endpoints.

  7. Select Next : Tags > and optionally create tags. Tags are name/value pairs that enable you to categorize resources and view consolidated billing by applying the same tag to multiple resources and resource groups.

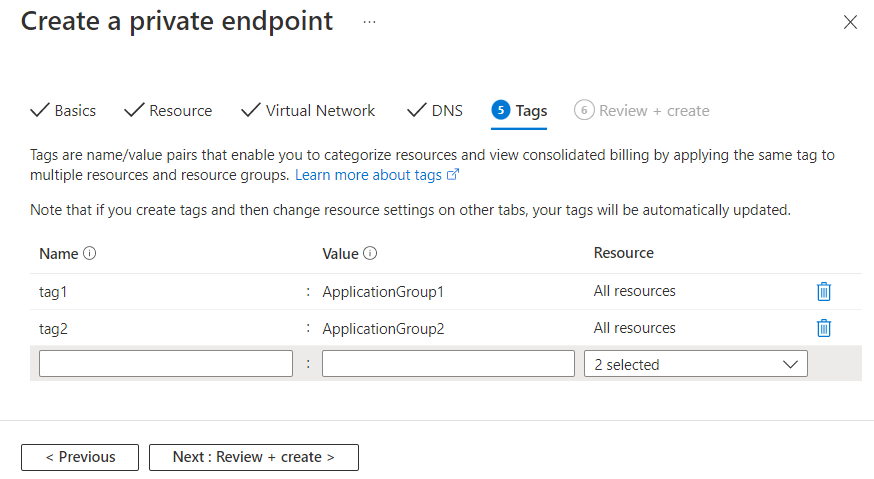

    Screenshot of the Azure portal, create a private endpoint, tags tab.

  8. Select Next : Review + create > to review information about your App Configuration store, private endpoint, virtual network and DNS. You can also select Download a template for automation to reuse JSON data from this form later.

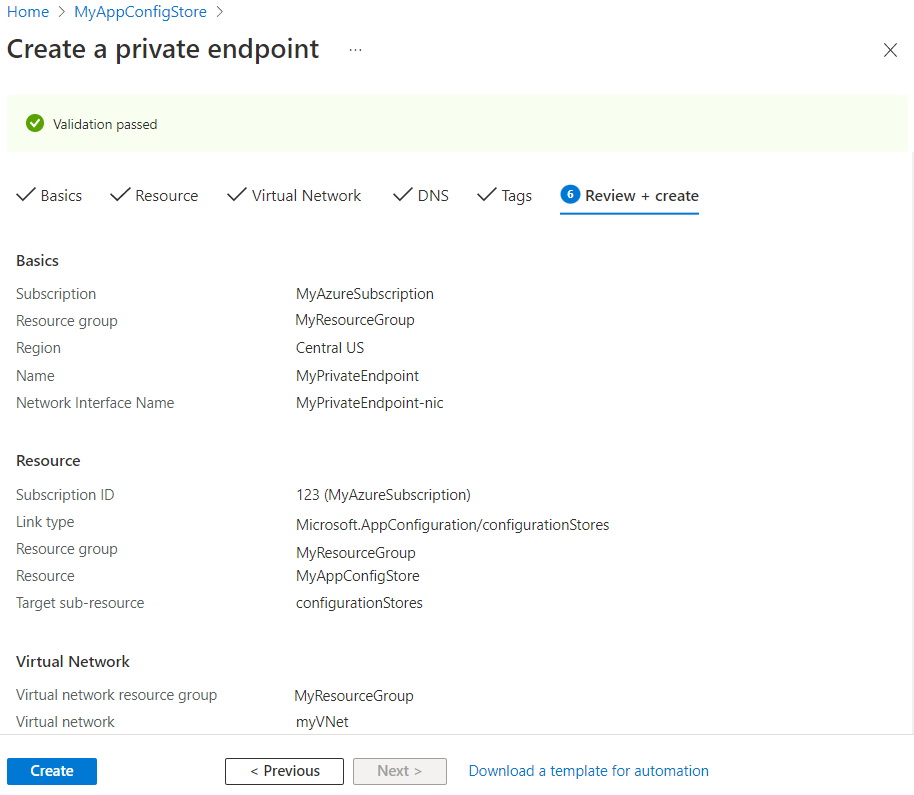

    Screenshot of the Azure portal, create a private endpoint, review tab.

  9. Select Create.

Once deployment is complete, you'll get a notification that your endpoint has been created. If it's auto-approved, you can start accessing your app configuration store privately, else you'll have to wait for approval.

Go to Networking > Private Access in your App Configuration store to access the private endpoints linked to your App Configuration store.

  1. Check the connection state of your private link connection. When you create a private endpoint, the connection must be approved. If the resource for which you're creating a private endpoint is in your directory and you have sufficient permissions, the connection request will be auto-approved. Otherwise, you must wait for the owner of that resource to approve your connection request. For more information about the connection approval models, go to Manage Azure Private Endpoints.

  2. To manually approve, reject or remove a connection, select the checkbox next to the endpoint you want to edit and select an action item from the top menu.

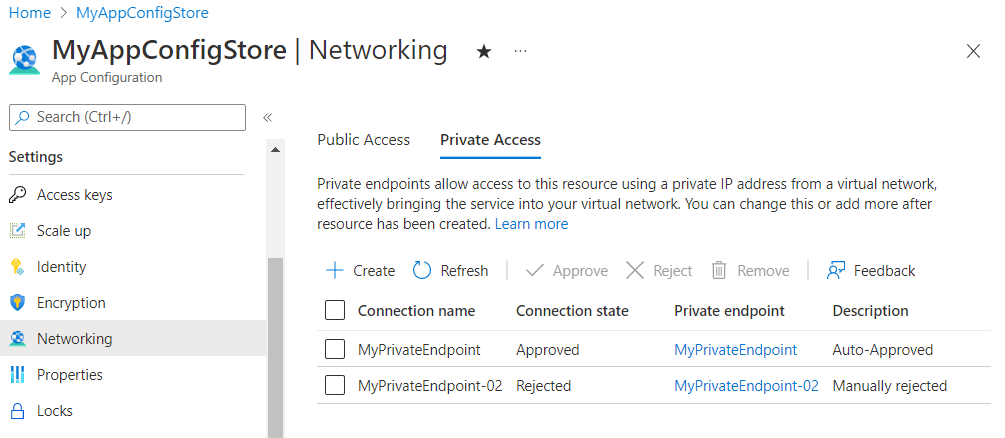

    Screenshot of the Azure portal, review existing endpoints.

  3. Select the name of the private endpoint to open the private endpoint resource and access more information or to edit the private endpoint.

If you have issues with a private endpoint, check the following guide: Troubleshoot Azure Private Endpoint connectivity problems.
