Application deployments with GitOps (Flux v2) for AKS and Azure Arc-enabled Kubernetes
Azure provides an automated application deployments capability using GitOps that works with Azure Kubernetes Service (AKS) and Azure Arc-enabled Kubernetes clusters. The key benefits provided by adopting GitOps for deploying applications to Kubernetes clusters include:
- Continual visibility into the status of applications running on clusters.
- Separation of concerns between application development teams and infrastructure teams. Application teams don't need to have experience with Kubernetes deployments. Platform engineering teams typically create a self-serve model for application teams, empowering them to run deployments with higher confidence.
- Ability to recreate clusters with the same desired state in case of a crash or to scale out.
With GitOps, you declare the desired state of your Kubernetes clusters in files in Git repositories. The Git repositories may contain the following files:
- YAML-formatted manifests that describe Kubernetes resources (such as Namespaces, Secrets, Deployments, and others)
- Helm charts for deploying applications
- Kustomize files to describe environment-specific changes
Because these files are stored in a Git repository, they're versioned, and changes between versions are easily tracked. Kubernetes controllers run in the clusters and continually reconcile the cluster state with the desired state declared in the Git repository. These operators pull the files from the Git repositories and apply the desired state to the clusters. The operators also continuously assure that the cluster remains in the desired state.
GitOps on Azure Arc-enabled Kubernetes or Azure Kubernetes Service uses Flux, a popular open-source tool set. Flux provides support for common file sources (Git and Helm repositories, Buckets, Azure Blob Storage) and template types (YAML, Helm, and Kustomize). Flux also supports multi-tenancy and deployment dependency management, among other features. Flux is deployed directly on the cluster, and each cluster's control plane is logically separated. Hence, it can scale well to hundreds and thousands of clusters. It enables pure pull-based GitOps application deployments. No access to clusters is needed by the source repo or by any other cluster.
Flux cluster extension
GitOps is enabled in an Azure Arc-enabled Kubernetes or AKS cluster as a
Microsoft.KubernetesConfiguration/extensions/microsoft.flux cluster extension resource. The
microsoft.flux extension must be installed in the cluster before one or more
fluxConfigurations can be created. The extension is installed automatically when you create the first
Microsoft.KubernetesConfiguration/fluxConfigurations in a cluster, or you can install it manually using the portal, the Azure CLI (
az k8s-extension create --extensionType=microsoft.flux), ARM template, or REST API.
By default, the
microsoft.flux extension installs the Flux controllers (Source, Kustomize, Helm, Notification) and the FluxConfig CRD, fluxconfig-agent, and fluxconfig-controller. You can control which of these controllers is installed. Optionally, you can also install the Flux image-automation and image-reflector controllers, which provide functionality for updating and retrieving Docker images.
Flux Source controller: Watches the
source.toolkit.fluxcd.iocustom resources. Handles synchronization between the Git repositories, Helm repositories, Buckets and Azure Blob storage. Handles authorization with the source for private Git, Helm repos and Azure blob storage accounts. Surfaces the latest changes to the source through a tar archive file.
Flux Kustomize controller: Watches the
kustomization.toolkit.fluxcd.iocustom resources. Applies Kustomize or raw YAML files from the source onto the cluster.
Flux Helm controller: Watches the
helm.toolkit.fluxcd.iocustom resources. Retrieves the associated chart from the Helm Repository source surfaced by the Source controller. Creates the
HelmChartcustom resource and applies the
HelmReleasewith given version, name, and customer-defined values to the cluster.
Flux Notification controller: Watches the
notification.toolkit.fluxcd.iocustom resources. Receives notifications from all Flux controllers. Pushes notifications to user-defined webhook endpoints.
Flux Custom Resource Definitions:
FluxConfig CRD: Custom Resource Definition for
fluxconfigs.clusterconfig.azure.comcustom resources that define
fluxconfig-agent: Responsible for watching Azure for new or updated
fluxConfigurationsresources, and for starting the associated Flux configuration in the cluster. Also responsible for pushing Flux status changes in the cluster back to Azure for each
fluxconfig-controller: Watches the
fluxconfigs.clusterconfig.azure.comcustom resources and responds to changes with new or updated configuration of GitOps machinery in the cluster.
microsoft.flux extension is installed in the
flux-system namespace and has cluster-wide scope. The option to install this extension at the namespace scope is not available, and attempts to install at namespace scope will fail with 400 error.

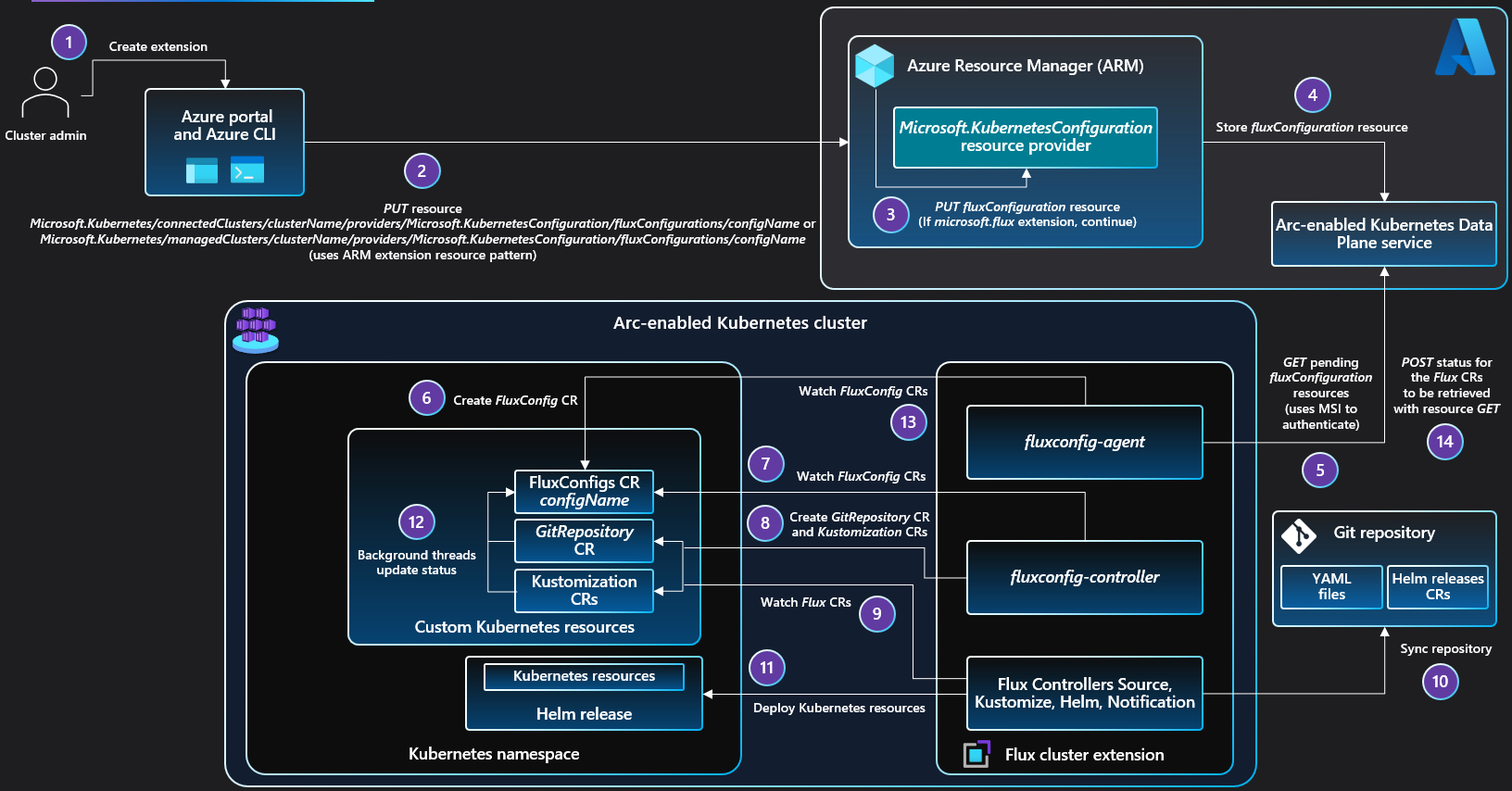

You create Flux configuration resources (
Microsoft.KubernetesConfiguration/fluxConfigurations) to enable GitOps management of the cluster from your Git repos, Bucket sources or Azure Blob Storage. When you create a
fluxConfigurations resource, the values you supply for the parameters, such as the target Git repo, are used to create and configure the Kubernetes objects that enable the GitOps process in that cluster. To ensure data security, the
fluxConfigurations resource data is stored encrypted at rest in an Azure Cosmos DB database by the Cluster Configuration service.
fluxconfig-controller agents, installed with the
microsoft.flux extension, manage the GitOps configuration process.
fluxconfig-agent is responsible for the following tasks:
- Polls the Kubernetes Configuration data plane service for new or updated
- Creates or updates
FluxConfigcustom resources in the cluster with the configuration information.
FluxConfigcustom resources and pushes status changes back to the associated Azure fluxConfiguration resources.
fluxconfig-controller is responsible for the following tasks:
- Watches status updates to the Flux custom resources created by the managed
- Creates private/public key pair that exists for the lifetime of the
fluxConfigurations. This key is used for authentication if the URL is SSH based and if the user doesn't provide their own private key during creation of the configuration.
- Creates custom authentication secret based on user-provided private-key/http basic-auth/known-hosts/no-auth data.
- Sets up RBAC (service account provisioned, role binding created/assigned, role created/assigned).
Bucketcustom resource and
Kustomizationcustom resources from the information in the
fluxConfigurations resource in Azure is associated with one Flux
Bucket custom resource and one or more
Kustomization custom resources in a Kubernetes cluster. When you create a
fluxConfigurations resource, you specify the URL to the source (Git repository, Bucket or Azure Blob storage) and the sync target in the source for each
Kustomization. You can configure dependencies between
Kustomization custom resources to control deployment sequencing. You can also create multiple namespace-scoped
fluxConfigurations resources on the same cluster for different applications and app teams.
fluxconfig-agent monitors for new or updated
fluxConfiguration resources in Azure. The agent requires connectivity to Azure for the desired state of the
fluxConfiguration to be applied to the cluster. If the agent is unable to connect to Azure, there will be a delay in making changes in the cluster until the agent can connect. If the cluster is disconnected from Azure for more than 48 hours, then the request to the cluster will time-out, and the changes will need to be reapplied in Azure.
Sensitive customer inputs like private key and token/password are stored for less than 48 hours in the Kubernetes Configuration service. If you update any of these values in Azure, make sure that your clusters connect with Azure within 48 hours.
You can monitor Flux configuration status and compliance in the Azure portal, or use dashboards to monitor status, compliance, resource consumption, and reconciliation activity. For more information, see Monitor GitOps (Flux v2) status and activity.
The most recent version of the Flux v2 extension (
microsoft.flux) and the two previous versions (N-2) are supported. We generally recommend that you use the most recent version of the extension. Starting with
microsoft.flux version 1.7.0, ARM64-based clusters are supported.
If you have been using Flux v1, we recommend migrating to Flux v2 as soon as possible.
Support for Flux v1-based cluster configuration resources created prior to January 1, 2024 will end on May 24, 2025. Starting on January 1, 2024, you won't be able to create new Flux v1-based cluster configuration resources.
GitOps with Private Link
If you've added support for private link to an Azure Arc-enabled Kubernetes cluster, then the
microsoft.flux extension works out-of-the-box with communication back to Azure. For connections to your Git repository, Helm repository, or any other endpoints that are needed to deploy your Kubernetes manifests, you must provision these endpoints behind your firewall, or list them on your firewall, so that the Flux Source controller can successfully reach them.
The Azure GitOps service (Azure Kubernetes Configuration Management) stores/processes customer data. By default, customer data is replicated to the paired region. For the regions Singapore, East Asia, and Brazil South, all customer data is stored and processed in the region.
Apply Flux configurations at scale
Because Azure Resource Manager manages your configurations, you can automate creating the same configuration across all Azure Kubernetes Service and Azure Arc-enabled Kubernetes resources using Azure Policy, within the scope of a subscription or a resource group. This at-scale enforcement ensures that specific configurations are applied consistently across entire groups of clusters.
To see all the parameters supported by Flux in Azure, see the
az k8s-configuration documentation. This implementation doesn't currently support every parameter that Flux supports (see the official Flux documentation). Let us know if a parameter you need is missing from the Azure implementation.
You can also see the full list of parameters for the
az k8s-configuration flux by using the
-h parameter in Azure CLI (for example,
az k8s-configuration flux -h or
az k8s-configuration flux create -h).
The following information describes some of the parameters and arguments available for the
az k8s-configuration flux create command.
Configuration general arguments
||String||Name of the cluster resource in Azure.|
||String||Name of the Azure resource group that holds the cluster resource.|
||String||Name of the Flux configuration in Azure.|
||String||Name of the namespace to deploy the configuration. Default:
||String||Permission scope for the operators. Possible values are
||flag||Suspends all source and kustomize reconciliations defined in this Flux configuration. Reconciliations active at the time of suspension will continue.|
Source general arguments
||String||Source kind to reconcile. Allowed values:
||golang duration format||Maximum time to attempt to reconcile the source before timing out. Default:
||golang duration format||Time between reconciliations of the source on the cluster. Default:
Git repository source reference arguments
||String||Branch within the Git source to sync to the cluster. Default:
||String||Tag within the Git source to sync to the cluster. Example:
||String||Git commit SHA within the Git source to sync to the cluster. Example:
For more information, see the Flux documentation on Git repository checkout strategies.
Public Git repository
||http[s]://server/repo[.git]||URL of the Git repository source to reconcile with the cluster.|
Private Git repository with SSH and Flux-created keys
Add the public key generated by Flux to the user account in your Git service provider.
Private Git repository with SSH and user-provided keys
Use your own private key directly or from a file. The key must be in PEM format and end with a newline (
Add the associated public key to the user account in your Git service provider.
||Base64 key in PEM format||Provide the key directly.|
||Full path to local file||Provide the full path to the local file that contains the PEM-format key.|
Private Git host with SSH and user-provided known hosts
The Flux operator maintains a list of common Git hosts in its
known_hosts file. Flux uses this information to authenticate the Git repository before establishing the SSH connection. If you're using an uncommon Git repository or your own Git host, you can supply the host key so that Flux can identify your repository.
Just like private keys, you can provide your
known_hosts content directly or in a file. When you're providing your own content, use the known_hosts content format specifications, along with either of the preceding SSH key scenarios.
||Full path to local file||Provide
Private Git repository with an HTTPS user and key
||HTTPS with Basic Authentication.|
||Raw string||HTTPS username.|
||Raw string||HTTPS personal access token or password.|
Private Git repository with an HTTPS CA certificate
||HTTPS with Basic Authentication.|
||Base64 string||CA certificate for TLS communication.|
||Full path to local file||Provide CA certificate content in a local file.|
Bucket source arguments
If you use
bucket source, here are the bucket-specific command arguments.
||URL String||The URL for the
||String||Name of the
||String||Access Key ID used to authenticate with the
||String||Secret Key used to authenticate with the
||Boolean||Communicate with a
Azure Blob Storage Account source arguments
If you use
azblob source, here are the blob-specific command arguments.
||URL String||The URL for the
||String||Name of the Azure Blob Storage container to sync|
||String||The client ID for authenticating a service principal with Azure Blob, required for this authentication method|
||String||The tenant ID for authenticating a service principal with Azure Blob, required for this authentication method|
||String||The client secret for authenticating a service principal with Azure Blob|
||String||The Base64 encoded client certificate for authenticating a service principal with Azure Blob|
||String||The password for the client certificate used to authenticate a service principal with Azure Blob|
||String||Specifies whether to include x5c header in client claims when acquiring a token to enable subject name / issuer based authentication for the client certificate|
||String||The Azure Blob Shared Key for authentication|
||String||The Azure Blob SAS Token for authentication|
||String||The client ID of the managed identity for authentication with Azure Blob|
When using managed identity authentication for AKS clusters and
azblob source, the managed identity must be assigned at minimum the Storage Blob Data Reader role. Authentication using a managed identity is not yet available for Azure Arc-enabled Kubernetes clusters.
Local secret for authentication with source
You can use a local Kubernetes secret for authentication with a
azBlob source. The local secret must contain all of the authentication parameters needed for the source and must be created in the same namespace as the Flux configuration.
||String||Local reference to a Kubernetes secret in the Flux configuration namespace to use for authentication with the source.|
For HTTPS authentication, you create a secret with the
kubectl create ns flux-config kubectl create secret generic -n flux-config my-custom-secret --from-literal=username=<my-username> --from-literal=password=<my-password-or-key>
For SSH authentication, you create a secret with the
kubectl create ns flux-config kubectl create secret generic -n flux-config my-custom-secret --from-file=identity=./id_rsa --from-file=known_hosts=./known_hosts
For both cases, when you create the Flux configuration, use
--local-auth-ref my-custom-secret in place of the other authentication parameters:
az k8s-configuration flux create -g <cluster_resource_group> -c <cluster_name> -n <config_name> -t connectedClusters --scope cluster --namespace flux-config -u <git-repo-url> --kustomization name=kustomization1 --local-auth-ref my-custom-secret
Learn more about using a local Kubernetes secret with these authentication methods:
- Git repository HTTPS authentication
- Git repository HTTPS self-signed certificates
- Git repository SSH authentication
- Bucket static authentication
If you need Flux to access the source through your proxy, you must update the Azure Arc agents with the proxy settings. For more information, see Connect using an outbound proxy server.
To support various repository providers that implement Git, Flux can be configured to use one of two Git libraries:
libgit2. For details, see the Flux documentation.
The GitOps implementation of Flux v2 automatically determines which library to use for public cloud repositories:
- For GitHub, GitLab, and BitBucket repositories, Flux uses
- For Azure DevOps and all other repositories, Flux uses
For on-premises repositories, Flux uses
Kustomization is a setting created for Flux configurations that lets you choose a specific path in the source repo that is reconciled into the cluster. You don't need to create a `kustomization.yaml file on this specified path. By default, all of the manifests in this path will be reconciled. However, if you want to have a Kustomize overlay for applications available on this repo path, you should create Kustomize files in git for the flux configuration to make use of.
az k8s-configuration flux kustomization create, you can create one or more kustomizations during the configuration.
||No value||Start of a string of parameters that configure a kustomization. You can use it multiple times to create multiple kustomizations.|
||String||Unique name for this kustomization.|
||String||Path within the Git repository to reconcile with the cluster. Default is the top level of the branch.|
||String||Name of one or more kustomizations (within this configuration) that must reconcile before this kustomization can reconcile. For example:
||golang duration format||Default:
||golang duration format||Default:
||golang duration format||Default:
You can also use
az k8s-configuration flux kustomization to update, list, show, and delete kustomizations in a Flux configuration.
For the multi-tenancy feature, you need to know if your manifests contain any cross-namespace sourceRef for HelmRelease, Kustomization, ImagePolicy, or other objects, or if you use a Kubernetes version less than 1.20.6. To prepare:
- Upgrade to Kubernetes version 1.20.6 or greater.
- In your Kubernetes manifests, assure that all
sourceRefare to objects within the same namespace as the GitOps configuration.
- If you need time to update your manifests, you can opt out of multi-tenancy. However, you still need to upgrade your Kubernetes version.
Update manifests for multi-tenancy
Let’s say you deploy a
fluxConfiguration to one of our Kubernetes clusters in the cluster-config namespace with cluster scope. You configure the source to sync the
https://github.com/fluxcd/flux2-kustomize-helm-example repo. This is the same sample Git repo used in the Deploy applications using GitOps with Flux v2 tutorial. After Flux syncs the repo, it deploys the resources described in the manifests (YAML files). Two of the manifests describe HelmRelease and HelmRepository objects.
apiVersion: helm.toolkit.fluxcd.io/v2beta1 kind: HelmRelease metadata: name: nginx namespace: nginx spec: releaseName: nginx-ingress-controller chart: spec: chart: nginx-ingress-controller sourceRef: kind: HelmRepository name: bitnami namespace: flux-system version: "5.6.14" interval: 1h0m0s install: remediation: retries: 3 # Default values # https://github.com/bitnami/charts/blob/master/bitnami/nginx-ingress-controller/values.yaml values: service: type: NodePort
apiVersion: source.toolkit.fluxcd.io/v1beta1 kind: HelmRepository metadata: name: bitnami namespace: flux-system spec: interval: 30m url: https://charts.bitnami.com/bitnami
By default, the Flux extension will deploy the
fluxConfigurations by impersonating the flux-applier service account that is deployed only in the cluster-config namespace. Using the above manifests, when multi-tenancy is enabled the HelmRelease would be blocked. This is because the HelmRelease is in the nginx namespace and is referencing a HelmRepository in the flux-system namespace. Also, the Flux helm-controller cannot apply the HelmRelease, because there is no flux-applier service account in the nginx namespace.
To work with multi-tenancy, the correct approach is to deploy all Flux objects into the same namespace as the
fluxConfigurations. This approach avoids the cross-namespace reference issue, and allows the Flux controllers to get the permissions to apply the objects. Thus, for a GitOps configuration created in the cluster-config namespace, these example manifests would change as follows:
apiVersion: helm.toolkit.fluxcd.io/v2beta1 kind: HelmRelease metadata: name: nginx namespace: cluster-config spec: releaseName: nginx-ingress-controller targetNamespace: nginx chart: spec: chart: nginx-ingress-controller sourceRef: kind: HelmRepository name: bitnami namespace: cluster-config version: "5.6.14" interval: 1h0m0s install: remediation: retries: 3 # Default values # https://github.com/bitnami/charts/blob/master/bitnami/nginx-ingress-controller/values.yaml values: service: type: NodePort
apiVersion: source.toolkit.fluxcd.io/v1beta1 kind: HelmRepository metadata: name: bitnami namespace: cluster-config spec: interval: 30m url: https://charts.bitnami.com/bitnami
Opt out of multi-tenancy
microsoft.flux extension is installed, multi-tenancy is enabled by default to assure security by default in your clusters. However, if you need to disable multi-tenancy, you can opt out by creating or updating the
microsoft.flux extension in your clusters with "--configuration-settings multiTenancy.enforce=false":
az k8s-extension create --extension-type microsoft.flux --configuration-settings multiTenancy.enforce=false -c CLUSTER_NAME -g RESOURCE_GROUP -n flux -t <managedClusters or connectedClusters>
az k8s-extension update --configuration-settings multiTenancy.enforce=false -c CLUSTER_NAME -g RESOURCE_GROUP -n flux -t <managedClusters or connectedClusters>
Migrate from Flux v1
If you are still using Flux v1, we recommend migrating to Flux v2 as soon as possible.
To migrate to using Flux v2 in the same clusters where you've been using Flux v1, you must first delete all Flux v1
sourceControlConfigurations from the clusters. Because Flux v2 has a fundamentally different architecture, the
microsoft.flux cluster extension won't install if there are Flux v1
sourceControlConfigurations resources in a cluster. The process of removing Flux v1 configurations and deploying Flux v2 configurations should not take more than 30 minutes.
Removing Flux v1
sourceControlConfigurations doesn't stop any applications that are running on the clusters. However, during the period when Flux v1 configuration is removed and Flux v2 extension is not yet fully deployed:
- If there are new changes in the application manifests stored in a Git repository, these are not pulled during the migration, and the application version deployed on the cluster will be stale.
- If there are unintended changes in the cluster state and it deviates from the desired state specified in source Git repository, the cluster won't be able to self-heal.
We recommend testing your migration scenario in a development environment before migrating your production environment.
View and delete Flux v1 configurations
Use these Azure CLI commands to find and then delete existing
sourceControlConfigurations in a cluster:
az k8s-configuration list --cluster-name <Arc or AKS cluster name> --cluster-type <connectedClusters OR managedClusters> --resource-group <resource group name> az k8s-configuration delete --name <configuration name> --cluster-name <Arc or AKS cluster name> --cluster-type <connectedClusters OR managedClusters> --resource-group <resource group name>
You can also view and delete existing GitOps configurations for a cluster in the Azure portal. To do so, navigate to the cluster where the configuration was created and select GitOps in the left pane. Select the configuration, then select Delete.
Deploy Flux v2 configurations
Use the Azure portal or Azure CLI to apply Flux v2 configurations to your clusters.
Flux v1 retirement information
The open-source project of Flux v1 has been archived, and feature development has been stopped indefinitely. For more information, see the fluxcd project.
Flux v2 was launched as the upgraded open-source project of Flux. It has a new architecture and supports more GitOps use cases. Microsoft launched a version of an extension using Flux v2 in May 2022. Since then, customers have been advised to move to Flux v2 within three years, as support for using Flux v1 is scheduled to end in May 2025.
Key new features introduced in the GitOps extension for Flux v2:
- Flux v1 is a monolithic do-it-all operator. Flux v2 separates the functionalities into specialized controllers (Source controller, Kustomize controller, Helm controller, and Notification controller).
- Supports synchronization with multiple source repositories.
- Supports multi-tenancy, like applying each source repository with its own set of permissions.
- Provides operational insights through health checks, events and alerts.
- Supports Git branches, pinning on commits and tags, and following SemVer tag ranges.
- Credentials configuration per GitRepository resource: SSH private key, HTTP/S username/password/token, and OpenPGP public keys.
- Use our tutorial to learn how to enable GitOps on your AKS or Azure Arc-enabled Kubernetes clusters.
- Learn about CI/CD workflow using GitOps.
