Access Kubernetes resources from Azure portal

  • Article
  • 2 minutes to read

The Azure portal includes a Kubernetes resource view for easy access to the Kubernetes resources in your Azure Arc-enabled Kubernetes cluster. Viewing Kubernetes resources from the Azure portal reduces context switching between the Azure portal and the kubectl command-line tool, streamlining the experience for viewing and editing your Kubernetes resources. The resource viewer currently includes multiple resource types, including deployments, pods, and replica sets.

Prerequisites

  • An existing Kubernetes cluster connected to Azure as an Azure Arc-enabled Kubernetes resource.

  • Service account token for authentication to the cluster.

View Kubernetes resources

To see the Kubernetes resources, navigate to your cluster in the Azure portal. The navigation pane on the left is used to access your resources:

  • Namespaces displays the namespaces of your cluster. The filter at the top of the namespace list provides a quick way to filter and display your namespace resources.
  • Workloads shows information about deployments, pods, replica sets, stateful sets, daemon sets, jobs, and cron jobs deployed to your cluster.
  • Services and ingresses shows all of your cluster's service and ingress resources.
  • Storage shows your Azure storage classes and persistent volume information.
  • Configuration shows your cluster's config maps and secrets.

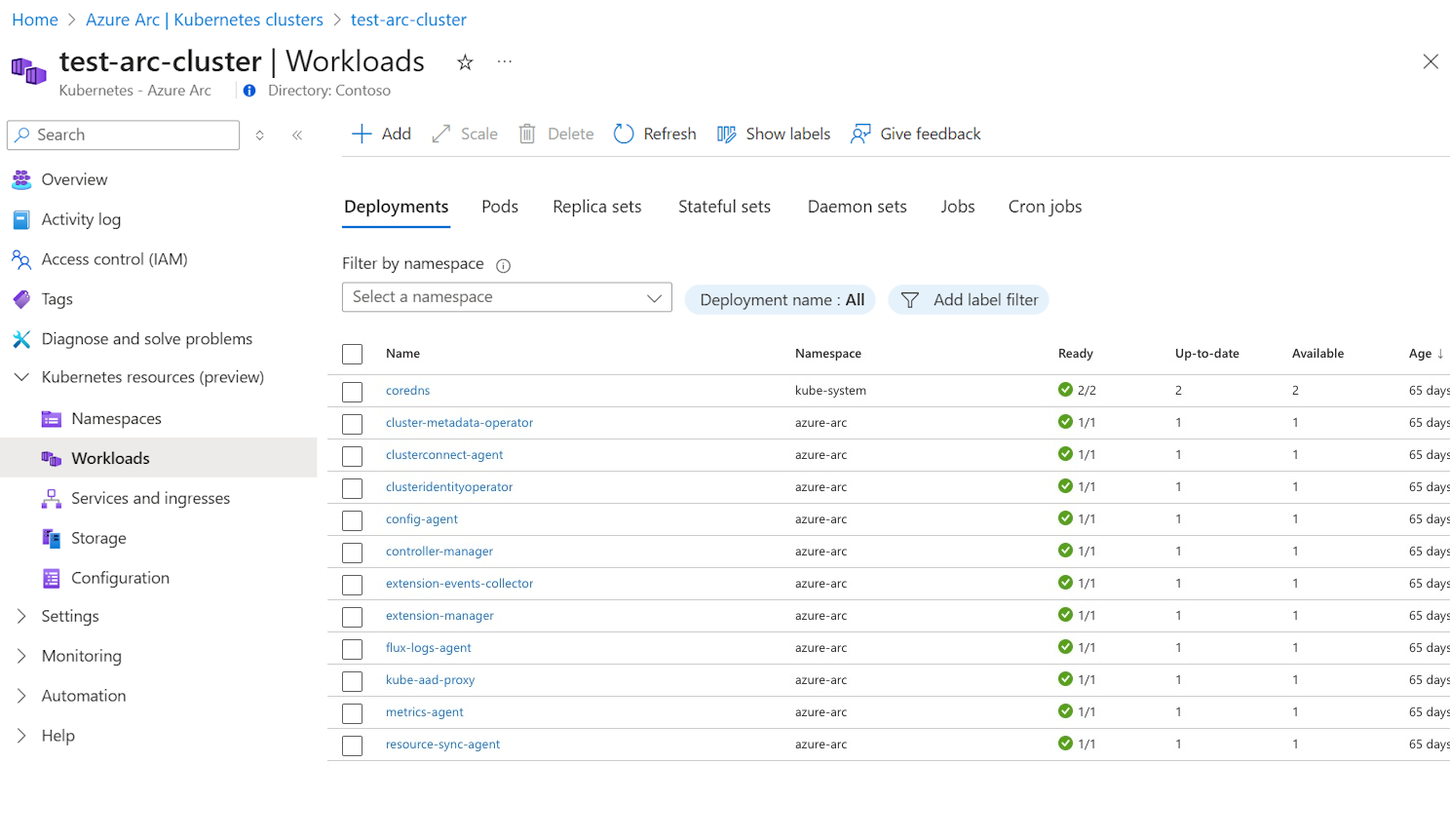

Kubernetes workloads information displayed in the Azure portal

Edit YAML

The Kubernetes resource view also includes a YAML editor. A built-in YAML editor means you can update Kubernetes objects from within the portal and apply changes immediately.

After you edit the YAML, select Review + save, confirm the changes, and then save again.

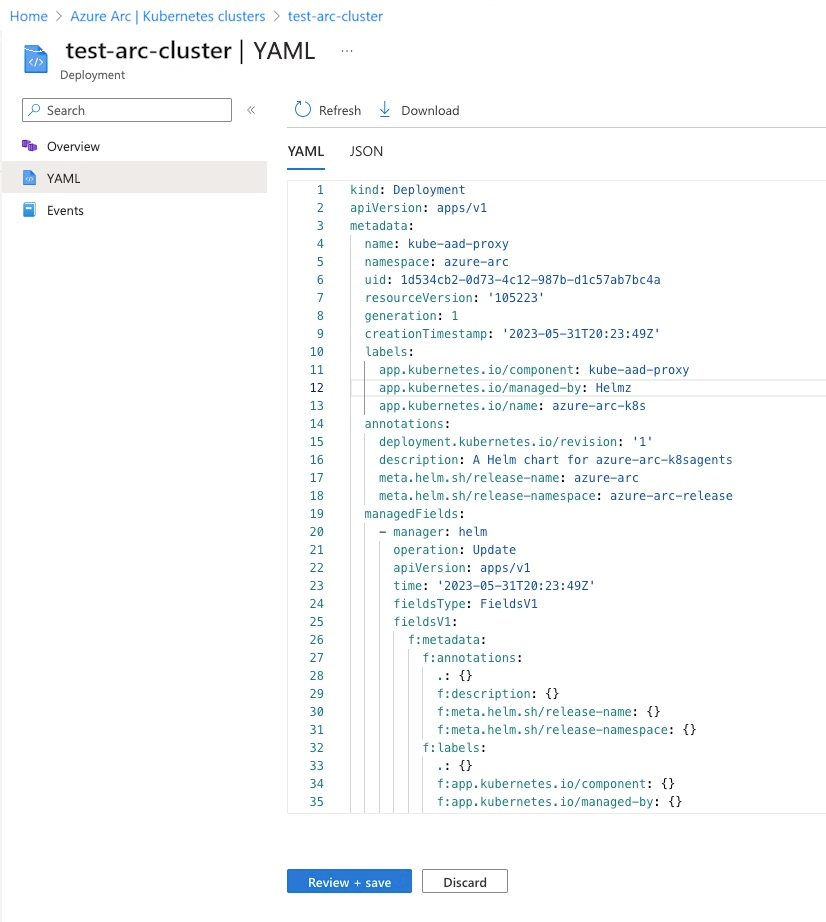

YAML editor for Kubernetes objects displayed in the Azure portal

Warning

The Azure portal Kubernetes management capabilities and the YAML editor are built for learning and flighting new deployments in a development and testing setting. Performing direct production changes via UI or CLI is not recommended. For production environments, consider using Configurations (GitOps).

Next steps

Azure Monitor for containers provides more in-depth information about nodes and containers of the cluster when compared to the Kubernetes resource view described in this article. Learn how to deploy Azure Monitor for containers on your cluster.
