Namespace validation with an external validator

In this article, you deploy a reference external validator that blocks a workload orchestration solution version from being published when its Helm charts attempt to deploy Kubernetes resources in a cluster namespace other than the one specified in the --solution-scope parameter while creating the target. The validator runs as a customer-owned Azure Function that subscribes to the workload orchestration publish event, renders each chart, and reports the result to Azure Resource Manager (ARM).

You learn how to:

Deploy the container-based validator function app with a managed identity.
Grant the managed identity access to read solution versions and pull charts.
Configure the required application settings.
Register the external validation Event Grid subscription on your context.
Test the validator with compliant and noncompliant charts.

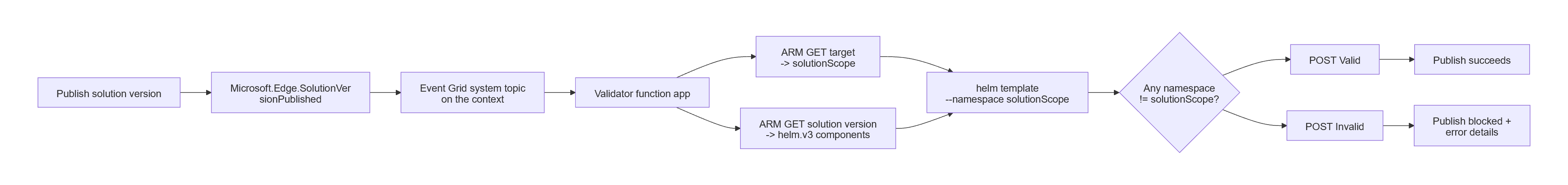

How it works

When you publish a solution version that has external validation enabled, workload orchestration emits a Microsoft.Edge.SolutionVersionPublished event and holds the version in a pending state until it receives a callback. The validator performs these actions:

Receives the event through an Event Grid subscription on your context's system topic.
Reads the target and the solution version from ARM. The target's --solution-scope is the effective namespace the solution is allowed to deploy into.
Runs helm template --namespace <solutionScope> for every helm.v3 component and inspects the rendered manifests for every namespace they reference.
Sends a Valid or Invalid result to the callbackUrl. If a rendered resource targets a namespace other than solutionScope, the validator rejects the version, and publishing fails.

Prerequisites

An Azure subscription with workload orchestration enabled.
An existing context and its Event Grid system topic. External validation uses an event subscription on this topic.
Permission to create resource groups, container registries, storage accounts, and function apps, and to assign roles. You need the Owner or User Access Administrator role on the target scope to assign roles.
Azure CLI set up on your device, with the eventgrid extension installed.
The name of each Azure Container Registry (ACR) instance that hosts your Helm charts.
The namespace-validator reference implementation and deploy.ps1 script from the workload-orchestration GitHub repository.

Define the variables

RG=nsvalidator-rg
LOCATION=eastus2
PLAN_LOCATION=centralus            # EP plans need Virtual machine quota in this region
ACR=<yourAcr>                      # 5-50 alphanumeric characters, globally unique
PLAN=nsvalidator-plan
APP=<yourFunctionApp>              # globally unique
IMAGE=namespace-validator:latest

Deployment script

The PowerShell script deploy.ps1 in the workload-orchestration GitHub repository automates the resource creation and deployment steps listed in Deploy the validator function app and configures the app settings described in Configure application settings. You must still grant the access described in Step 2 and create the Event Grid subscription mentioned in Step 4. To run the script, use:

./deploy.ps1 -ResourceGroup nsvalidator-rg -AcrName <yourAcr> -FunctionApp <yourFunctionApp>

Parameter	Default	Purpose
`ResourceGroup`	`nsvalidator-rg`	Resource group for the validator resources.
`AcrName`	`nsvalidatoracr`	ACR that holds the validator image (5 to 50 alphanumeric characters).
`Location`	`eastus2`	Region for the ACR and storage account.
`PlanLocation`	`centralus`	Region for the Elastic Premium plan (quota-dependent).
`PlanName`	`nsvalidator-plan`	Name of the hosting plan.
`FunctionApp`	`nsvalidator-func`	Function app name (globally unique).
`Image`	`namespace-validator:latest`	Image tag built in ACR.

If you prefer to perform the steps individually, follow the guide in the next sections.

Important

The reference sample uses test mode by default. It logs the result instead of posting it back to ARM (the _post_result call in function_app.py is commented out). For a production deployment that blocks publishing, re-enable the _post_result callback before you build the image.

Step 1 - Deploy the validator function app

The validator renders charts with the helm binary, so it must run as a container-based Azure Function on an Elastic Premium or Dedicated plan. A Consumption plan can't run helm.

Create the resource group

Create a resource group for the validator's ACR instance, storage account, hosting plan, and function app.

az group create --name $RG --location $LOCATION

Create the container registry for the image

Create an ACR instance to store the validator container image. This registry is separate from the registries that store your Helm charts.

az acr create --resource-group $RG --name $ACR --sku Basic --admin-enabled false

Build the validator image in ACR

az acr build builds server-side, so you don't need Docker locally. Run it from the namespace-validator folder (the one with the Dockerfile).

cd namespace-validator
az acr build -r $ACR -t $IMAGE .
cd ..

Create the storage account

The Functions runtime requires a general-purpose storage account for state and triggers.

az storage account create --name <yourStorage> --resource-group $RG \
  --location $LOCATION --sku Standard_LRS

Create the hosting plan

An Elastic Premium Linux plan can run custom containers. Elastic Premium requires virtual machine quota in the plan region. If the region has no quota, choose another region or use Azure Container Apps.

az functionapp plan create --name $PLAN --resource-group $RG \
  --location $PLAN_LOCATION --sku EP1 --is-linux

Create the function app with a managed identity

Deploy the app from the image and assign a system-assigned managed identity. In the next section, you grant Azure role-based access control (Azure RBAC) roles to this identity.

az functionapp create --name $APP --resource-group $RG \
  --storage-account <yourStorage> --plan $PLAN \
  --image $ACR.azurecr.io/$IMAGE --registry-server $ACR.azurecr.io \
  --assign-identity "[system]" --functions-version 4

Enable managed identity image pull

Let the app pull its own image by using the managed identity instead of admin credentials.

APP_ID=$(az functionapp show -n $APP -g $RG --query id -o tsv)
az resource update --ids "$APP_ID/config/web" --set properties.acrUseManagedIdentityCreds=true
az functionapp config container set -n $APP -g $RG \
  --image $ACR.azurecr.io/$IMAGE --registry-server https://$ACR.azurecr.io

Step 2 - Grant the managed identity access

The validator's managed identity needs to read the target and solution version from ARM, and to pull charts from every registry your solutions use.

PRINCIPAL=$(az functionapp identity show -n $APP -g $RG --query principalId -o tsv)

# Read targets + solution versions and report validation status
az role assignment create --assignee-object-id $PRINCIPAL \
  --assignee-principal-type ServicePrincipal \
  --role "Workload Orchestration Solution External Validator" \
  --scope /subscriptions/<subscription-id>

# Pull charts from each registry that hosts your Helm charts (repeat per registry)
az role assignment create --assignee-object-id $PRINCIPAL \
  --assignee-principal-type ServicePrincipal \
  --role AcrPull \
  --scope $(az acr show -n <chartAcr> --query id -o tsv)

Note

The built-in Reader role doesn't provide the required access. Microsoft.Edge/targets/solutions/versions is a ProxyOnly (RPaaS) resource type. The Workload Orchestration Solution External Validator role explicitly grants Microsoft.Edge/targets/solutions/versions/read, but the Reader role's */read wildcard doesn't match this resource type. By using only the Reader role, the request to get the solution version returns 403 Forbidden, and the validator rejects the version. Always use the Workload Orchestration Solution External Validator role.

Role assignments can take a few minutes to propagate.

Step 3 - Configure application settings

Set these values on the function app. The deploy.ps1 script, if run, already sets them.

az functionapp config appsettings set -n $APP -g $RG --settings \
  AZURE_TENANT_ID=$(az account show --query tenantId -o tsv) \
  HELM_TIMEOUT_SECONDS=45

Setting	Example	Why it's needed
`AZURE_TENANT_ID`	`<tenant-id>`	`helm registry login` authenticates to ACR through the OAuth 2.0 token-exchange flow, which requires the tenant ID. The Functions runtime sets this value for the managed identity, but setting it explicitly avoids relying on runtime-derived values.
`HELM_TIMEOUT_SECONDS`	`45`	Limits the `helm template` subprocess so that a slow or malicious chart pull can't cause the function to hang. The validator treats a timeout as a render failure and rejects the version.

Step 4 - Register external validation

Create an Event Grid event subscription on your context's system topic. Filter the subscription to the publish event, and send the event to the validator function.

CLI
Portal

az eventgrid system-topic event-subscription create --name ns-isolation-validator --resource-group <rg> --system-topic-name <context-system-topic> --included-event-types Microsoft.Edge.SolutionVersionPublished --endpoint-type azurefunction --endpoint "$(az functionapp show -n $APP -g $RG --query id -o tsv)/functions/SolutionValidator"

Note

If the context has no external-validation subscription, publishing a version with external validation enabled fails because no endpoint is available to return the callback.

Step 5 - Test the validator

Publish two solution versions against a target whose solutionScope is, for example, team-a:

Compliant chart: Deploys only to team-a, or leaves the namespace unset so that it inherits solutionScope. Publishing succeeds, and the result is Valid.
Noncompliant chart: Hardcodes a different namespace, such as kube-system, or sets a values namespace such as team-b. Publishing is blocked. The solution version returns ExternalValidationFailed with a NamespaceScopeMismatch error that lists the invalid namespaces.

Create a simple compliant chart and a noncompliant chart that hardcodes kube-system in a template. Publish both charts to test each case.

To watch the verdict directly, stream the Function logs:

az webapp log tail -n $APP -g $RG

In test mode, look for VALIDATION RESULT = SUCCESS | ACCEPTED or VALIDATION RESULT = REJECTED. In production mode, look for Posted validation result.

Clean up resources

# Remove the event subscription
az eventgrid system-topic event-subscription delete \
  --name ns-isolation-validator --resource-group <context-rg> \
  --system-topic-name <context-system-topic>

# Remove the role assignments (look them up with: az role assignment list --assignee $PRINCIPAL)
# Then delete the validator resource group
az group delete --name $RG --yes --no-wait

Troubleshooting

Symptom	Cause	Fix
`403 Forbidden` on the solution-version GET	Identity has `Reader` (or nothing) instead of the External Validator role, or the assignment didn't propagate.	Assign Workload Orchestration Solution External Validator (Step 2) and wait a few minutes.
`repo not found` / `unexpected status: 404` on render	The chart repository isn't a valid `oci://` reference.	The validator normalizes registry references to `oci://`. Ensure that the chart is pushed as an OCI artifact and that the component's `repo` and `version` are set.
`401 Unauthorized` pulling the chart	Missing `AcrPull` on the chart's registry.	Grant `AcrPull` on every registry your charts use (Step 2).
Every version is rejected with `ValidationExecutionError`	The validator fails closed after a render error, such as an incorrect tenant ID, timeout, or missing chart coordinates.	Check `AZURE_TENANT_ID`, increase `HELM_TIMEOUT_SECONDS`, and confirm that the component has a chart `repo` and `version`.
Publish never completes	The context has no Event Grid subscription, or the endpoint points to the wrong function.	Recreate the subscription in Step 4, and target the `SolutionValidator` function.

Event payload reference

To customize the validation logic in function_app.py, use the following fields from the Microsoft.Edge.SolutionVersionPublished event data:

Field	Description
`solutionVersionId`	ARM ID of the published solution version to validate.
`targetId`	ARM ID of the target; its `solutionScope` is the effective namespace.
`externalValidationId`	Correlation ID for this validation request.
`callbackUrl`	`updateExternalValidationStatus` endpoint to which the validator sends the result.
`apiVersion`	API version to use for the ARM GET requests.
