Interact with the map

This article shows you how to use map events class. The property highlight events on the map and on different layers of the map. You can also highlight events when you interact with an HTML marker.

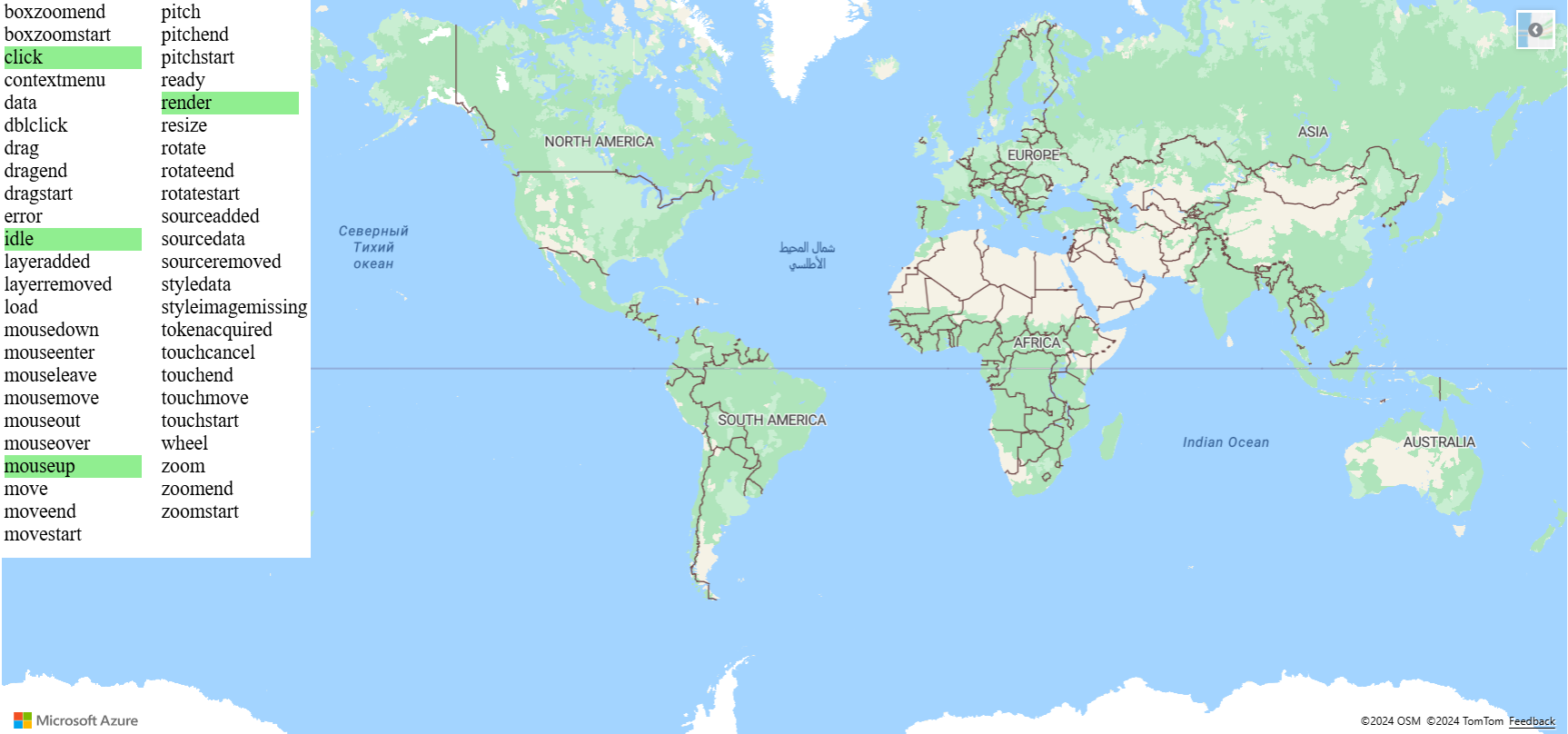

Interact with the map

Play with the map below, and see the corresponding mouse events highlighted on the right. You can click on the JS tab to view and edit the JavaScript code. You can also click on Edit on CodePen to modify the code on CodePen.

Interact with map layers

The following code highlights the fired event as you interact with the Symbol Layer. The symbol, bubble, line, and polygon layer all support the same set of events. The heat map and tile layers don't support any of these events.

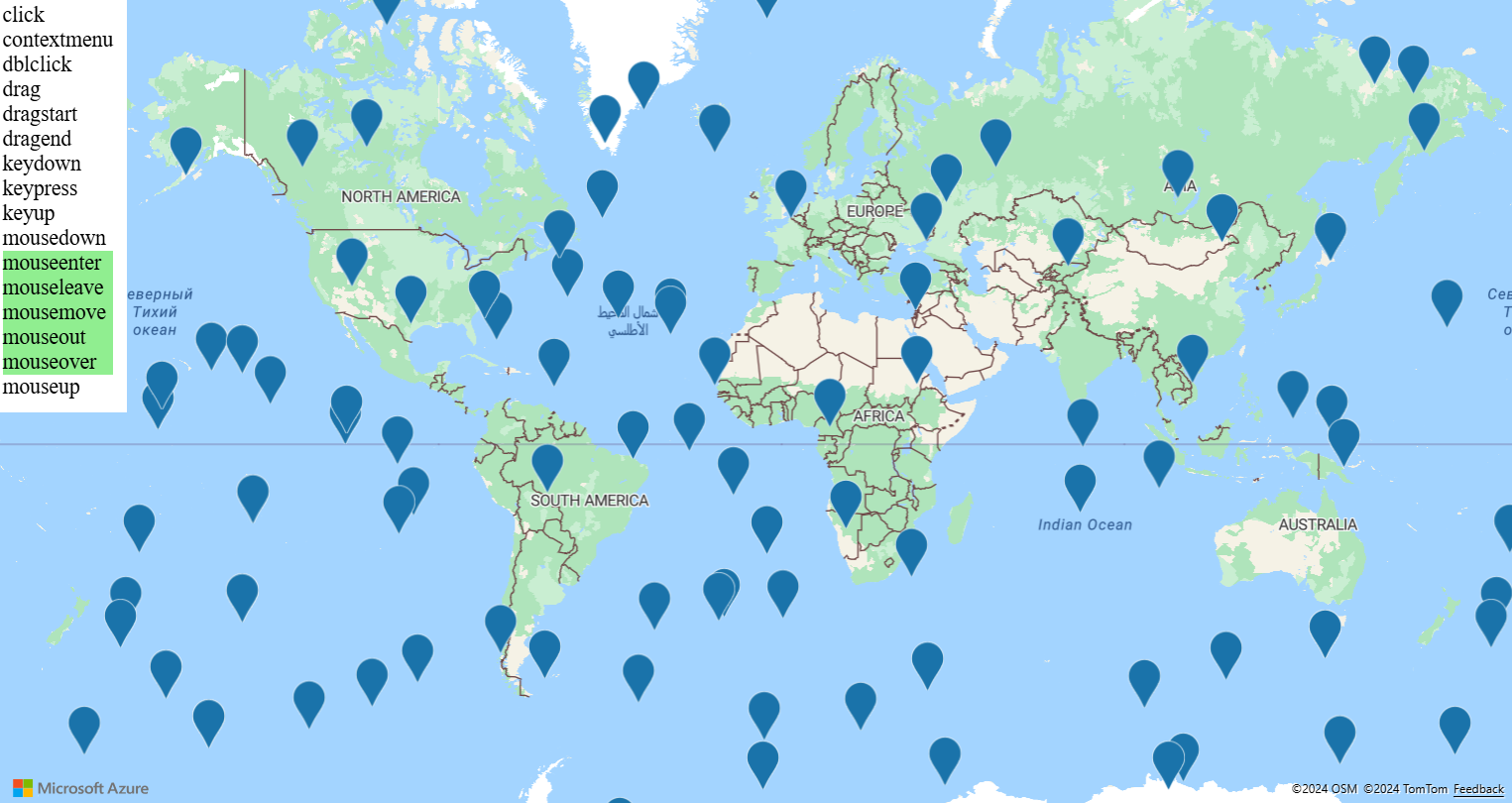

Interact with HTML Marker

The following code adds JavaScript map events to an HTML marker. It also highlights the name of the events that get fired up as you interact with the HTML marker.

The following table lists all supported map class events.

Event	Description
boxzoomend	Fired when a "box zoom" interaction ends.
boxzoomstart	Fired when a "box zoom" interaction starts.
click	Fired when a pointing device is pressed and released at the same point on the map.
close	Fired when the popup is closed manually or programatically.
contextmenu	Fired when the right button of the mouse is clicked.
data	Fired when any map data loads or changes.
dataadded	Fired when shapes are added to the DataSource.
dataremoved	Fired when shapes are removed from the DataSource.
datasourceupdated	Fired when the DataSource object is updated.
dblclick	Fired when a pointing device is clicked twice at the same point on the map.
drag	Fired repeatedly during a "drag to pan" interaction on the map, popup, or HTML marker.
dragend	Fired when a "drag to pan" interaction ends on the map, popup, or HTML marker.
dragstart	Fired when a "drag to pan" interaction starts on the map, popup, or HTML marker.
error	Fired when an error occurs.
idle	Fired after the last frame rendered before the map enters an "idle" state: No camera transitions are in progress. All currently requested tiles have loaded. All fade/transition animations have completed.
keydown	Fired when a key is pressed down.
keypress	Fired when a key that produces a typable character (an ANSI key) is pressed.
keyup	Fired when a key is released.
layeradded	Fired when a layer is added to the map.
layerremoved	Fired when a layer is removed from the map.
load	Fired immediately after all necessary resources have been downloaded and the first visually complete rendering of the map has occurred.
mousedown	Fired when a pointing device is pressed within the map or when on top of an element.
mouseenter	Fired when a pointing device is initially moved over the map or an element.
mouseleave	Fired when a pointing device is moved out the map or an element.
mousemove	Fired when a pointing device is moved within the map or an element.
mouseout	Fired when a point device leaves the map's canvas our leaves an element.
mouseover	Fired when a pointing device is moved over the map or an element.
mouseup	Fired when a pointing device is released within the map or when on top of an element.
move	Fired repeatedly during an animated transition from one view to another, as the result of either user interaction or methods.
moveend	Fired just after the map completes a transition from one view to another, as the result of either user interaction or methods.
movestart	Fired just before the map begins a transition from one view to another, as the result of either user interaction or methods.
open	Fired when the popup is opened manually or programatically.
pitch	Fired whenever the map's pitch (tilt) changes as the result of either user interaction or methods.
pitchend	Fired immediately after the map's pitch (tilt) finishes changing as the result of either user interaction or methods.
pitchstart	Fired whenever the map's pitch (tilt) begins a change as the result of either user interaction or methods.
ready	Fired when the minimum required map resources are loaded before the map is ready to be programmatically interacted with.
render	Fired whenever the map is drawn to the screen, as the result of: A change to the map's position, zoom, pitch, or bearing. A change to the map's style. A change to a DataSource source. The loading of a vector tile, GeoJSON file, glyph, or sprite.
resize	Fired immediately after the map has been resized.
rotate	Fired repeatedly during a "drag to rotate" interaction.
rotateend	Fired when a "drag to rotate" interaction ends.
rotatestart	Fired when a "drag to rotate" interaction starts.
shapechanged	Fired when a shape object property is changed.
sourcedata	Fired when one of the map's sources loads or changes, including if a tile belonging to a source loads or changes.
sourceadded	Fired when a DataSource or VectorTileSource is added to the map.
sourceremoved	Fired when a DataSource or VectorTileSource is removed from the map.
styledata	Fired when the map's style loads or changes.
styleimagemissing	Fired when a layer tries to load an image from the image sprite that doesn't exist
tokenacquired	Fired when an Azure Active Directory access token is obtained.
touchcancel	Fired when a touchcancel event occurs within the map.
touchend	Fired when a touchend event occurs within the map.
touchmove	Fired when a touchmove event occurs within the map.
touchstart	Fired when a touchstart event occurs within the map.
wheel	Fired when a mouse wheel event occurs within the map.
zoom	Fired repeatedly during an animated transition from one zoom level to another, as the result of either user interaction or methods.
zoomend	Fired just after the map completes a transition from one zoom level to another, as the result of either user interaction or methods.
zoomstart	Fired just before the map begins a transition from one zoom level to another, as the result of either user interaction or methods.
