SMB performance best practices for Azure NetApp Files

This article helps you understand SMB performance and best practices for Azure NetApp Files.

SMB Multichannel

SMB Multichannel is enabled by default in SMB shares. All SMB shares pre-dating existing SMB volumes have had the feature enabled, and all newly created volumes will also have the feature enabled at time of creation.

Any SMB connection established before the feature enablement will need to be reset to take advantage of the SMB Multichannel functionality. To reset, you can disconnect and reconnect the SMB share.

Windows has supported SMB Multichannel since Windows 2012 to enable best performance. See Deploy SMB Multichannel and The basics of SMB Multichannel for details.

Benefits of SMB Multichannel

The SMB Multichannel feature enables an SMB3 client to establish a pool of connections over a single network interface card (NIC) or multiple NICs and to use them to send requests for a single SMB session. In contrast, by design, SMB1 and SMB2 require the client to establish one connection and send all the SMB traffic for a given session over that connection. This single connection limits the overall protocol performance that can be achieved from a single client.

Performance for SMB Multichannel

The following tests and graphs demonstrate the power of SMB Multichannel on single-instance workloads.

Random I/O

With SMB Multichannel disabled on the client, pure 4 KiB read and write tests were performed using FIO and a 40 GiB working set. The SMB share was detached between each test, with increments of the SMB client connection count per RSS network interface settings of 1,4,8,16, set-SmbClientConfiguration -ConnectionCountPerRSSNetworkInterface <count>. The tests show that the default setting of 4 is sufficient for I/O intensive workloads; incrementing to 8 and 16 had negligible effect.

The command netstat -na | findstr 445 proved that additional connections were established with increments from 1 to 4 to 8 and to 16. Four CPU cores were fully utilized for SMB during each test, as confirmed by the perfmon Per Processor Network Activity Cycles statistic (not included in this article.)

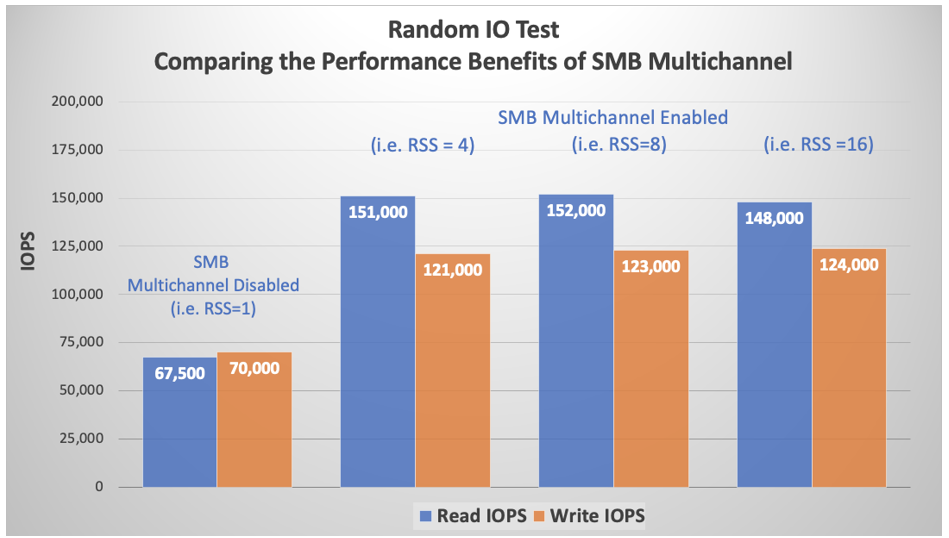

Chart that shows random I/O comparison of SMB Multichannel.

The Azure virtual machine does not affect SMB (nor NFS) storage I/O limits. As shown in the following chart, the D32ds instance type has a limited rate of 308,000 for cached storage IOPS and 51,200 for uncached storage IOPS. However, the graph above shows significantly more I/O over SMB.

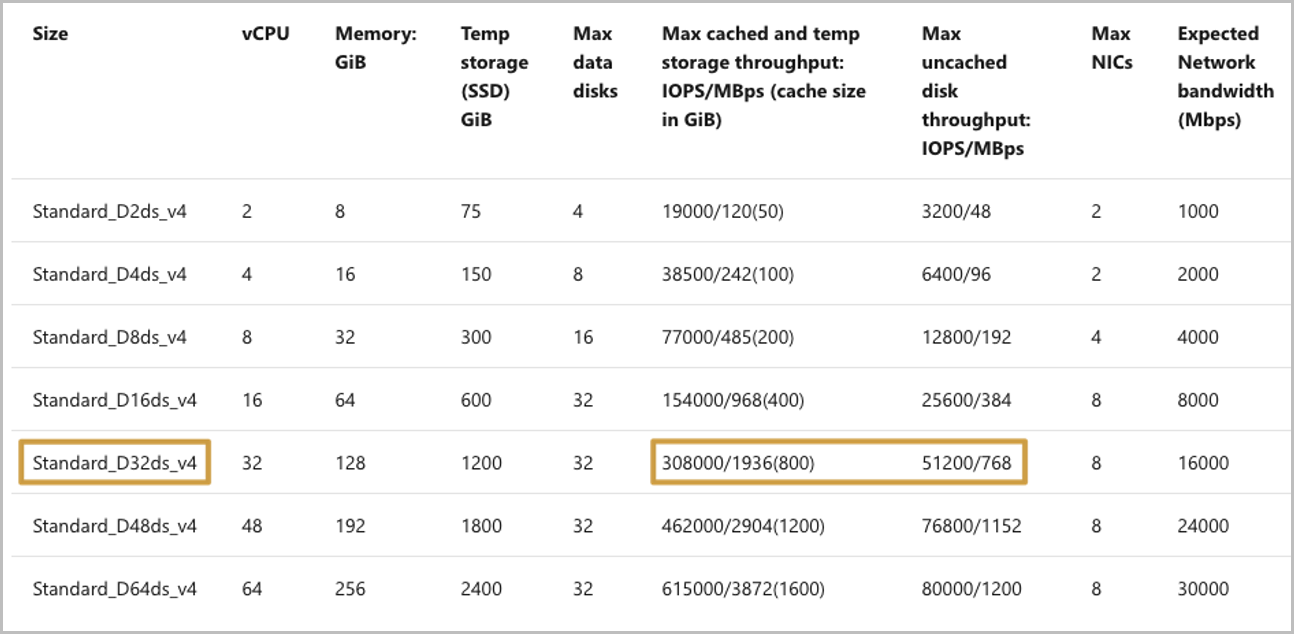

Chart that shows random I/O comparison test.

Sequential IO

Tests similar to the random I/O tests described previously were performed with 64-KiB sequential I/O. Although the increases in client connection count per RSS network interface beyond 4’ had no noticeable effect on random I/O, the same does not apply to sequential I/O. As the following graph shows, each increase is associated with a corresponding increase in read throughput. Write throughput remained flat due to network bandwidth restrictions placed by Azure for each instance type/size.

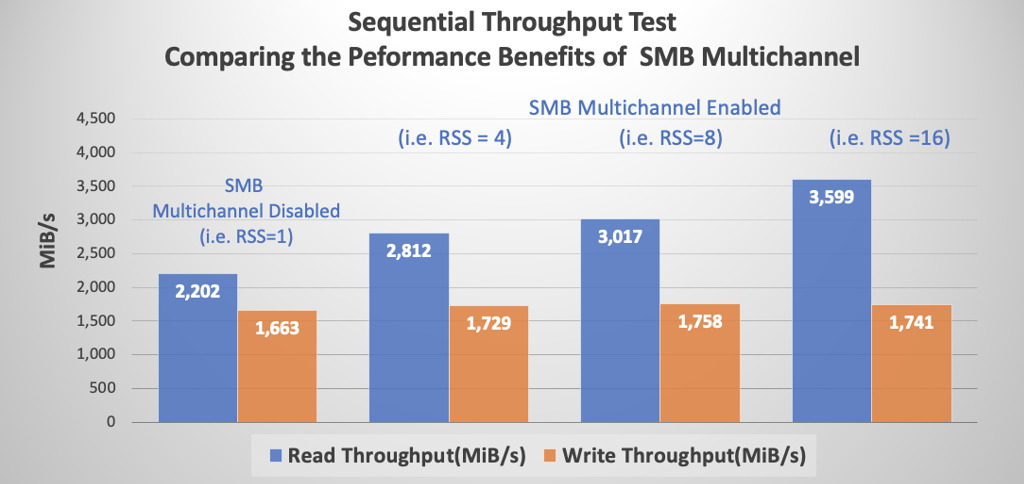

Chart that shows throughput test comparison.

Azure places network rate limits on each virtual machine type/size. The rate limit is imposed on outbound traffic only. The number of NICs present on a virtual machine has no bearing on the total amount of bandwidth available to the machine. For example, the D32ds instance type has an imposed network limit of 16,000 Mbps (2,000 MiB/s). As the sequential graph above shows, the limit affects the outbound traffic (writes) but not multichannel reads.

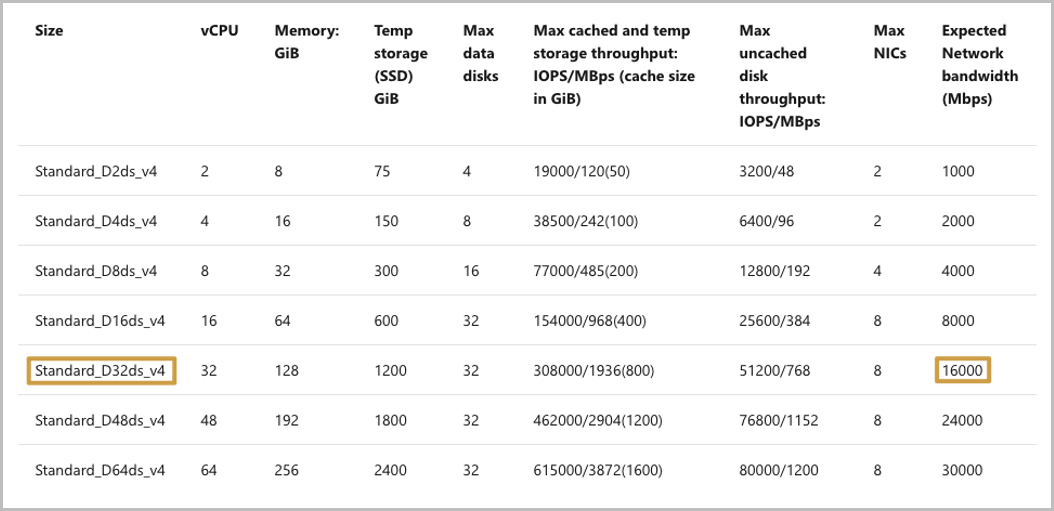

Chart that shows sequential I/O comparison test.

SMB Signing

The SMB protocol provides the basis for file and print sharing and other networking operations such as remote Windows administration. To prevent man-in-the-middle attacks that modify SMB packets in transit, the SMB protocol supports the digital signing of SMB packets.

SMB Signing is supported for all SMB protocol versions that are supported by Azure NetApp Files.

Performance impact of SMB Signing

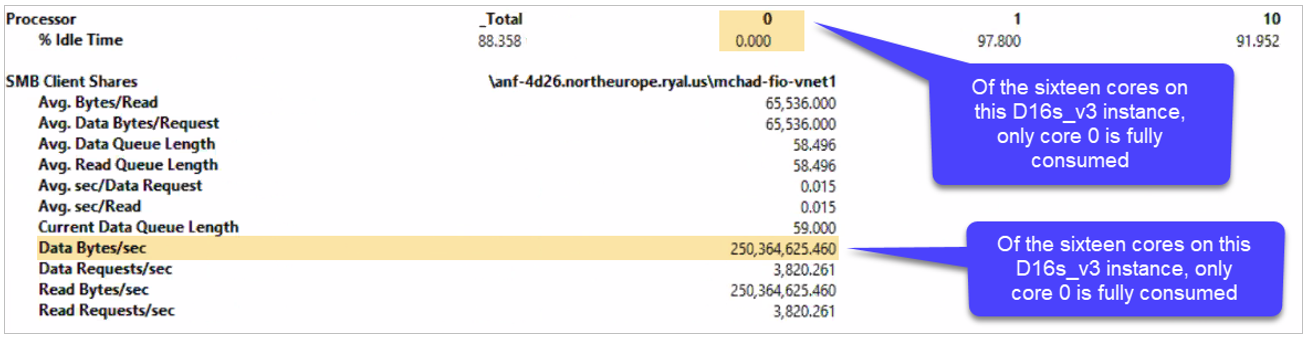

SMB Signing has a deleterious effect upon SMB performance. Among other potential causes of the performance degradation, the digital signing of each packet consumes additional client-side CPU as the perfmon output below shows. In this case, Core 0 appears responsible for SMB, including SMB Signing. A comparison with the non-multichannel sequential read throughput numbers in the previous section shows that SMB Signing reduces overall throughput from 875MiB/s to approximately 250MiB/s.

Chart that shows SMB Signing performance impact.

Performance for a single instance with a 1-TB dataset

To provide more detailed insight into workloads with read/write mixes, the following two charts show the performance of a single, Ultra service-level cloud volume of 50 TB with a 1-TB dataset and with SMB multichannel of 4. An optimal IODepth of 16 was used, and Flexible IO (FIO) parameters were used to ensure the full use of the network bandwidth (numjobs=16).

The following chart shows the results for 4k random I/O, with a single VM instance and a read/write mix at 10% intervals:

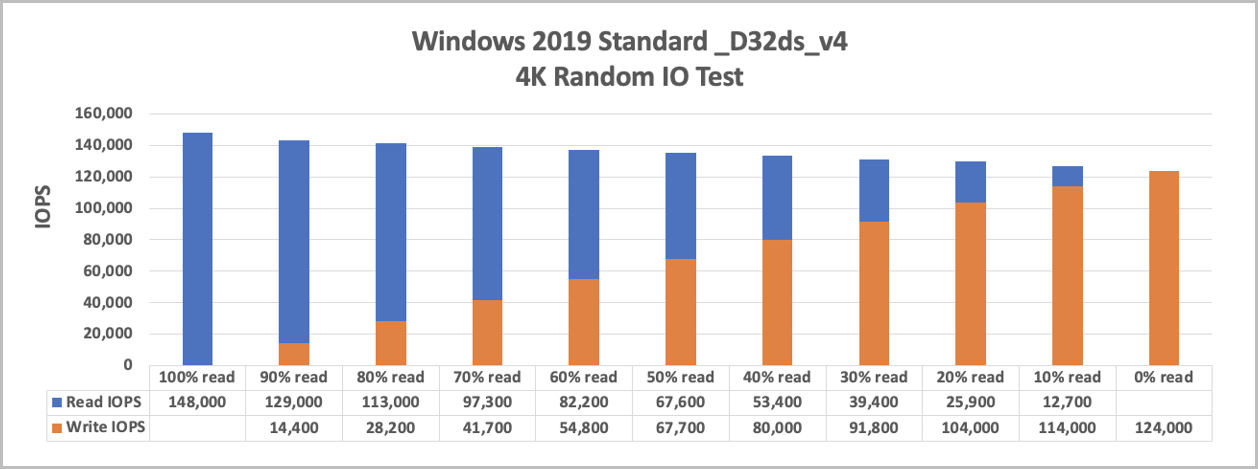

Chart that shows Windows 2019 standard _D32ds_v4 4K random IO test.

The following chart shows the results for sequential I/O:

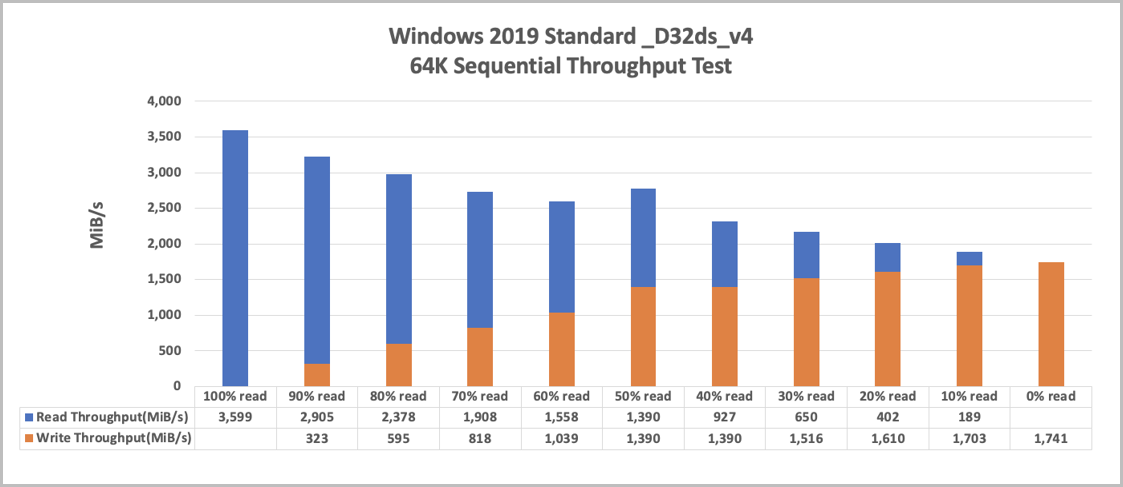

Chart that shows Windows 2019 standard _D32ds_v4 64K sequential throughput.

Performance when scaling out using 5 VMs with a 1-TB dataset

These tests with 5 VMs use the same testing environment as the single VM, with each process writing to its own file.

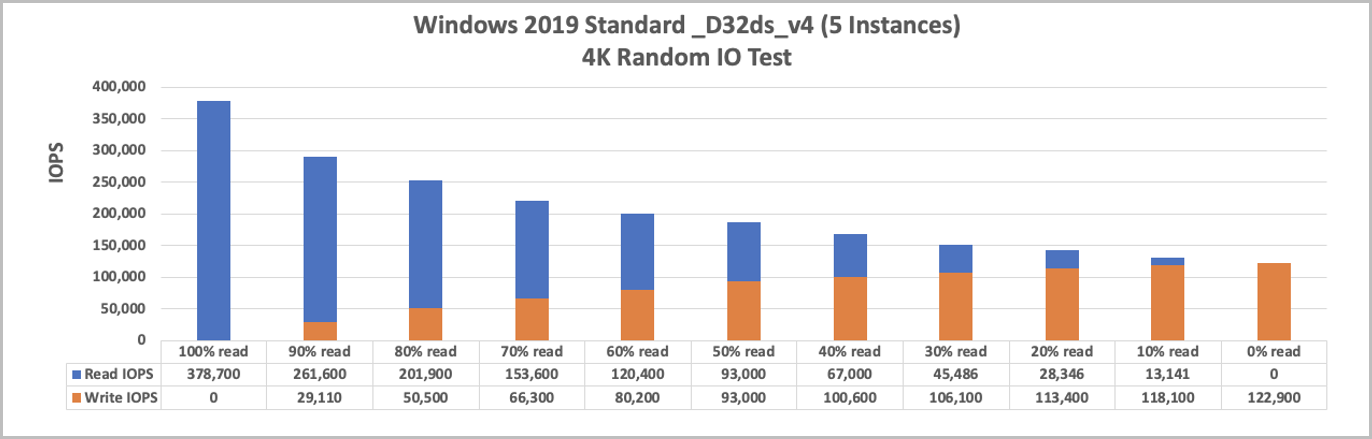

The following chart shows the results for random I/O:

Chart that shows Windows 2019 standard _D32ds_v4 4K 5-instance randio IO test.

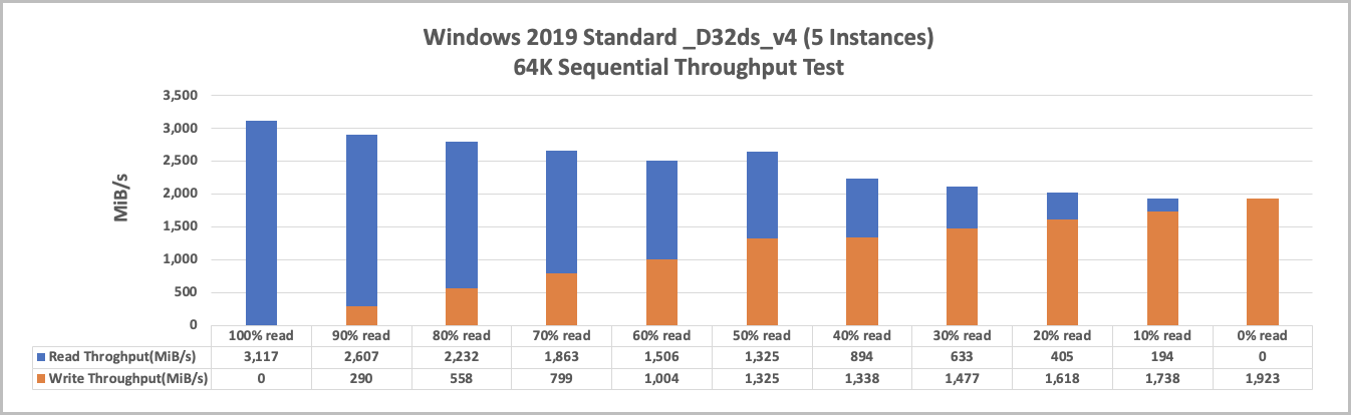

The following chart shows the results for sequential I/O:

Chart that shows Windows 2019 standard _D32ds_v4 64K 5-instance sequential throughput.

How to monitor Hyper-V ethernet adapters

One strategy used in testing with FIO is to set numjobs=16. Doing so forks each job into 16 specific instances to maximize the Microsoft Hyper-V Network Adapter.

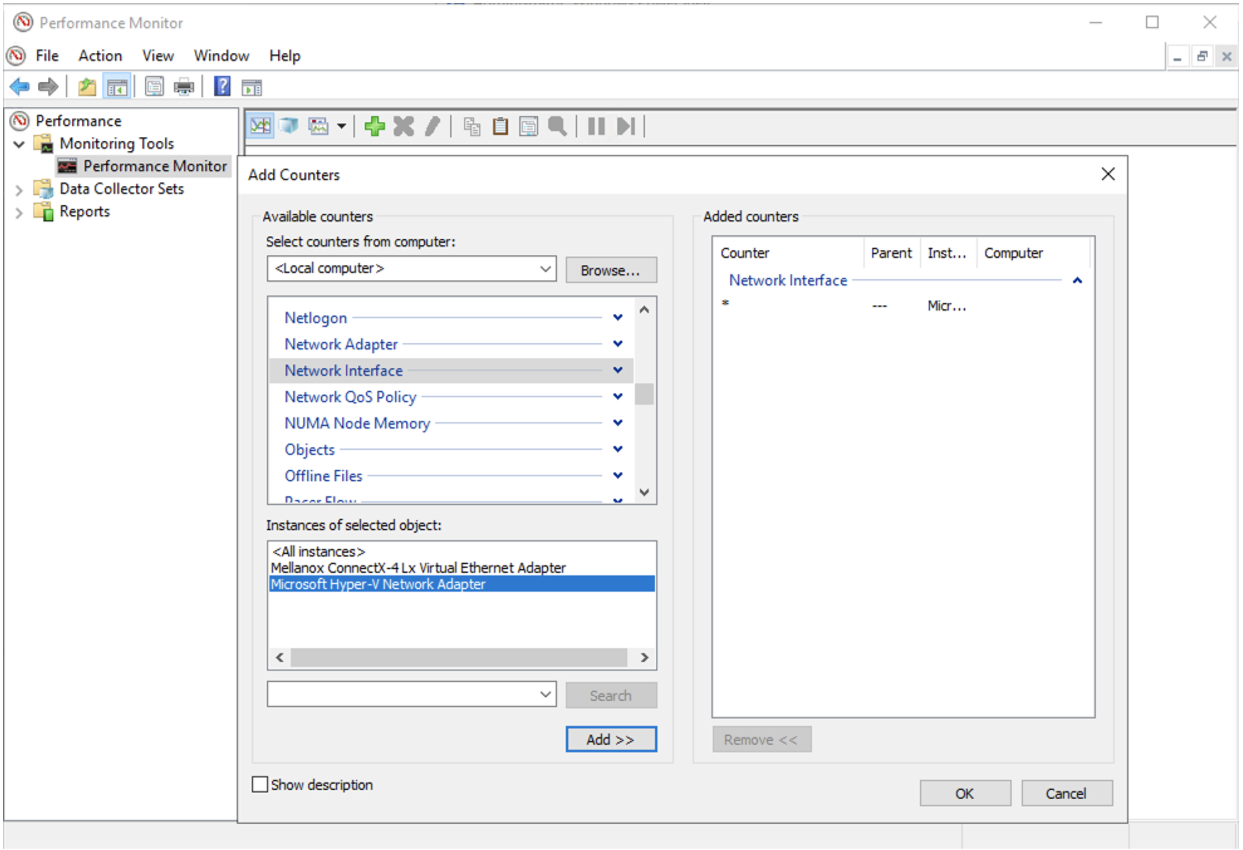

You can check for activity on each of the adapters in Windows Performance Monitor by selecting Performance Monitor > Add Counters > Network Interface > Microsoft Hyper-V Network Adapter.

Screenshot that shows Performance Monitor Add Counter interface.

After you have data traffic running in your volumes, you can monitor your adapters in Windows Performance Monitor. If you do not use all of these 16 virtual adapters, you might not be maximizing your network bandwidth capacity.

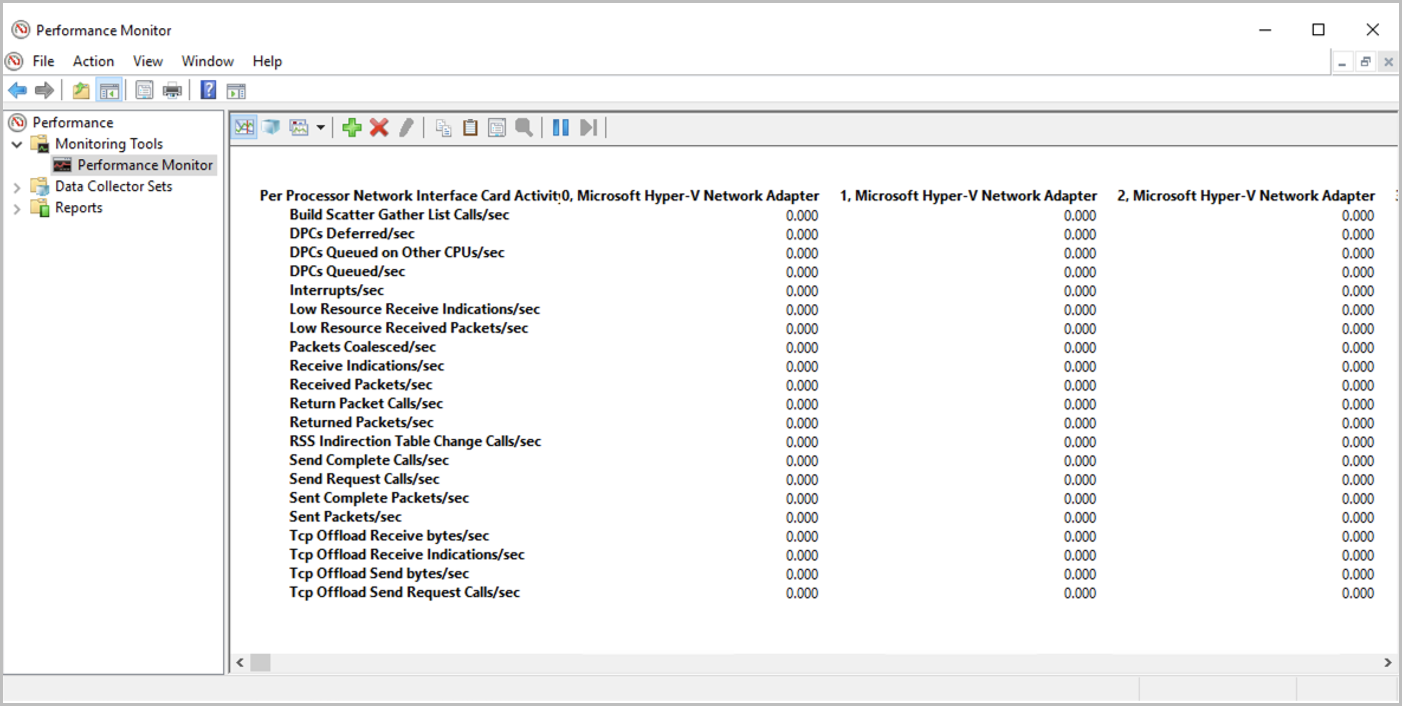

Screenshot that shows Performance Monitor output.

SMB encryption

This section helps you understand SMB encryption (SMB 3.0 and SMB 3.1.1)

SMB encryption provides end-to-end encryption of SMB data and protects data from eavesdropping occurrences on untrusted networks. SMB encryption is supported on SMB 3.0 and greater.

When sending a request to the storage, the client encrypts the request, which the storage then decrypts. Responses are similarly encrypted by the server and decrypted by the client.

Windows 10, Windows 2012, and later versions support SMB encryption.

SMB encryption and Azure NetApp Files

SMB encryption is enabled at the share level for Azure NetApp Files. SMB 3.0 employs AES-CCM algorithm, while SMB 3.1.1 employs the AES-GCM algorithm.

SMB encryption is not required. As such, it is only enabled for a given share if the user requests that Azure NetApp Files enable it. Azure NetApp Files shares are never exposed to the internet. They are only accessible from within a given VNet, over VPN or express route, so Azure NetApp Files shares are inherently secure. The choice to enable SMB encryption is entirely up to the user. Be aware of the anticipated performance penalty before enabling this feature.

Impact of SMB encryption on client workloads

Although SMB encryption has impact to both the client (CPU overhead for encrypting and decrypting messages) and the storage (reductions in throughput), the following table highlights storage impact only. You should test the encryption performance impact against your own applications before deploying workloads into production.

I/O profile Impact
Read and write workloads 10% to 15%
Metadata intensive 5%

Accelerated Networking

For maximum performance, it is recommended that you configure Accelerated Networking on your virtual machines where possible. Keep the following considerations in mind:

  • The Azure portal enables Accelerated Networking by default for virtual machines supporting this feature. However, other deployment methods such as Ansible and similar configuration tools may not. Failure to enable Accelerated Networking can hobble the performance of a machine.
  • If Accelerated Networking is not enabled on the network interface of a virtual machine due to its lack of support for an instance type or size, it will remain disabled with larger instance types. You will need manual intervention in those cases.
  • There is no need to set accelerated networking for the NICs in the dedicated subnet of Azure NetApp Files. Accelerated networking is a capability that only applies to Azure virtual machines. Azure NetApp Files NICs are optimized by design.


Azure NetApp Files supports receive-side-scaling (RSS).

With SMB Multichannel enabled, an SMB3 client establishes multiple TCP connections to the Azure NetApp Files SMB server over a network interface card (NIC) that is single RSS capable.

To see if your Azure virtual machine NICs support RSS, run the command Get-SmbClientNetworkInterface as follows and check the field RSS Capable:

Screenshot that shows RSS output for Azure virtual machine.

Multiple NICs on SMB clients

You should not configure multiple NICs on your client for SMB. The SMB client will match the NIC count returned by the SMB server. Each storage volume is accessible from one and only one storage endpoint. That means that only one NIC will be used for any given SMB relationship.

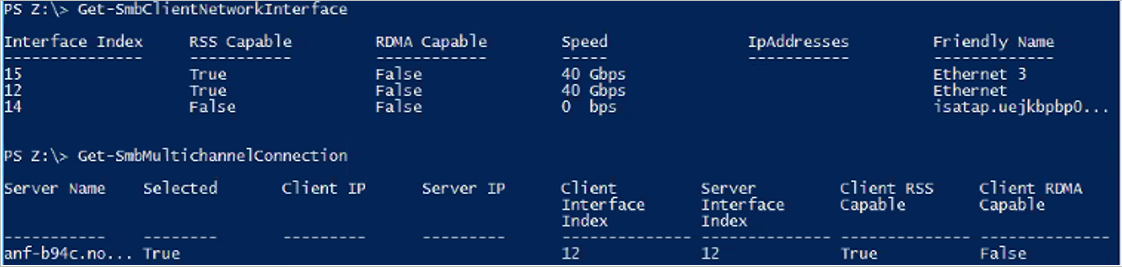

As the output of Get-SmbClientNetworkInterace below shows, the virtual machine has 2 network interfaces--15 and 12. As shown under the following command Get-SmbMultichannelConnection, even though there are two RSS-capable NICS, only interface 12 is used in connection with the SMB share; interface 15 is not in use.

Screeshot that shows output for RSS-capable NICS.
