Configure NFSv4.1 Kerberos encryption for Azure NetApp Files
Azure NetApp Files supports NFS client encryption in Kerberos modes (krb5, krb5i, and krb5p) with AES-256 encryption. This article describes the required configurations for using an NFSv4.1 volume with Kerberos encryption.
The following requirements apply to NFSv4.1 client encryption:
- Active Directory Domain Services (AD DS) or Azure Active Directory Domain Services (AADDS) connection to facilitate Kerberos ticketing
- DNS A/PTR record creation for both the client and Azure NetApp Files NFS server IP addresses
- A Linux client: This article provides guidance for RHEL and Ubuntu clients. Other clients will work with similar configuration steps.
- NTP server access: You can use one of the commonly used Active Directory Domain Controller (AD DC) domain controllers.
- To leverage Domain or LDAP user authentication, ensure that NFSv4.1 volumes are enabled for LDAP. See Configure ADDS LDAP with extended groups.
- Ensure that User Principal Names for user accounts do not end with a
$symbol (for example, user$@REALM.COM).
For Group managed service accounts (gMSA), you need to remove the trailing
$from the User Principal Name before the account can be used with the Azure NetApp Files Kerberos feature.
Create an NFS Kerberos Volume
Follow steps in Create an NFS volume for Azure NetApp Files to create the NFSv4.1 volume.

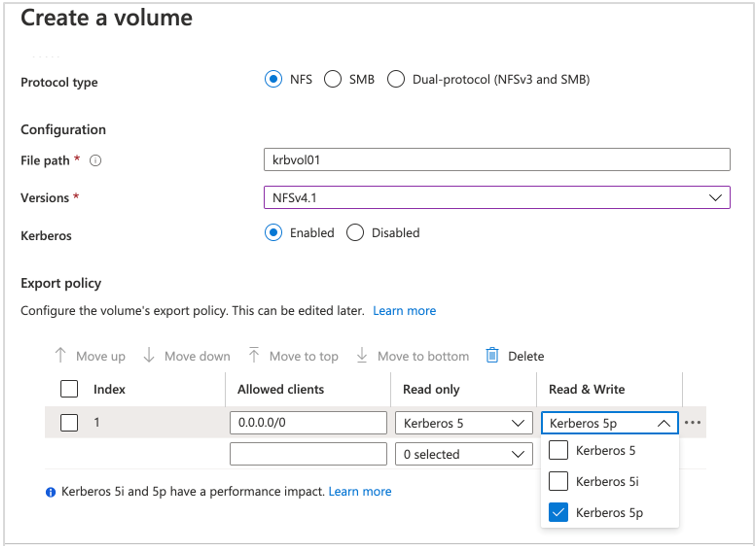

On the Create a Volume page, set the NFS version to NFSv4.1, and set Kerberos to Enabled.
You cannot modify the Kerberos enablement selection after the volume is created.
Select Export Policy to match the desired level of access and security option (Kerberos 5, Kerberos 5i, or Kerberos 5p) for the volume.
For performance impact of Kerberos, see Performance impact of Kerberos on NFSv4.1.
You can also modify the Kerberos security methods for the volume by clicking Export Policy in the Azure NetApp Files navigation pane.
Click Review + Create to create the NFSv4.1 volume.
Configure the Azure portal
Follow the instructions in Create an Active Directory connection.
Kerberos requires that you create at least one computer account in Active Directory. The account information you provide is used for creating the accounts for both SMB and NFSv4.1 Kerberos volumes. This machine is account is created automatically during volume creation.

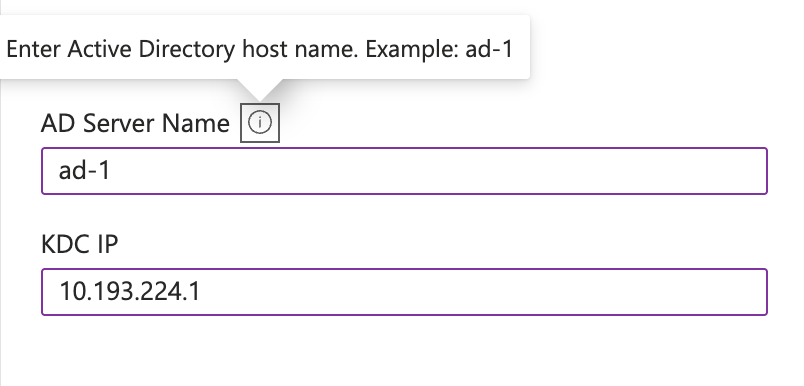

Under Kerberos Realm, enter the AD Server Name and the KDC IP address.
AD Server and KDC IP can be the same server. This information is used to create the SPN computer account used by Azure NetApp Files. After the computer account is created, Azure NetApp Files will use DNS Server records to locate additional KDC servers as needed.
Click Join to save the configuration.
Configure Active Directory connection
Configuration of NFSv4.1 Kerberos creates two computer accounts in Active Directory:
- A computer account for SMB shares
- A computer account for NFSv4.1--You can identify this account by way of the prefix
After creating the first NFSv4.1 Kerberos volume, set the encryption type for the computer account by using the following PowerShell command:
Set-ADComputer $NFSCOMPUTERACCOUNT -KerberosEncryptionType AES256
Configure the NFS client
Follow instructions in Configure an NFS client for Azure NetApp Files to configure the NFS client.
Mount the NFS Kerberos volume
From the Volumes page, select the NFS volume that you want to mount.

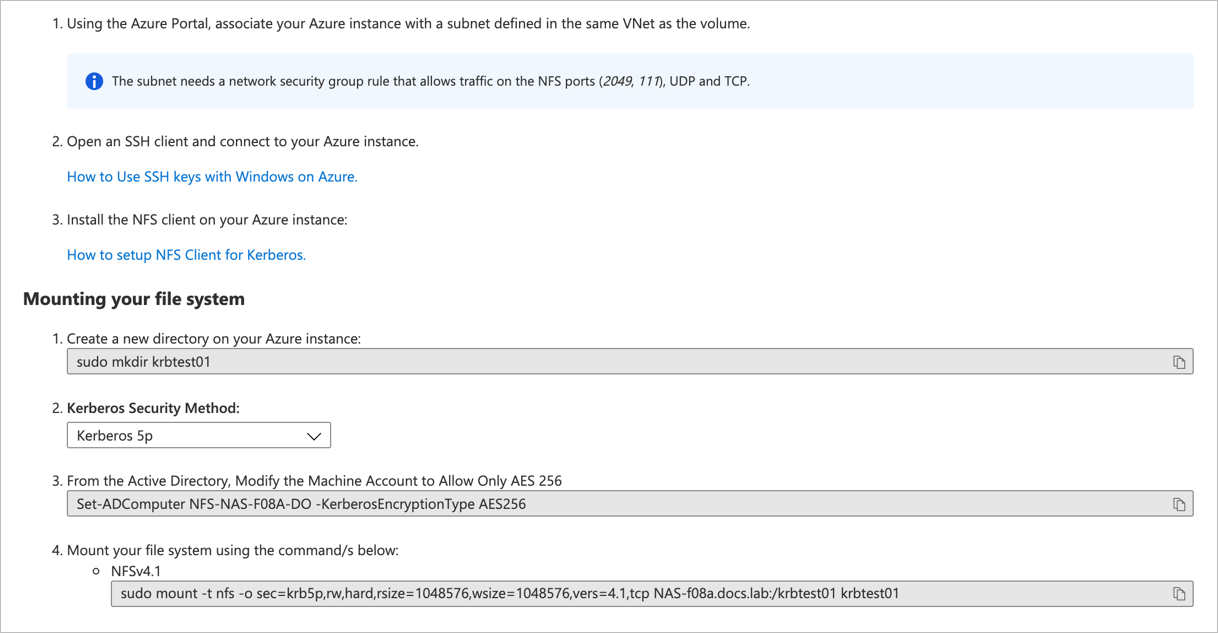

Select Mount instructions from the volume to display the instructions.
Create the directory (mount point) for the new volume.
Set the default encryption type to AES 256 for the computer account:
Set-ADComputer $NFSCOMPUTERACCOUNT -KerberosEncryptionType AES256 -Credential $ANFSERVICEACCOUNT
- You need to run this command only once for each computer account.
- You can run this command from a domain controller or from a PC with RSAT installed.
$NFSCOMPUTERACCOUNTvariable is the computer account created in Active Directory when you deploy the Kerberos volume. This is the account that is prefixed with
$ANFSERVICEACCOUNTvariable is a non-privileged Active Directory user account with delegated controls over the Organizational Unit where the computer account has been created.
Mount the volume on the host:
sudo mount -t nfs -o sec=krb5p,rw,hard,rsize=1048576,wsize=1048576,vers=4.1,tcp $ANFEXPORT $ANFMOUNTPOINT
$ANFEXPORTvariable is the
host:/exportpath found in the mount instructions.
$ANFMOUNTPOINTvariable is the user-created folder on the Linux host.
Performance impact of Kerberos on NFSv4.1
You should understand the security options available for NFSv4.1 volumes, the tested performance vectors, and the expected performance impact of kerberos. See Performance impact of Kerberos on NFSv4.1 volumes for details.
