Getting started with JSON features in Azure SQL Database and Azure SQL Managed Instance

Applies to: Azure SQL Database Azure SQL Managed Instance

Azure SQL Database and Azure SQL Managed Instance let you parse and query data represented in JavaScript Object Notation (JSON) format, and export your relational data as JSON text. The following JSON scenarios are available:

Formatting relational data in JSON format

If you have a web service that takes data from the database layer and provides a response in JSON format, or client-side JavaScript frameworks or libraries that accept data formatted as JSON, you can format your database content as JSON directly in a SQL query. You no longer have to write application code that formats results from Azure SQL Database or Azure SQL Managed Instance as JSON, or include some JSON serialization library to convert tabular query results and then serialize objects to JSON format. Instead, you can use the FOR JSON clause to format SQL query results as JSON and use it directly in your application.

In the following example, rows from the Sales.Customer table are formatted as JSON by using the FOR JSON clause:

select CustomerName, PhoneNumber, FaxNumber
from Sales.Customers

The FOR JSON PATH clause formats the results of the query as JSON text. Column names are used as keys, while the cell values are generated as JSON values:

{"CustomerName":"Eric Torres","PhoneNumber":"(307) 555-0100","FaxNumber":"(307) 555-0101"},
{"CustomerName":"Cosmina Vlad","PhoneNumber":"(505) 555-0100","FaxNumber":"(505) 555-0101"},
{"CustomerName":"Bala Dixit","PhoneNumber":"(209) 555-0100","FaxNumber":"(209) 555-0101"}

The result set is formatted as a JSON array where each row is formatted as a separate JSON object.

PATH indicates that you can customize the output format of your JSON result by using dot notation in column aliases. The following query changes the name of the "CustomerName" key in the output JSON format, and puts phone and fax numbers in the "Contact" sub-object:

select CustomerName as Name, PhoneNumber as [Contact.Phone], FaxNumber as [Contact.Fax]
from Sales.Customers
where CustomerID = 931

The output of this query looks like this:

    "Name":"Nada Jovanovic",
           "Phone":"(215) 555-0100",
           "Fax":"(215) 555-0101"

In this example, we returned a single JSON object instead of an array by specifying the WITHOUT_ARRAY_WRAPPER option. You can use this option if you know that you are returning a single object as a result of query.

The main value of the FOR JSON clause is that it lets you return complex hierarchical data from your database formatted as nested JSON objects or arrays. The following example shows how to include the rows from the Orders table that belong to the Customer as a nested array of Orders:

select CustomerName as Name, PhoneNumber as Phone, FaxNumber as Fax,
        Orders.OrderID, Orders.OrderDate, Orders.ExpectedDeliveryDate
from Sales.Customers Customer
    join Sales.Orders Orders
        on Customer.CustomerID = Orders.CustomerID
where Customer.CustomerID = 931

Instead of sending separate queries to get Customer data and then to fetch a list of related Orders, you can get all the necessary data with a single query, as shown in the following sample output:

  "Name":"Nada Jovanovic",
  "Phone":"(215) 555-0100",
  "Fax":"(215) 555-0101",

Working with JSON data

If you don't have strictly structured data, if you have complex sub-objects, arrays, or hierarchical data, or if your data structures evolve over time, the JSON format can help you to represent any complex data structure.

JSON is a textual format that can be used like any other string type in Azure SQL Database and Azure SQL Managed Instance. You can send or store JSON data as a standard NVARCHAR:

  Id int identity primary key,
  Title nvarchar(200),
  Data nvarchar(max)
CREATE PROCEDURE InsertProduct(@title nvarchar(200), @json nvarchar(max))
    insert into Products(Title, Data)
    values(@title, @json)

The JSON data used in this example is represented by using the NVARCHAR(MAX) type. JSON can be inserted into this table or provided as an argument of the stored procedure using standard Transact-SQL syntax as shown in the following example:

EXEC InsertProduct 'Toy car', '{"Price":50,"Color":"White","tags":["toy","children","games"]}'

Any client-side language or library that works with string data in Azure SQL Database and Azure SQL Managed Instance will also work with JSON data. JSON can be stored in any table that supports the NVARCHAR type, such as a Memory-optimized table or a System-versioned table. JSON does not introduce any constraint either in the client-side code or in the database layer.

Querying JSON data

If you have data formatted as JSON stored in Azure SQL tables, JSON functions let you use this data in any SQL query.

JSON functions that are available in Azure SQL Database and Azure SQL Managed Instance let you treat data formatted as JSON as any other SQL data type. You can easily extract values from the JSON text, and use JSON data in any query:

select Id, Title, JSON_VALUE(Data, '$.Color'), JSON_QUERY(Data, '$.tags')
from Products
where JSON_VALUE(Data, '$.Color') = 'White'

update Products
set Data = JSON_MODIFY(Data, '$.Price', 60)
where Id = 1

The JSON_VALUE function extracts a value from JSON text stored in the Data column. This function uses a JavaScript-like path to reference a value in JSON text to extract. The extracted value can be used in any part of SQL query.

The JSON_QUERY function is similar to JSON_VALUE. Unlike JSON_VALUE, this function extracts complex sub-object such as arrays or objects that are placed in JSON text.

The JSON_MODIFY function lets you specify the path of the value in the JSON text that should be updated, as well as a new value that will overwrite the old one. This way you can easily update JSON text without reparsing the entire structure.

Since JSON is stored in a standard text, there are no guarantees that the values stored in text columns are properly formatted. You can verify that text stored in JSON column is properly formatted by using standard Azure SQL Database check constraints and the ISJSON function:

    ADD CONSTRAINT [Data should be formatted as JSON]
        CHECK (ISJSON(Data) > 0)

If the input text is properly formatted JSON, the ISJSON function returns the value 1. On every insert or update of JSON column, this constraint will verify that new text value is not malformed JSON.

Transforming JSON into tabular format

Azure SQL Database and Azure SQL Managed Instance also let you transform JSON collections into tabular format and load or query JSON data.

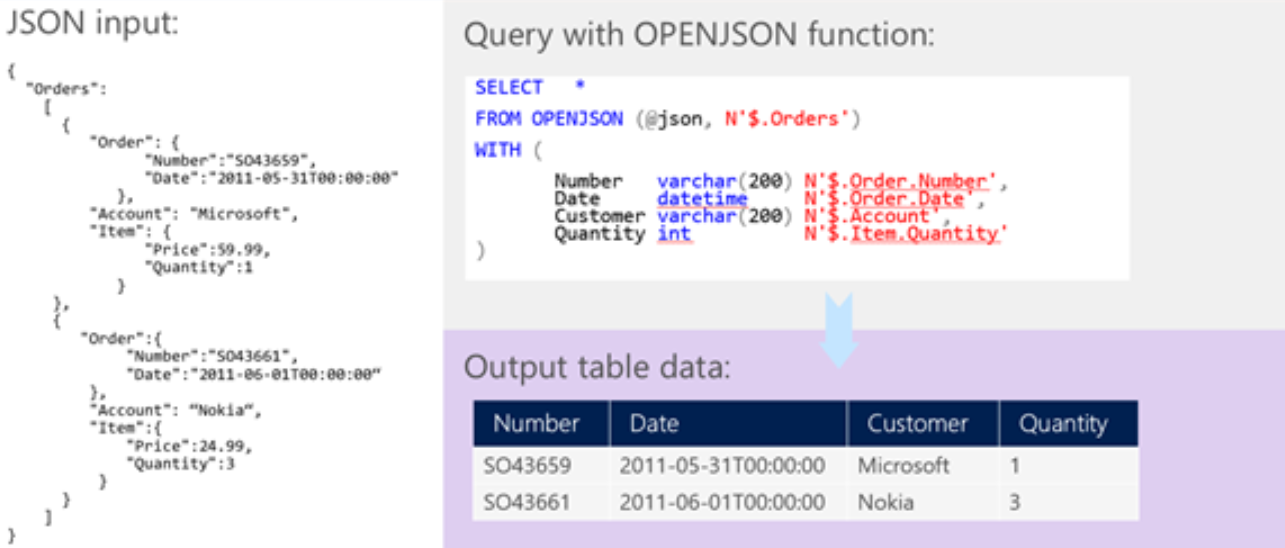

OPENJSON is a table-value function that parses JSON text, locates an array of JSON objects, iterates through the elements of the array, and returns one row in the output result for each element of the array.

JSON tabular

In the example above, we can specify where to locate the JSON array that should be opened (in the $.Orders path), what columns should be returned as result, and where to find the JSON values that will be returned as cells.

We can transform a JSON array in the @orders variable into a set of rows, analyze this result set, or insert rows into a standard table:

CREATE PROCEDURE InsertOrders(@orders nvarchar(max))

    insert into Orders(Number, Date, Customer, Quantity)
    select Number, Date, Customer, Quantity
    FROM OPENJSON (@orders)
     WITH (
            Number varchar(200),
            Date datetime,
            Customer varchar(200),
            Quantity int

The collection of orders formatted as a JSON array and provided as a parameter to the stored procedure can be parsed and inserted into the Orders table.
