Tutorial: Add an NSX-T Data Center network segment in Azure VMware Solution
After deploying Azure VMware Solution, you can configure an NSX-T Data Center network segment from NSX-T Manager or the Azure portal. Once configured, the segments are visible in Azure VMware Solution, NSX-T Manager, and vCenter Server. NSX-T Data Center comes pre-provisioned by default with an NSX-T Data Center Tier-0 gateway in Active/Active mode and a default NSX-T Data Center Tier-1 gateway in Active/Standby mode. These gateways let you connect the segments (logical switches) and provide East-West and North-South connectivity.
The Azure portal presents a simplified view of NSX-T Data Center operations a VMware administrator needs regularly and targeted at users not familiar with NSX-T Manager.
In this tutorial, you learn how to:
- Add network segments using either NSX-T Manager or the Azure portal
- Verify the new network segment
An Azure VMware Solution private cloud with access to the vCenter Server and NSX-T Manager interfaces. For more information, see the Configure networking tutorial.
Use Azure portal to add an NSX-T Data Center network segment
If you plan to use DHCP, you'll need to configure a DHCP server or DHCP relay before you can configure an NSX-T network segment.

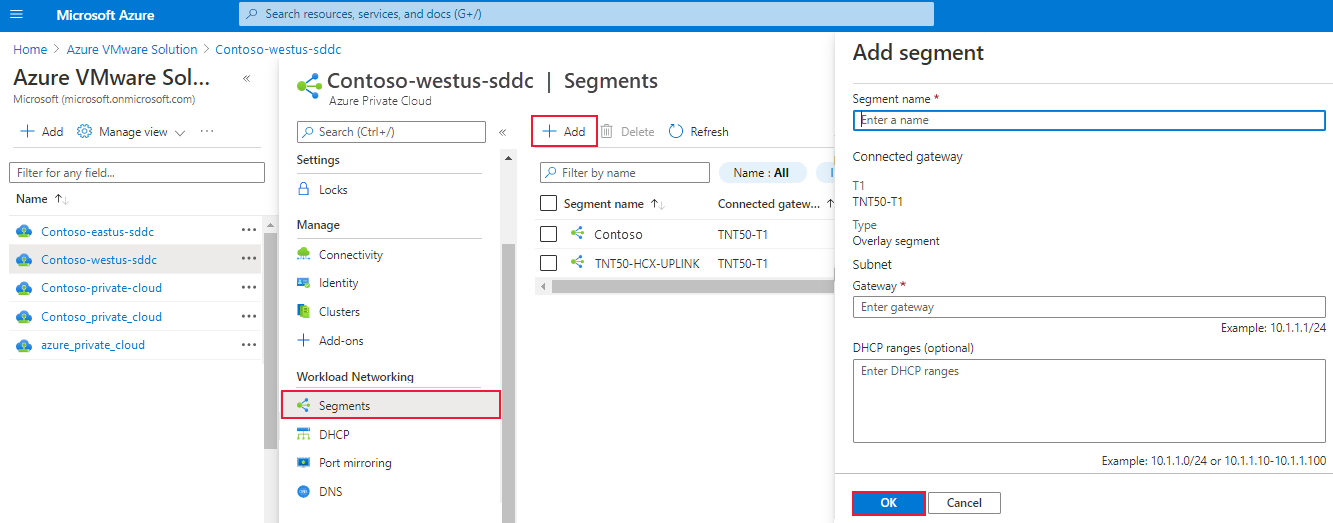

In your Azure VMware Solution private cloud, under Workload Networking, select Segments > Add.
Provide the details for the new logical segment and select OK.
Segment name - Name of the segment that is visible in vCenter.
Subnet gateway - Gateway IP address for the segment's subnet with a subnet mask. VMs are attached to a logical segment, and all VMs connecting to this segment belong to the same subnet. Also, all VMs attached to this logical segment must carry an IP address from the same segment.
DHCP (optional) - DHCP ranges for a logical segment. You must configure a DHCP server or DHCP relay to consume DHCP on Segments.
The Connected gateway is selected by default and is read-only. It shows Tier-1 gateway and type of segment information.
T1 - Name of the Tier-1 gateway in NSX-T Manager. A private cloud comes with an NSX-T Tier-0 gateway in Active/Active mode and a default NSX-T Tier-1 gateway in Active/Standby mode. Segments created through the Azure VMware Solution console only connect to the default Tier-1 gateway, and the workloads of these segments get East-West and North-South connectivity. You can only create more Tier-1 gateways through NSX-T Manager. Tier-1 gateways created from the NSX-T Manager console are not visible in the Azure VMware Solution console.
Type - Overlay segment supported by Azure VMware Solution.
The segment is now visible in Azure VMware Solution, NSX-T Manger, and vCenter.
Use NSX-T Manager to add network segment
The virtual machines (VMs) created in vCenter Server are placed onto the network segments created in NSX-T Data Center and are visible in vCenter Server.

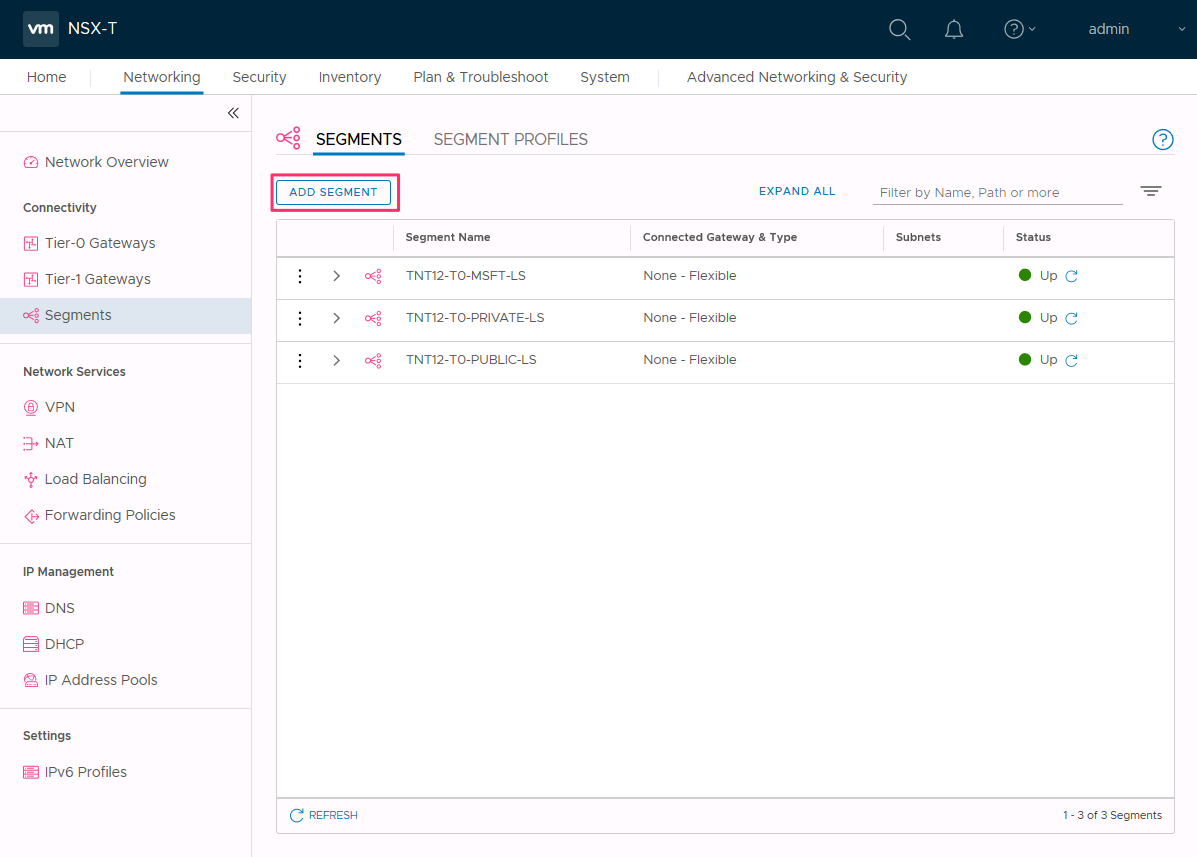

In NSX-T Manager, select Networking > Segments, and then select Add Segment.

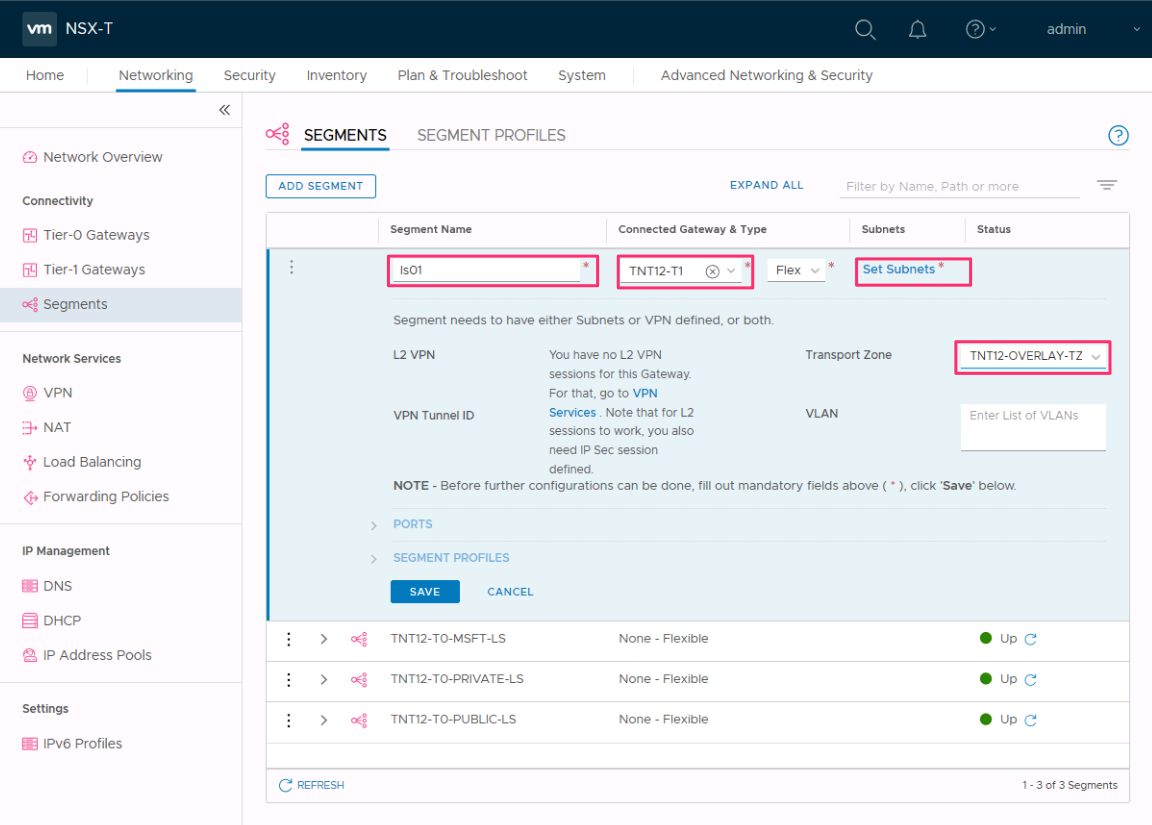

Enter a name for the segment.
Select the Tier-1 Gateway (TNTxx-T1) as the Connected Gateway and leave the Type as Flexible.
Select the pre-configured overlay Transport Zone (TNTxx-OVERLAY-TZ) and then select Set Subnets.

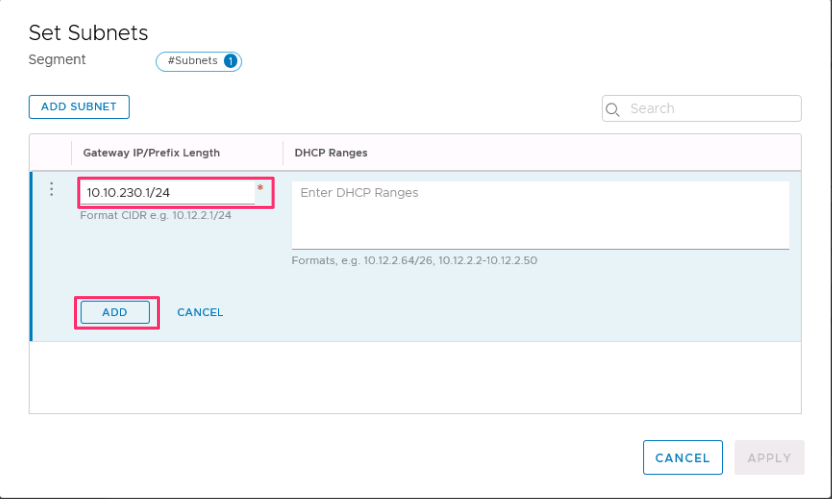

Enter the gateway IP address and then select Add.
The IP address needs to be on a non-overlapping RFC1918 address block, which ensures connection to the VMs on the new segment.
Select Apply and then Save.
Select No to decline the option to continue configuring the segment.
Verify the new network segment
Verify the presence of the new network segment. In this example, ls01 is the new network segment.

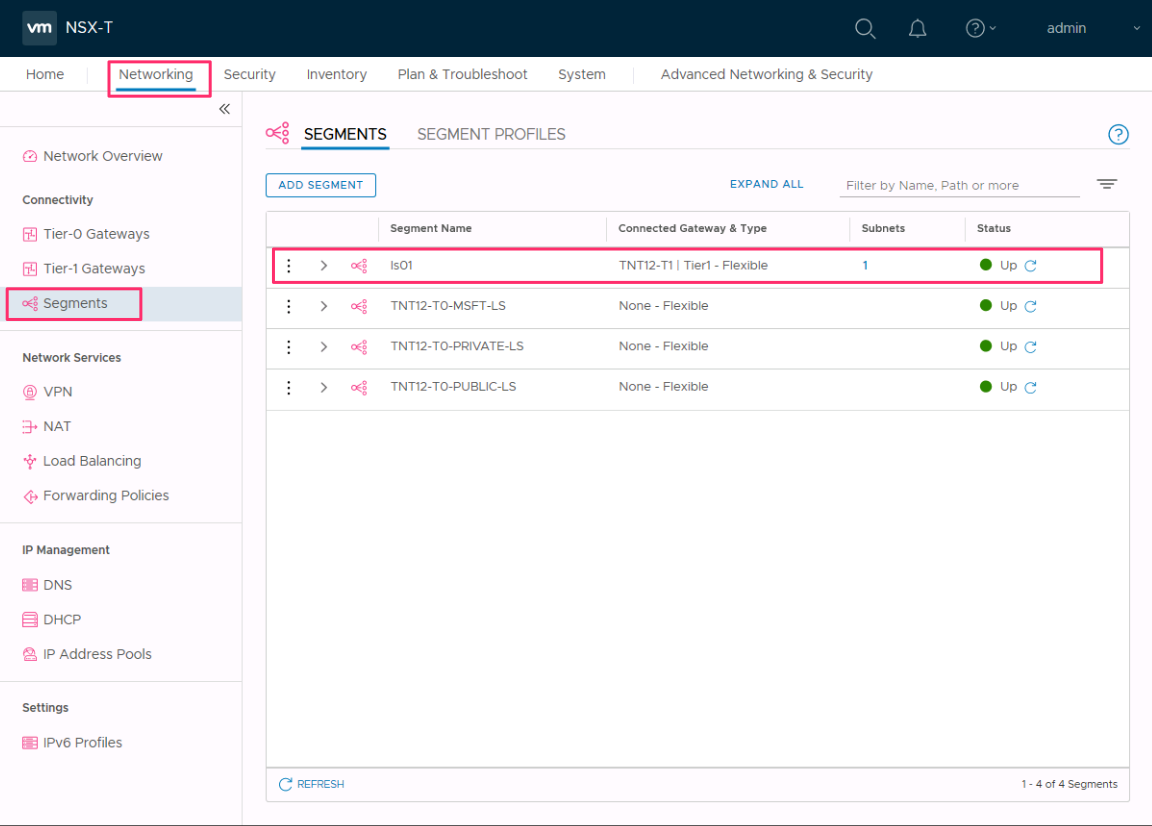

In NSX-T Manager, select Networking > Segments.

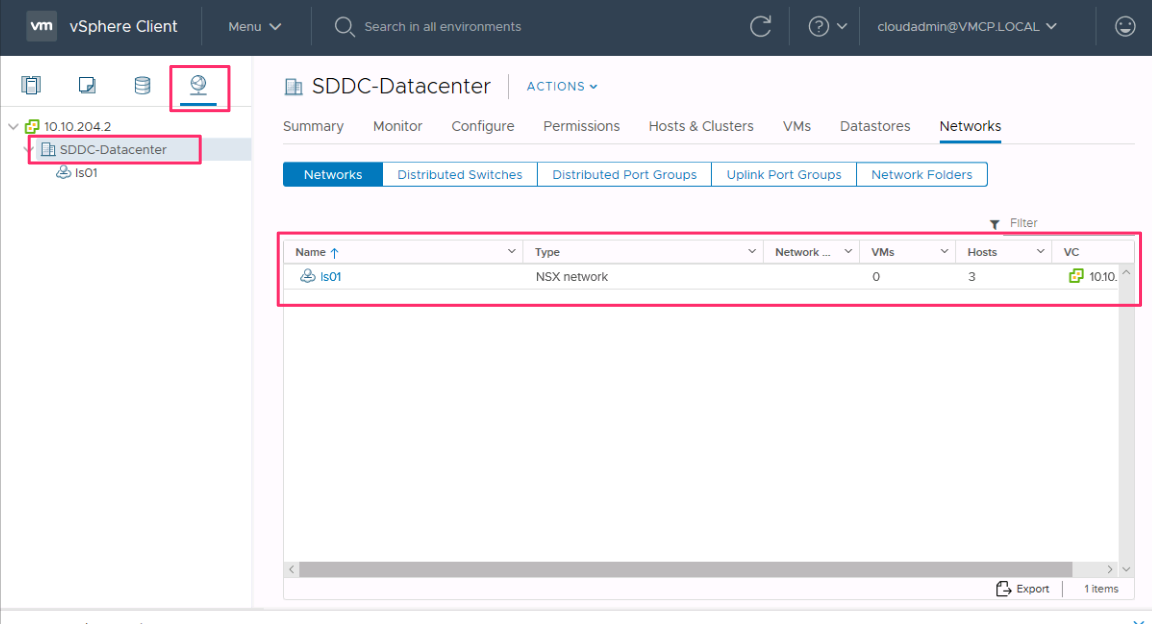

In vCenter Server, select Networking > SDDC-Datacenter.
In this tutorial, you created an NSX-T Data Center network segment to use for VMs in vCenter Server.
