Performance guide for Azure Web PubSub Service

One of the key benefits of using Azure Web PubSub Service is the ease of scaling Web PubSub upstream applications. In a large-scale scenario, performance is an important factor.

In this guide, we'll introduce the factors that affect Web PubSub upstream application performance. We'll describe typical performance in different use-case scenarios.

Quick evaluation using metrics

Before going through the factors that impact the performance, let's first introduce an easy way to monitor the pressure of your service. There's a metrics called Server Load on the Portal.

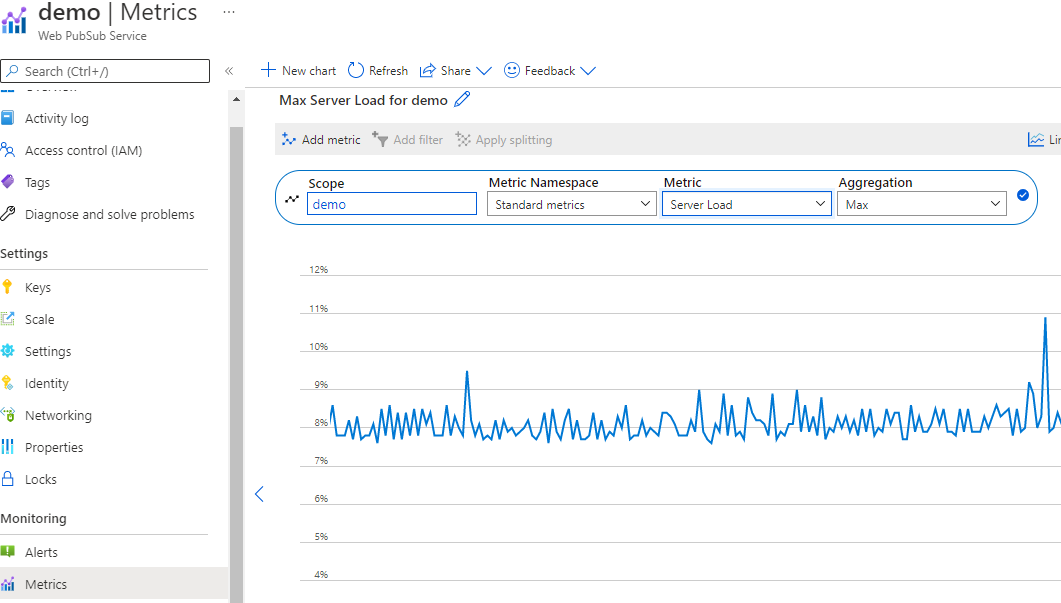

Screenshot of the Server Load metric of Azure Web PubSub on Portal. The metrics shows Server Load is at about 8 percent usage.

It shows the computing pressure of your Azure Web PubSub service. You could test on your own scenario and check this metrics to decide whether to scale up. The latency inside Azure Web PubSub service would remain low if the Server Load is below 70%.

Note

If you are using unit 50 or unit 100 and your scenario is mainly sending to small groups (group size <100), you need to check sending to small group for reference. In those scenarios there is large routing cost which is not included in the Server Load.

Below are detailed concepts for evaluating performance.

Term definitions

Inbound: The incoming message to Azure Web PubSub Service.

Outbound: The outgoing message from Azure Web PubSub Service.

Bandwidth: The total size of all messages in 1 second.

Overview

Azure Web PubSub Service defines seven Standard tiers for different performance capacities. This guide answers the following questions:

  • What is the typical Azure Web PubSub Service performance for each tier?

  • Does Azure Web PubSub Service meet my requirements for message throughput (for example, sending 100,000 messages per second)?

  • For my specific scenario, which tier is suitable for me? Or how can I select the proper tier?

To answer these questions, this guide first gives a high-level explanation of the factors that affect performance. It then illustrates the maximum inbound and outbound messages for every tier for typical use cases: Send to groups through Web PubSub subprotocol, upstream, and rest api .

This guide can't cover all scenarios (and different use cases, message sizes, message sending patterns, and so on). But it provides some basic information to understand the performance limitation.

Performance insight

This section describes the performance evaluation methodologies, and then lists all factors that affect performance. In the end, it provides methods to help you evaluate performance requirements.

Methodology

Throughput and latency are two typical aspects of performance checking. For Azure Web PubSub Service, each SKU tier has its own throughput throttling policy. The policy defines the maximum allowed throughput (inbound and outbound bandwidth) as the maximum achieved throughput when 99 percent of messages have latency that's less than 1 second.

Performance factors

Theoretically, Azure Web PubSub Service capacity is limited by computation resources: CPU, memory, and network. For example, more connections to Azure Web PubSub Service cause the service to use more memory. For larger message traffic (for example, every message is larger than 2,048 bytes), Azure Web PubSub Service needs to spend more CPU cycles to process traffic.

The message routing cost also limits performance. Azure Web PubSub Service plays a role as a message broker, which routes the message among a set of clients. A different scenario or API requires a different routing policy.

For echo, the client sends a message to the upstream, and upstream echoes the message back to the client. This pattern has the lowest routing cost. But for broadcast, send to group, and send to connection, Azure Web PubSub Service needs to look up the target connections through the internal distributed data structure. This extra processing uses more CPU, memory, and network bandwidth. As a result, performance is slower.

In summary, the following factors affect the inbound and outbound capacity:

  • SKU tier (CPU/memory)

  • Number of connections

  • Message size

  • Message send rate

  • Use-case scenario (routing cost)

Finding a proper SKU

How can you evaluate the inbound/outbound capacity or find which tier is suitable for a specific use case?

Every tier has its own maximum inbound bandwidth and outbound bandwidth. A smooth user experience isn't guaranteed after the inbound or outbound traffic exceeds the limit.

  inboundBandwidth = inboundConnections * messageSize / sendInterval
  outboundBandwidth = outboundConnections * messageSize / sendInterval
  • inboundConnections: The number of connections sending the message.
  • outboundConnections: The number of connections receiving the message.
  • messageSize: The size of a single message (average value). A small message that's less than 1,024 bytes has a performance impact that's similar to a 1,024-byte message.
  • sendInterval: The interval for sending messages. For example, 1 second means sending one message every second. A smaller interval means sending more messages in a time period. For example, 0.5 second means sending two messages every second.
  • Connections: The committed maximum threshold for Azure Web PubSub Service for every tier. Connections that exceed the threshold get throttled.

Assume that the upstream is powerful enough and isn't the performance bottleneck. Then, check the maximum inbound and outbound bandwidth for every tier.

Case study

The following sections go through three typical use cases: send to groups through Web PubSub subprotocol, triggering CloudEvent, calling rest api. For each scenario, the section lists the current inbound and outbound capacity for Azure Web PubSub Service. It also explains the main factors that affect performance.

In all use cases, the default message size is 2,048 bytes, and the message send interval is 1 second.

Send to groups through Web PubSub subprotocol

The service supports a specific subprotocol called json.webpubsub.azure.v1, which empowers the clients to do publish/subscribe directly instead of a round trip to the upstream server. This scenario is efficient as no server is involved and all traffic goes through the client-service WebSocket connection.

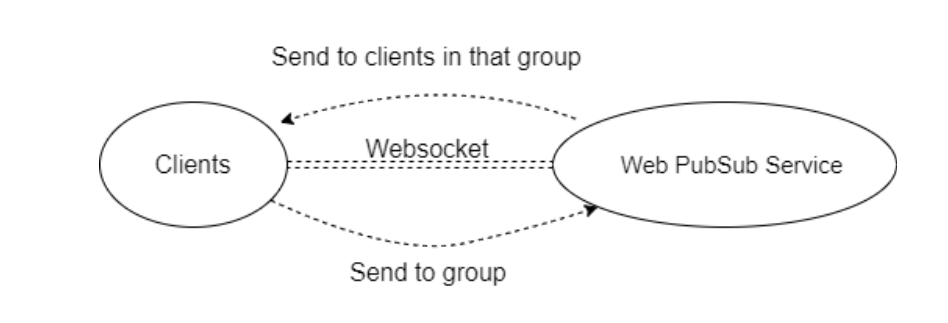

Diagram showing the send to group workflow.

Group member and group count are two factors that affect performance. To simplify the analysis, we define two kinds of groups:

  • Big group: The group number is always 10. The group member count is equal to (max connection count) / 10. For example, for Unit1, if there are 1,000 connection counts, then every group has 1000 / 10 = 100 members.
  • Small group: Every group has 10 connections. The group number is equal to (max connection count) / 10. For example, for Unit1, if there are 1,000 connection counts, then we have 1000 / 10 = 100 groups.

Send to group brings a routing cost to Azure Web PubSub Service because it has to find the target connections through a distributed data structure. As the sending connections increase, the cost increases.

Big group

For send to big group, the outbound bandwidth becomes the bottleneck before hitting the routing cost limit. The following table lists the maximum outbound bandwidth.

Send to big group Unit1 Unit2 Unit5 Unit10 Unit20 Unit50 Unit100
Connections 1,000 2,000 5,000 10,000 20,000 50,000 100,000
Group member count 100 200 500 1,000 2,000 5,000 10,000
Group count 10 10 10 10 10 10 10
Inbound messages per second 30 30 30 30 30 30 30
Inbound bandwidth 60 KBps 60 KBps 60 KBps 60 KBps 60 KBps 60 KBps 60 KBps
Outbound messages per second 3,000 6,000 15,000 30,000 60,000 150,000 300,000
Outbound bandwidth 6 MBps 12 MBps 30 MBps 60 MBps 120 MBps 300 MBps 600 MBps
Small group

The routing cost is significant for sending message to many small groups. Currently, the Azure Web PubSub Service implementation hits the routing cost limit at Unit 50. Adding more CPU and memory doesn't help, so Unit100 can't improve further by design. If you need more inbound bandwidth, contact customer support.

Send to small group Unit1 Unit2 Unit5 Unit10 Unit20 Unit50 Unit100
Connections 1,000 2,000 5,000 10,000 20,000 50,000 100,000
Group member count 10 10 10 10 10 10 10
Group count 100 200 500 1,000 2,000 5,000 10,000
Inbound messages per second 400 800 2,000 4,000 8,000 15,000 15,000
Inbound bandwidth 800 KBps 1.6 MBps 4 MBps 8 MBps 16 MBps 30 MBps 30 MBps
Outbound messages per second 4,000 8,000 20,000 40,000 80,000 150,000 150,000
Outbound bandwidth 8 MBps 16 MBps 40 MBps 80 MBps 160 MBps 300 MBps 300 MBps

Triggering Cloud Event

Service delivers client events to the upstream webhook using the CloudEvents HTTP protocol.

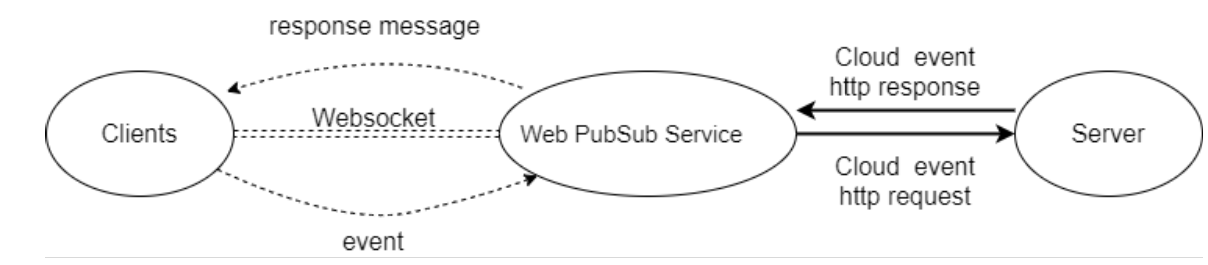

The Upstream Webhook

For every event, it formulates an HTTP POST request to the registered upstream and expects an HTTP response.

Note

Web PubSub also supports HTTP 2.0 for upstream events delivering. The below result is tested using HTTP 1.1. If your app server supports HTTP 2.0, the performance will be better.

Echo

In this case, the app server writes back the original message back in the http response. The behavior of echo determines that the maximum inbound bandwidth is equal to the maximum outbound bandwidth. For details, see the following table.

Echo Unit1 Unit2 Unit5 Unit10 Unit20 Unit50 Unit100
Connections 1,000 2,000 5,000 10,000 20,000 50,000 100,000
Inbound/outbound messages per second 500 1,000 2,500 5,000 10,000 25,000 50,000
Inbound/outbound bandwidth 1 MBps 2 MBps 5 MBps 10 MBps 20 MBps 50 MBps 100 MBps

REST API

Azure Web PubSub provides powerful APIs to manage clients and deliver real-time messages.

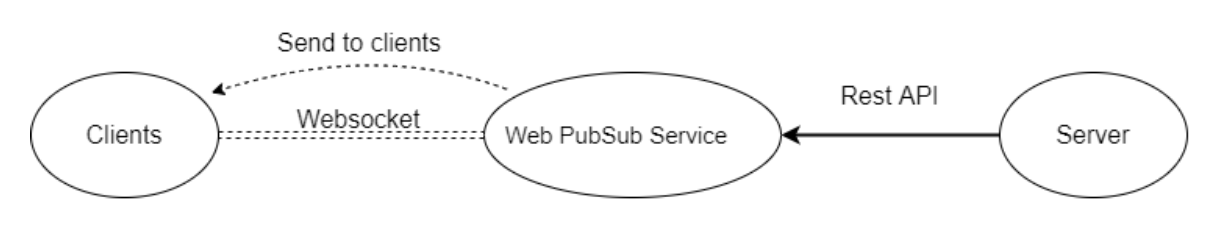

Diagram showing the Web PubSub service overall workflow using REST APIs.

Send to user through REST API

The benchmark assigns usernames to all of the clients before they start connecting to Azure Web PubSub Service.

Send to user through REST API Unit1 Unit2 Unit5 Unit10 Unit20 Unit50 Unit100
Connections 1,000 2,000 5,000 10,000 20,000 50,000 100,000
Inbound/outbound messages per second 180 360 900 1,800 3,600 9,000 18,000
Inbound/outbound bandwidth 360 KBps 720 KBps 1.8 MBps 3.6 MBps 7.2 MBps 18 MBps 36 MBps

Broadcast through REST API

The bandwidth limit is the same as that for send to big group.

Broadcast through REST API Unit1 Unit2 Unit5 Unit10 Unit20 Unit50 Unit100
Connections 1,000 2,000 5,000 10,000 20,000 50,000 100,000
Inbound messages per second 3 3 3 3 3 3 3
Outbound messages per second 3,000 6,000 15,000 30,000 60,000 150,000 300,000
Inbound bandwidth 6 KBps 6 KBps 6 KBps 6 KBps 6 KBps 6 KBps 6 KBps
Outbound bandwidth 6 MBps 12 MBps 30 MBps 60 MBps 120 MBps 300 MBps 600 MBps
