Azure Socket.IO Admin UI

Socket.IO Admin UI is a website tool developed by Socket.IO official team and it can be used to have an overview of the state of your Socket.IO deployment. See how it works and explore its advanced usage in Socket.IO Admin UI Doc.

Azure Socket.IO Admin UI is a customized version of it for Azure Socket.IO.

Deploy the website

Azure Socket.IO Admin UI doesn't have a hosted version so far. Users should host the website by themselves.

The static website files could be either downloaded from release or built from source code:

Download the released version

1. Download the released zip file such as azure-socketio-admin-ui-0.1.0.zip from release page

2. Extract the zip file

Build from source code

1. Clone the repository

   git clone https://github.com/Azure/azure-webpubsub.git


2. Build the project

   cd tools/azure-socketio-admin-ui
   yarn install
   yarn build


3. Host the static files using any HTTP server. Let's use a tiny static HTTP server as an example:

   cd dist
   npm install -g http-server
   http-server


   The http server is hosted on port 8080 by default.

4. Visit http://localhost:8080 in browser

Update server-side code

1. install the @socket.io/admin-ui package:

   npm i @socket.io/admin-ui


2. Invoke the instrument method on your Socket.IO server:

   const azure = require("@azure/web-pubsub-socket.io");
   const { Server } = require("socket.io");
   const { instrument } = require("@socket.io/admin-ui");
   const httpServer = require('http').createServer(app);

   const wpsOptions = {
       hub: "eio_hub",
       connectionString: process.argv[2] || process.env.WebPubSubConnectionString
   };

   const io = await new Server(httpServer).useAzureSocketIO(wpsOptions);
   instrument(io, { auth: false, mode: "development" });

   // Note: The next three lines are necessary to make the development mode work
   Namespace.prototype["fetchSockets"] = async function() {
       return this.local.fetchSockets();
   };

   httpServer.listen(3000);


Open Admin UI website

1. Visit http://localhost:8080 in browser.

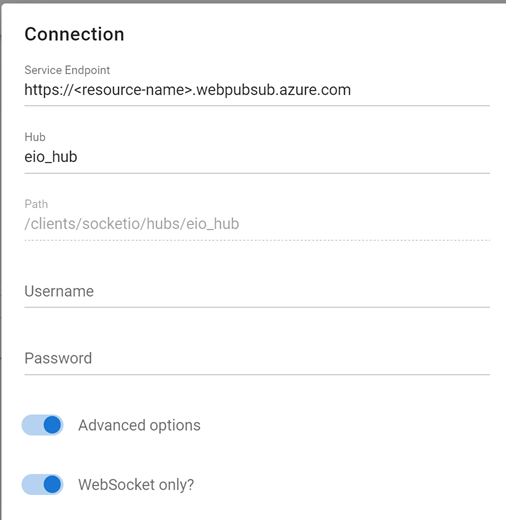

2. You should see the following modal:

3. Fill in your service endpoint and hub name.
