Recover files from Azure to a Windows Server

Azure Backup enables the recovery of individual items from backups of your Windows Server. Recovering individual files is helpful if you must quickly restore files that are accidentally deleted. This tutorial covers how you can use the Microsoft Azure Recovery Services Agent (MARS) agent to recover items from backups you have already performed in Azure. In this tutorial you learn how to:

  • Initiate recovery of individual items
  • Select a recovery point
  • Restore items from a recovery point

This tutorial assumes you've already performed the steps to Back up a Windows Server to Azure and have at least one backup of your Windows Server files in Azure.

Initiate recovery of individual items

A helpful user interface wizard named Microsoft Azure Backup is installed with the Microsoft Azure Recovery Services (MARS) agent. The Microsoft Azure Backup wizard works with the Microsoft Azure Recovery Services (MARS) agent to retrieve backup data from recovery points stored in Azure. Use the Microsoft Azure Backup wizard to identify the files or folders you want to restore to Windows Server.

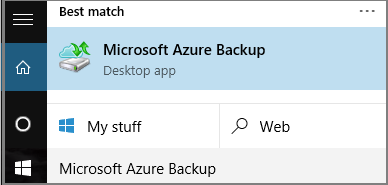

  1. Open the Microsoft Azure Backup snap-in. You can find it by searching your machine for Microsoft Azure Backup.

    Microsoft Azure Backup snap-in

  2. In the wizard, select Recover Data in the Actions Pane of the agent console to start the Recover Data wizard.

    Select Recover Data

  3. On the Getting Started page, select This server (server name) and select Next.

  4. On the Select Recovery Mode page, select Individual files and folders and then select Next to begin the recovery point selection process.

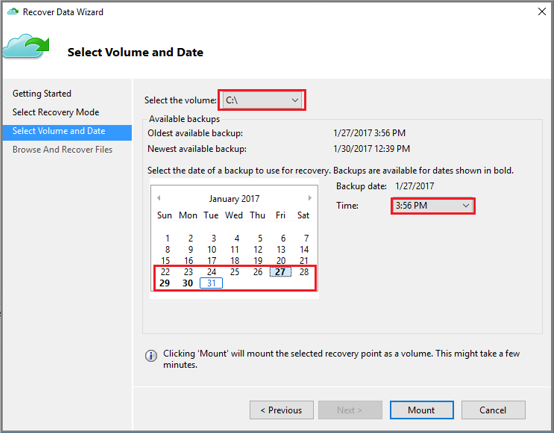

  5. On the Select Volume and Date page, select the volume that contains the files or folders you want to restore, and select Mount. Select a date, and select a time from the drop-down menu that corresponds to a recovery point. Dates in bold indicate the availability of at least one recovery point on that day.

    Select volume and date

    When you select Mount, Azure Backup makes the recovery point available as a disk. Browse and recover files from the disk.

Restore items from a recovery point

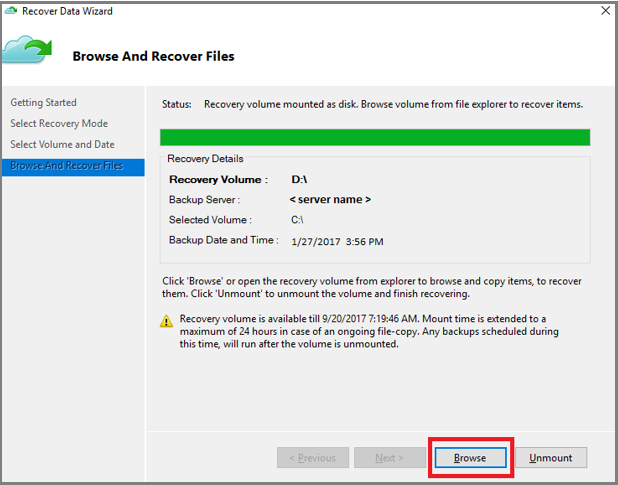

  1. Once the recovery volume is mounted, select Browse to open Windows Explorer and find the files and folders you wish to recover.

    Select Browse

    You can open the files directly from the recovery volume and verify the files.

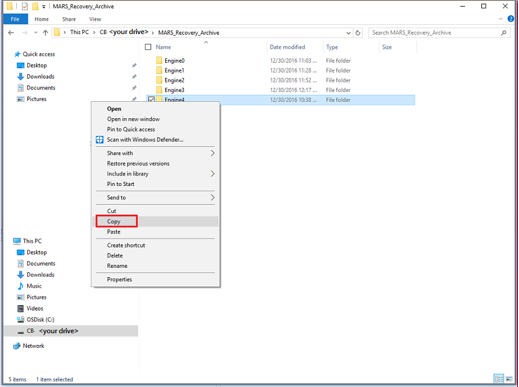

  2. In Windows Explorer, copy the files and folders you want to restore and paste them to any desired location on the server.

    Copy the files and folders

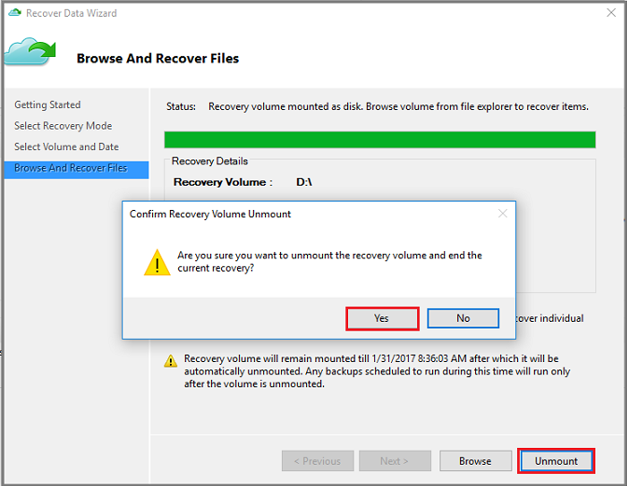

  3. When you're finished restoring the files and folders, on the Browse and Recovery Files page of the Recover Data wizard, select Unmount.

    Select unmount

  4. Select Yes to confirm that you want to unmount the volume.

    Once the snapshot is unmounted, Job Completed appears in the Jobs pane in the agent console.

Next steps

This completes the tutorials on backing up and restoring Windows Server data to Azure. To learn more about Azure Backup, see the PowerShell sample for backing up encrypted virtual machines.
