Set up call monitoring and alerting

This article describes how Azure Communication Services Calling customers set-up monitoring and alerting for their calls. Follow these steps to ensure a smooth and effective setup process.

Prerequisite: enable call logging and diagnostics

Before configuring monitoring, ensure that call logging and diagnostics are enabled for your Direct Routing setup. This process involves configuring Azure Communication Services to collect call data. For detailed instructions, see Enable Azure Monitor.

Step-by-step instructions

Access the monitoring dashboard

  1. In the Azure portal, navigate to your Azure Communication Service Resource group.
  2. On the navigation blade, click Monitoring and then click Logs.
  3. In the query editor, enter a Kusto Query Language (KQL) for what you want to monitor. The following sample query checks for call failure rates aggregated per hour and filters the results to show only where the failure rate exceeds 10%:
   ACSCallSummary
   | summarize UnsuccessfulCalls = countif(ParticipantEndReason != 0), TotalCalls = count() by bin(TimeGenerated, 1h)
   | extend FailureRate = (UnsuccessfulCalls * 100.0) / TotalCalls
   | where FailureRate > 10

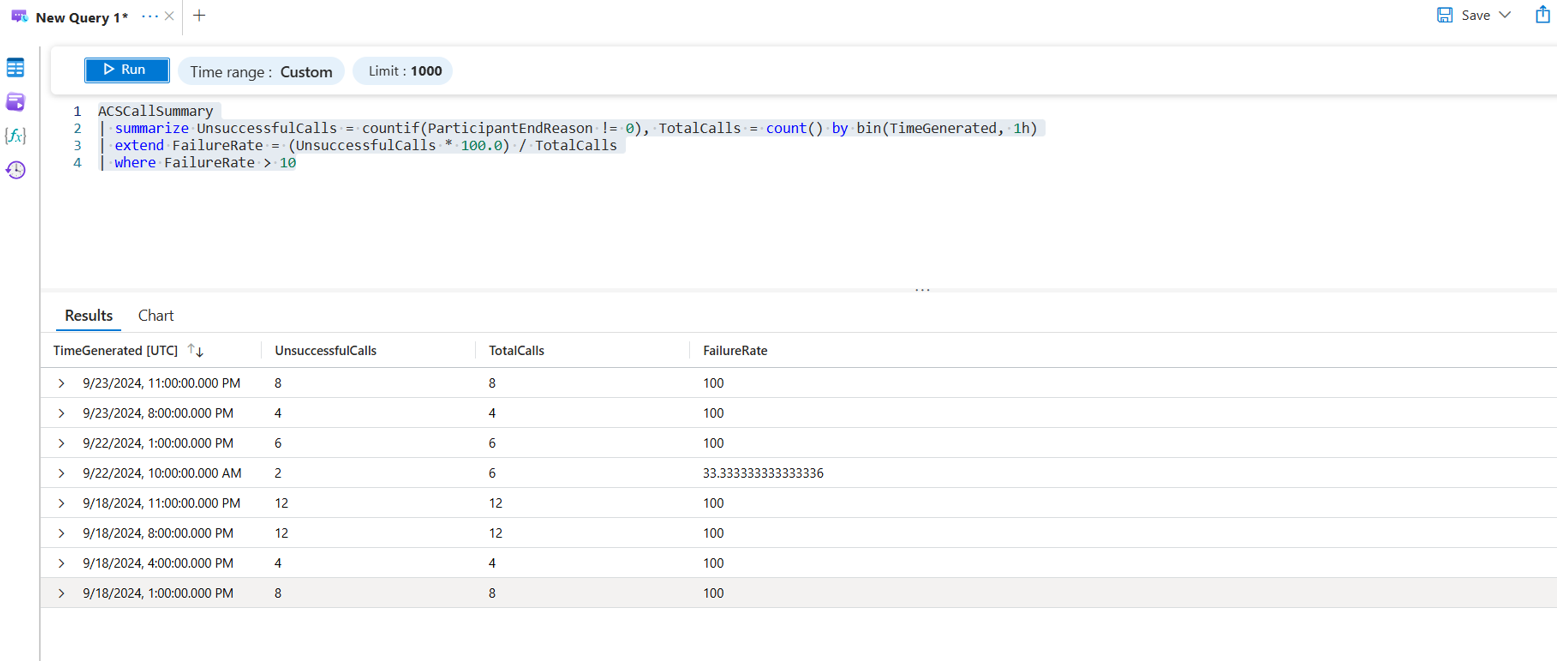

Screen capture of an example Kusto query for call failure rates.

Configure alerts

  1. On the navigation blade, click Monitoring and then click Alerts.

  2. Click Create alert rule.

  3. For Signal name, select Custom log search.

  4. For Search query, provide the query you ran in the previous section.

  5. Provide measurement criteria, for example:

    • Measure: FailureRate
    • Aggregation Type: Total
    • Aggregation granularity: 1 hour

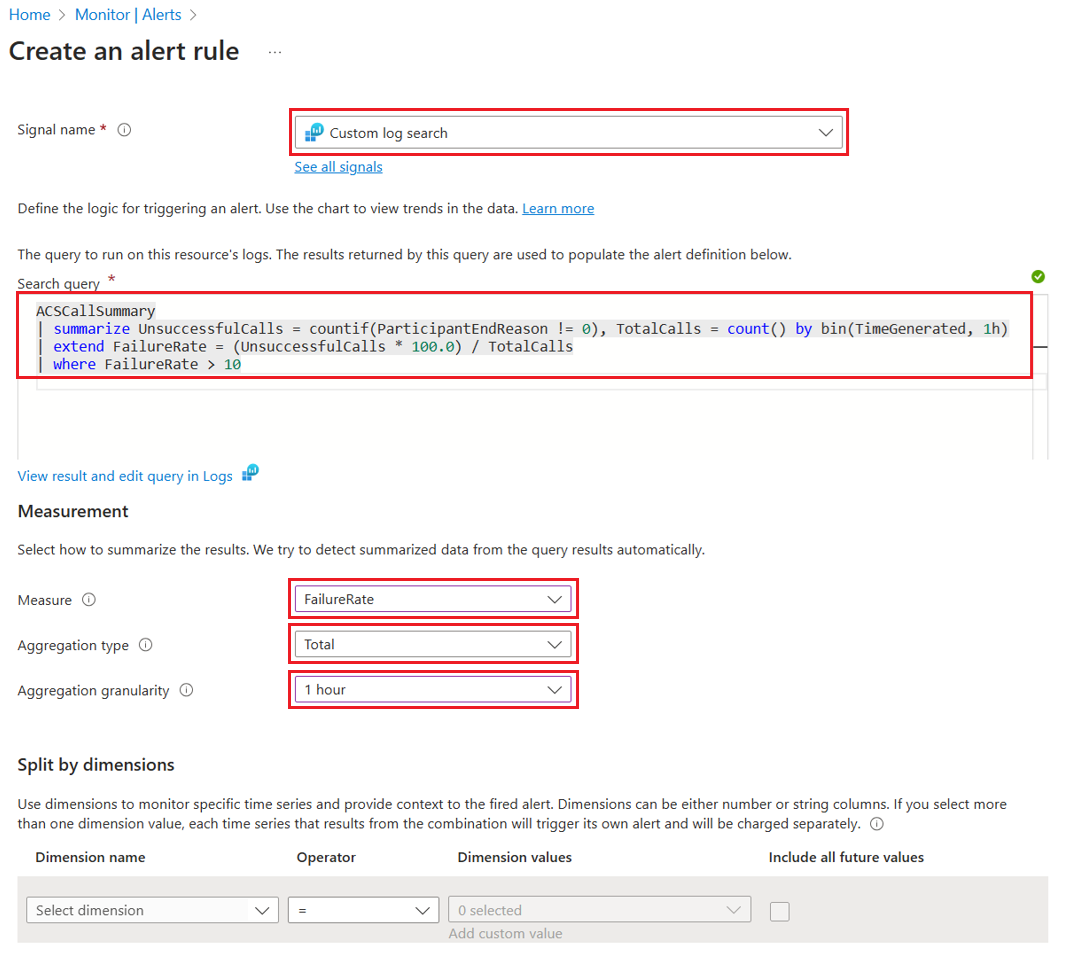

    Screen capture of the create an alert rule showing signal name, search query, and measurement criteria.

  6. Adjust the alert logic to suit your requirements. When complete, click Next: Actions when done.

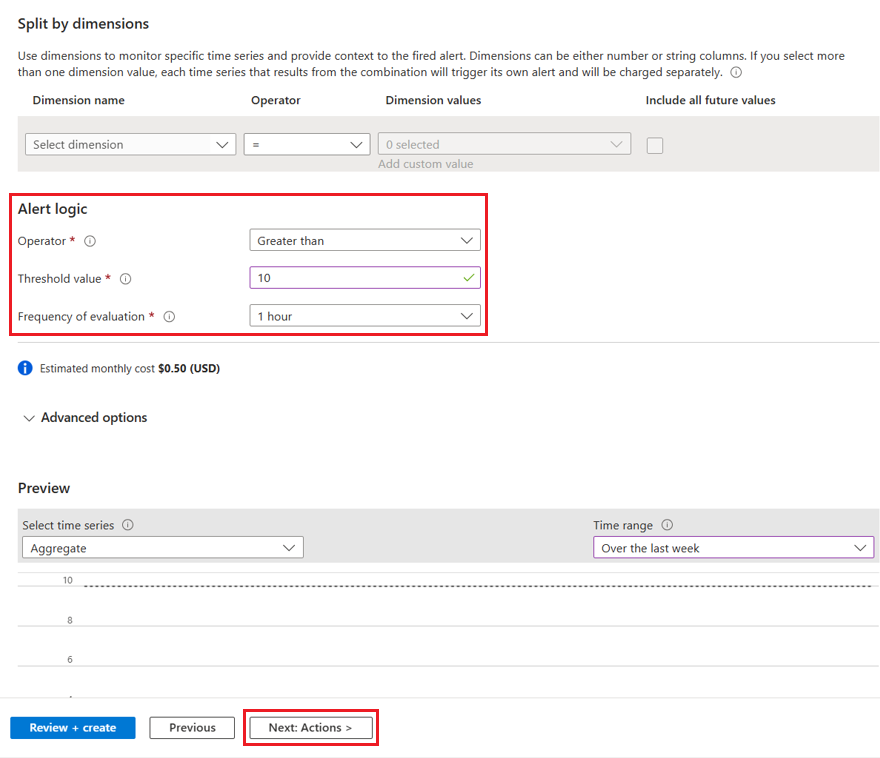

Screen capture of split by dimensions including alert logic.

Create action group

  1. From the Actions screen, click Create Action Group.
  2. Select your Subscription, Resource group, and Region.
  3. Provide an Action group name and Display name, then click Next: Notifications.

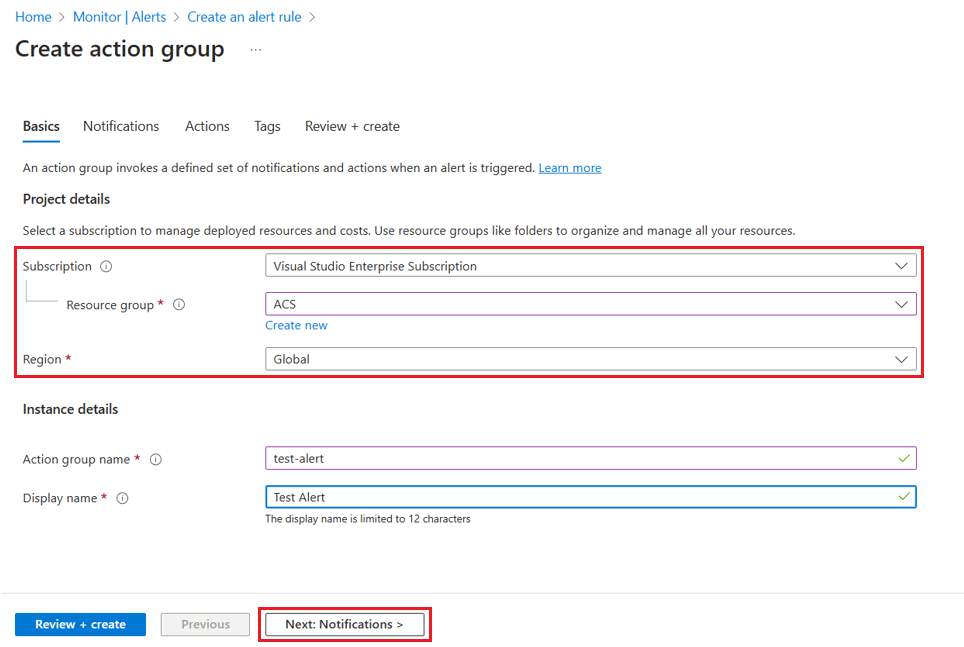

Screen capture of create action group showing project details of subscription, resource group, and region.

Set up notifications

  1. Choose how you want to be notified. When complete, click Review + create, and wait for your alert rule to be created.

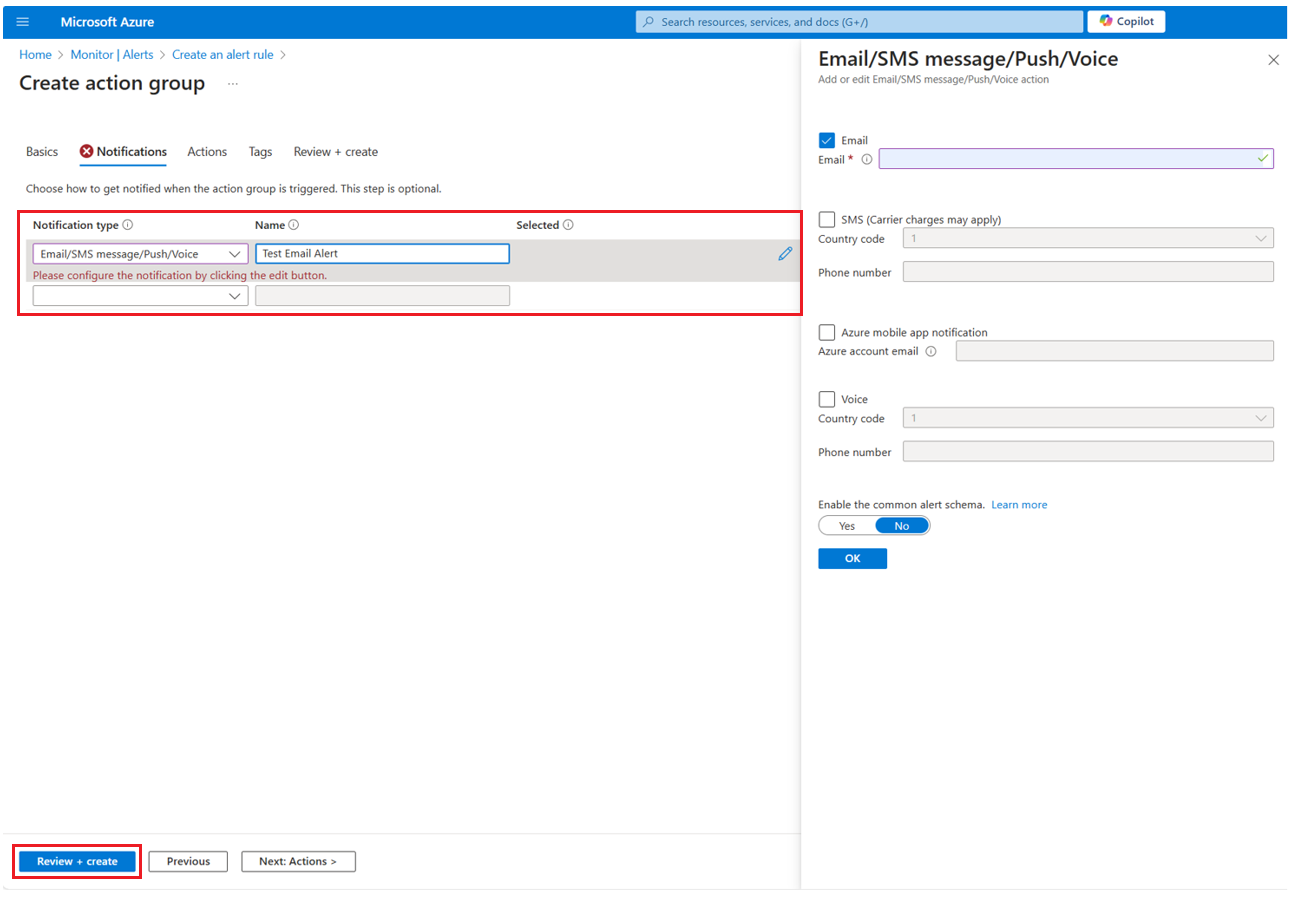

    Screen capture of how to set up notifications and review + create the notification.

  2. When complete, click Next: Details.

  3. Provide more details as shown in the following screen.

  4. Click Review + create.

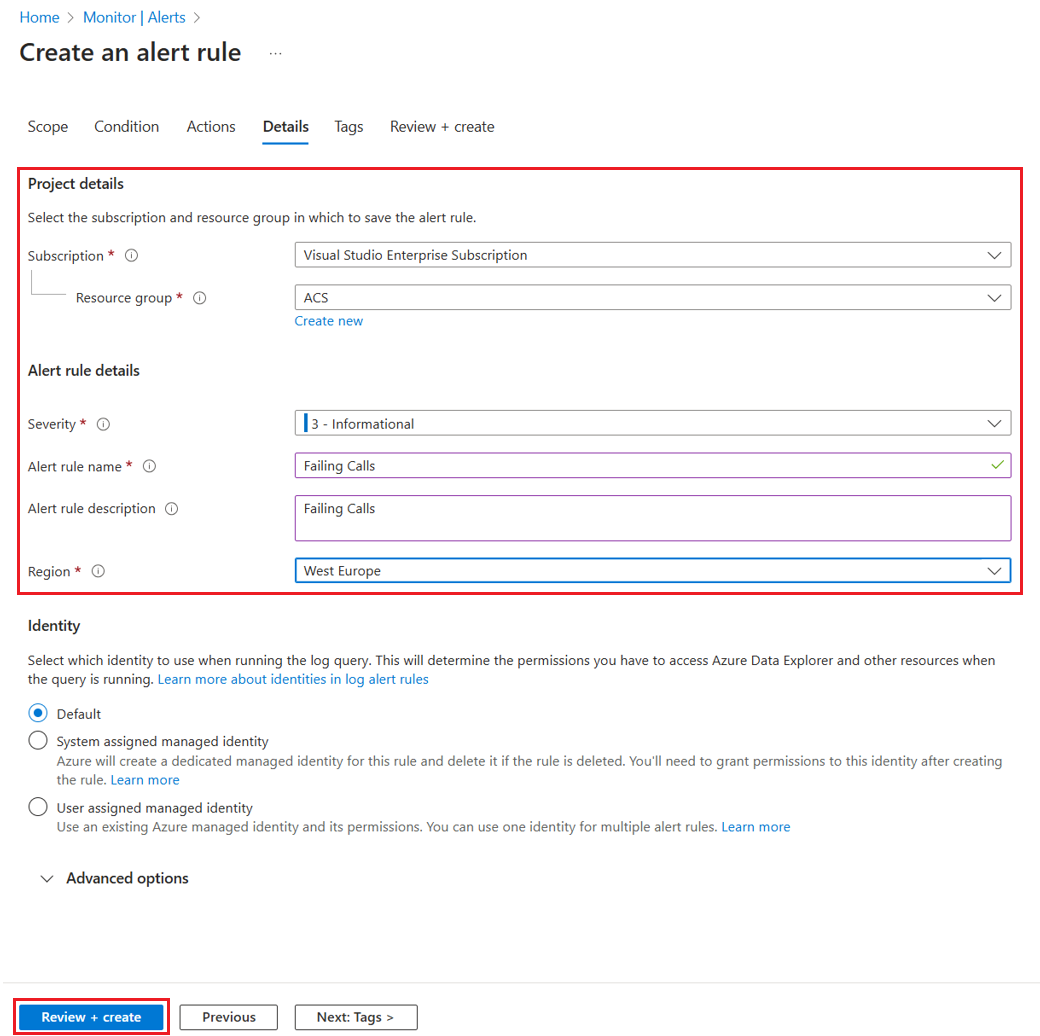

Screen capture showing set up alert rule details.

Congratulations, you can now monitor your Azure Communication Services calling!

A sample email alert looks like this when triggered: Email Alert.

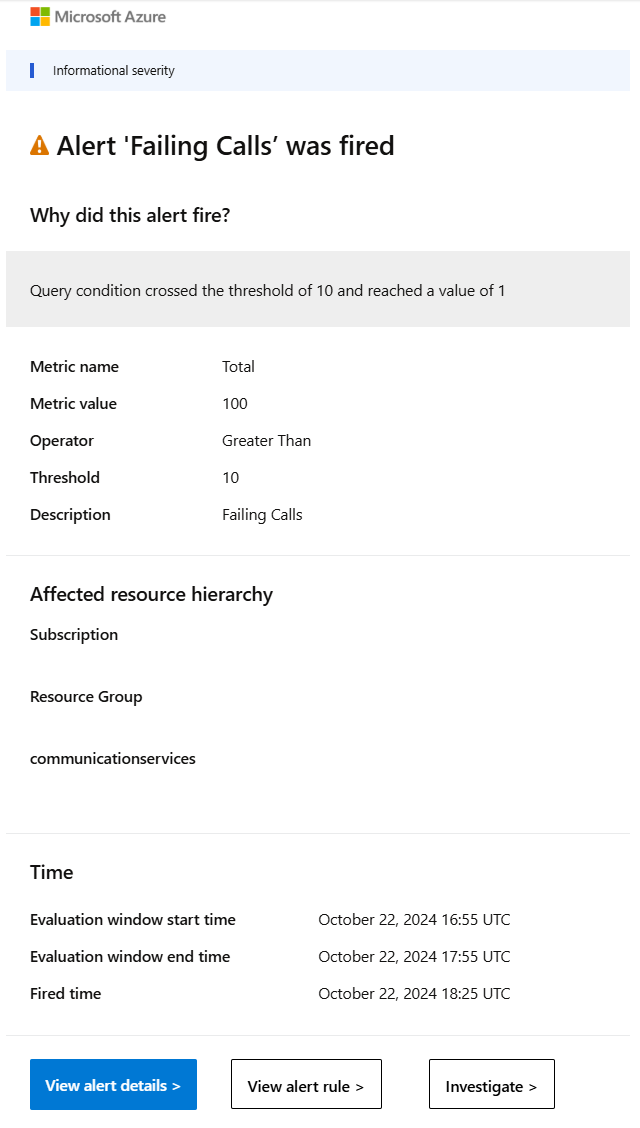

Screen capture of a sample email alert showing the reason and affected resource hierarchy.
