Metrics overview

Azure Communication Services currently provides metrics for all ACS primitives. Azure Metrics Explorer can be used to plot your own charts, investigate abnormalities in your metric values, and understand your API traffic by using the metrics data that Chat and SMS requests emit.

Where to find metrics

Primitives in Azure Communication Services emit metrics for API requests. These metrics can be found in the Metrics blade under your Communication Services resource. You can also create permanent dashboards using the workbooks blade under your Communication Services resource.

Metric definitions

Today there are various types of requests that are represented within Communication Services metrics: Chat API requests , SMS API requests , Authentication API requests and Network Traversal API requests.

All API request metrics contain three dimensions that you can use to filter your metrics data. These dimensions can be aggregated together using the Count aggregation type and support all standard Azure Aggregation time series including Sum, Average, Min, and Max.

More information on supported aggregation types and time series aggregations can be found Advanced features of Azure Metrics Explorer

• Operation - All operations or routes that can be called on the Azure Communication Services Chat gateway.
• Status Code - The status code response sent after the request.
• StatusSubClass - The status code series sent after the response.

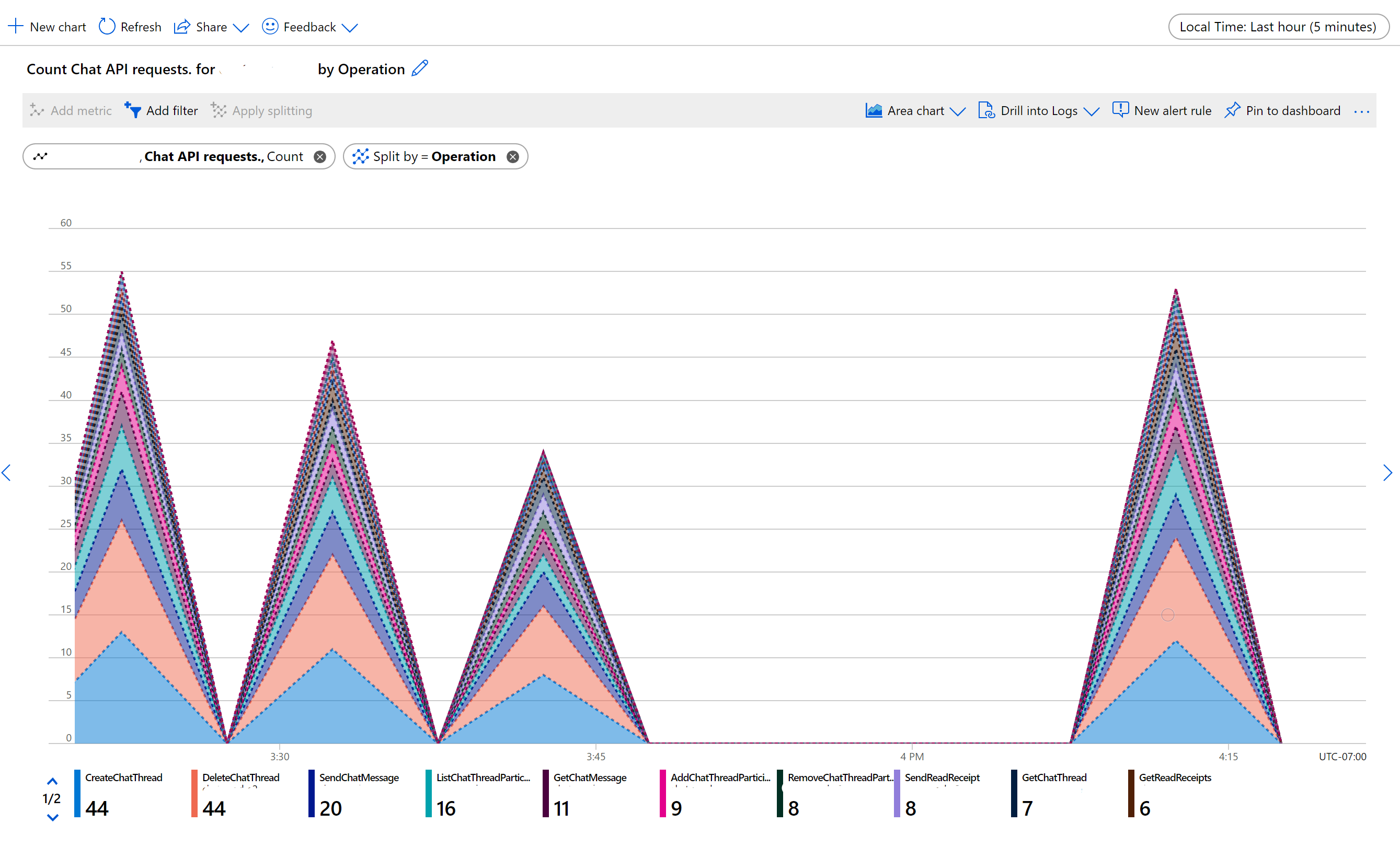

Chat API request metric operations

The following operations are available on Chat API request metrics:

Operation / Route	Description
GetChatMessage	Gets a message by message id.
ListChatMessages	Gets a list of chat messages from a thread.
SendChatMessage	Sends a chat message to a thread.
UpdateChatMessage	Updates a chat message.
DeleteChatMessage	Deletes a chat message.
GetChatThread	Gets a chat thread.
ListChatThreads	Gets the list of chat threads of a user.
UpdateChatThread	Updates a chat thread's properties.
CreateChatThread	Creates a chat thread.
DeleteChatThread	Deletes a thread.
GetReadReceipts	Gets read receipts for a thread.
SendReadReceipt	Sends a read receipt event to a thread, on behalf of a user.
SendTypingIndicator	Posts a typing event to a thread, on behalf of a user.
ListChatThreadParticipants	Gets the members of a thread.
AddChatThreadParticipants	Adds thread members to a thread. If members already exist, no change occurs.
RemoveChatThreadParticipant	Remove a member from a thread.

If a request is made to an operation that isn't recognized, you'll receive a "Bad Route" value response.

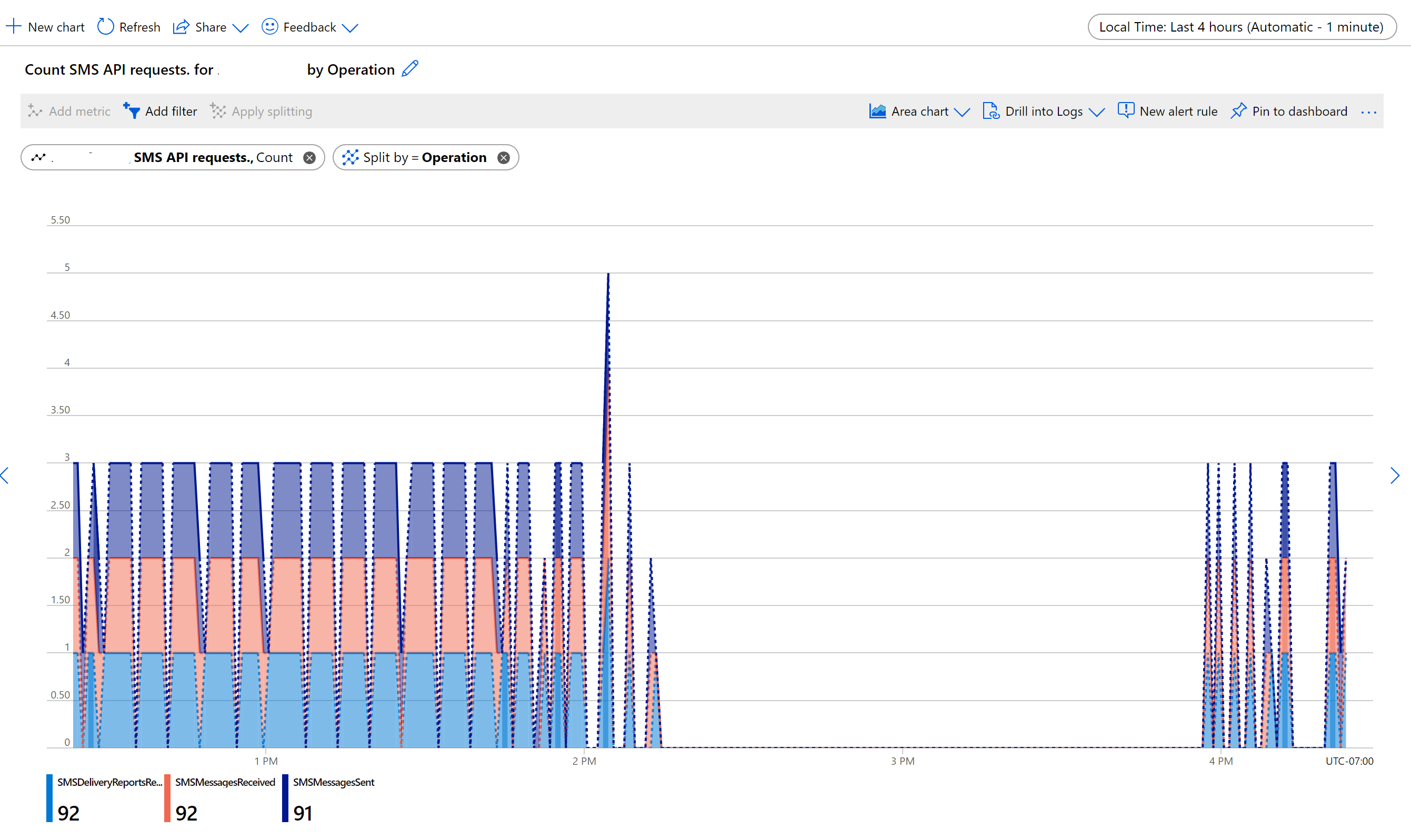

SMS API requests

The following operations are available on SMS API request metrics:

Operation / Route	Description
SMSMessageSent	Sends a SMS message.
SMSDeliveryReportsReceived	Gets SMS Delivery Reports
SMSMessagesReceived	Gets SMS messages.

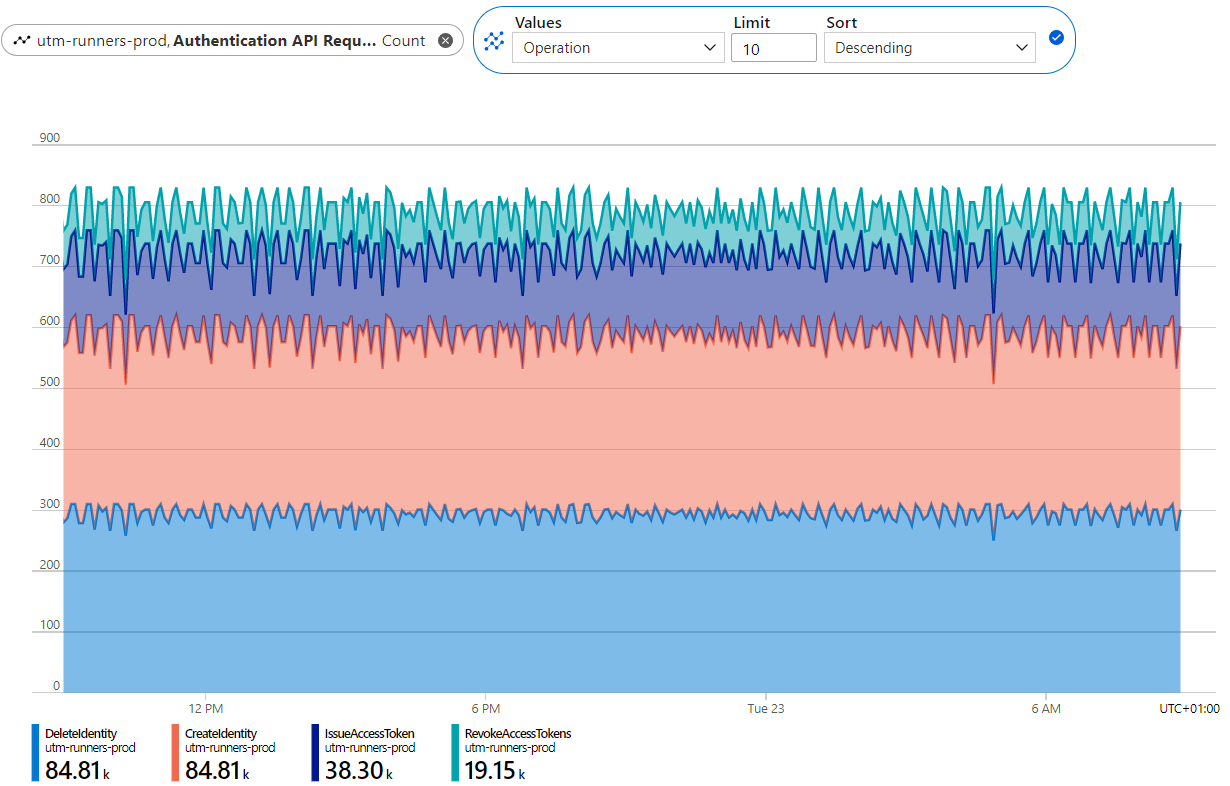

Authentication API requests

The following operations are available on Authentication API request metrics:

Operation / Route	Description
CreateIdentity	Creates an identity representing a single user.
DeleteIdentity	Deletes an identity.
CreateToken	Creates an access token.
RevokeToken	Revokes all access tokens created for an identity before a time given.
ExchangeTeamsUserAccessToken	Exchange an Azure Active Directory (Azure AD) access token of a Teams user for a new Communication Identity access token with a matching expiration time.

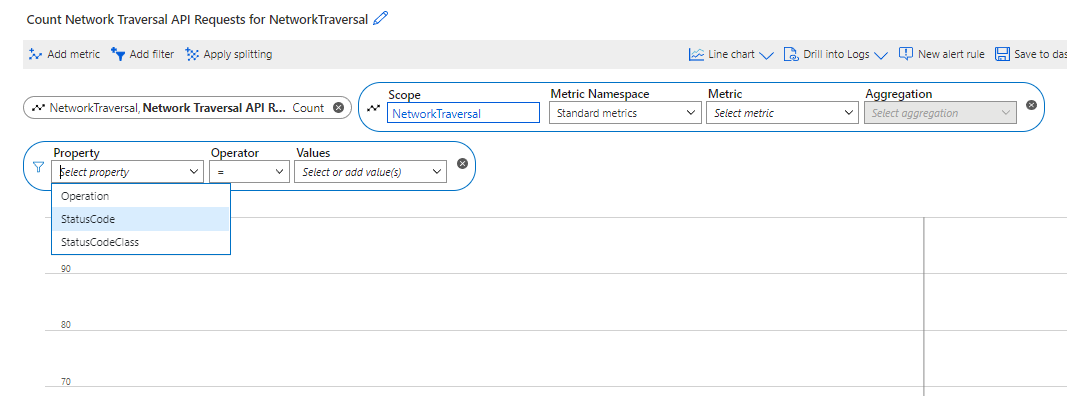

Network Traversal API requests

The following operations are available on Network Traversal API request metrics:

Operation / Route	Description
IssueRelayConfiguration	Issue configuration for an STUN/TURN server.

Next steps

• Learn more about Data Platform Metrics
