Read data from Azure Cosmos DB for Apache Cassandra tables using Spark

APPLIES TO: Cassandra

This article describes how to read data stored in Azure Cosmos DB for Apache Cassandra from Spark.

API for Cassandra configuration

Set below spark configuration in your notebook cluster. It's one time activity.

 spark.cassandra.connection.port  10350
 spark.cassandra.connection.ssl.enabled  true
 spark.cassandra.auth.username  YOUR_ACCOUNT_NAME
 spark.cassandra.auth.password  YOUR_ACCOUNT_KEY
// if using Spark 2.x
// spark.cassandra.connection.factory

//Throughput-related...adjust as needed
 spark.cassandra.output.batch.size.rows  1
// spark.cassandra.connection.connections_per_executor_max  10   // Spark 2.x
 spark.cassandra.connection.remoteConnectionsPerExecutor  10   // Spark 3.x
 spark.cassandra.output.concurrent.writes  1000
 spark.cassandra.concurrent.reads  512
 spark.cassandra.output.batch.grouping.buffer.size  1000
 spark.cassandra.connection.keep_alive_ms  600000000


If you are using Spark 3.x, you do not need to install the Azure Cosmos DB helper and connection factory. You should also use remoteConnectionsPerExecutor instead of connections_per_executor_max for the Spark 3 connector (see above).


The Spark 3 samples shown in this article have been tested with Spark version 3.2.1 and the corresponding Cassandra Spark Connector com.datastax.spark:spark-cassandra-connector-assembly_2.12:3.2.0. Later versions of Spark and/or the Cassandra connector may not function as expected.

Dataframe API

Read table using command

import org.apache.spark.sql.cassandra._
//Spark connector
import com.datastax.spark.connector._
import com.datastax.spark.connector.cql.CassandraConnector

//if using Spark 2.x, CosmosDB library for multiple retry

val readBooksDF = sqlContext
  .options(Map( "table" -> "books", "keyspace" -> "books_ks"))


Read table using

val readBooksDF ="books", "books_ks", "").load()

Read specific columns in table

val readBooksDF = spark
  .options(Map( "table" -> "books", "keyspace" -> "books_ks"))
  .select("book_name","book_author", "book_pub_year")


Apply filters

You can push down predicates to the database to allow for better optimized Spark queries. A predicate is a condition on a query that returns true or false, typically located in the WHERE clause. A predicate push down filters the data in the database query, reducing the number of entries retrieved from the database and improving query performance. By default the Spark Dataset API will automatically push down valid WHERE clauses to the database.

val df ="books", "books_ks").load
val dfWithPushdown = df.filter(df("book_pub_year") > 1891)

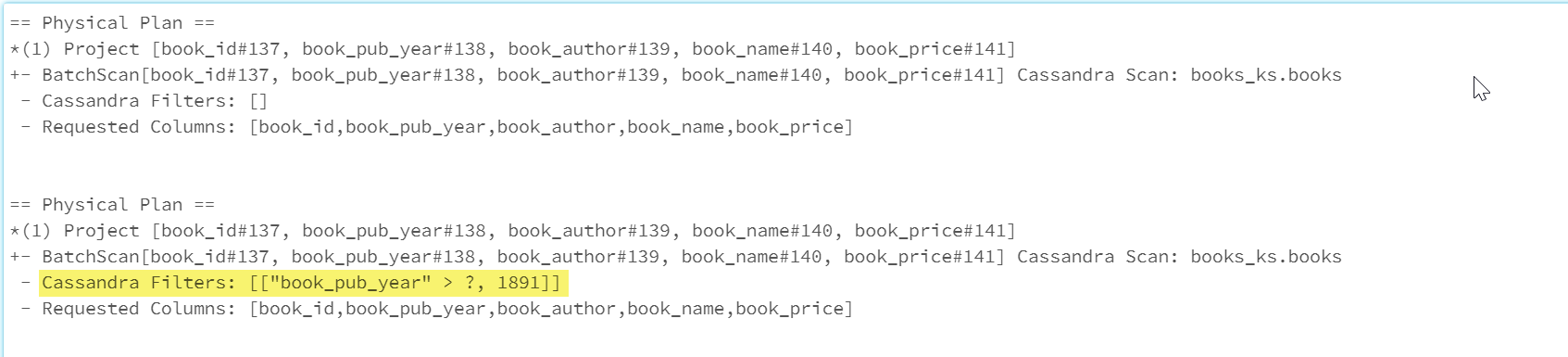

The Cassandra Filters section of the physical plan includes the pushed down filter.



Read table

val bookRDD = sc.cassandraTable("books_ks", "books")

Read specific columns in table

val booksRDD = sc.cassandraTable("books_ks", "books").select("book_id","book_name").cache

SQL Views

Create a temporary view from a dataframe

  .options(Map( "table" -> "books", "keyspace" -> "books_ks"))

Run queries against the view

select * from books_vw where book_pub_year > 1891

Next steps

The following are additional articles on working with Azure Cosmos DB for Apache Cassandra from Spark:
