Data encryption in Azure Cosmos DB
APPLIES TO: NoSQL MongoDB Cassandra Gremlin Table
Encryption at rest is a phrase that commonly refers to the encryption of data on nonvolatile storage devices, such as solid state drives (SSDs) and hard disk drives (HDDs). Azure Cosmos DB stores its primary databases on SSDs. Its media attachments and backups are stored in Azure Blob storage, which is generally backed up by HDDs. With the release of encryption at rest for Azure Cosmos DB, all your databases, media attachments, and backups are encrypted. Your data is now encrypted in transit (over the network) and at rest (nonvolatile storage), giving you end-to-end encryption.
As a PaaS service, Azure Cosmos DB is very easy to use. Because all user data stored in Azure Cosmos DB is encrypted at rest and in transport, you don't have to take any action. Another way to put this is that encryption at rest is "on" by default. There are no controls to turn it off or on. Azure Cosmos DB uses AES-256 encryption on all regions where the account is running. We provide this feature while we continue to meet our availability and performance SLAs. Data stored in your Azure Cosmos DB account is automatically and seamlessly encrypted with keys managed by Microsoft (service-managed keys). Optionally, you can choose to add a second layer of encryption with your own keys as described in the customer-managed keys article.
Implementation of encryption at rest for Azure Cosmos DB

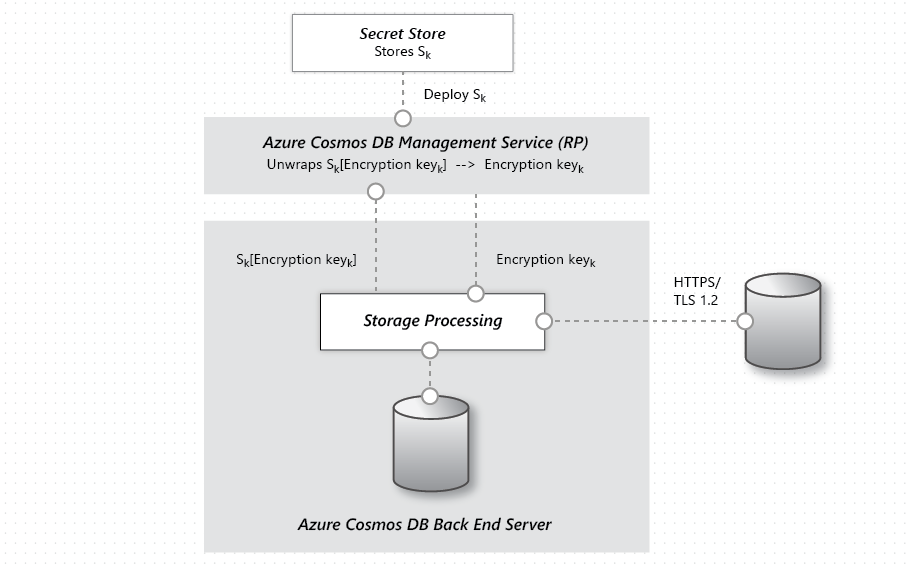

Encryption at rest is implemented by using a number of security technologies, including secure key storage systems, encrypted networks, and cryptographic APIs. Systems that decrypt and process data have to communicate with systems that manage keys. The diagram shows how storage of encrypted data and the management of keys is separated.
The basic flow of a user request is as follows:
- The user database account is made ready, and storage keys are retrieved via a request to the Management Service Resource Provider.
- A user creates a connection to Azure Cosmos DB via HTTPS/secure transport. (The SDKs abstract the details.)
- The user sends a JSON document to be stored over the previously created secure connection.
- The JSON document is indexed unless the user has turned off indexing.
- Both the JSON document and index data are written to secure storage.
- Periodically, data is read from the secure storage and backed up to the Azure Encrypted Blob Store.
Frequently asked questions
Q: How much more does Azure Storage cost if Storage Service Encryption is enabled?
A: There is no additional cost.
Q: Who manages the encryption keys?
A: Data stored in your Azure Cosmos DB account is automatically and seamlessly encrypted with keys managed by Microsoft using service-managed keys. Optionally, you can choose to add a second layer of encryption with keys you manage using customer-managed keys or CMK.
Q: How often are encryption keys rotated?
A: Microsoft has a set of internal guidelines for encryption key rotation, which Azure Cosmos DB follows. The specific guidelines are not published. Microsoft does publish the Security Development Lifecycle (SDL), which is seen as a subset of internal guidance and has useful best practices for developers.
Q: Can I use my own encryption keys?
A: Yes, this feature is now available for new Azure Cosmos DB accounts and this should be done at the time of account creation. Please go through Customer-managed Keys document for more information.
Q: What regions have encryption turned on?
A: All Azure Cosmos DB regions have encryption turned on for all user data.
Q: Does encryption affect the performance latency and throughput SLAs?
A: There is no impact or changes to the performance SLAs now that encryption at rest is enabled for all existing and new accounts. You can read more on the SLA for Azure Cosmos DB page to see the latest guarantees.
Q: Does the local emulator support encryption at rest?
A: The emulator is a standalone dev/test tool and does not use the key management services that the managed Azure Cosmos DB service uses. Our recommendation is to enable BitLocker on drives where you are storing sensitive emulator test data. The emulator supports changing the default data directory as well as using a well-known location.
- You can choose to add a second layer of encryption with your own keys, to learn more, see the customer-managed keys article.
- For an overview of Azure Cosmos DB security and the latest improvements, see Azure Cosmos DB database security.
- For more information about Microsoft certifications, see the Azure Trust Center.
